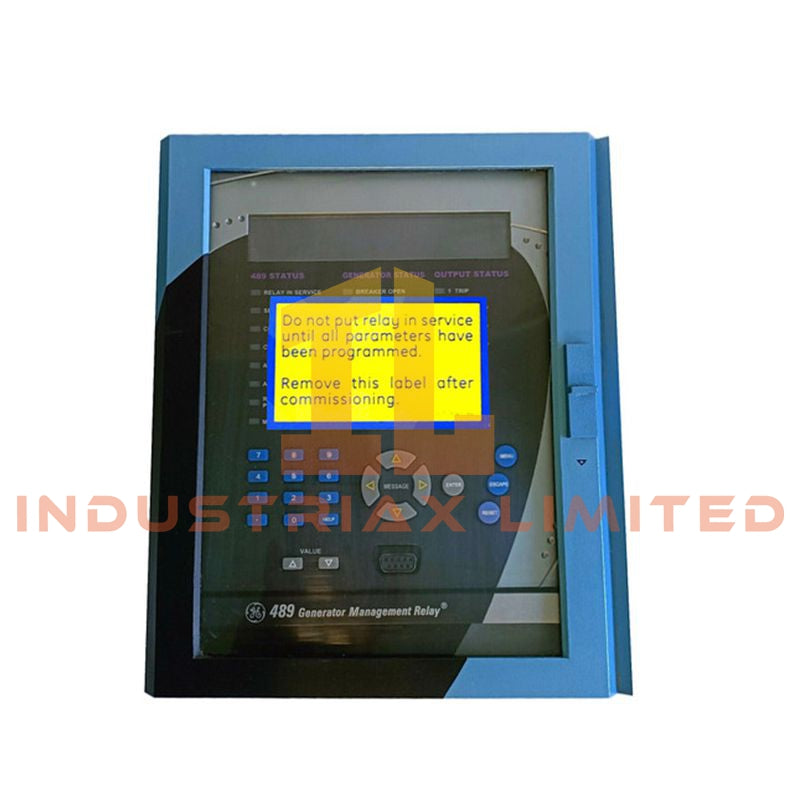

GE Multilin 489-P1-HI-A20-E Generator Management Relay

The GE Multilin 489-P1-HI-A20-E, also cataloged as the 489 Generator Management Relay, operates as a dedicated hardware component for generator protection, measurement, and trip control within GE Multilin protection relay systems. The unit processes CT inputs, analog signals, RTD measurements, and digital control inputs to execute generator electrical protection functions.

Hardware Specifications

Parameter	Specification
Model	489-P1-HI-A20-E
Brand	GE Multilin
Weight	8 kg
Dimensions	1/2 19-inch rack unit depth, 3U height drawout case
Operating Temp	-40 to 60 deg C
Power Consumption	Typical 15 W, maximum 35 W
Product Type	Generator Management Relay
Phase Current Inputs	1 A CT secondary inputs
Control Power Supply	90-300 VDC or 70-265 VAC, 48-62 Hz
Analog Outputs	Four isolated 4-20 mA assignable outputs
Analog Inputs	4-20 mA DC transducer inputs
RTD Inputs	12 inputs supporting Ni, Pt, and Cu RTD types
Digital Communications	RS232 front port, RS485/RS422 rear ports, Modbus RTU
Output Relays	Six configurable relays for trip, auxiliary, service, and alarm functions
Mounting Method	Panel mount or 19-inch rack mount
Protection Functions	ANSI 87G, 50/51, 50G/51G, 27/59, 81O/81U, 32, 40, 46, 49/38

Deterministic Networks and Firmware Compatibility

The GE Multilin 489-P1-HI-A20-E integrates industrial control communication functions through RS485/RS422 serial interfaces supporting Modbus RTU data exchange. The relay architecture supports firmware flash compatibility for configuration updates and maintains deterministic protection data handling between measurement processing, logic execution, and external monitoring systems.

The relay accepts 1 A phase CT secondary signals and performs digital processing for generator differential protection, overcurrent protection, frequency supervision, power direction detection, and thermal monitoring. The four-channel 4-20 mA analog output subsystem provides isolated signal transmission with 1000 V isolation for external control and monitoring circuits.

Frequently Asked Questions

Q: What type of current input is supported by the 489-P1-HI-A20-E?
A: The relay version identified by the P1 suffix accepts 1 A phase CT secondary inputs for generator protection measurement.

Q: Does the relay support hot-swap replacement during operation?
A: The unit uses a drawout case design; however, removal or insertion procedures must follow the applicable protection system isolation and maintenance requirements.

Q: Which communication interfaces are available for configuration and monitoring?
A: The relay provides an RS232 front configuration port and RS485/RS422 rear communication ports supporting Modbus RTU.

Field Installation Guidelines

Install the relay in a suitable panel or rack location with adequate clearance for the drawout mechanism and wiring access. CT secondary wiring should use dedicated twisted conductors where applicable and maintain separation from high-energy switching circuits.

Connect communication wiring with proper shielding and terminate RS485 networks according to serial bus installation practices. Cable shields should be bonded according to the site grounding method to reduce electrical interference.

Verify control power polarity and voltage range before energization. Confirm CT wiring, RTD connections, analog output assignments, and digital input functions during commissioning using the configured relay settings.
