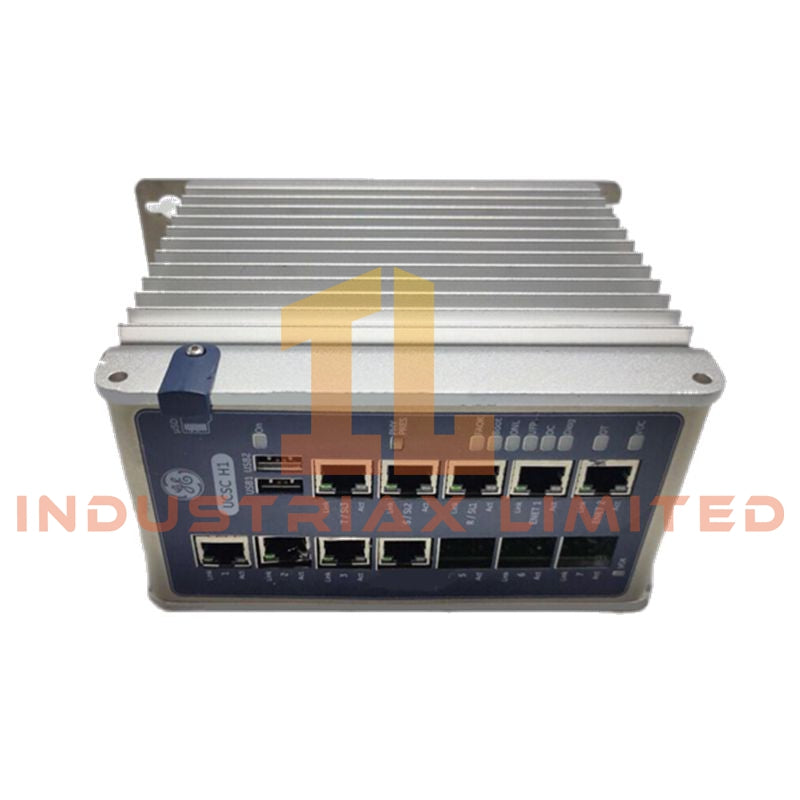

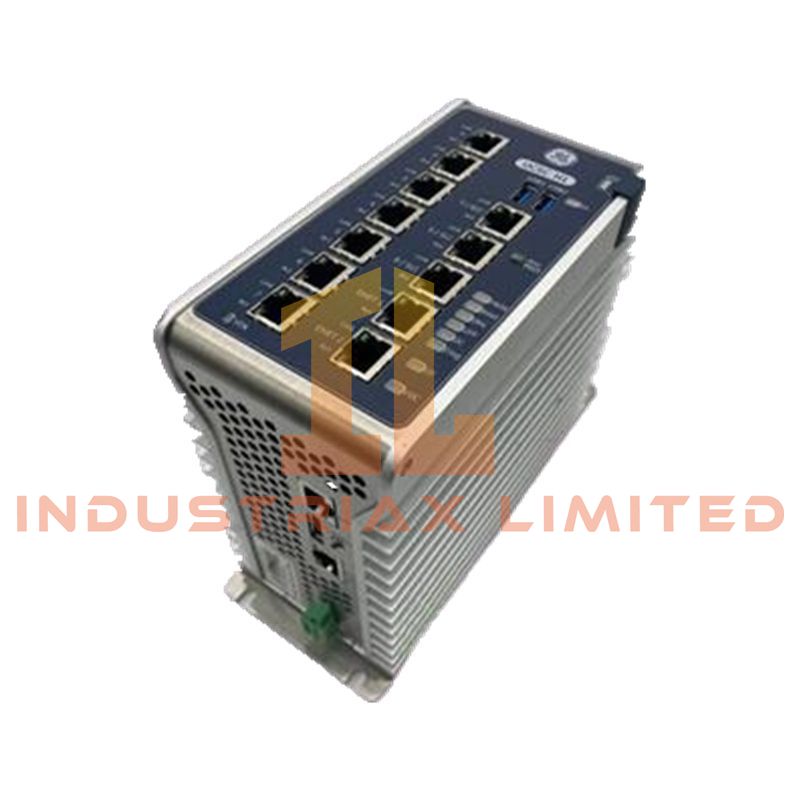

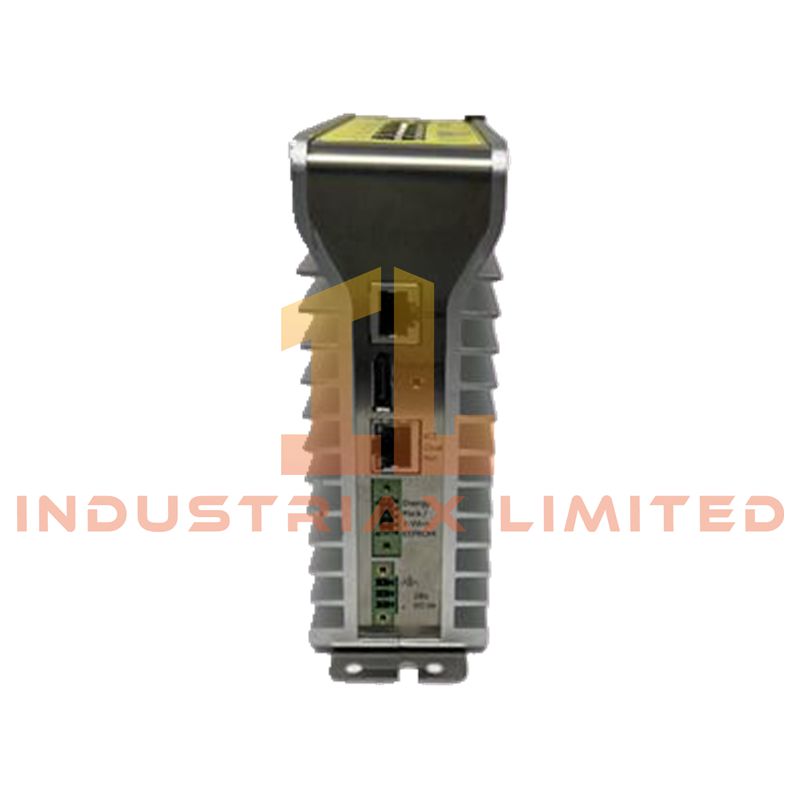

GE IS420UCECH1B-A Mark VIe Port Expansion Controller Module

Configured for distributed control communication in the GE Mark VIe control system, the GE IS420UCECH1B-A (IS420UCECH1B-A Port Expansion Controller Module) provides direct physical and data communication execution through expanded Ethernet-based I/O connectivity and controller processing functions.

Hardware Specifications

Parameter	Specification
Model	IS420UCECH1B-A
Brand	GE (General Electric)
Origin	United States
Weight	0.36 kg
Dimensions	8.2 cm x 12.2 cm x 6 cm
Operating Temp	-40 deg C to +70 deg C
Power Consumption	Max 42 W
Product Type	Port Expansion Controller Modules
Series	Mark VIe / Mark VIeS Control Systems
Processor	AMD G-Series dual-core 1.6 GHz
Memory	2 GB DDR3 SDRAM, 128 GB flash storage
Operating System	QNX Neutrino RTOS
Expansion Ports	7 RJ-45 expansion I/O ports
Communication Interfaces	PROFINET, High-Speed Serial Link, Ethernet
Redundancy Support	Simplex, duplex, and Triple Modular Redundancy (TMR) configurations
Safety Certification	IEC 61508 SIL 2/3, CE, UL, CSA, RoHS

Deterministic Network Communication and I/O Expansion

The IS420UCECH1B-A integrates a UCSC controller with a seven-port expansion interface for Mark VIe distributed control architectures. The module manages high-speed data exchange between controller resources and connected I/O devices through Ethernet-based communication paths. PROFINET and High-Speed Serial Link interfaces support deterministic industrial networks with configured redundancy structures.

Firmware flash compatibility is maintained through the controller storage architecture, allowing approved QNX-based control applications and system configuration files to be loaded according to Mark VIe engineering procedures.

Frequently Asked Questions

Q: What communication functions are provided by the IS420UCECH1B-A?
A: The module provides Ethernet, PROFINET, and High-Speed Serial Link communication interfaces with seven RJ-45 expansion I/O ports for controller network expansion.

Q: Does the IS420UCECH1B-A support redundant control configurations?
A: Yes. The module supports simplex, duplex, and Triple Modular Redundancy (TMR) configurations within compatible Mark VIe control architectures.

Q: What operating environment is supported by this controller module?
A: The module operates with QNX Neutrino RTOS and supports an operating temperature range from -40 deg C to +70 deg C.

Field Installation Guidelines

Install the IS420UCECH1B-A according to the Mark VIe cabinet mechanical layout and verify correct connector engagement before applying power. Ensure the module mounting interface maintains proper grounding continuity with the control cabinet chassis.

Route Ethernet and serial communication cables separately from high-voltage switching conductors. Use shielded industrial communication cables where required and terminate cable shields according to the cabinet grounding design to reduce electromagnetic interference.

Before firmware loading or controller replacement, verify application compatibility, network addressing, and redundancy configuration parameters. Confirm that all connected I/O communication paths are correctly identified before system startup.
