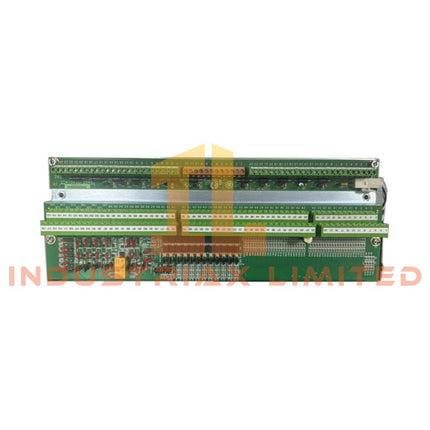

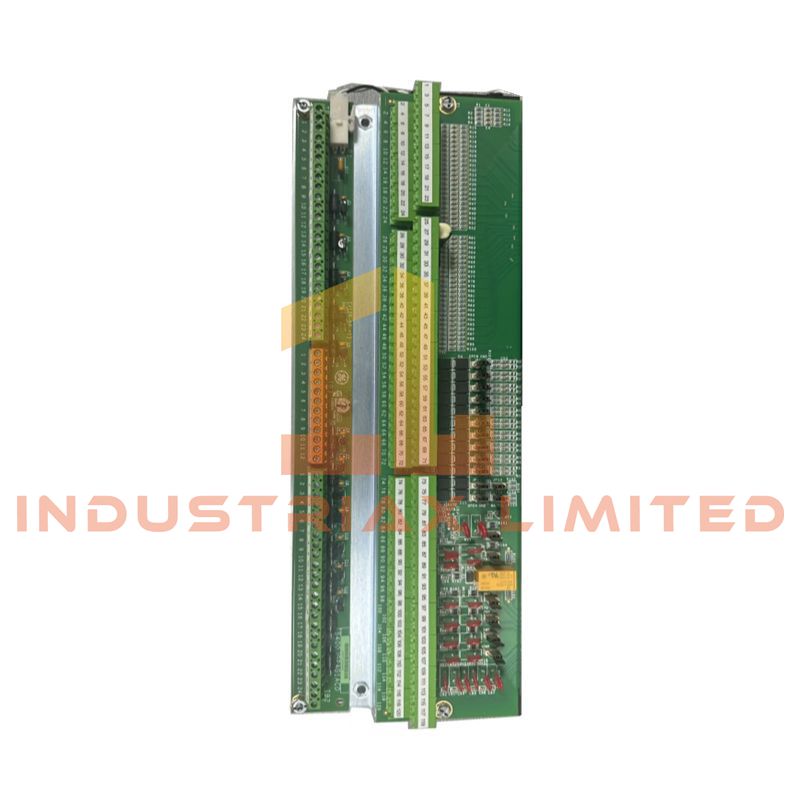

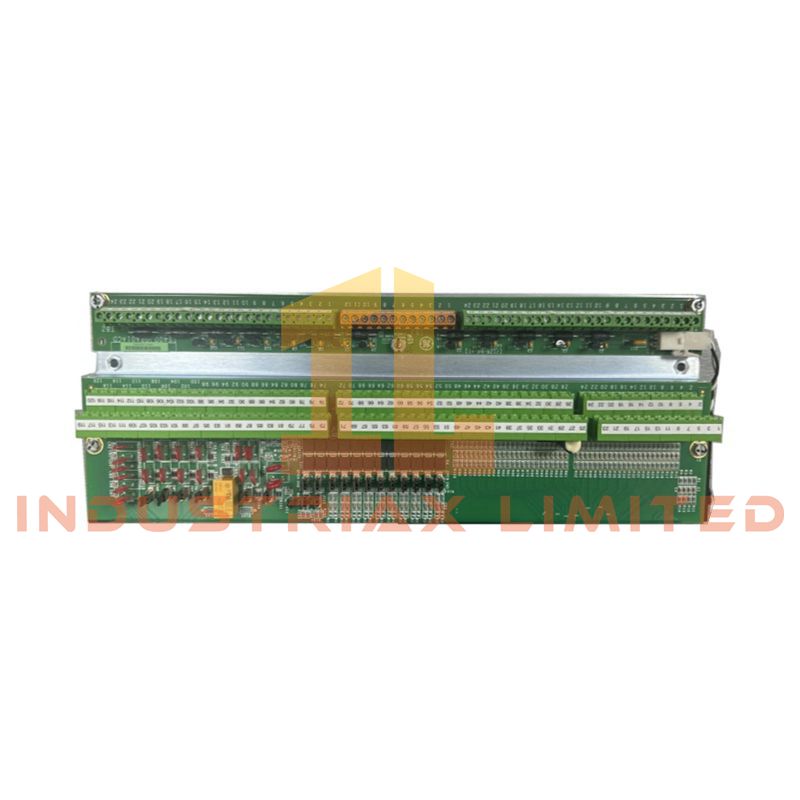

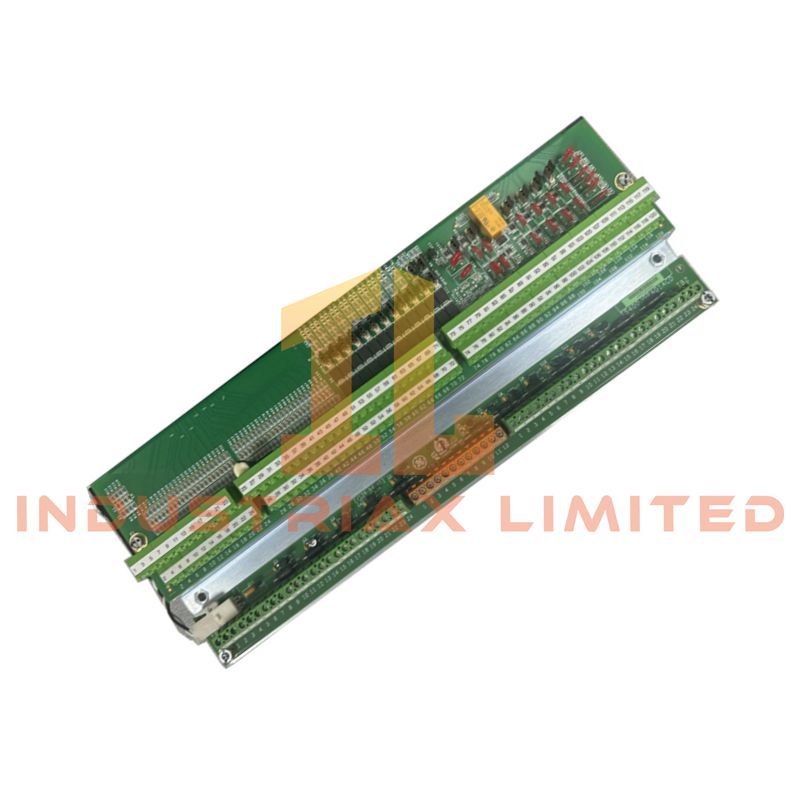

GE IS400TCATH1A Mark VIe Core Analog Terminal Board

The GE IS400TCATH1A, also cataloged as the IS400TCATH1A Core Analog Terminal Board, operates as a dedicated hardware component for field signal termination and analog data acquisition within the GE Speedtronic Mark VIe turbine control platform. It provides isolated interfaces for transmitter, LVDT, seismic, pulse speed, and analog output circuits connected to PCAA processor modules.

Hardware Specifications

Parameter	Specification
Model	IS400TCATH1A
Brand	GE
Origin	United States
Weight	0.5 kg
Dimensions	330.2 mm H x 177.8 mm W x 45 mm D
Operating Temp	-30 to +65 deg C standard; -40 to +85 deg C coastal/offshore variant
Power Consumption	Approximately 7.3 W under full load
Series	Speedtronic Mark VIe Distributed Turbine Control Platform
Function	Core analog terminal interface between field devices and PCAA processor packs
Analog Inputs	24 isolated 4-20 mA transmitter channels with 24 VDC loop power
LVDT Inputs	12 displacement sensor channels
Seismic Inputs	12 vibration monitoring channels
Pulse Inputs	2 magnetic pulse rate speed pickup inputs
Analog Outputs	3 hardware TMR-voted 4-20 mA control outputs
Auxiliary Power Outputs	12 onboard 24 VDC outputs, 25 mA each
Isolation Voltage	1500 Vrms galvanic isolation between field wiring and IONet backplane
Power Supply Input	15 VDC and 28 VDC supplied from PCAA modules
Compliance	UL 508, CE EMC Class A, IEEE 1613, ATEX Zone 2 compatible

Profinet / EtherNet/IP Deterministic Network and I/O Density Scaling

The IS400TCATH1A provides high-density analog field termination for the Mark VIe distributed control architecture. The board handles multiple isolated signal groups including 4-20 mA transmitters, LVDT position feedback, seismic vibration channels, and hardware-voted analog outputs. Channel separation and galvanic isolation maintain signal integrity between field circuits and the IONet communication backplane.

The terminal board supports TMR-based analog output voting, allowing three parallel control paths to be combined at the hardware level. Individual 24 VDC auxiliary outputs include overload protection, with only the affected output channel being disabled during an overcurrent condition.

Frequently Asked Questions

Q: What signal types can the IS400TCATH1A process?
A: The board processes isolated 4-20 mA transmitter signals, LVDT displacement inputs, seismic vibration inputs, magnetic pulse speed inputs, and TMR-voted analog outputs.

Q: How is field wiring isolated from the control backplane?
A: The IS400TCATH1A uses galvanic isolation rated at 1500 Vrms between field wiring circuits and the IONet backplane interface.

Q: Does the board provide loop power for field transmitters?
A: Yes. The terminal board provides dedicated 24 VDC loop power outputs for supported transmitter channels and auxiliary field devices.

Field Installation Guidelines

Install the IS400TCATH1A in the designated Mark VIe terminal board mounting location and verify mechanical alignment before securing the assembly. Connect field wiring according to the turbine control system wiring documentation.

Maintain separation between analog signal cables, pulse input wiring, and high-current power conductors to reduce electromagnetic interference. Terminate cable shields according to site grounding practices, with attention to avoiding unwanted ground loops on analog measurement circuits.

Before operation, verify field channel assignments, input polarity, jumper configuration for floating or grounded returns, and connection integrity of all terminal points. Confirm that processor pack communication and I/O channel diagnostics are normal before enabling control functions.
