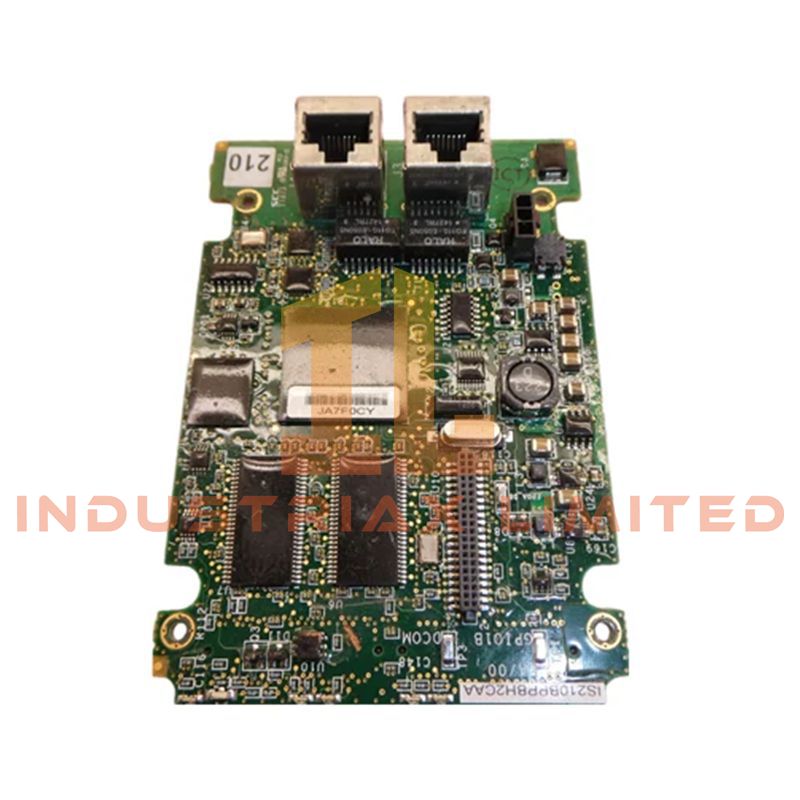

GE IS210BPPBH2CAA Backplane Power PCB Module

The GE IS210BPPBH2CAA, also cataloged as the IS210BPPBH2CAA Backplane Power PCB Module, operates as a dedicated hardware component for regulated DC power distribution and backplane connectivity within the GE Speedtronic Mark VIe turbine control system.

Hardware Specifications

Parameter	Specification
Model	IS210BPPBH2CAA
Brand	GE
Origin	United States
Weight	0.6 kg
Dimensions	Rack-mount PCB form factor
Operating Temp	-40 deg C to +70 deg C
Power Consumption	Up to 50 W output power
System Platform	GE Speedtronic Mark VIe
Hardware Type	Backplane Power PCB Module
Functional Role	Power distribution and backplane connectivity
Input Voltage	24 VDC nominal, 18-32 VDC range
Output Voltage	5 VDC, +/-15 VDC regulated outputs
Isolation	2.5 kV RMS input-to-output isolation
Efficiency	Greater than 85%
Environmental Protection	Conformal coating for dust, humidity, and salt fog protection
Functional Revision	H2 second hardware revision
Configuration Variant	CAA baseline build variant

Profinet and EtherNet/IP Deterministic Network Integration

The IS210BPPBH2CAA provides the power distribution layer and physical backplane interface required by GE Mark VIe controller assemblies. The module distributes regulated DC power to connected control boards while maintaining electrical separation between supply paths and system electronics.

The backplane structure supports deterministic communication paths between Mark VIe control components. Proper I/O density scaling and board population configuration depend on the installed controller rack design and compatible GE hardware revisions.

Firmware flash compatibility and hardware revision matching must be verified during replacement activities. The module operates as a power and connectivity infrastructure component and does not perform independent control logic execution.

Frequently Asked Questions

Q: Is the IS210BPPBH2CAA responsible for executing turbine control logic?
A: No. The module provides DC power distribution and backplane connectivity. Control logic execution is performed by dedicated Mark VIe controller modules.

Q: What voltage outputs are provided by this backplane power PCB?
A: The module provides regulated 5 VDC and +/-15 VDC outputs from a 24 VDC nominal input supply.

Q: Can the module be replaced while the Mark VIe system is energized?
A: Hot-swap operation depends on the installed rack configuration and system procedures. Power isolation should be confirmed before removing the PCB assembly.

Field Installation Guidelines

Install the IS210BPPBH2CAA in the specified GE Mark VIe rack location according to the turbine control cabinet documentation.

Installation procedures should include:

• Verify the module part number and hardware revision before installation.
• Remove cabinet power before disconnecting the backplane PCB.
• Inspect backplane connectors for contamination, oxidation, or mechanical damage.
• Confirm DC input polarity and supply wiring before energization.
• Maintain separation between power wiring and high-frequency signal cables.
• Apply proper cabinet grounding and shielding practices.
• Verify regulated output voltages before connecting downstream control boards.

After installation, confirm backplane power distribution status and check communication availability of connected Mark VIe modules.
