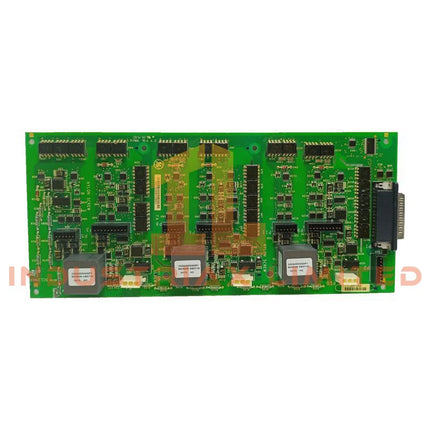

GE IS210AEPSG1A Alternative Energy Power Supply Board

The GE IS210AEPSG1A, also cataloged as the IS210AEPSG1A Alternative Energy Power Supply Board, operates as a dedicated hardware component for regulated DC power distribution and analog signal conditioning within GE Mark VI/Mark VIe turbine control systems. The board converts 24 VDC input power into multiple isolated outputs while processing field measurement signals.

Hardware Specifications

Parameter	Specification
Model	IS210AEPSG1A
Brand	GE
Origin	United States
Weight	0.34 kg
Dimensions	27.8 cm x 21.2 cm x 5.5 cm
Operating Temp	-30 deg C to +70 deg C
Power Consumption	150 W output power
Series	Mark VI / Mark VIe Speedtronic
Product Type	Alternative Energy Power Supply Boards
Functional Acronym	AEPS
Input Voltage	24 VDC regulated, operating range 18-36 VDC
Output Power	150 W isolated output
Output Channels	5 V / 10 A, +/-15 V / 3 A, +/-22 V / 2 A
Efficiency	Approx. 92%, ripple less than 35 mV
Analog Inputs	16 differential channels
Supported Input Signals	4-20 mA, +/-10 V, thermocouples, RTDs
Analog Outputs	8 channels
Communication Interface	Redundant 100Base-TX Ethernet Modbus TCP/IP, RS-485 serial
Isolation	Optical isolation and MOV surge suppression
PCB Coating	Normal coating
Functional Revision	A
Construction	Metal film resistors, high-voltage electrolytic capacitors

Industrial Control Power Distribution and Firmware Compatibility

The IS210AEPSG1A integrates regulated power conversion and analog signal processing functions within GE Mark VI/Mark VIe control architectures. The board provides isolated DC outputs for controller electronics while supporting analog input acquisition through differential channels.

The AEPS board supports industrial control communication interfaces including Modbus TCP/IP over Ethernet and RS-485 serial communication. Firmware flash compatibility depends on the installed GE controller hardware, software revision, and system configuration.

The integrated I/O structure supports I/O density scaling by combining power supply functions, analog signal conditioning, and communication interfaces within a single control board assembly.

Frequently Asked Questions

Q: What input voltage is required for the IS210AEPSG1A?
A: The board requires a regulated 24 VDC input with an operating range of 18-36 VDC.

Q: What analog signals can be processed by the IS210AEPSG1A?
A: The board supports differential analog inputs including 4-20 mA, +/-10 V voltage signals, thermocouples, and RTDs.

Q: What communication interfaces are available on the IS210AEPSG1A?
A: The board provides redundant 100Base-TX Ethernet with Modbus TCP/IP support and an RS-485 serial interface.

Field Installation Guidelines

Install the IS210AEPSG1A in the designated GE Mark VI/Mark VIe control cabinet location and verify mounting alignment before connecting power and signal cables.

Connect the 24 VDC supply with correct polarity and confirm field wiring separation between power circuits and low-level analog measurement cables. Route communication cables separately from high-current conductors to reduce electromagnetic interference.

Ground cable shields according to cabinet grounding standards. Verify analog input channel assignments, communication connections, and output voltage levels before system startup.

Inspect connectors, PCB condition, and terminal wiring during maintenance operations. Ensure adequate cabinet ventilation and protection from excessive dust or moisture exposure according to installation requirements.
