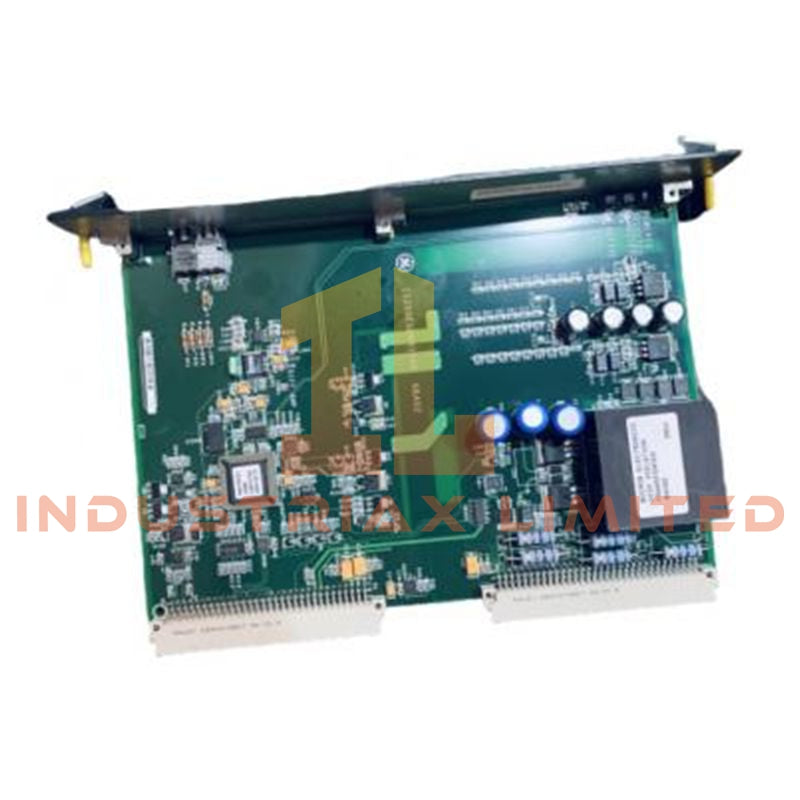

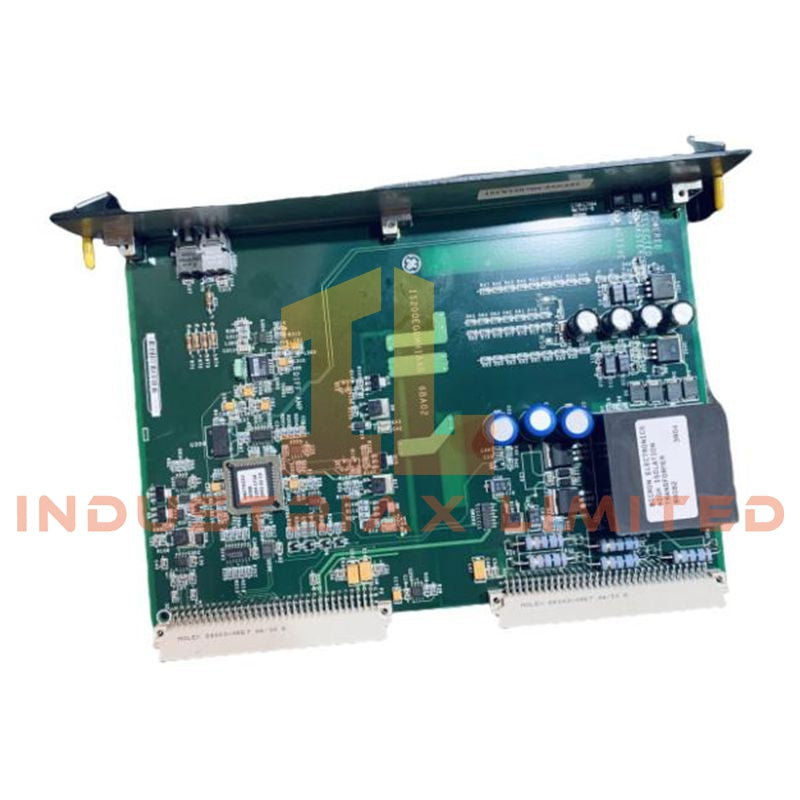

GE IS200EGDMH1A Exciter Gate Driver Module

Configured for isolated semiconductor gate control in GE Mark VI/VIe excitation control systems, the GE IS200EGDMH1A (IS200EGDMH1A Exciter Gate Driver Module) provides direct physical/electrical execution of gate drive signal transfer for exciter bridge power devices.

Hardware Specifications

Parameter	Specification
Model	IS200EGDMH1A
Brand	GE
Origin	United States
Product Type	Exciter Gate Driver Modules
Series	Mark VI / Mark VIe Excitation Control System
Functional Acronym	EGDM
System Application	Exciter bridge semiconductor gate drive control
Supported Devices	IGBTs or SCRs in excitation systems
Inputs	Logic gate commands from Mark VI/VIe controller
Outputs	Isolated gate drive pulses with controlled rise/fall characteristics
Isolation	Optical/electrical isolation between control and power circuits
Protection	Over-current protection, under-voltage lockout, fault feedback monitoring
Connectors	Backplane and ribbon cable controller interfaces
Mounting	Standard Mark VI rack slot
Weight	0.5 kg
Operating Temp	-30 to +65 deg C
Storage Temp	-40 to +85 deg C
Humidity	5%-95% non-condensing
Power Consumption	Not specified

Industrial Control and Excitation Interface Characteristics

The IS200EGDMH1A operates as a semiconductor interface module within GE excitation architectures. It receives low-level controller commands and generates isolated gate drive signals for exciter bridge switching devices.

The module uses optical/electrical isolation to separate controller logic circuits from high-voltage power switching sections. Signal conditioning and feedback monitoring support controlled switching behavior and fault status transmission within the Mark VI/VIe excitation control network.

The EGDM module follows GE industrial control design principles including deterministic controller interfacing, firmware compatibility with the assigned excitation platform, and integration with Mark VI/VIe I/O communication structures.

Frequently Asked Questions

Q: What is the primary function of the IS200EGDMH1A?
A: The module converts controller logic commands into isolated gate drive pulses for IGBT or SCR semiconductor devices in the exciter bridge.

Q: Does the IS200EGDMH1A provide electrical isolation between control and power circuits?
A: Yes. The module uses optical/electrical isolation methods to separate low-voltage control signals from power semiconductor drive circuits.

Q: Which GE excitation platform is compatible with this module?
A: The module is designed for GE Mark VI and Mark VIe excitation control systems.

Field Installation Guidelines

Install the IS200EGDMH1A in the specified Mark VI/VIe excitation rack position and verify connector alignment before securing the module.

Inspect ribbon cable and backplane connections for correct seating and mechanical retention. Keep gate drive signal wiring separated from high-current power conductors to reduce electromagnetic interference.

Confirm grounding paths, shield termination practices, and isolation boundaries before system energization. Perform wiring inspection and controller diagnostics after installation to verify communication and fault feedback operation.
