وصف

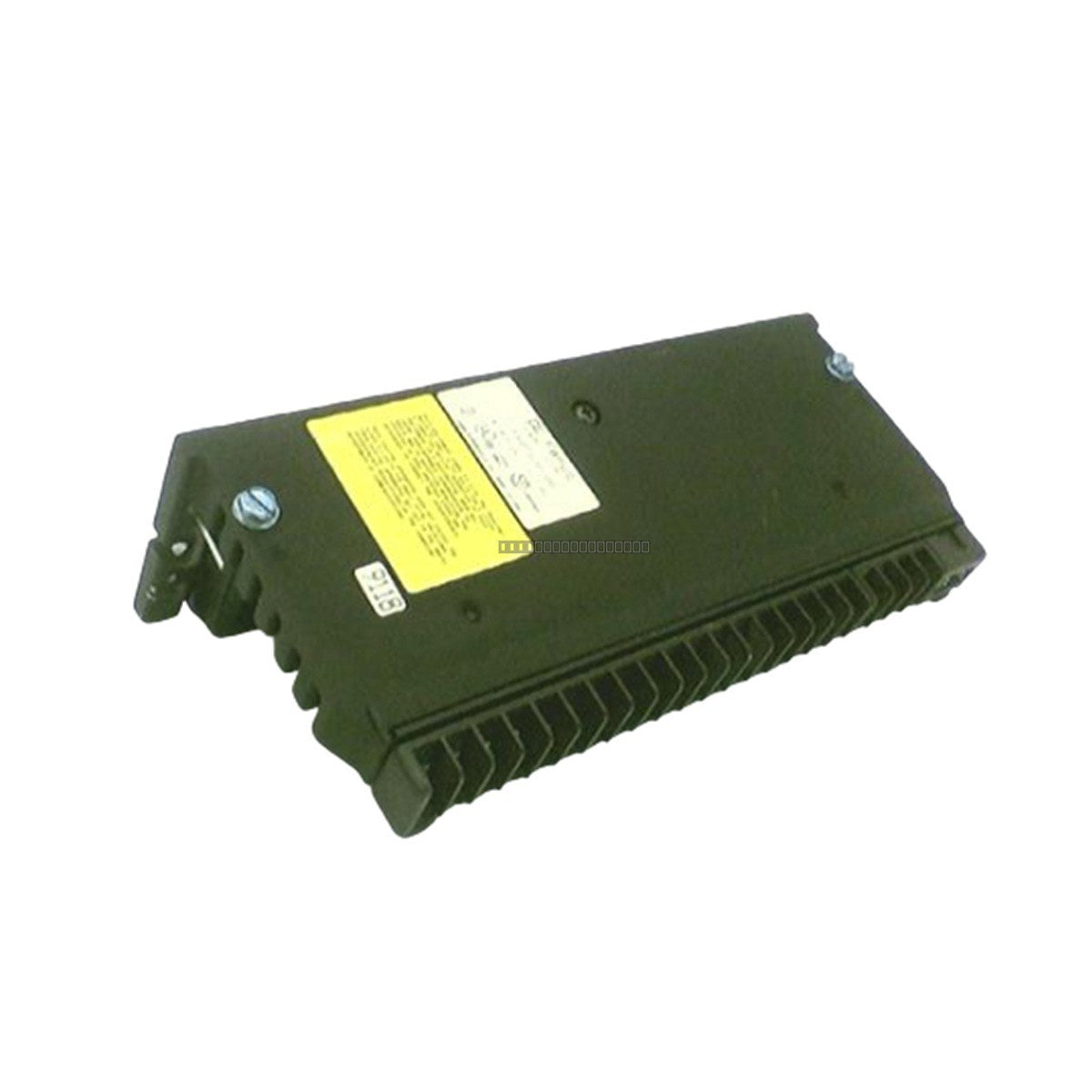

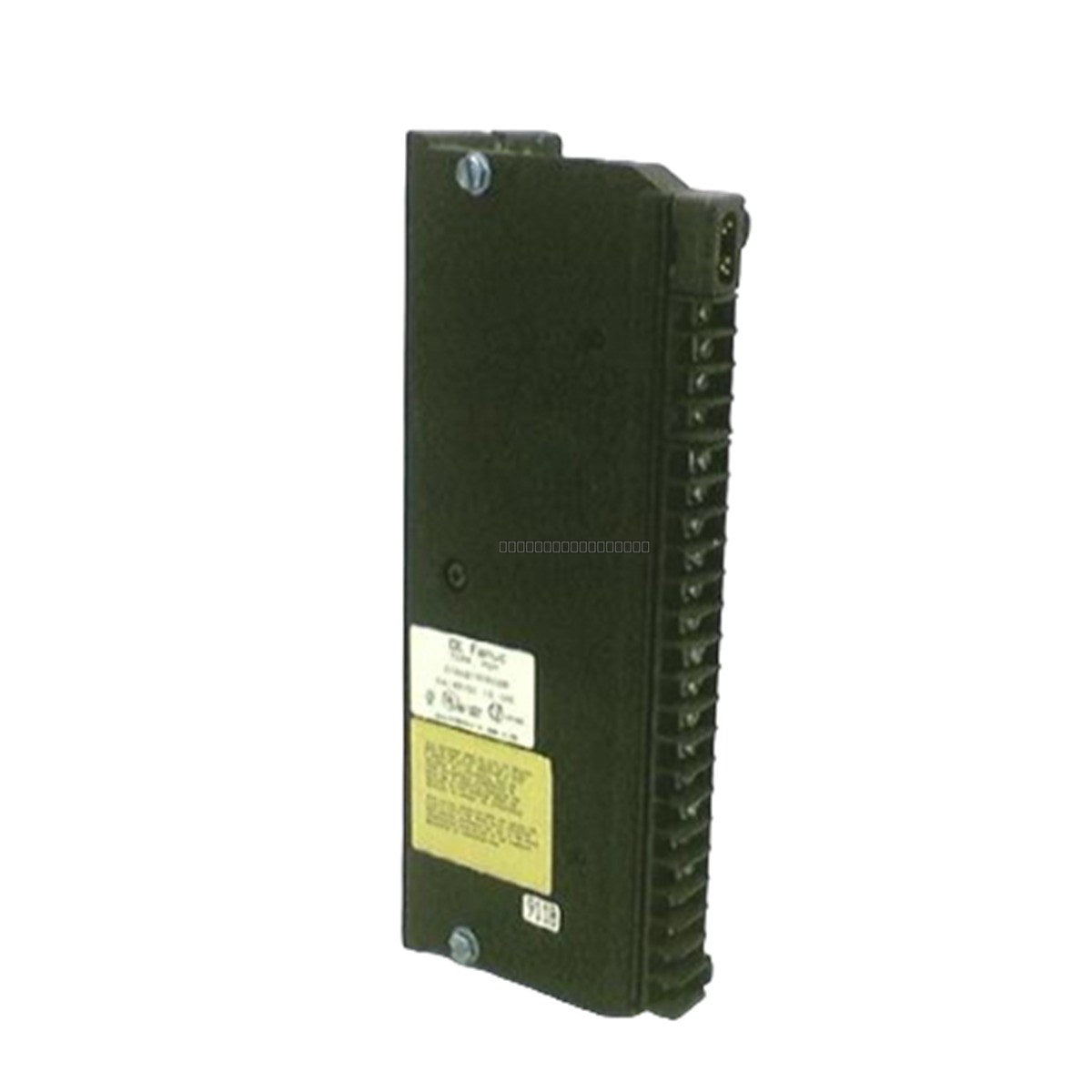

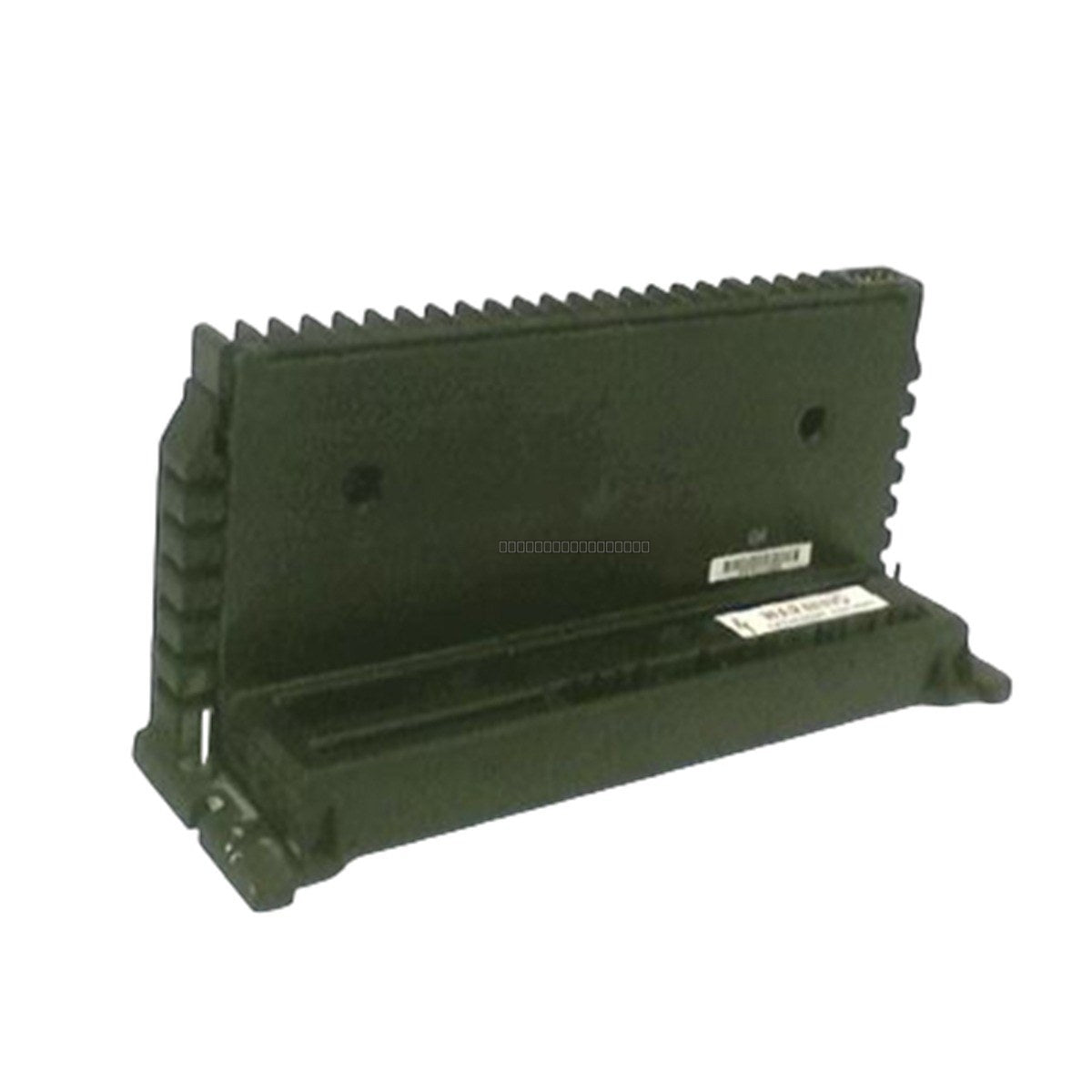

The General Electric IC660TSD020 is a terminal assembly designed for use within the Genius I/O system. This component provides the necessary physical interface for field wiring, supporting the integration of 3-wire solid-state sensors into the Genius I/O network architecture.

Features

• Designed for the Genius I/O series product family.
• Supports 3-wire solid-state sensor configurations.
• Robust terminal assembly for reliable field signal termination.
• Operating temperature range of 0 to 60 degC.
• Handles inrush currents up to 10 Amps.

Technical Specifications

Product Model	IC660TSD020
Manufacturer	General Electric
Product Type	Terminal Assembly
Operating Voltage	18 to 56 Volts DC
Inrush Current	10 Amps
Operating Temperature	0 to 60 degC
Tariff Code	8537101190

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the terminal assembly to prevent electrical shock or equipment damage.
• Verify that the operating voltage of the field devices is within the 18 to 56 VDC range specified for this module.
• Maintain proper cable routing practices to minimize electromagnetic interference (EMI) within the control cabinet.
• Ensure the module is securely mounted and that all terminal connections are tightened to the appropriate torque to prevent intermittent signals.
• Provide adequate ventilation in the control enclosure to maintain ambient temperatures within the 0 to 60 degC operating range.

FAQ

What is the primary function of the IC660TSD020?

The IC660TSD020 acts as a terminal assembly for the Genius I/O block system, facilitating the connection of field sensors and devices to the control network.

Is this module compatible with 3-wire sensors?

Yes, this terminal assembly is specifically designed to support 3-wire solid-state sensors.

What is the operating voltage range for this unit?

The unit is designed to operate within a voltage range of 18 to 56 Volts DC.
