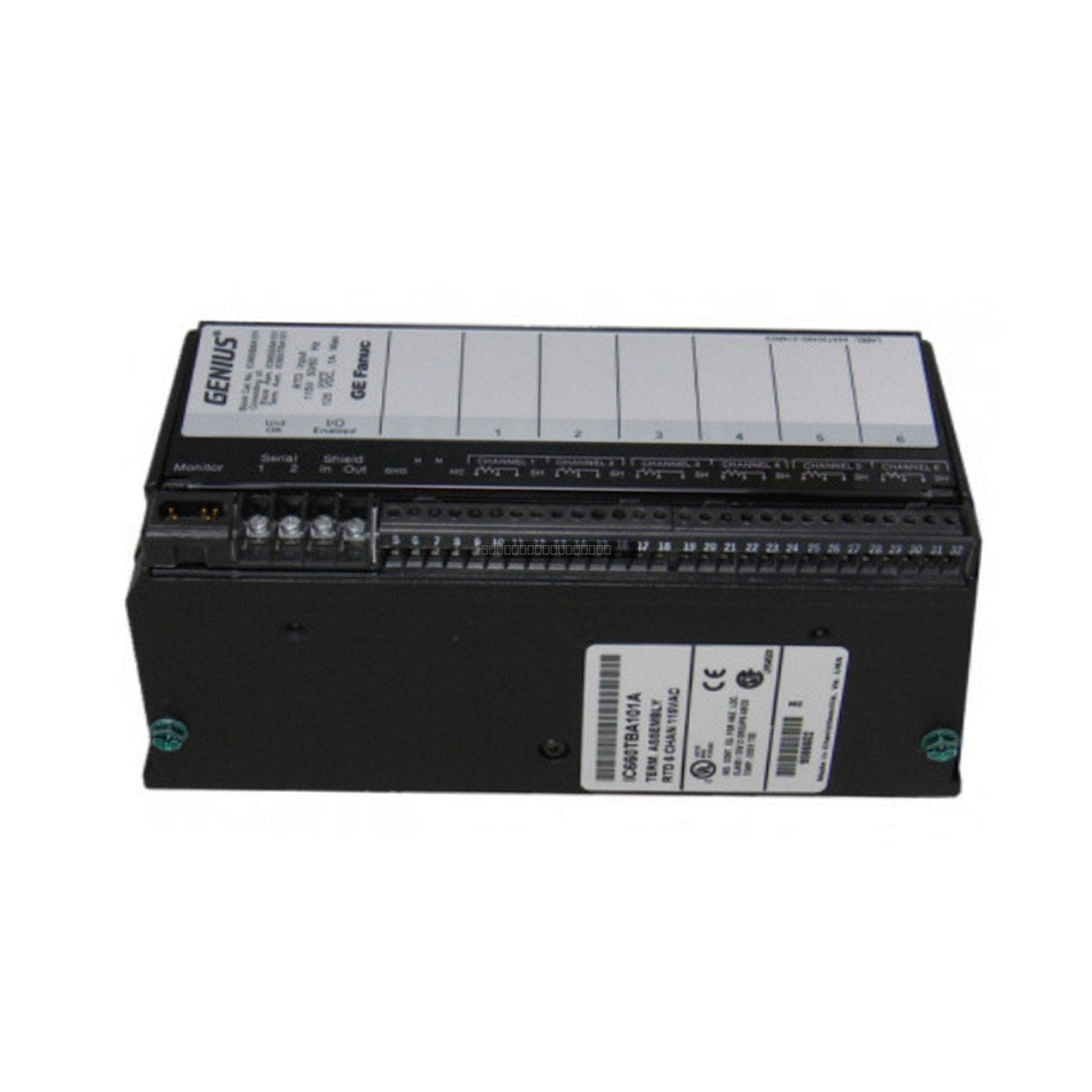

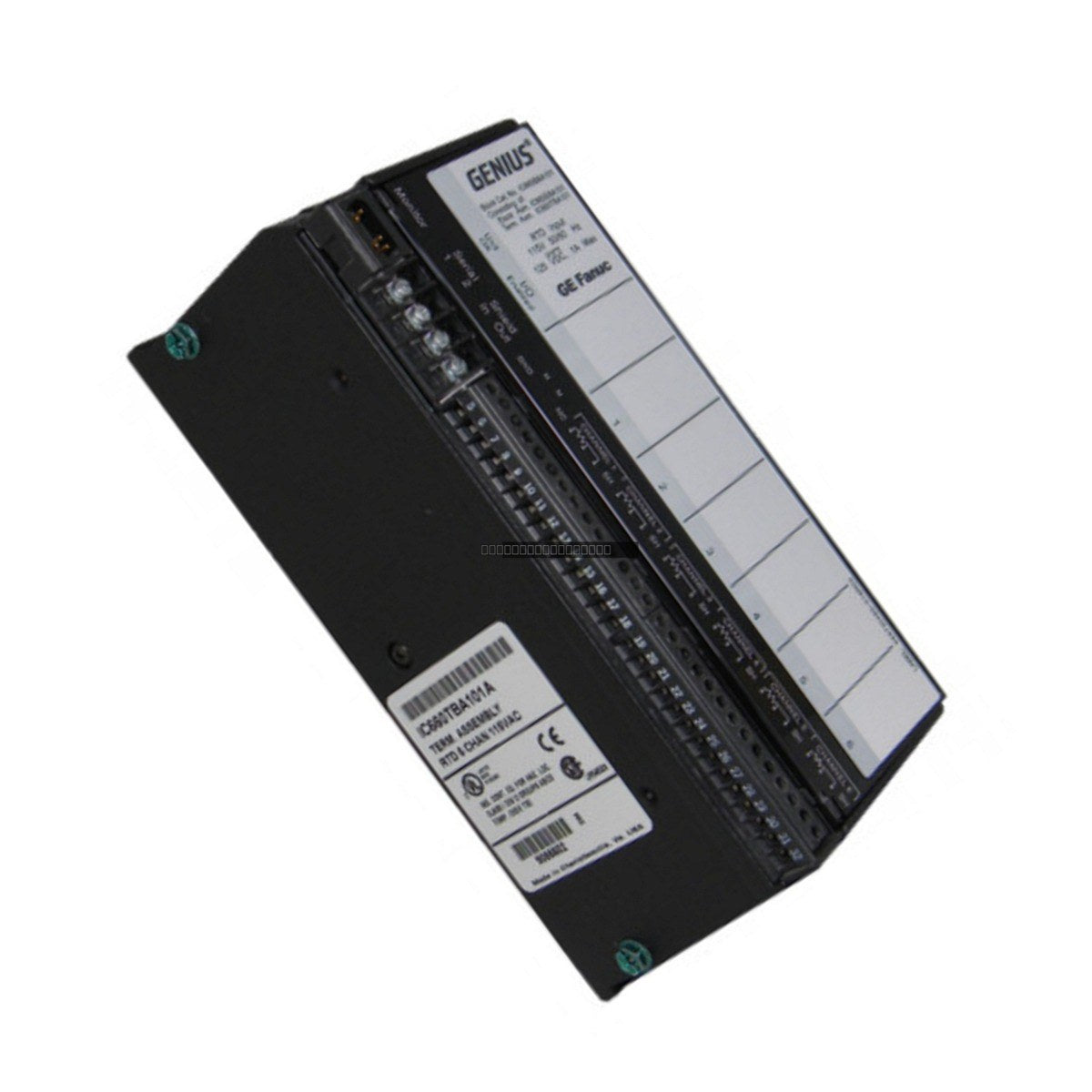

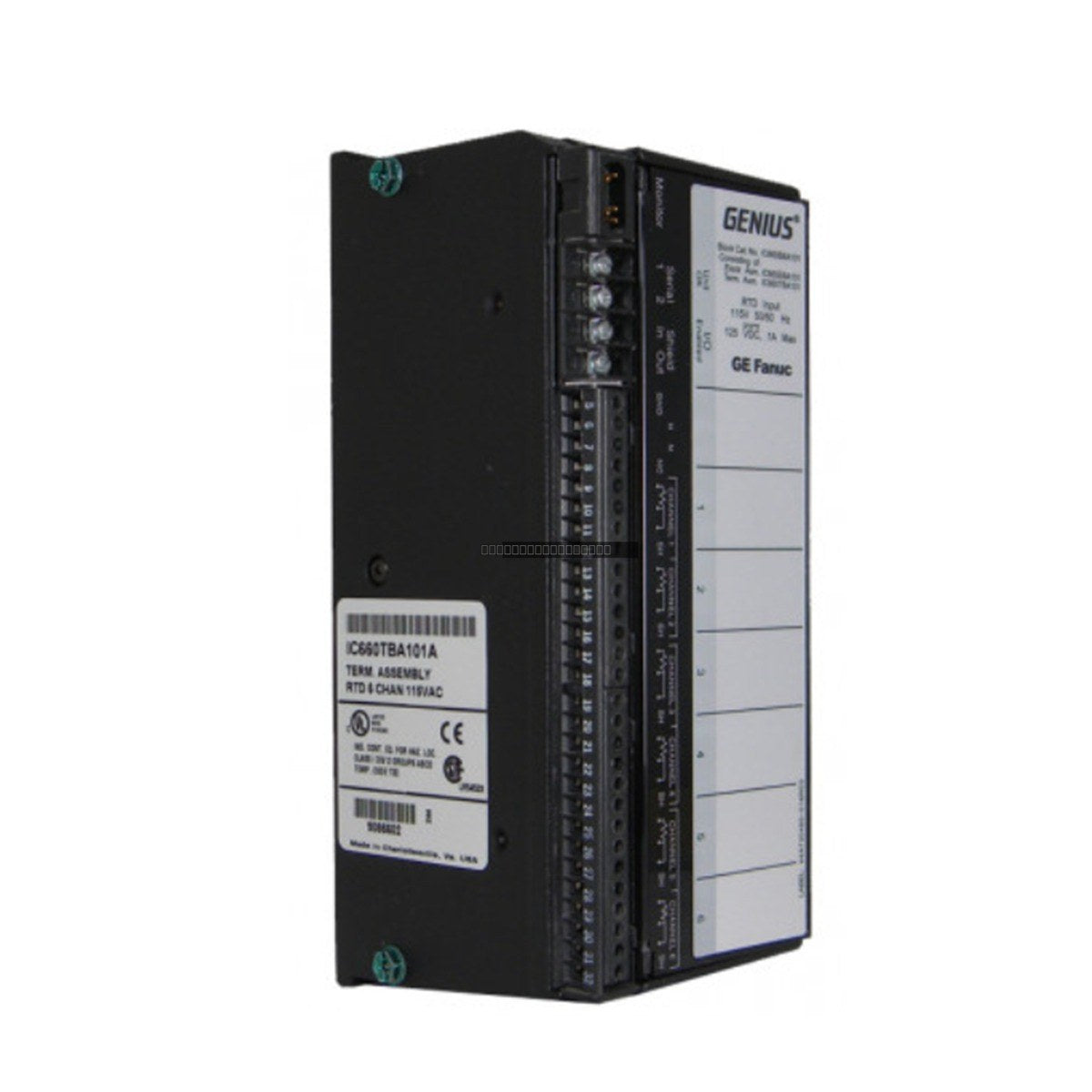

The General Electric IC660BBA101 is a high-performance RTD Input Block from the Genius I/O product series. This module is designed to interface directly with various temperature sensors, providing precise data acquisition for industrial control systems. It supports a range of sensor types and offers robust isolation to ensure signal integrity in demanding environments.

Features

• Six (6) configurable RTD input channels.
• Supports multiple sensor types: Platinum (DIN 43760), Nickel (DIN 43760), Copper, and Linear resistance inputs.
• Input resistance range of 0 to 5000 Ohms.
• High-resolution input capability of 0.1 degrees Celsius.
• Integrated status LEDs for Unit OK and I/O Enabled diagnostics.
• Block-to-block isolation of 1500 Volts and group-to-group isolation of 300 Volts.

Technical Specifications

Model	IC660BBA101
Series	Genius I/O
Input Channels	6
Resistance Input Range	0 to 5000 Ohms
Input Resolution	0.1 degC
Block Power	115 VAC / 125 VDC
Heat Dissipation	7 Watts
Block to Block Isolation	1500 Volts
Group to Group Isolation	300 Volts

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the I/O rack.
• Mount the module in a location that allows for adequate ventilation to manage the 7W heat dissipation.
• Use shielded cabling for RTD inputs to minimize electromagnetic interference (EMI).
• Ensure proper grounding of the module chassis to the system common ground to maintain isolation integrity.
• Handle the module using ESD-safe practices to prevent damage to internal circuitry.

FAQ

What types of RTD sensors are compatible with the IC660BBA101?

The module is compatible with Platinum (DIN 43760), Nickel (DIN 43760), Copper, and linear resistance sensors.

What is the power requirement for this block?

The IC660BBA101 operates on a block power supply of 115 VAC or 125 VDC.

تحديد

• rtl">


المزايا

• موثوقية عالية في البيئات الصناعية



• يدعم التشغيل المستمر، متوافق مع أنظمة PLC/DCS الرئيسية
