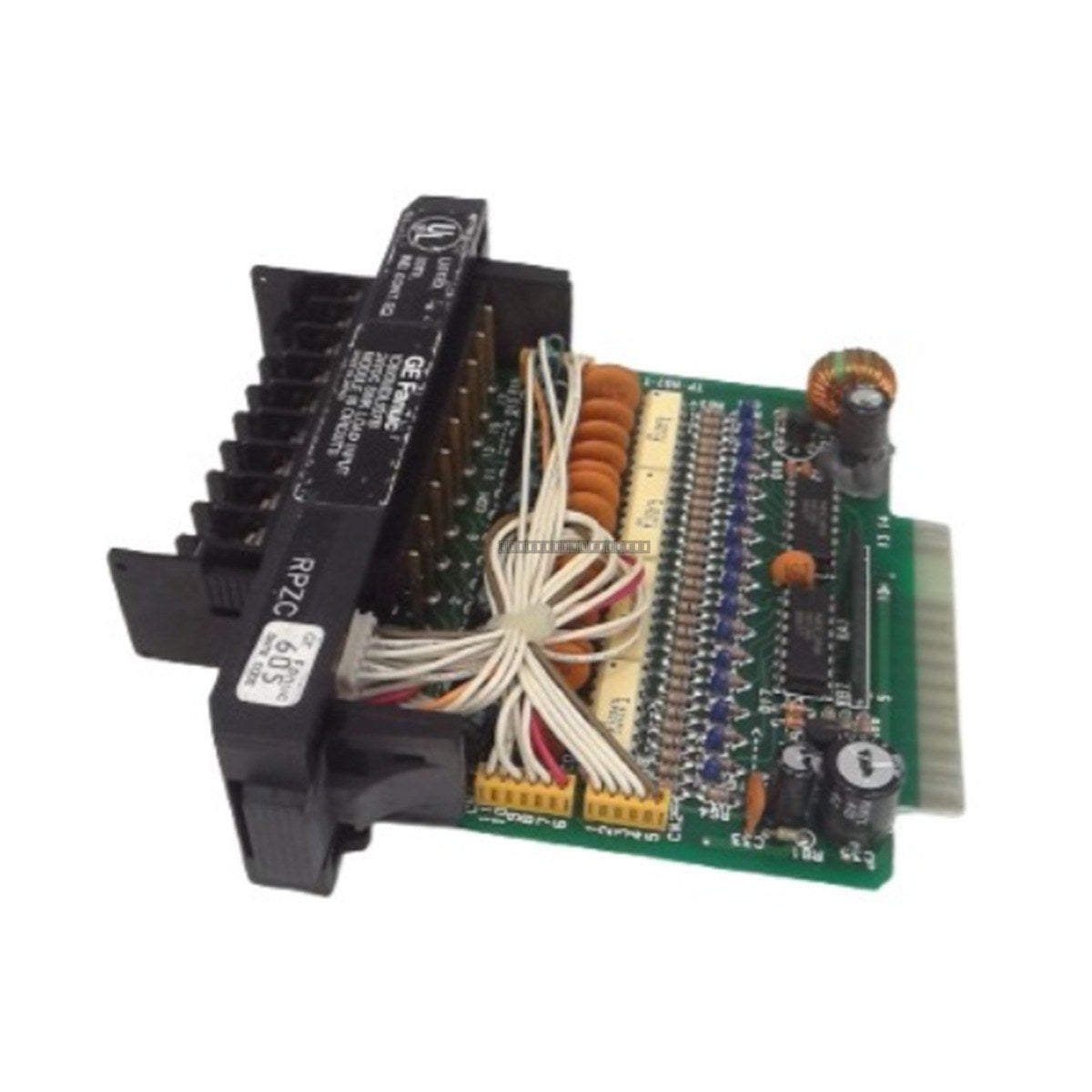

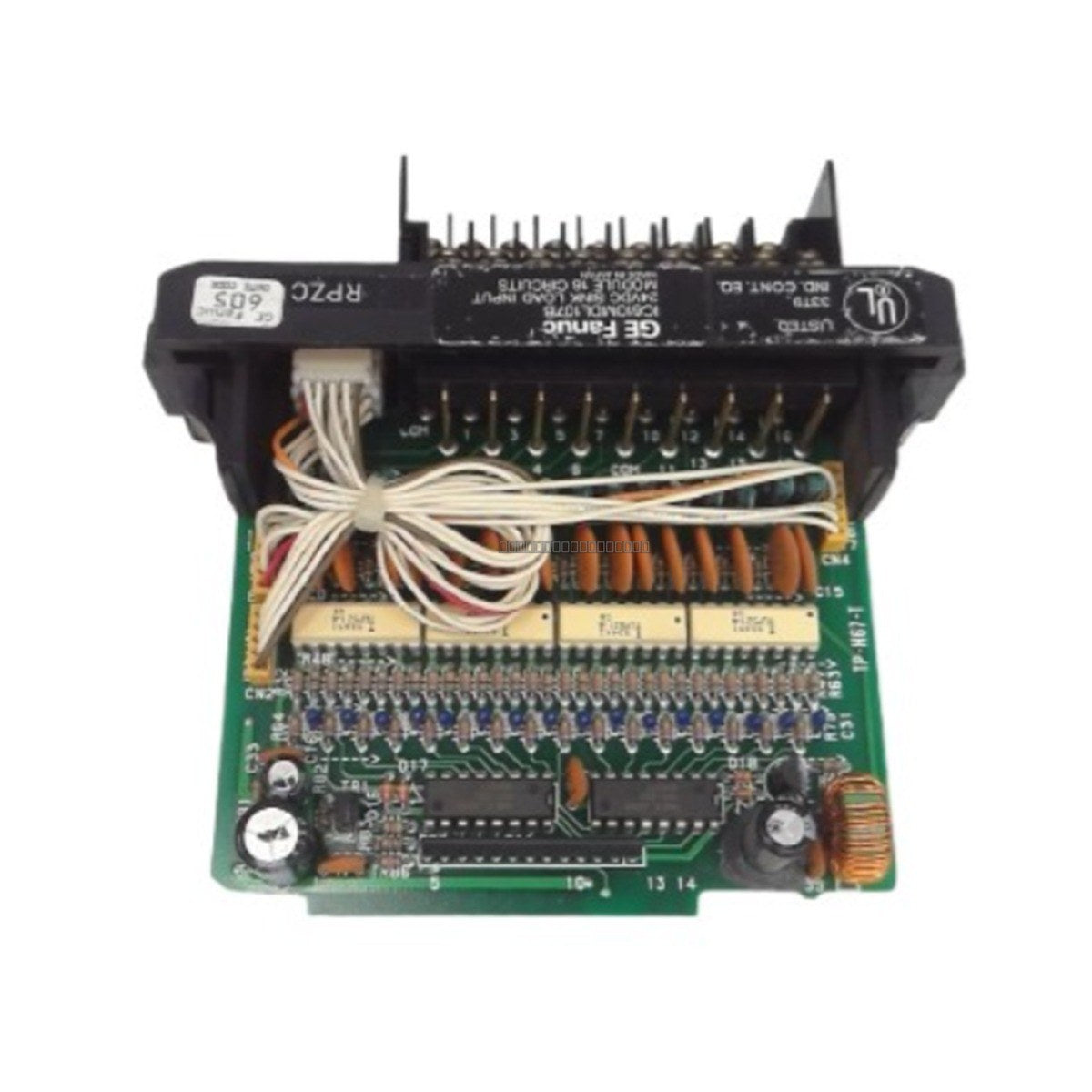

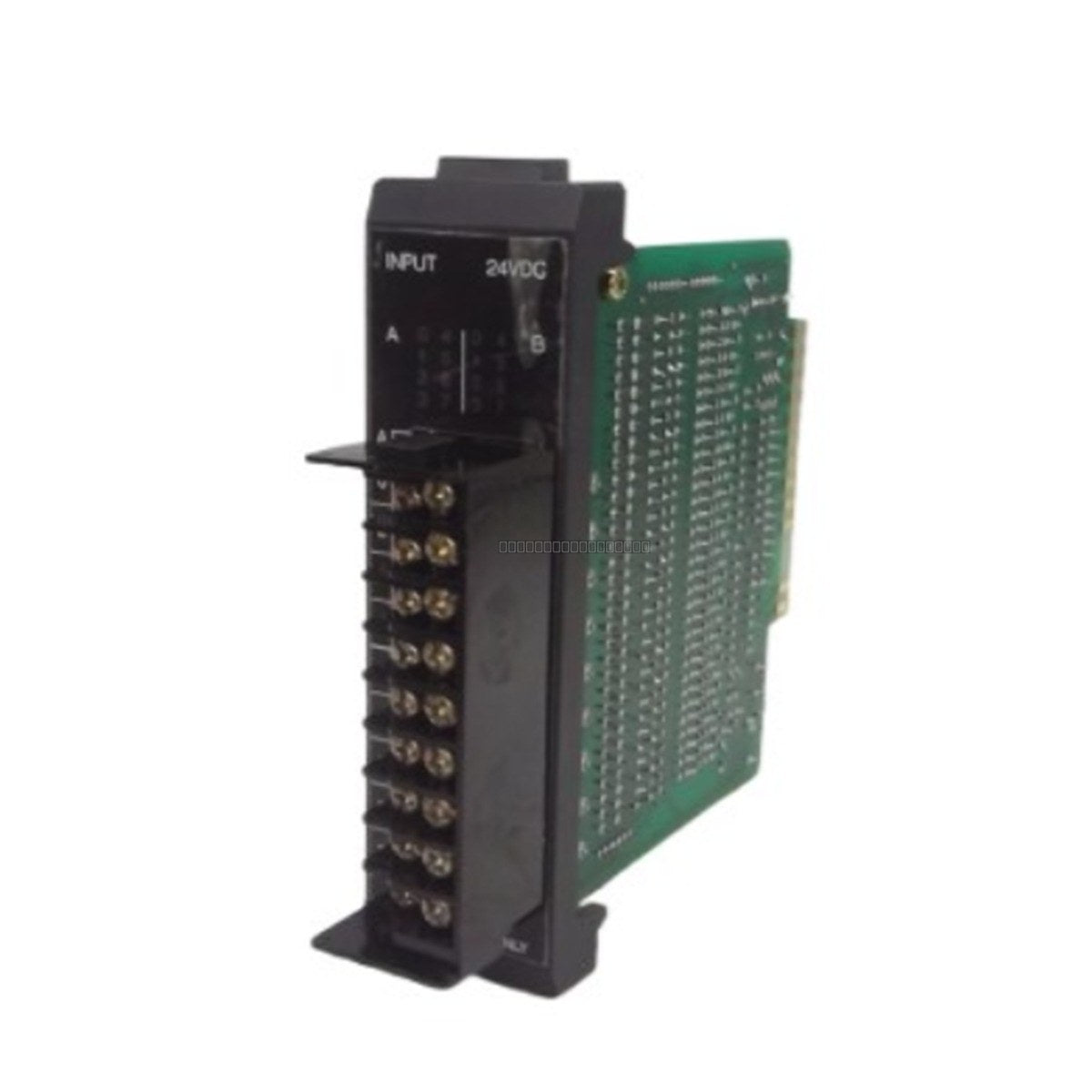

The GE Fanuc IC610MDL107 is a high-density discrete input module designed for the Series One programmable logic controller (PLC) platform. This module provides 16 isolated sink-type input points, allowing for the integration of 24 VDC field devices such as sensors, limit switches, and pushbuttons into the control system. It is engineered to provide reliable signal conditioning and real-time status monitoring, making it a critical component for maintaining precise automation sequencing in legacy industrial control environments.
Features
- 16 discrete sink input channels for 24 VDC field devices.
- Integrated LED status indicators for each input point to facilitate rapid field-side troubleshooting.
- Removable terminal block design allows for module replacement without disturbing field wiring.
- Optimized for low power consumption from the PLC backplane.
- Robust signal isolation to mitigate the impact of electrical noise on control logic.
Applications
This module is widely utilized in legacy industrial automation systems, including water treatment facilities, material handling systems, and general manufacturing process control where space-efficient, high-density I/O is required.
Technical Specifications
| Brand |
GE Fanuc / Emerson |
| Model |
IC610MDL107 |
| Product Line |
Series One |
| Module Type |
Discrete Input Module |
| Input Configuration |
Sink |
| Number of Points |
16 |
| Nominal Voltage |
24 VDC |
| Max Open Circuit Voltage |
36 VDC |
| Standard Input Current |
17 mA |
| Internal Power Draw |
25 mA at 9 VDC |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the PLC backplane power is disconnected before installing or removing the module.
- Mount the module securely in the Series One rack to ensure proper backplane connection.
- Use shielded cabling for field inputs to minimize EMI interference in high-noise environments.
- Verify that the sink input configuration matches the sourcing output of field devices.
- Ensure adequate ventilation around the PLC rack to maintain operating temperatures within the 0 to 60 deg C range.
- Handle with standard ESD precautions to prevent damage to internal circuitry.
FAQ
Is the IC610MDL107 compatible with modern PLC systems?
The IC610MDL107 is specifically designed for the legacy GE Fanuc Series One platform. It is not natively compatible with modern PLC systems unless used as part of a legacy migration or bridge solution.
Can I replace the module without rewiring?
Yes, the module features a removable terminal block. You can unseat the terminal block from the old module and attach it to the new unit, provided the wiring remains intact and the replacement module is identical.
