Description

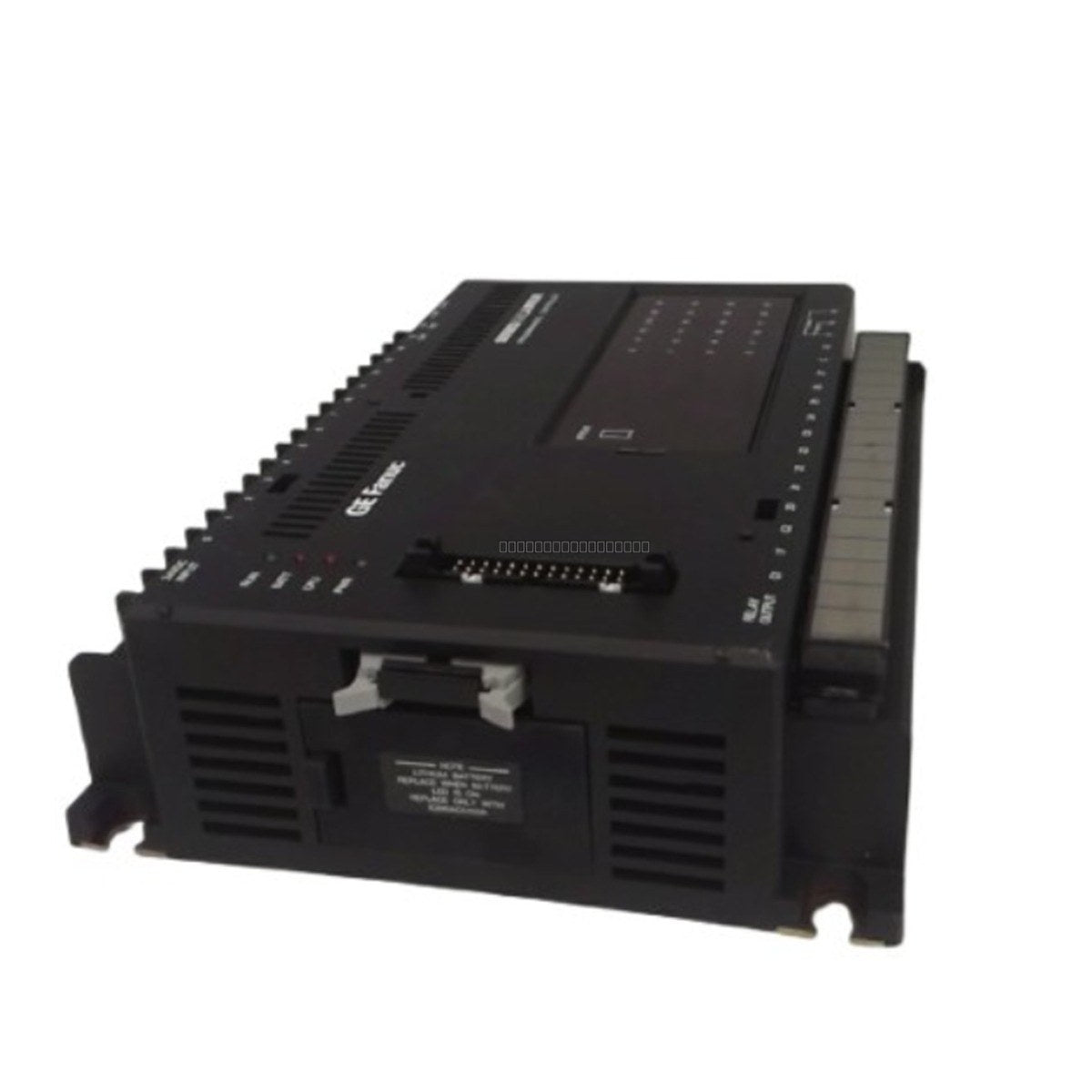

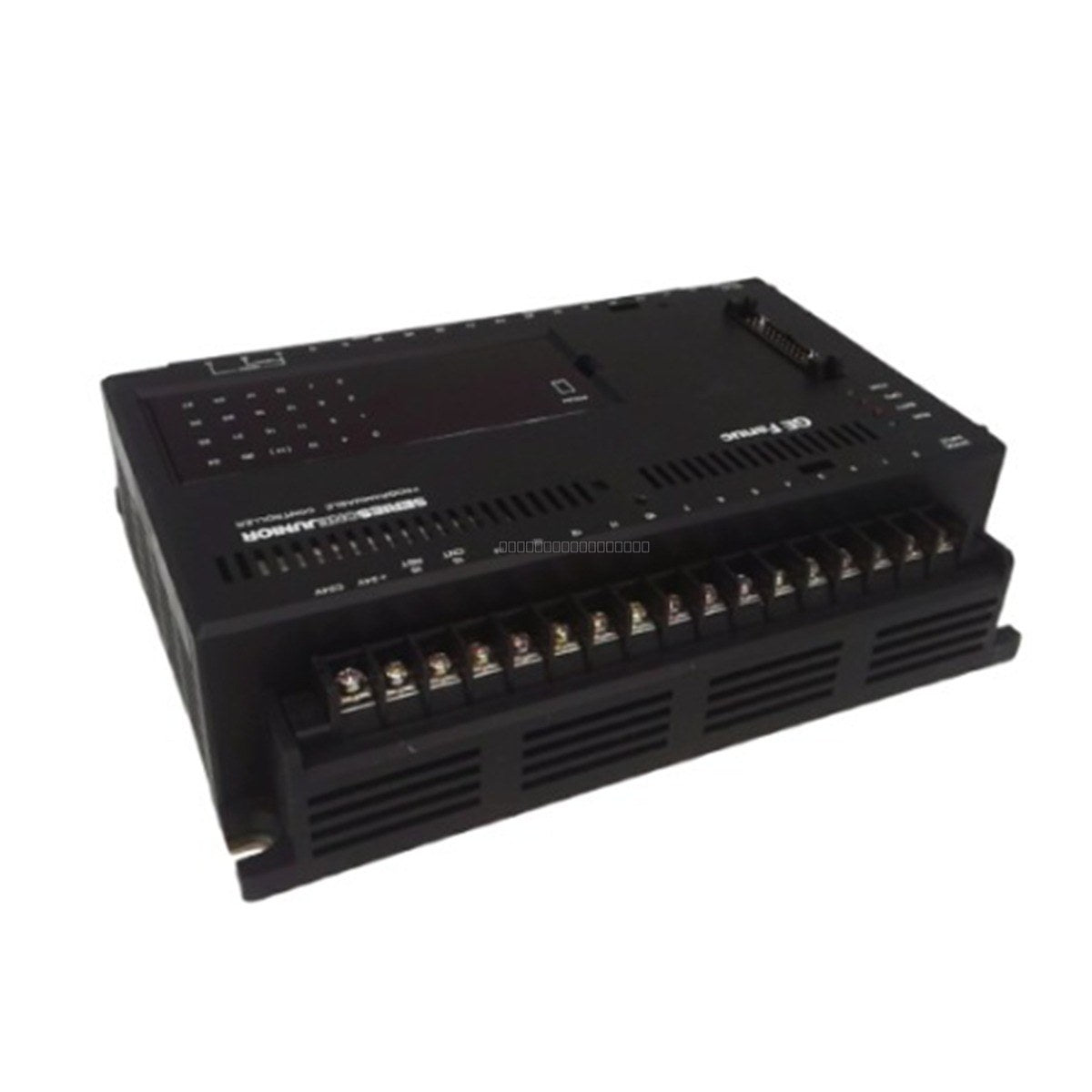

The GE Fanuc IC609SJR120 is a dedicated interface module and programmable logic controller designed for the Series One Junior (Mark III) automation family. This unit is engineered for high-reliability control tasks in small-to-medium industrial environments, integrating input monitoring and relay-based output control to streamline machine operations. By providing localized processing and diagnostic feedback, the IC609SJR120 minimizes operational latency and reduces system downtime in manufacturing and process control applications.
Features
- Integrated status monitoring with four primary system LEDs (RUN, BATT, CPU, POWER).
- Comprehensive diagnostic display with 24 status indicators for real-time I/O oversight.
- Top-mounted 24 VDC input terminal block for sensor/signal integration.
- Bottom-mounted relay output terminals supporting 115 VAC / 230 VAC loads.
- Internal fuse protection architecture utilizing one 2 A miniature fuse and two 5 A normal-blow fuses.
Applications
This module is designed for use in Series One Junior automation systems, typically deployed in machine control, small-scale process automation, and discrete manufacturing environments where localized relay-based logic and monitoring are required.
Technical Specifications
| Model |
IC609SJR120 |
| Part Number |
4136J58-G01 |
| Series |
Series One Junior (Mark III) |
| Input Voltage |
24 VDC |
| Output Type |
Relay (115 VAC / 230 VAC) |
| Fuse Configuration |
1x 2 A (miniature), 2x 5 A (normal blow) |
| Status LEDs |
4 System LEDs, 24 Display Indicators |
Installation Guidelines
- Ensure the system power is completely disconnected before installing or removing the module from the rack.
- Handle the module using ESD-safe practices to prevent damage to internal circuitry.
- Verify that all field wiring is properly secured to the top and bottom terminal blocks; ensure correct polarity for 24 VDC inputs.
- Ensure the module is properly seated in the backplane to maintain reliable communication with the Series One Junior system.
- Maintain adequate clearance around the module to allow for proper ventilation and heat dissipation.
- Regularly inspect the internal fuses (1x 2 A, 2x 5 A) as part of routine maintenance to ensure continued circuit protection.
FAQ
What is the primary function of the IC609SJR120?
The IC609SJR120 acts as a programmable logic controller and interface module for the GE Fanuc Series One Junior system, handling both input monitoring and relay-based output control.
What type of output does this module provide?
This module features relay outputs capable of switching 115 VAC or 230 VAC loads.
How do I monitor the status of the module?

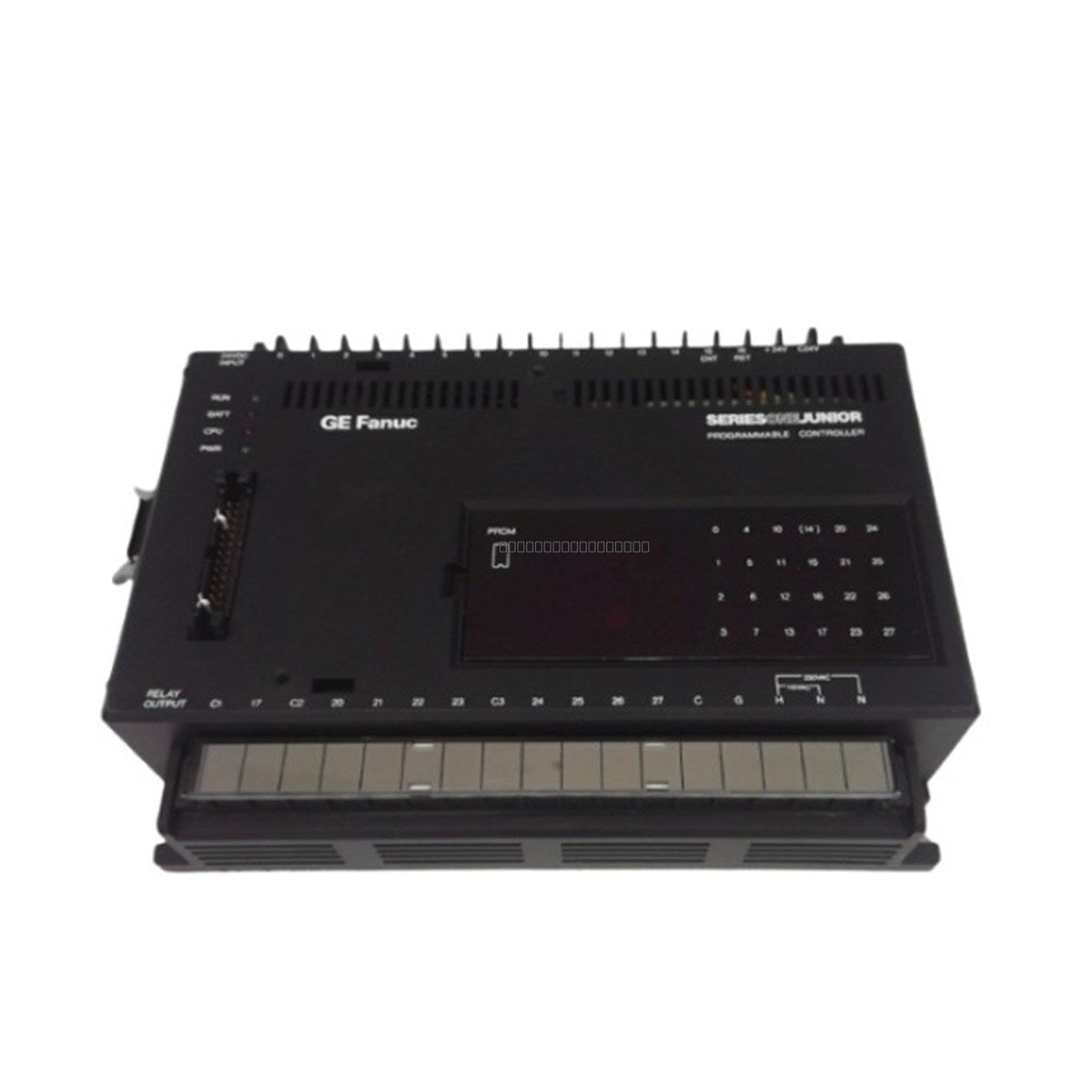

The module features four primary system status LEDs (RUN, BATT, CPU, and POWER) located on the upper left of the faceplate, along with 24 additional status indicators on the lower right for detailed I/O monitoring.
