Description

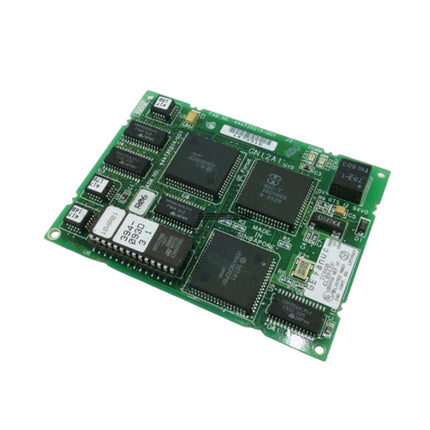

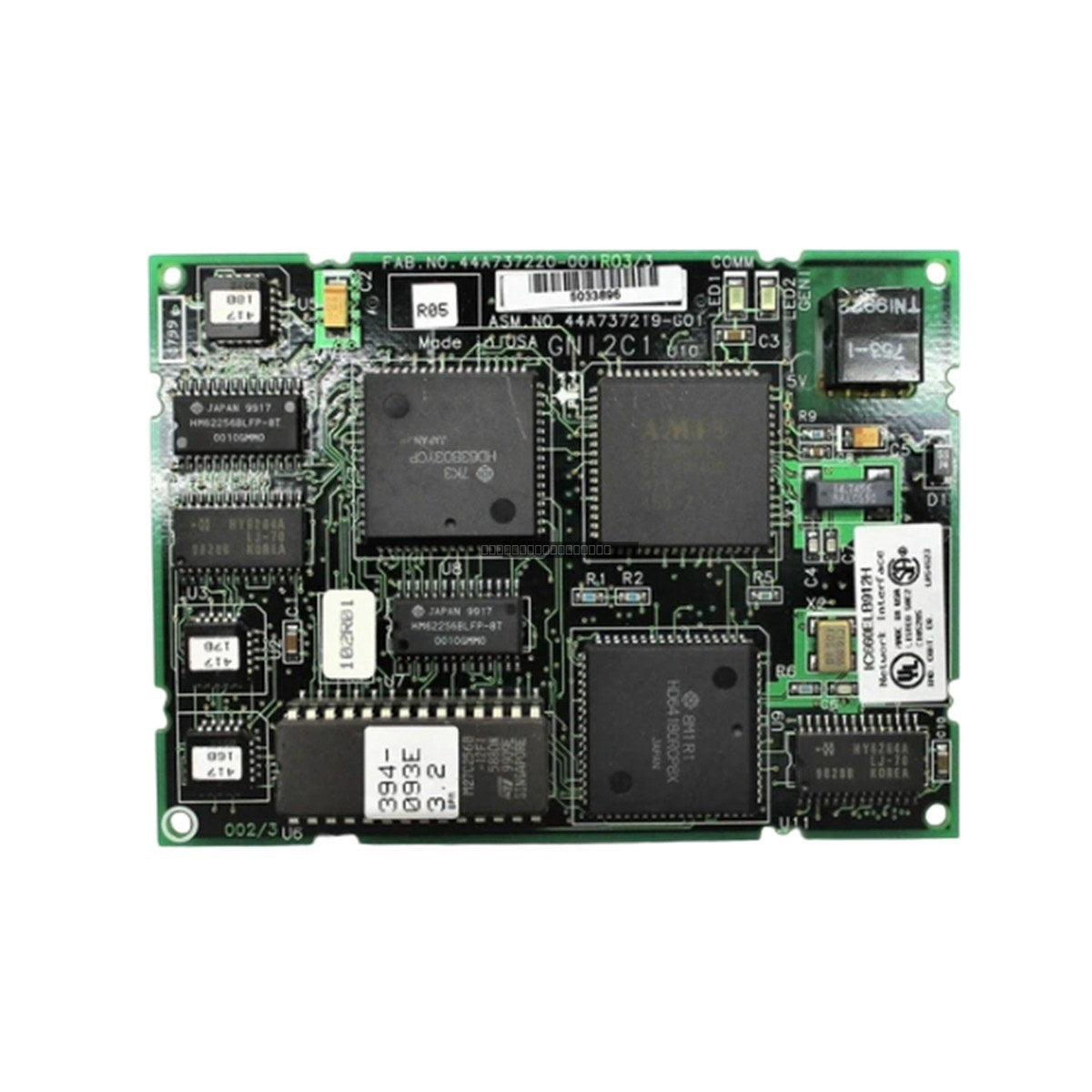

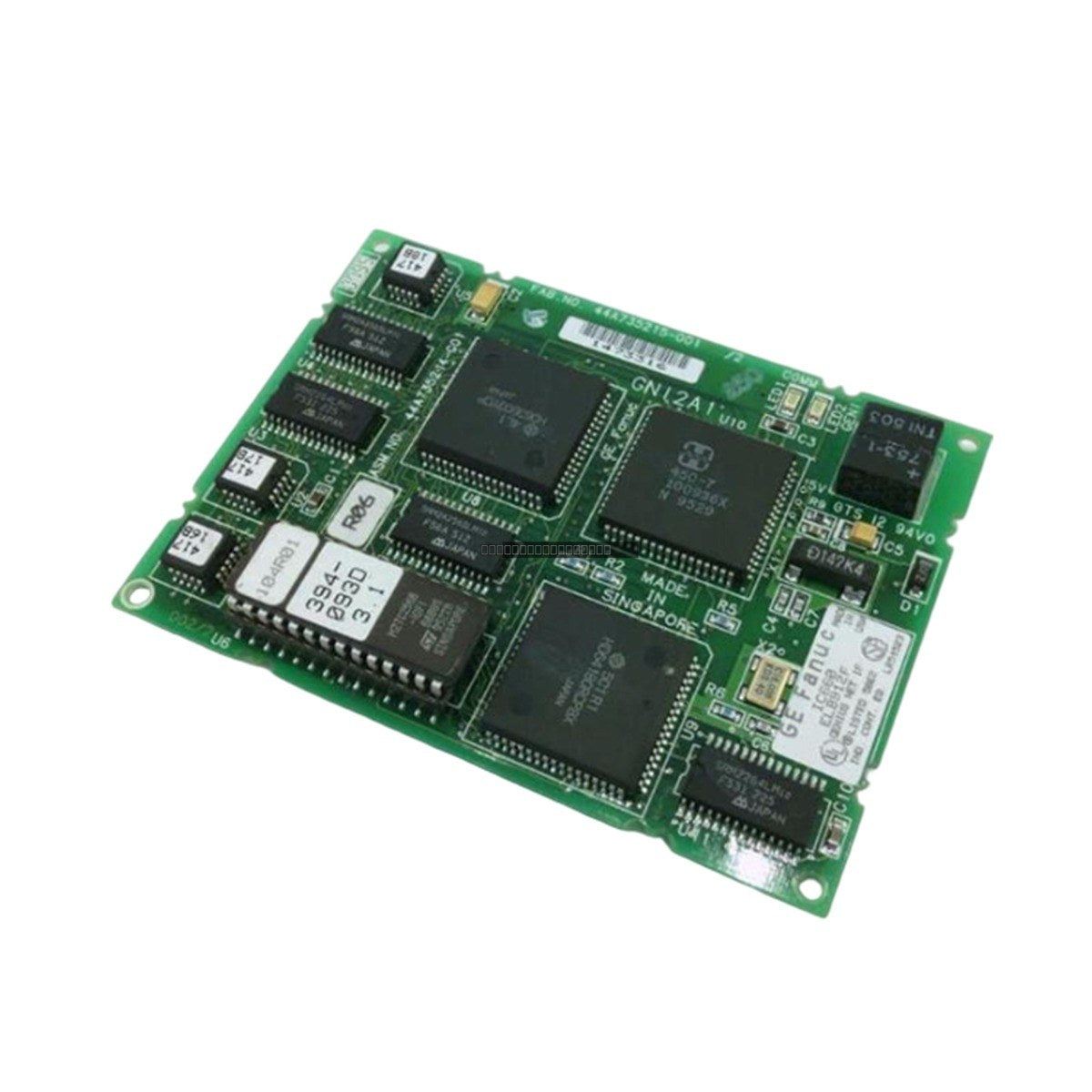

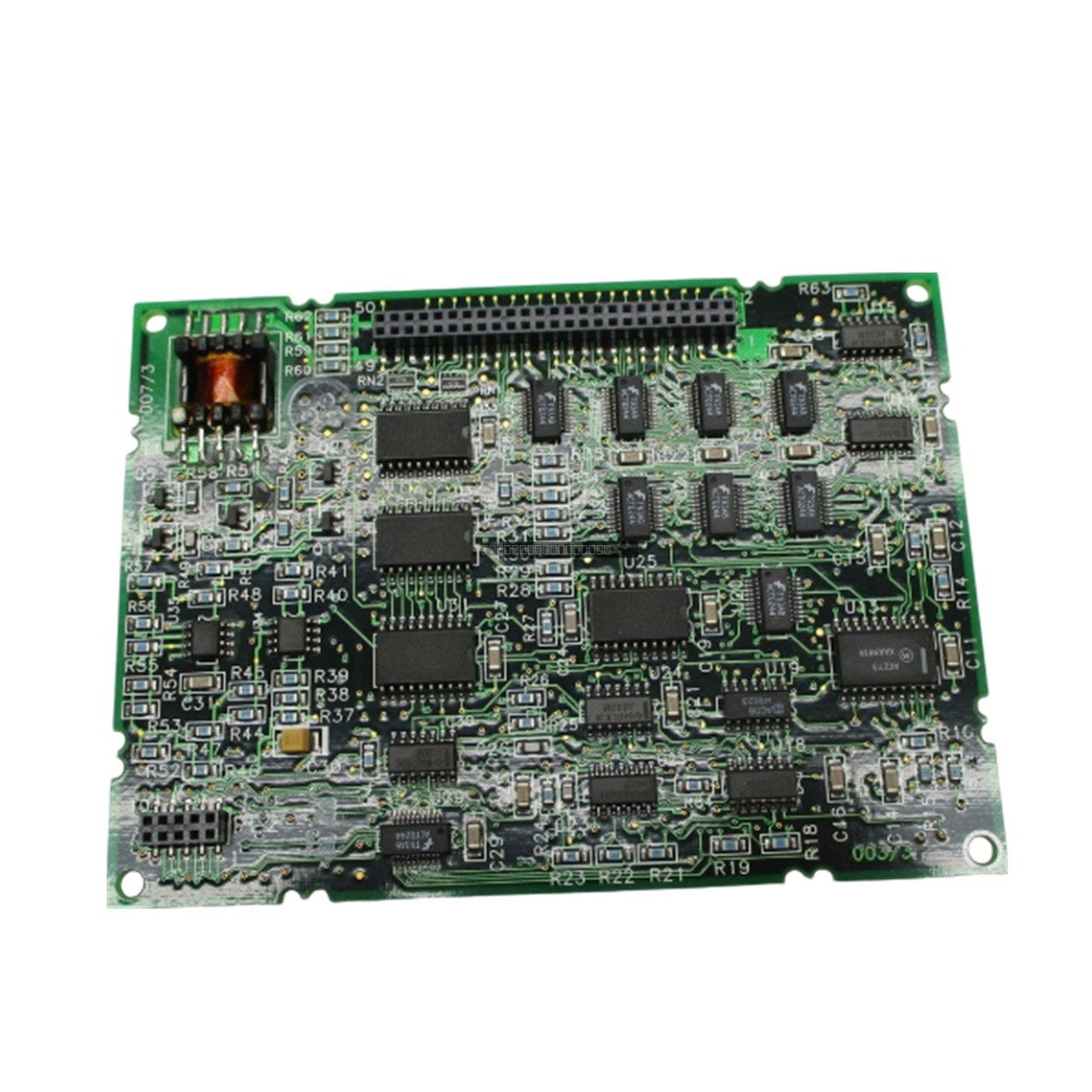

The IC660ELB912 is a specialized MicroGENI network interface daughterboard developed by GE Fanuc for the legacy Genius I/O product line. This electronic module is designed to mount onto a host IBM Personal Computer Interface Module (PCIM), enabling industrial computer platforms to function as high-speed remote I/O controllers. It is widely utilized in critical telemetry applications, including petroleum refining, large-scale mining operations, and centralized power distribution systems. By facilitating continuous background message processing and real-time fault management for up to 30 distributed field devices per node, the card ensures deterministic data paths and reduces system latency.
Features
-
Microprocessor-Based Communication: Features an onboard 6303 microprocessor optimized for communication handling and error isolation.
-
Memory Management: Utilizes a dual-port RAM architecture, mapping 16 Kbytes of system memory per daughterboard (expandable to 32 Kbytes in dual-slot configurations).
-
Status Monitoring: Integrated GENI OK and COMMS OK LED indicators provide immediate visual confirmation of hardware and communication link integrity.
-
Configuration: Onboard DIP switch block allows for physical parameter configuration.
-
High-Speed Data: Supports multiple baud rates including 38.4K, 76.8K, 153.6K standard, and 153.6K extended.
Applications
This daughterboard is intended for use in industrial control environments requiring integration between PC-based supervisory systems and the Genius I/O bus. Typical applications include distributed control, remote monitoring of field devices, and legacy system maintenance in heavy industrial sectors.
Technical Specifications
| Model |
IC660ELB912 |
| Brand |
GE Fanuc |
| Product Line |
Genius I/O |
| Compatible Carriers |
IC660ELB921 (Single-slot) / IC660ELB922 (Dual-channel) |
| Power Requirement |
5 VDC |
| Current Consumption |
400 mA |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Relative Humidity |
5 to 95% non-condensing |
| Shock Tolerance |
5 G, 10 ms (MIL-STD 810C) |
Installation Guidelines
-
ESD Precautions: Always use a grounded wrist strap when handling the PCB to prevent electrostatic discharge damage to sensitive components.
-
Power Down: Ensure the host PCIM carrier and the host computer are fully powered down before inserting or removing the daughterboard.
-
Clearance: Maintain a minimum of 1/8 inch spacing between modules to ensure adequate airflow and prevent thermal buildup.
-
Seating: Ensure the card is firmly seated into the PCIM carrier connectors; verify that the faceplate is properly aligned with the host chassis.
-
Configuration: Set the onboard DIP switches according to the specific network node requirements before final installation.
FAQ
What is the primary function of the IC660ELB912?
The IC660ELB912 acts as a network interface daughterboard that allows an IBM-compatible PC to communicate with and control devices on a Genius I/O network.
Can this module be used standalone?
No, this is a daughterboard that must be installed onto a compatible PCIM carrier card (such as the IC660ELB921 or IC660ELB922) to function.
How many devices can one daughterboard manage?
A single IC660ELB912 daughterboard can support up to 30 Genius bus modules.
