Description

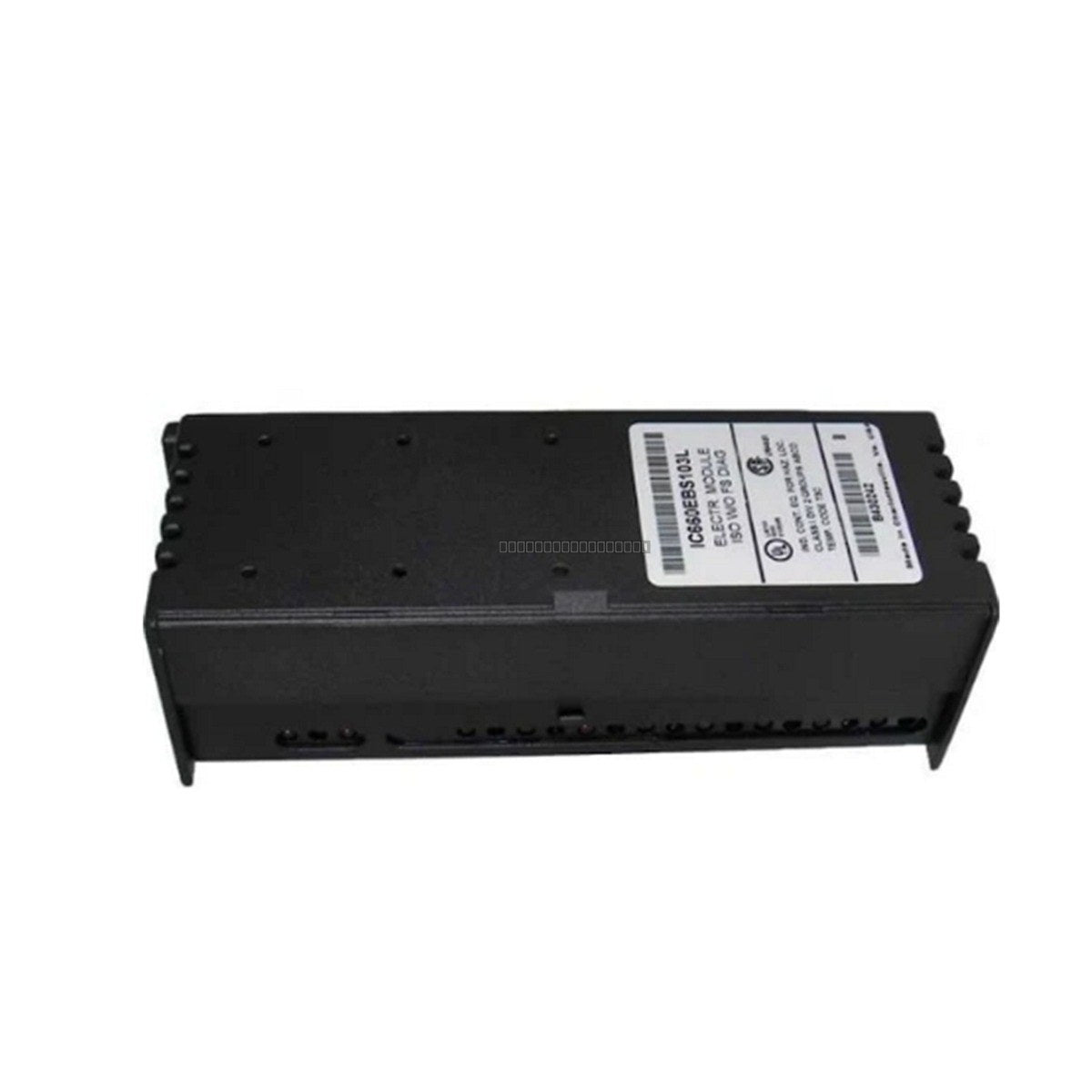

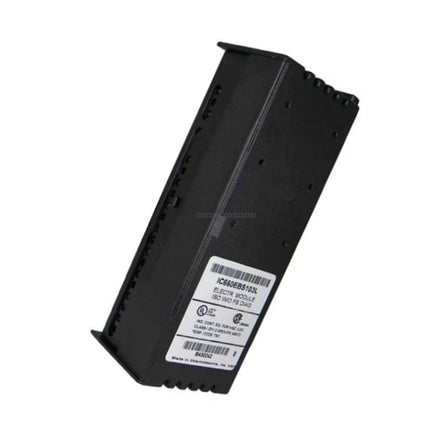

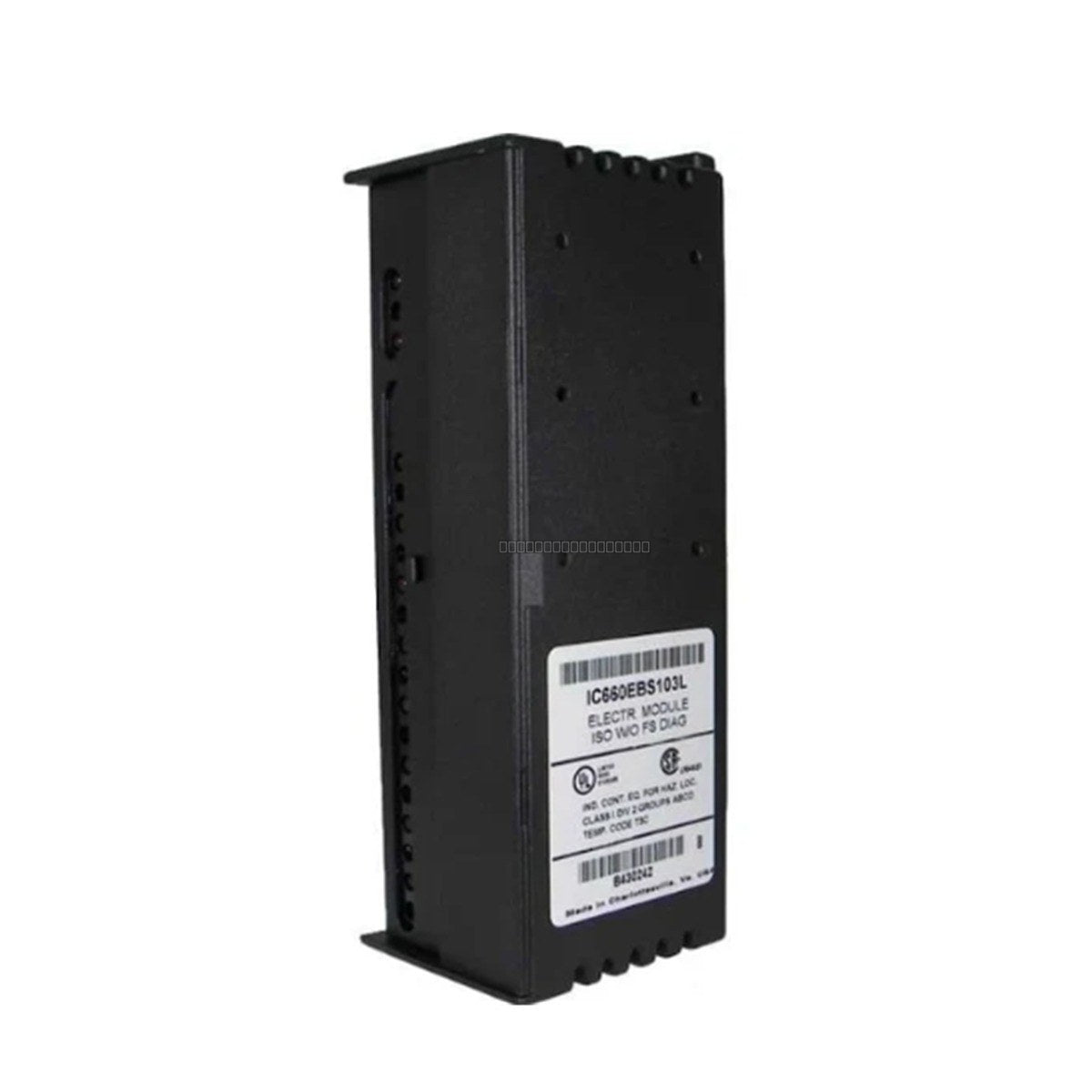

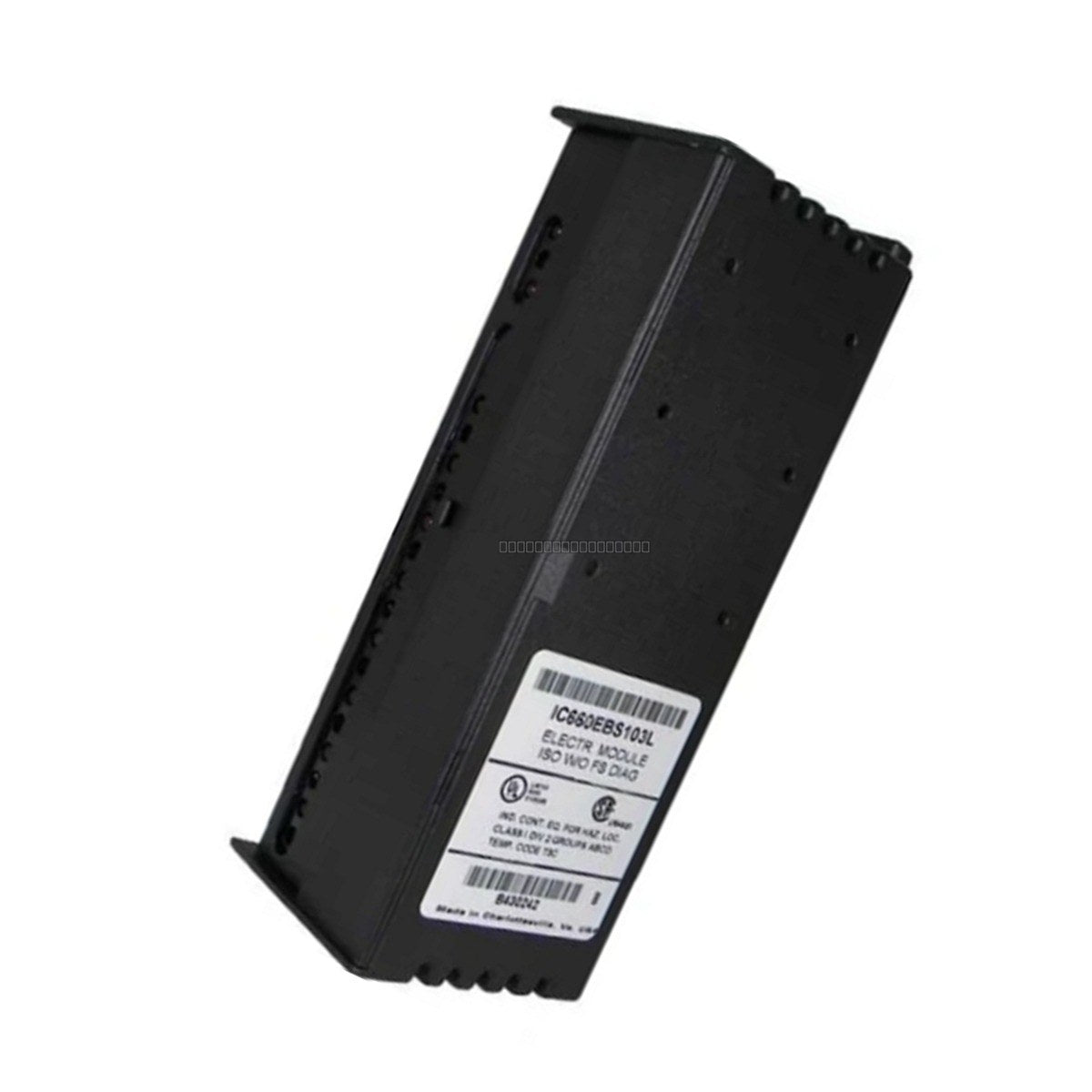

The General Electric IC660EBS103 is a Genius I/O block designed for integration within the Genius I/O distributed control architecture. This module facilitates reliable communication and data exchange between field devices and the host controller, supporting both AC and DC power configurations to suit diverse industrial environments.

Features

• Supports versatile AC and DC power inputs.
• Provides 1500 V block-to-block isolation for enhanced signal integrity and protection.
• Selectable input filter times ranging from 10 to 100 mS in 10 mS increments.
• Engineered for robust performance in industrial temperature ranges from 0 to 60 degC.
• Compatible with the Genius I/O communication protocol.

Technical Specifications

Product Model	IC660EBS103
Product Line	Genius I/O
Isolation	1500 V
Operating Temperature	0 to 60 degC
Storage Temperature	-40 to 100 degC
Frequency	47 to 63 Hz
Humidity	5 to 95 percent (non-condensing)
Input Filter Time	10 to 100 mS (10 mS steps)

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the I/O block to prevent electrical damage.
• Mount the unit in a clean, dry environment with adequate ventilation to maintain operating temperatures within the specified 0 to 60 degC range.
• Verify that all wiring connections are secure and follow local electrical codes for industrial control equipment.
• Use shielded cabling for communication lines to minimize electromagnetic interference (EMI).
• Handle the module using standard ESD (Electrostatic Discharge) precautions to protect internal circuitry.

FAQ

What is the primary function of the IC660EBS103?

The IC660EBS103 serves as a Genius I/O block, acting as a field-side interface for the Genius I/O network, allowing for the distributed monitoring and control of industrial processes.

Can this block be used in high-humidity environments?

The module is rated for operation in 5 to 95 percent non-condensing humidity. Ensure the enclosure is properly sealed if the environment exceeds these parameters.
