Description

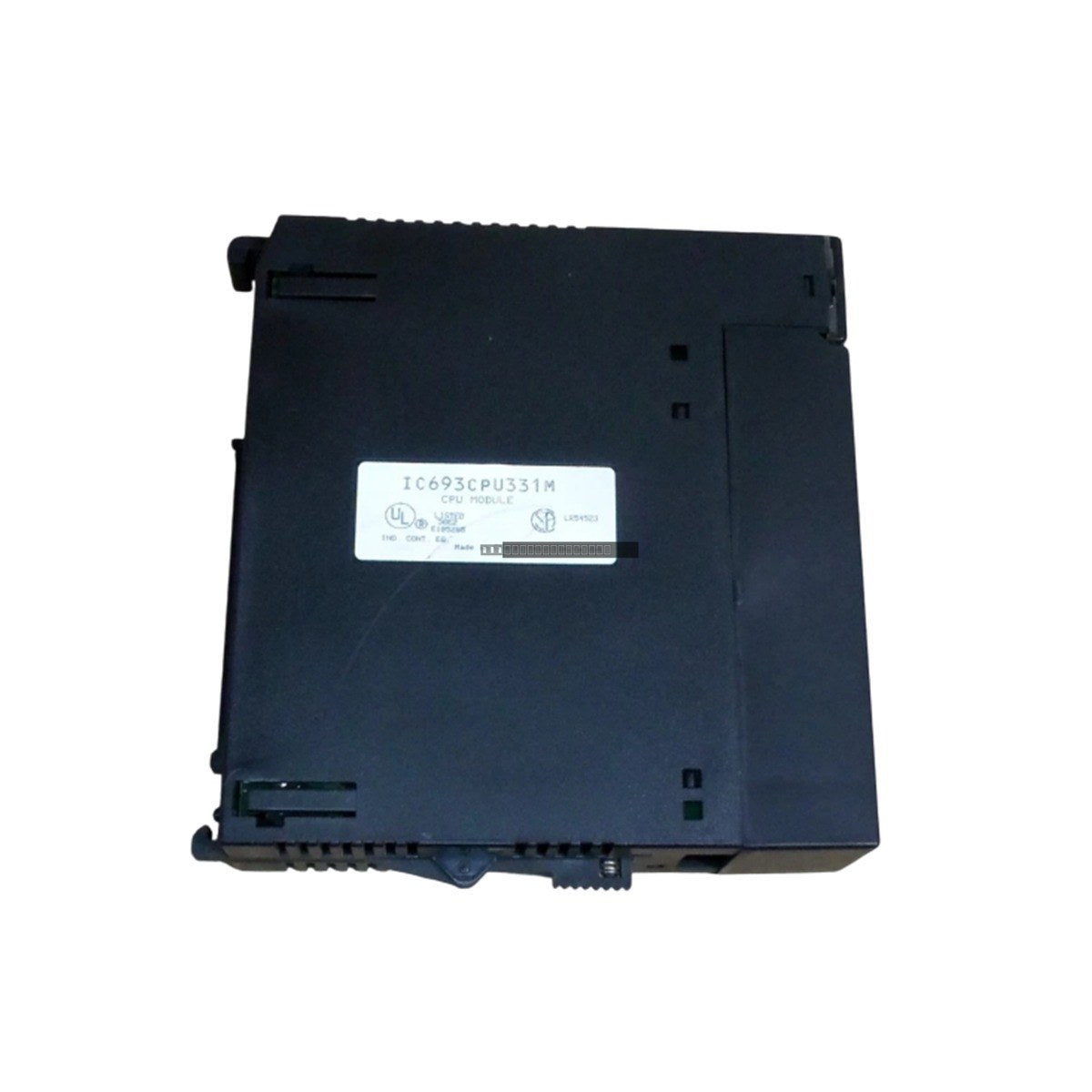

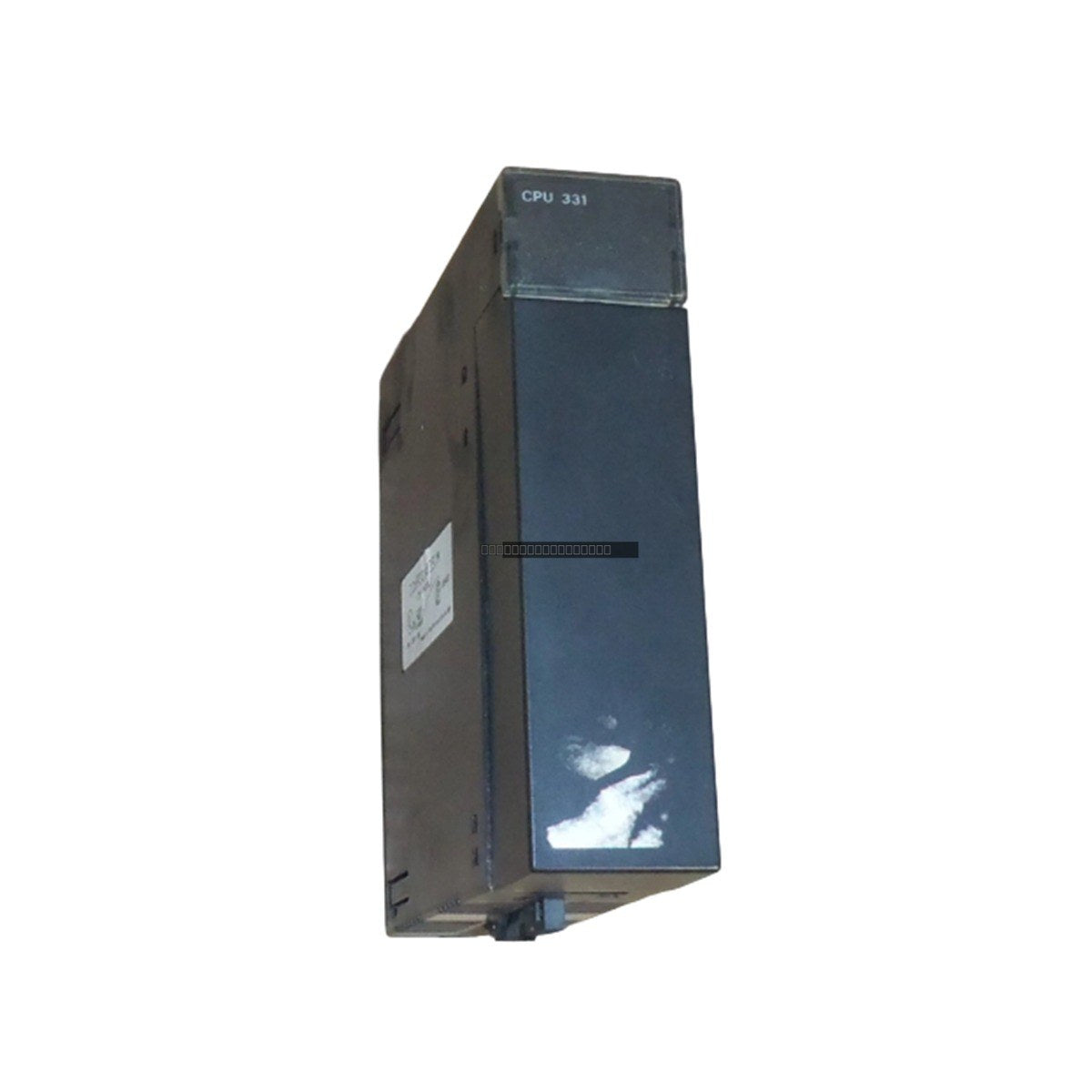

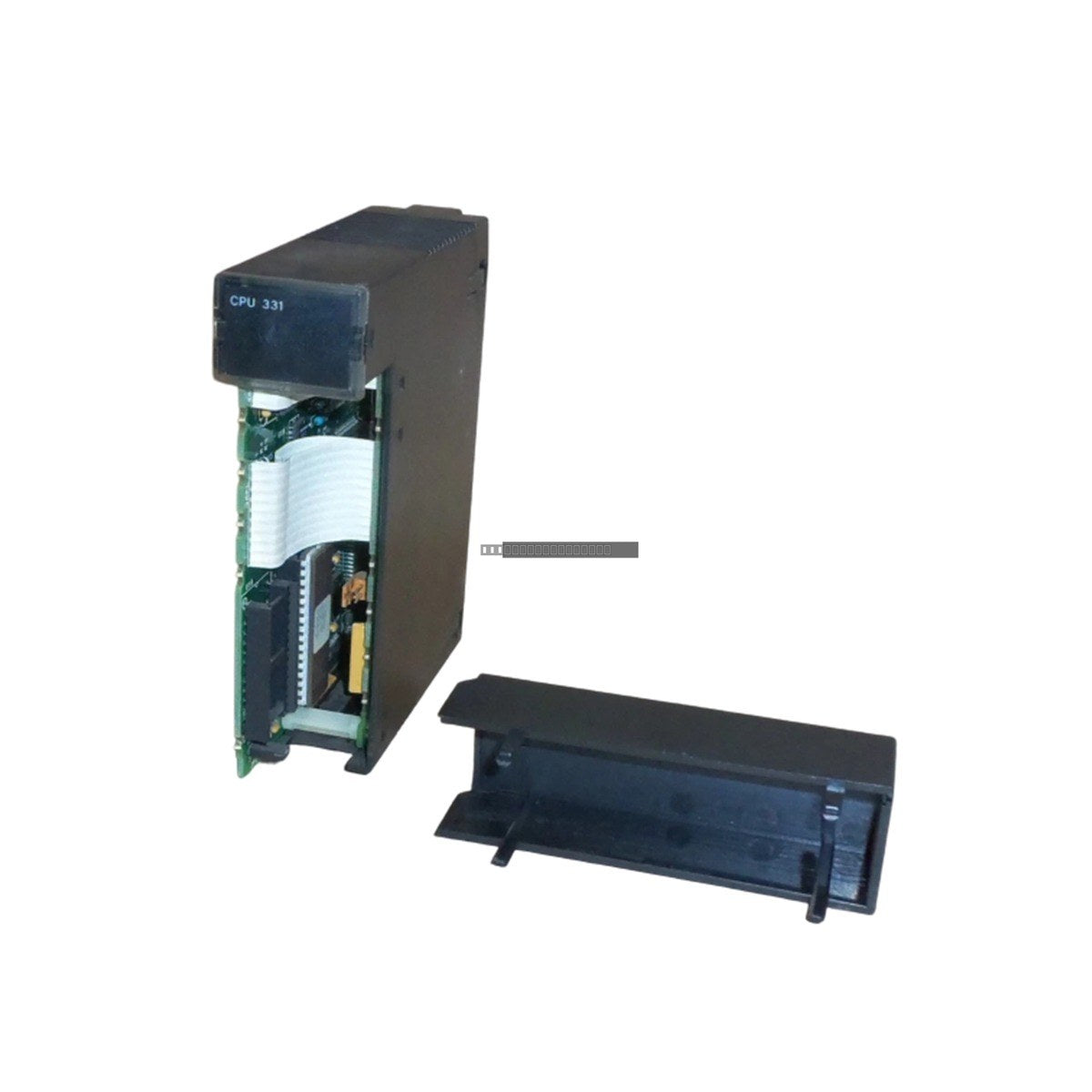

The GE Fanuc IC693CPU331L is a high-performance modular CPU module designed for the Series 90-30 Programmable Logic Controller (PLC) platform. This unit serves as the central processing engine, utilizing an 80188 processor architecture to manage complex control tasks, logic execution, and I/O communication within industrial automation environments.
Features
- Processor: 80188 architecture operating at 10 MHz.
- Scan Rate: Typical scan rate of 0.4 ms per 1K of Boolean logic.
- Memory/Logic Capacity: Supports up to 680 timers and counters.
- Expansion Capability: Supports up to four (4) expansion baseplates and four (4) remote I/O baseplates.
- Power Requirements: Operates on a +5VDC bus voltage with a current load of 350mA.
Technical Specifications
| Model |
IC693CPU331L |
| Series |
Series 90-30 |
| Processor Type |
80188 |
| Clock Speed |
10 MHz |
| Operating Temperature |
0 to 60 degC (32 to 140 degF) |
| Current Load |
350mA |
| Bus Voltage |
+5VDC |
Installation Guidelines
- Ensure the PLC rack is powered down before inserting or removing the CPU module to prevent electrical damage.
- The module should be seated firmly into the designated CPU slot on the baseplate and secured using the provided mounting hardware.
- Maintain proper ventilation within the control cabinet to ensure the ambient temperature remains within the specified 0 to 60 degC range.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect sensitive internal components.
- Ensure all expansion baseplates are correctly addressed and connected via the appropriate I/O bus cables.
FAQ
What is the primary function of the IC693CPU331L?
This is a central processing unit for the GE Series 90-30 PLC system, responsible for executing user logic and managing system I/O.
How many expansion baseplates can this CPU support?
The IC693CPU331L supports up to four expansion baseplates and four remote I/O baseplates.
What is the operating temperature range for this module?
The module is rated for operation between 32 degF and 140 degF (0 degC to 60 degC).
