Description

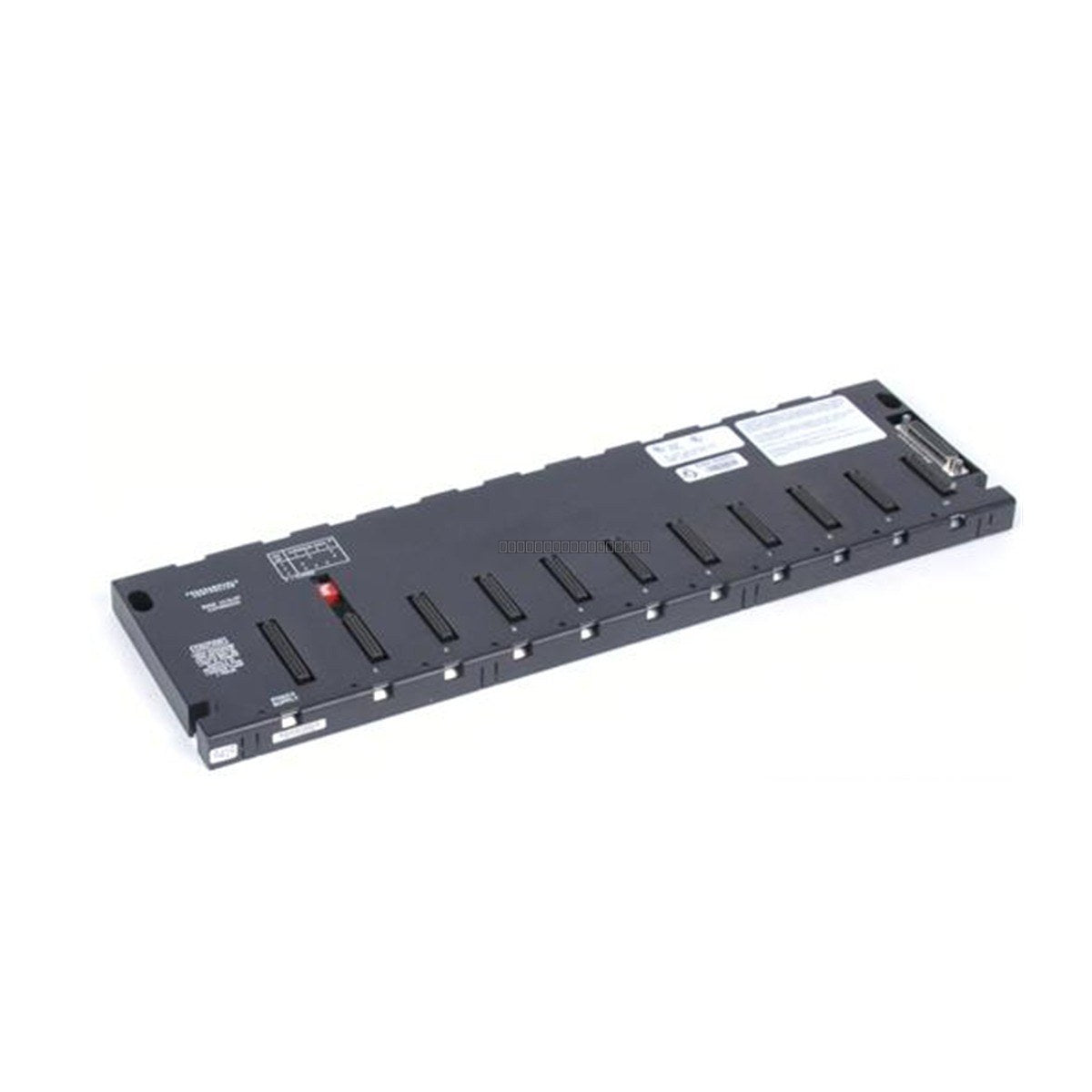

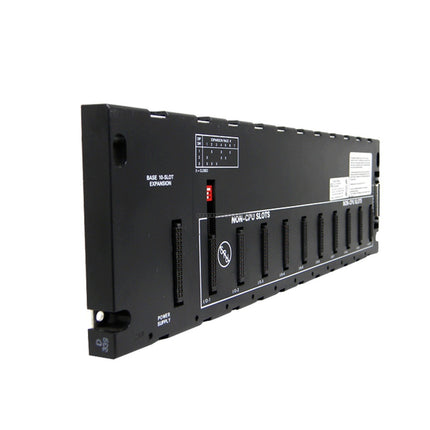

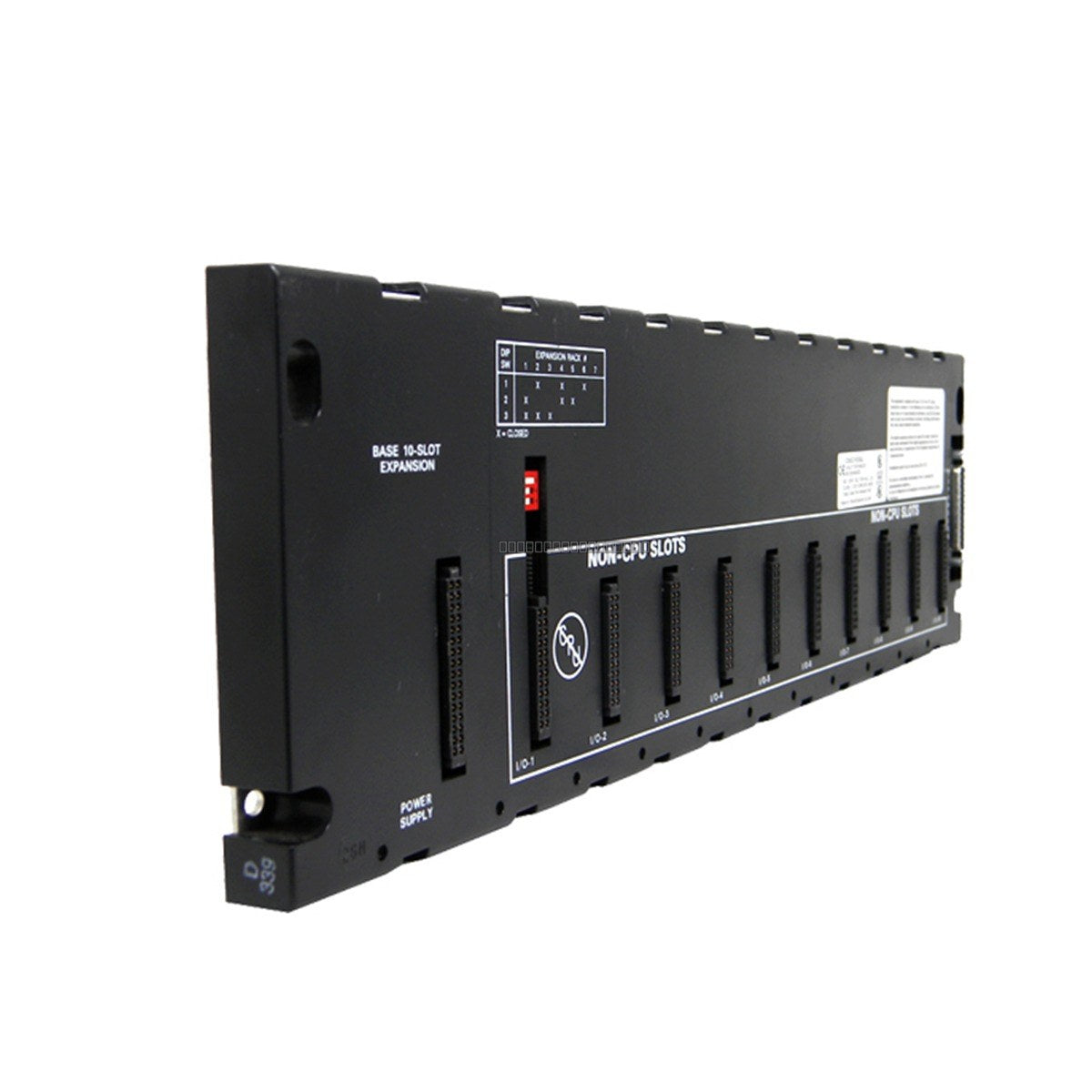

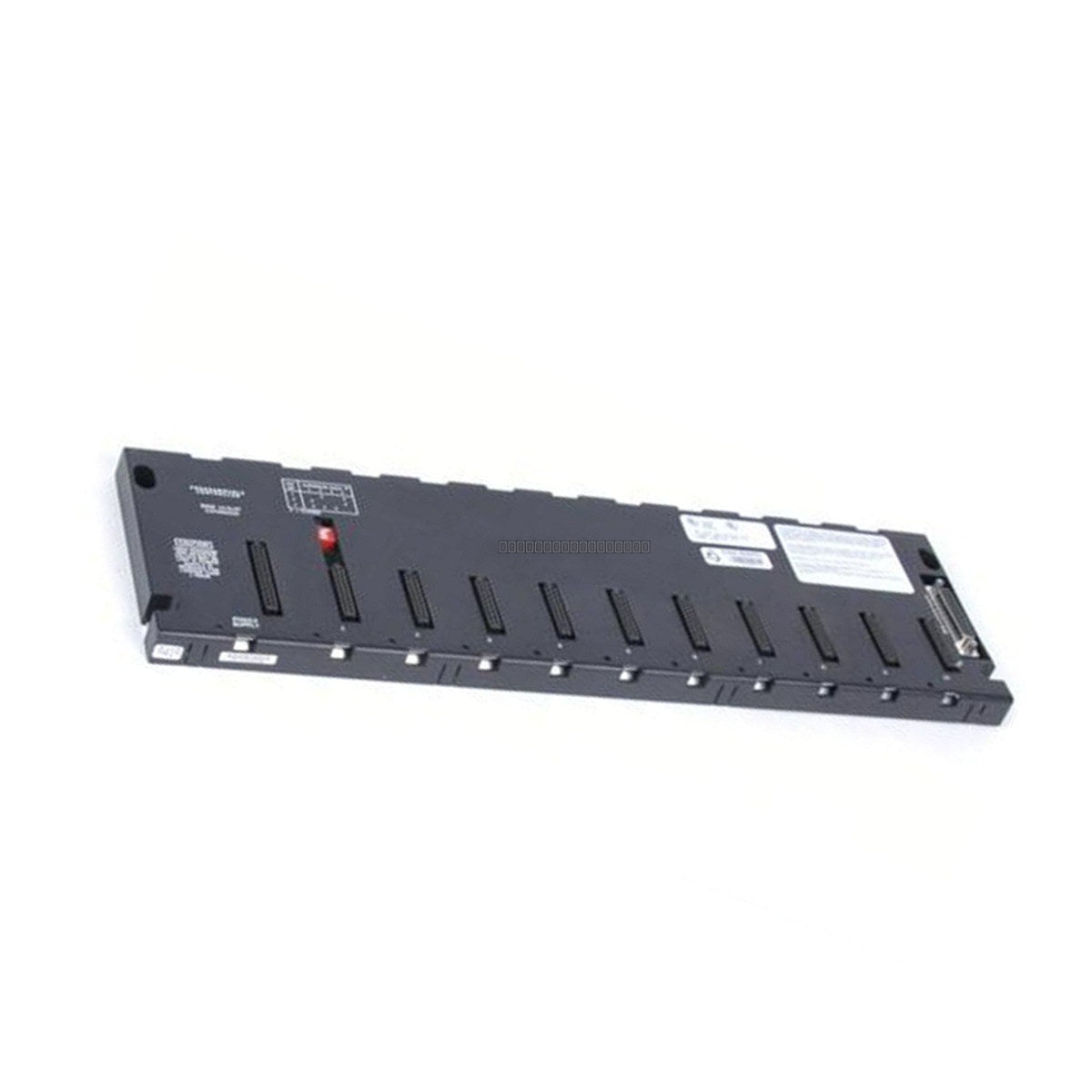

The General Electric IC693CHS392E is a 10-slot expansion baseplate designed for the Series 90-30 PLC system. This unit provides the necessary physical mounting and electrical backplane connectivity to extend the I/O capacity of a Series 90-30 control system. It is specifically engineered to house I/O and option modules, allowing for scalable system architecture in industrial automation applications.
Features
- Provides ten (10) slots for I/O and option modules.
- Includes a dedicated slot for a power supply module.
- Equipped with a 25-pin D-shell female connector for expansion cable connectivity.
- Designed for seamless integration with Series 90-30 PLC backplane communication.
- Robust construction suitable for standard industrial panel mounting.
Applications
This expansion baseplate is utilized in GE Series 90-30 PLC systems where additional I/O density is required beyond the capacity of the CPU baseplate. It is commonly found in manufacturing, process control, and machine automation environments where modular I/O expansion is necessary to accommodate increased sensor and actuator counts.
Technical Specifications
| Model |
IC693CHS392E |
| Series |
Series 90-30 |
| Slots |
10 I/O Slots |
| Power Supply Slot |
Included |
| Internal Power Consumption |
150 mA at 5 VDC |
| Expansion Interface |
25-pin D-shell female connector |
| Mounting |
Panel Mount |
Installation Guidelines
- Ensure the power is disconnected from the system before installing or removing any modules from the baseplate.
- Mount the baseplate in an indoor environment, ensuring adequate clearance for ventilation and cable routing.
- Use appropriate grounding techniques to minimize electromagnetic interference (EMI) and ensure signal integrity.
- Secure the baseplate firmly to the panel using the provided mounting holes to prevent vibration-related issues.
- When connecting the expansion cable, ensure the 25-pin D-shell connector is fully seated and the locking screws are tightened.
- Handle modules with care to prevent electrostatic discharge (ESD) damage to the backplane pins.
FAQ
Does this baseplate support a CPU module?
No, the IC693CHS392E is an expansion baseplate and does not contain a slot for a CPU. It is intended to be used in conjunction with a CPU-capable baseplate to expand the total I/O count of the system.
What is the power requirement for this baseplate?
The baseplate consumes 150 mA at 5 VDC from the power supply module installed in the designated power supply slot.
