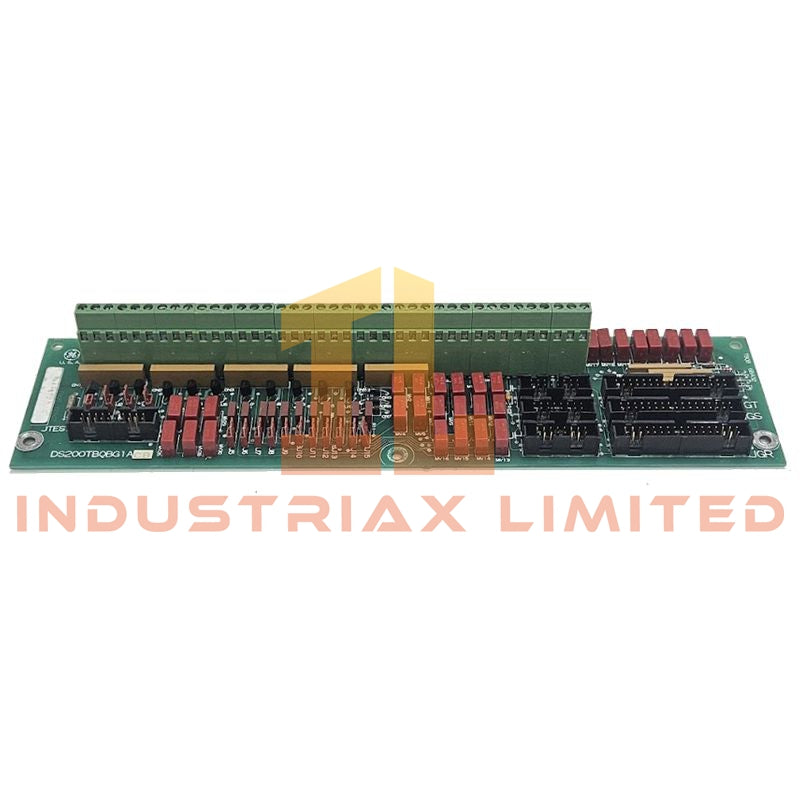

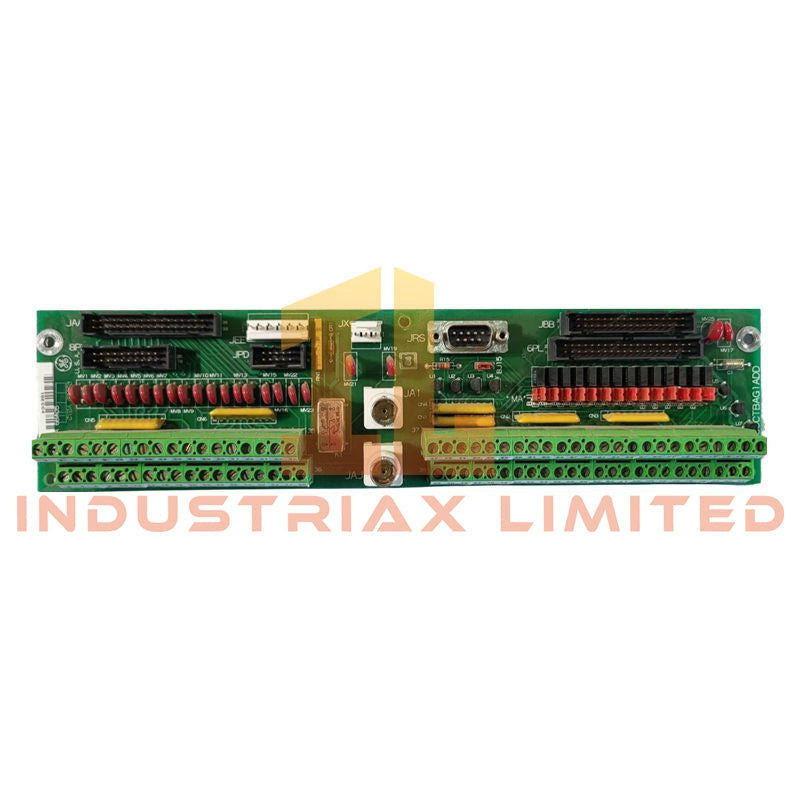

GE DS200TBQBG1A Input Termination Module

GE DS200TBQBG1A Input Termination Module

شكل المنتج

GE DS200TBQBG1A Input Termination Module The GE DS200TBQBG1A, also cataloged as the DS200TBQB Input Termination Module, operates as a dedicated hardware component for... اقرأ المزيد

رمز المنتج: DS200TBQBG1A
بلد المنشأ: USA

      100% أصلي وحقيقي

    هل تحتاج إلى مخزون كبير؟ تواصل معنا .

      100% جديد تمامًا وجاهز للشحن

    هل تحتاج إلى مخزون كبير؟ تواصل معنا .

      دعم استرداد الأموال، خدمة 7X24 ساعة

    دعم استرداد الأموال، خدمة 7X24 ساعة، اتصل بنا .

      اتصل بنا: +86 135 995 07613

    متاح في أيام العمل من الساعة 9:00 صباحًا إلى 6:00 مساءً

      راسلنا عبر البريد الإلكتروني: sales2@industriaxplc.com

    متاح 24/7 للاستفسارات والدعم

    وصف

    GE DS200TBQBG1A Input Termination Module

    The GE DS200TBQBG1A, also cataloged as the DS200TBQB Input Termination Module, operates as a dedicated hardware component for analog and discrete field signal termination within the Mark V SpeedTronic turbine control system. It interfaces field wiring with the associated TCQA and TCQC processor boards through dedicated backplane connectors while providing passive signal conditioning and configurable input selection.

    Suffix Breakdown & Model Matrix

    The available documentation identifies the functional revision but does not define an official suffix matrix beyond the hardware revision.

    Model Description
    DS200TBQBG1A Input Termination Module, Functional Revision A
    Base Model DS200TBQB

    Hardware Specifications

    Parameter Specification
    Model DS200TBQBG1A
    Brand GE (General Electric)
    Origin United States
    Product Type Input Termination Module
    Series Mark V SpeedTronic
    Functional Acronym TBQB
    Functional Revision G1A
    Weight 0.73 lb
    Operating Temp -30 deg C to +65 deg C
    Storage Temp -40 deg C to +85 deg C
    Relative Humidity 5 % to 95 % non-condensing
    Power Consumption Not specified
    Terminal Blocks 2 barrier terminal blocks
    Signal Capacity Up to 154 field termination points (77 terminals per block)
    Connectors 3 x 34-pin and 3 x 16-pin connectors
    Supported Signals Analog current, analog voltage, vibration, pulse rate, compressor discharge transmitter inputs
    Configuration 15 onboard jumpers for input and signal configuration
    Mounting Installed within GE Mark V control cabinet

    Backplane Communication and Firmware Compatibility

    The DS200TBQBG1A exchanges field signals with the associated TCQA and TCQC boards through dedicated ribbon cable connectors. Analog current, voltage, vibration, and pulse-rate signals are routed from the terminal board to the processing cores without active signal conversion on the termination module itself.

    The board includes configurable jumper groups for selecting current or voltage analog input operation and for legacy pressure transducer configurations. Compatibility depends on the installed Mark V hardware configuration and matching control cabinet documentation.

    Frequently Asked Questions

    Q: Does the DS200TBQBG1A provide hot-swap capability?
    A: No documented hot-swap capability is provided. Installation or replacement should be performed with the associated control cabinet de-energized unless GE service documentation specifies otherwise.

    Q: What are the primary field signals accepted by this module?
    A: The module terminates analog current, analog voltage, vibration transducer, pulse-rate, and compressor discharge transmitter signals before forwarding them to the associated processor interface boards.

    Q: How are analog input types configured?
    A: Onboard jumper groups are used to select current or voltage input operation and support specific legacy input configurations where required.

    Field Installation Guidelines

    • Verify the module part number and functional revision before installation.
    • Mount the board only in the designated Mark V cabinet position.
    • Route analog instrumentation cables separately from AC power and motor cables.
    • Connect cable shields according to the cabinet grounding practice to minimize conducted noise.
    • Confirm jumper settings before energizing the control system.
    • Fully seat all multi-pin connectors and verify terminal screw torque after field wiring.
    • Inspect barrier terminals periodically for loose conductors and signs of oxidation.
