Description

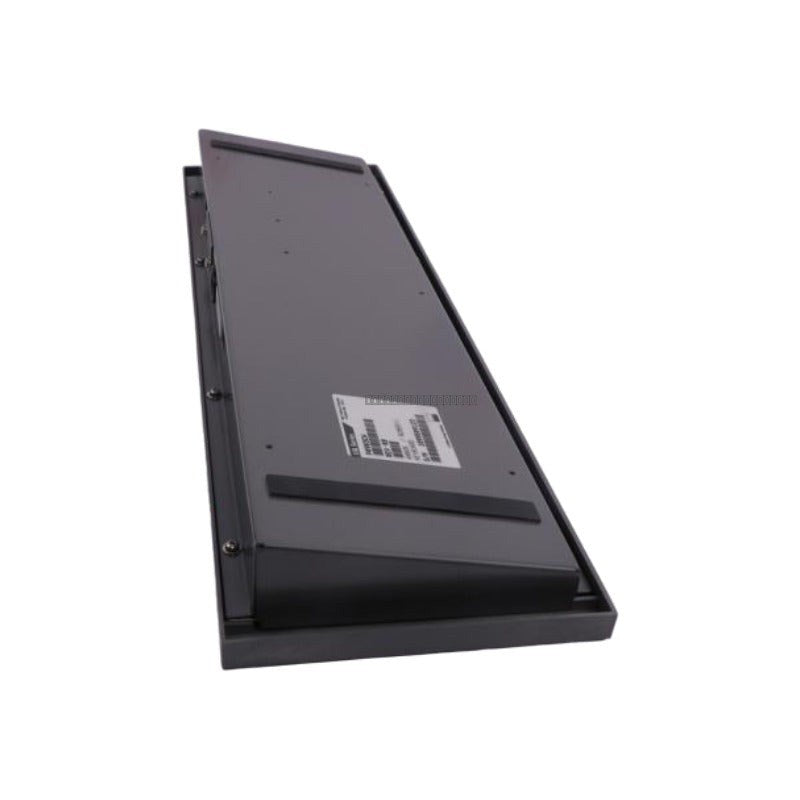

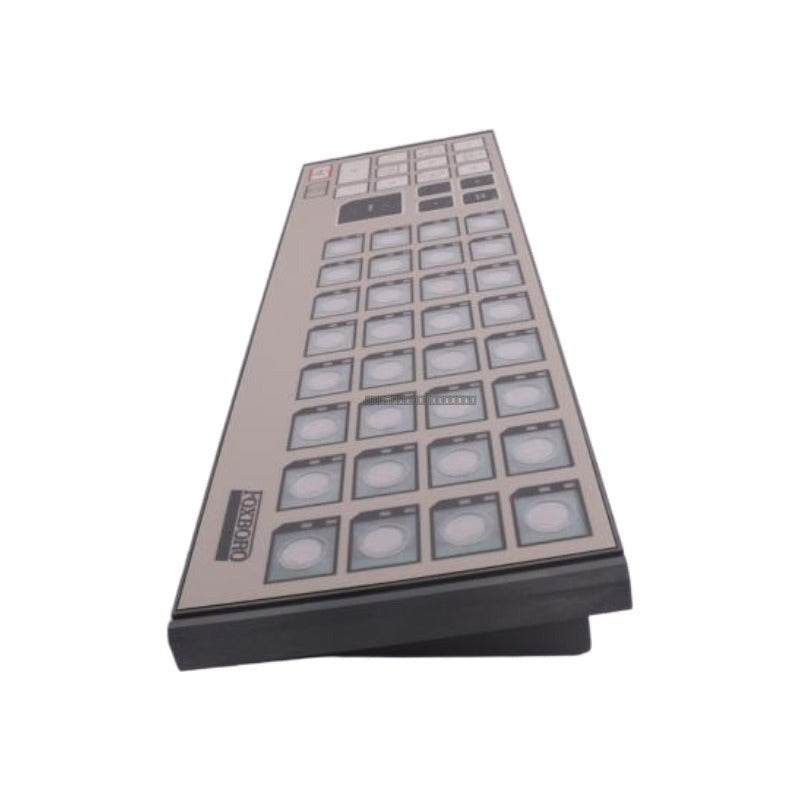

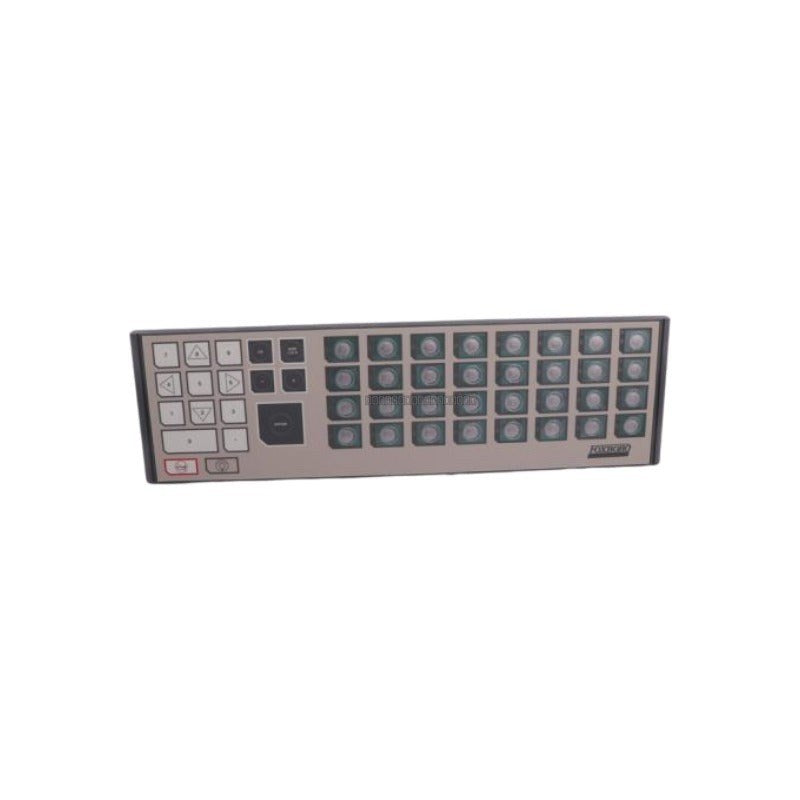

The Foxboro P0903CW is a specialized annunciator numeric keyboard designed for integration with the Foxboro I/A Series distributed control system (DCS). This industrial-grade input device provides operators with a dedicated tactile interface for rapid alarm acknowledgment, numeric data entry, and station switching. Engineered for demanding control room environments in sectors such as oil refining, chemical processing, and power generation, the P0903CW ensures reliable interaction with the DCS. By offering dedicated function keys and a ruggedized numeric pad, it facilitates faster response times during process upsets, which is critical for maintaining situational awareness and minimizing plant downtime.
Features
- Dedicated numeric cluster and cursor control keys for efficient data entry.
- Integrated annunciator function keys for system alarm silencing, acknowledgment, and reset.
- Ruggedized construction suitable for continuous industrial control room operation.
- Sealed switch matrix design to protect internal electronics against dust and moisture.
- High-contrast key labeling for optimal visibility in varying lighting conditions.
- Integrated self-test routines to verify input path integrity upon startup.
Applications
The P0903CW is primarily utilized in Foxboro I/A Series operator workstations. Typical applications include:
- Centralized alarm management and monitoring stations.
- Process control and data entry in chemical and petrochemical facilities.
- Power generation control rooms requiring rapid operator response.
- Industrial environments where reliable, deterministic serial input is required for DCS interaction.
Technical Specifications
| Model |
P0903CW |
| Brand |
Foxboro by Schneider Electric |
| Device Type |
Annunciator Numeric Keyboard |
| Interface |
Serial RS-232 / Proprietary |
| Key Type |
Industrial membrane or mechanical switch |
| Input Voltage |
5 VDC (via interface cable) |
| Operating Temperature |
0 to 50 deg C |
| Storage Temperature |
-40 to +70 deg C |
| Relative Humidity |
5 to 95% (Noncondensing) |
| Enclosure Rating |
IP 54 (Front panel) |
| Mounting |
Console or Desktop |
Installation Guidelines
- Ensure the workstation is powered down before connecting or disconnecting the keyboard interface cable to prevent potential electrical surges.
- Verify the interface cable is securely seated in the designated serial port to maintain deterministic communication latency.
- When panel mounting, ensure the gasket is properly aligned to maintain the IP 54 front-panel rating.
- Avoid routing the communication cable near high-voltage power lines or high-EMI sources to prevent signal interference.
- Handle with care to avoid damage to the membrane switch surface; avoid using abrasive cleaning agents.
FAQ
Is the P0903CW compatible with all I/A Series workstations?
The P0903CW is designed for standard I/A Series operator interfaces using the specified serial protocol. Please verify your specific workstation revision and port availability before installation.
Does this keyboard require external power?
No, the unit typically draws its 5 VDC operating power directly through the interface cable assembly connected to the workstation.
