Description

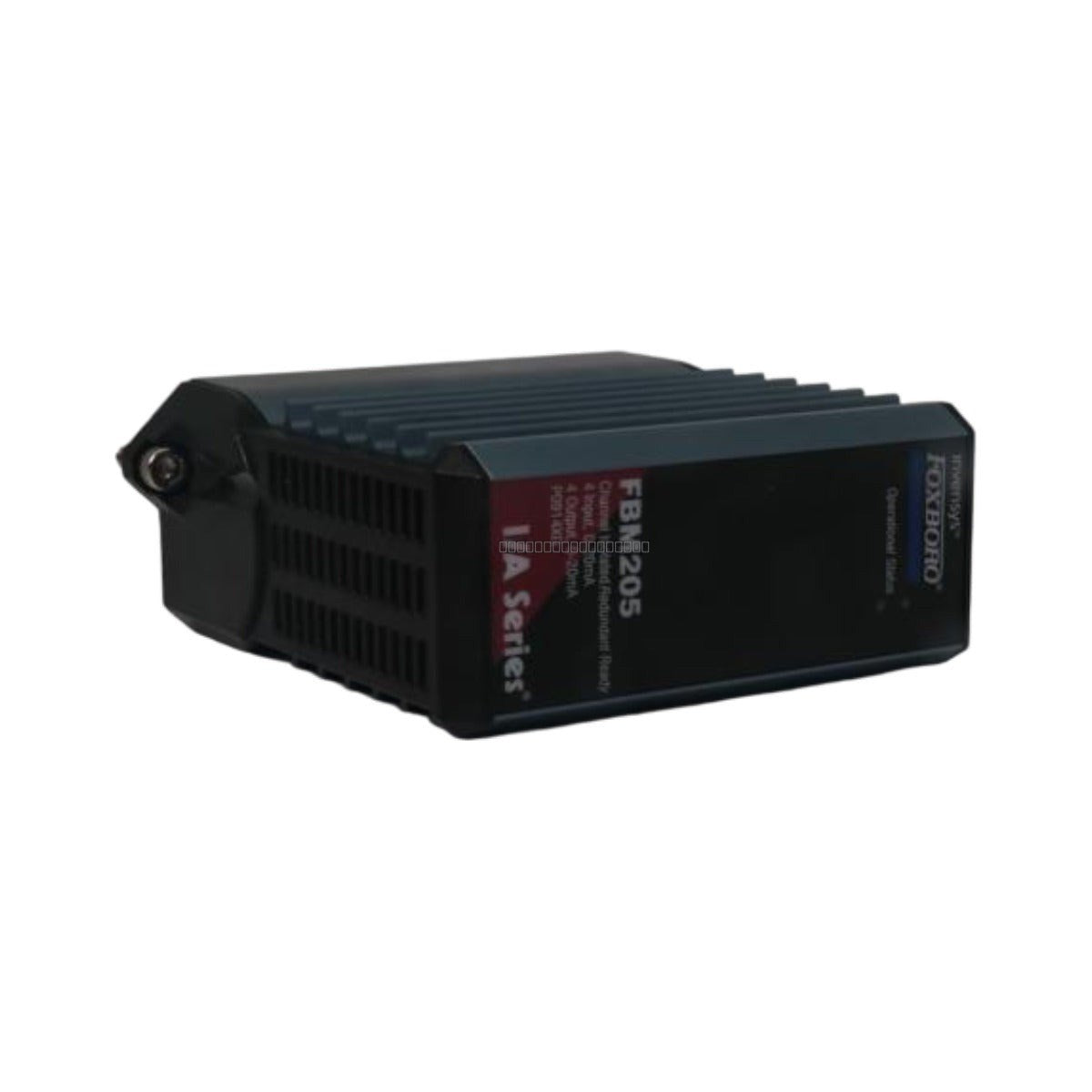

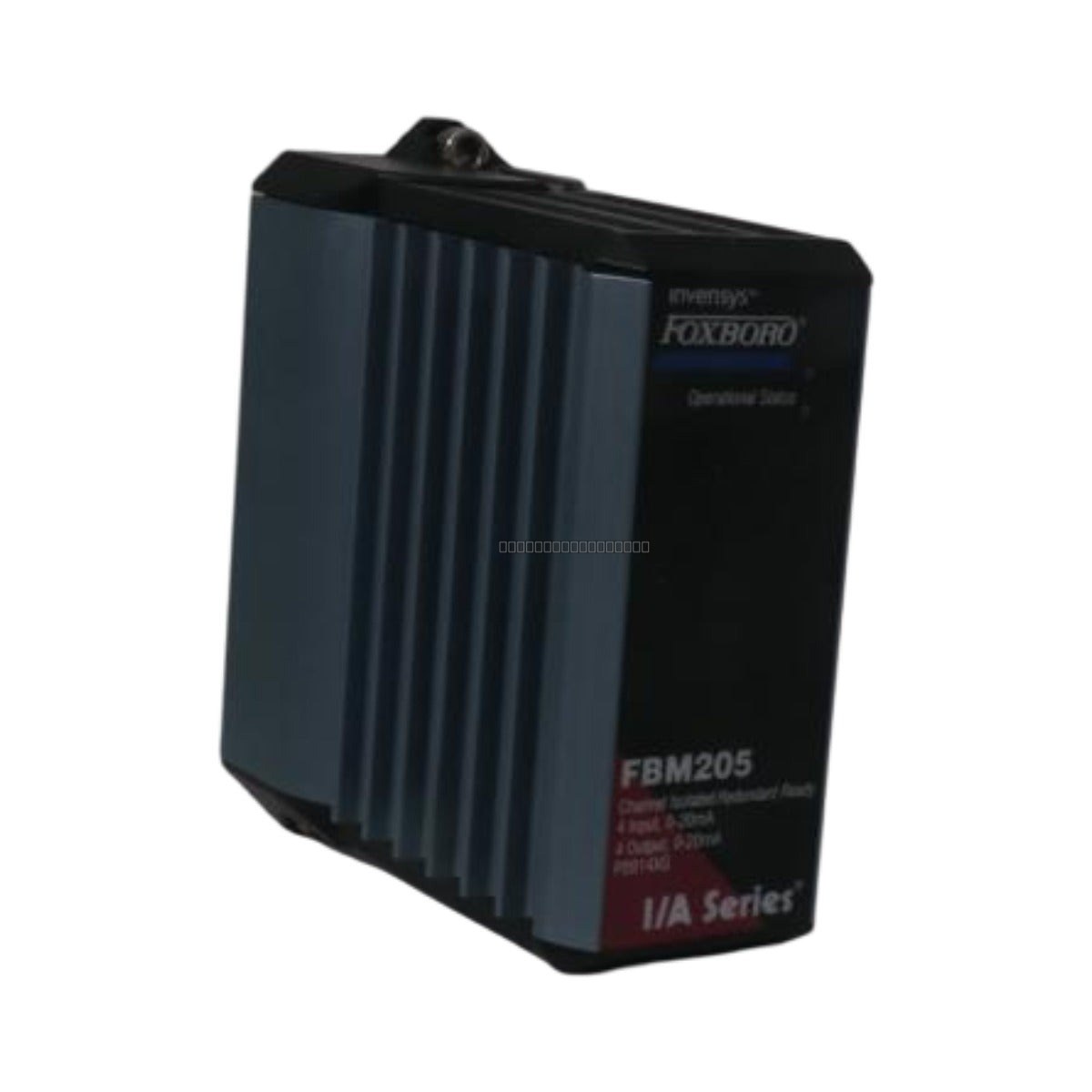

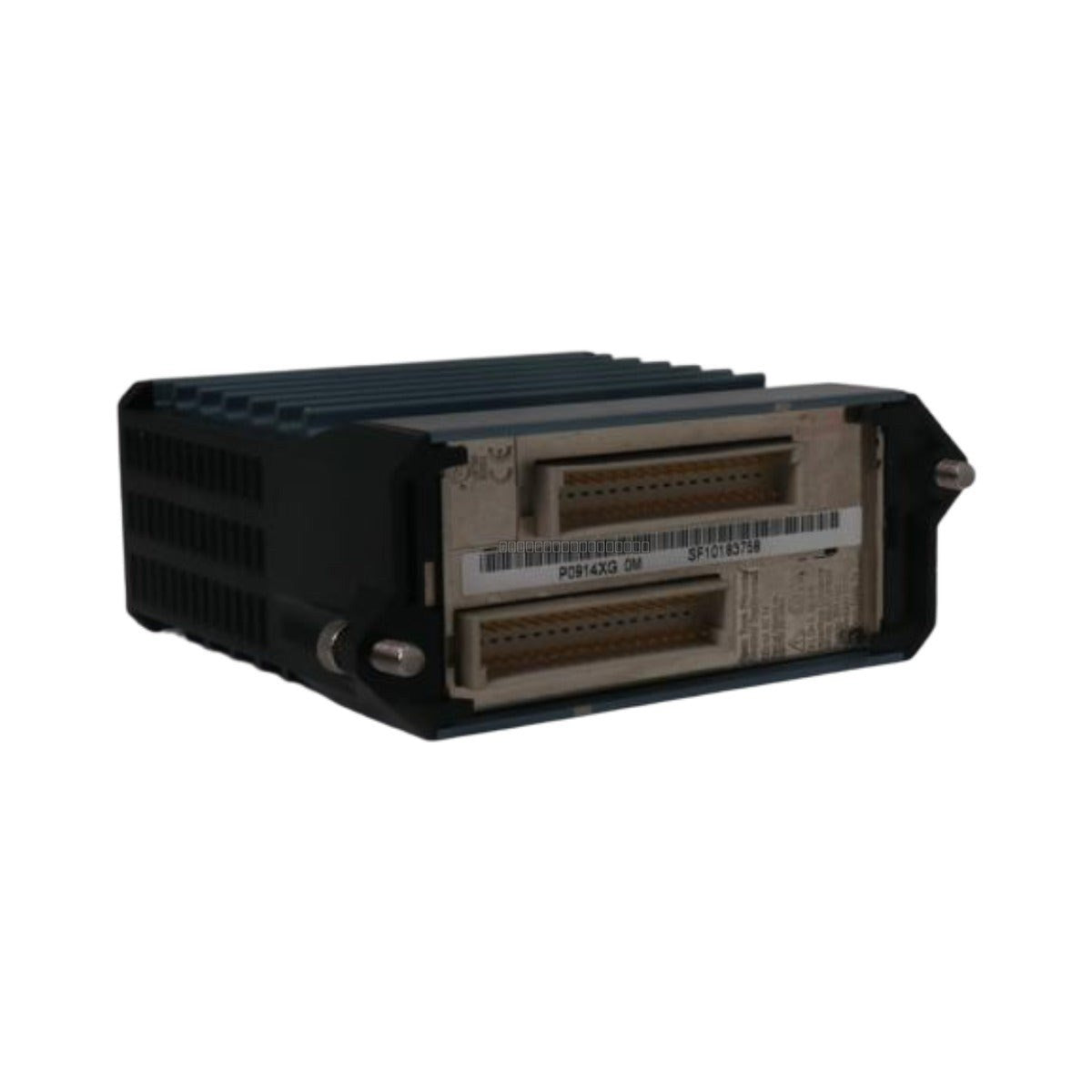

The Foxboro FBM205 (P0914XG) is a high-reliability, redundant analog input/output interface module designed for the I/A Series distributed control system. This module provides four channels of 0 to 20 mA analog input and two channels of 0 to 20 mA analog output, supporting critical control loops in demanding industrial environments such as oil refineries, thermal power plants, and mineral processing facilities. By utilizing a redundant hardware architecture, the FBM205 ensures that a single component failure does not interrupt process signals, maximizing plant availability and reducing the risk of unscheduled downtime.
Features
-
Redundant Architecture: Fully redundant circuit design maintains process integrity and ensures seamless failover between logic paths.
-
High-Density I/O: Provides 4 analog input channels and 2 analog output channels in a compact Eurocard form factor.
-
Galvanic Isolation: Each channel features independent galvanic isolation to suppress electromagnetic interference.
-
Hot-Swappable: Supports replacement under power without disturbing field wiring or interrupting adjacent module operation.
-
Advanced Diagnostics: Real-time monitoring of open-circuit or short-circuit conditions on 0-20 mA loops.
-
Environmental Ruggedness: Rated for G3 harsh environments per ISA S71.04.
Applications
The FBM205 is designed for high-availability process control applications, including:
- Oil and Gas upstream and downstream processing.
- Thermal power generation and boiler control.
- Chemical and mineral processing facilities.
- Critical safety and control loops requiring redundant signal paths.
Technical Specifications
| Parameter |
Specification |
| Model |
FBM205 (P0914XG) |
| Input Channels |
4 (0 to 20 mA DC) |
| Output Channels |
2 (0 to 20 mA DC) |
| Accuracy |
+/- 0.05% of span |
| Isolation |
600 V AC galvanic |
| Power Consumption |
5 W maximum |
| Operating Temperature |
-20 to +70 deg C |
| Storage Temperature |
-40 to +80 deg C |
| Relative Humidity |
5 to 95% (non-condensing) |
| Environmental Rating |
G3 (ISA S71.04) |
Installation Guidelines
-
Handling: Use standard ESD protection practices when handling the module to prevent damage to internal circuitry.
-
Mounting: Ensure the module is fully seated in the I/A Series baseplate or rack. Verify that the locking mechanism is engaged.
-
Wiring: Ensure all field wiring is properly terminated according to the system wiring diagram. Use shielded cables for analog signals to minimize EMI.
-
Power: The module is hot-swappable; however, ensure the baseplate power is stable before insertion.
-
Cooling: Maintain adequate airflow within the cabinet to ensure the module operates within the specified temperature range.
FAQ
Is the FBM205 P0914XG compatible with all I/A Series systems?
The FBM205 is designed for use within the Foxboro I/A Series distributed control system. Please verify your specific system revision and baseplate compatibility before installation.
Can I replace this module while the system is running?
Yes, the FBM205 supports hot-swapping, allowing for replacement under power without interrupting the operation of the control loop or adjacent modules.
