Description

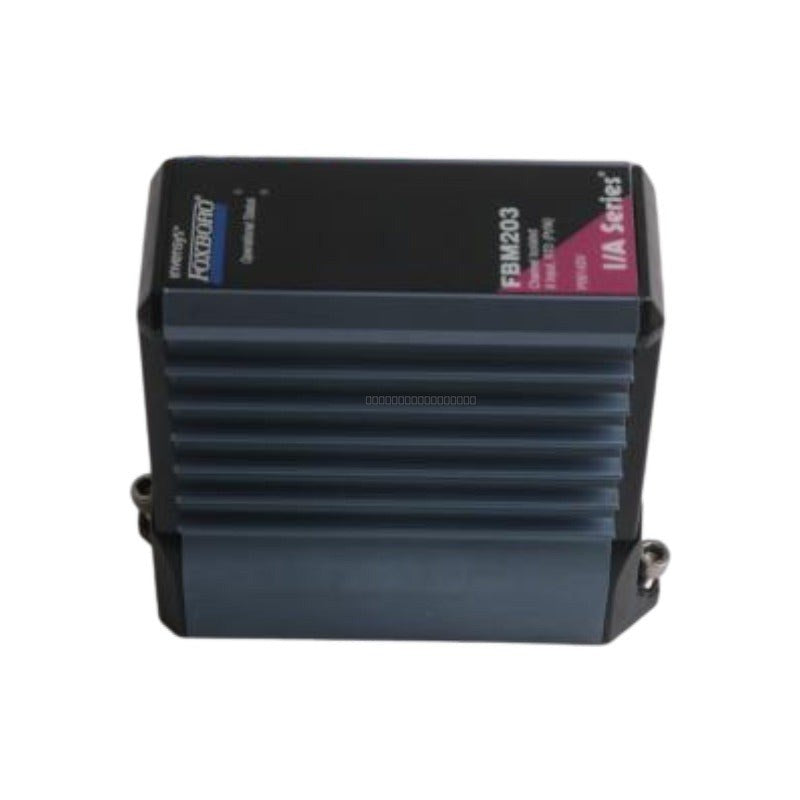

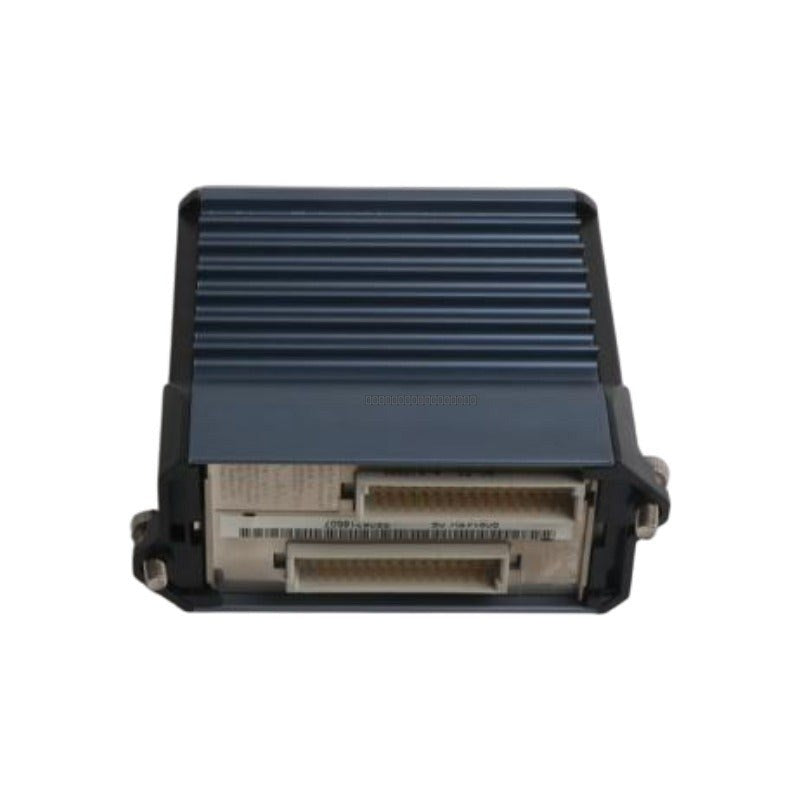

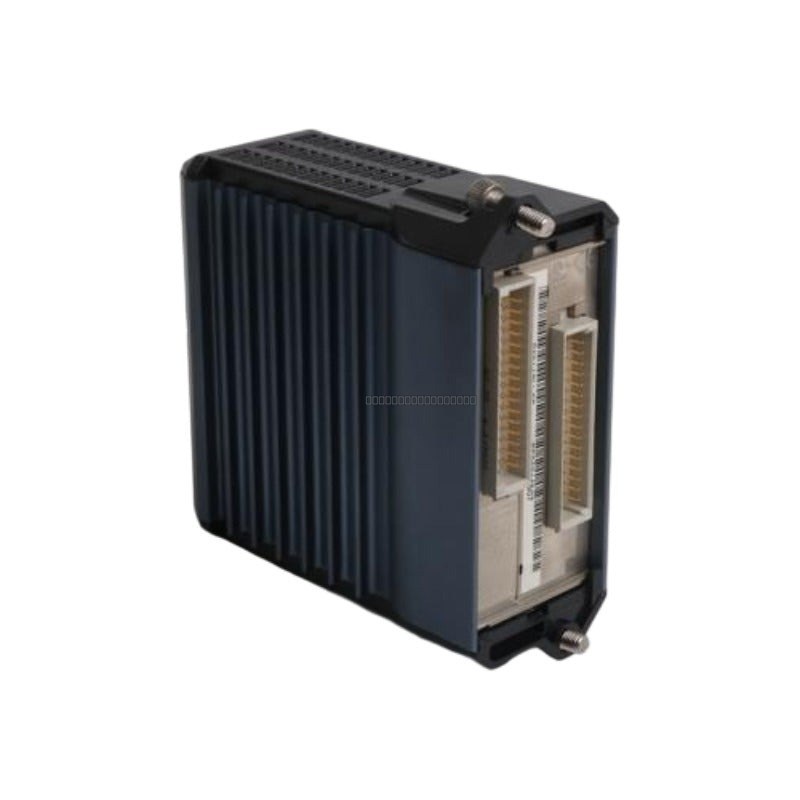

The Foxboro FBM203 (P0914SV) is a high-precision 8-channel Platinum Resistance Temperature Detector (RTD) input module engineered for the Foxboro I/A Series distributed control system. This module provides individual galvanic isolation for each channel, ensuring superior signal integrity and protection against ground loops in complex industrial electrical environments. It is designed for critical temperature monitoring applications, including oil refineries, pharmaceutical reactors, and power plant turbines.
Features
- 8 independent, galvanically isolated input channels.
- Supports 2-wire, 3-wire, and 4-wire RTD configurations.
- Dedicated Sigma-Delta ADC per channel for high-resolution data acquisition.
- Redundant 2 Mbps HDLC fieldbus communication with the system baseplate.
- Built-in lead wire resistance compensation and internal calibration constants.
- Hot-swappable design for maintenance without system interruption.
- Advanced self-diagnostics for rapid detection of sensor failures or wiring faults.
Applications
- Temperature monitoring in petrochemical and refining processes.
- Thermal management in pharmaceutical manufacturing reactors.
- Critical process monitoring in power generation and turbine control systems.
- General-purpose industrial RTD signal acquisition.
Technical Specifications
| Brand |
Foxboro (Invensys / Schneider Electric) |
| Model |
FBM203 (P0914SV) |
| Series |
I/A Series |
| Module Type |
Isolated Analog Input Module (8-Channel RTD) |
| Input Channels |
8 Isolated Channels |
| Supported Sensors |
Pt 100, Pt 200, Pt 500, Pt 1000 Ohm RTD |
| Isolation |
600 VAC (Channel-to-channel and channel-to-ground) |
| Accuracy |
+/- 0.03% of span |
| Power Consumption |
3.5 W (Maximum) |
| Operating Temperature |
-20 to +70 deg C |
| Storage Temperature |
-40 to +85 deg C |
| Relative Humidity |
5 to 95% (Non-condensing) |
Installation Guidelines
- Ensure the system baseplate is powered down before inserting or removing the module, unless the system is specifically configured for hot-swapping in a live environment.
- Verify that the module is correctly seated in the baseplate slot to ensure proper connection to the redundant HDLC fieldbus.
- Use shielded twisted-pair cabling for RTD inputs to minimize electromagnetic interference (EMI).
- Ensure proper grounding of the cable shields at the designated terminal blocks to prevent noise injection.
- Maintain adequate clearance around the module to allow for proper ventilation and heat dissipation.
- Handle the module using standard ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
FAQ
What sensor types are supported by the FBM203 P0914SV?
The module supports Pt 100, Pt 200, Pt 500, and Pt 1000 ohm RTD sensors in 2-wire, 3-wire, or 4-wire configurations.
Is this module hot-swappable?
Yes, the FBM203 is designed for hot-swapping, allowing maintenance personnel to replace the module while the system is powered and operational without disrupting other modules on the same baseplate.
Does the module provide isolation?
Yes, it features galvanic isolation of 600 VAC for both channel-to-channel and channel-to-ground, which helps prevent ground loops and enhances signal integrity.
