Description

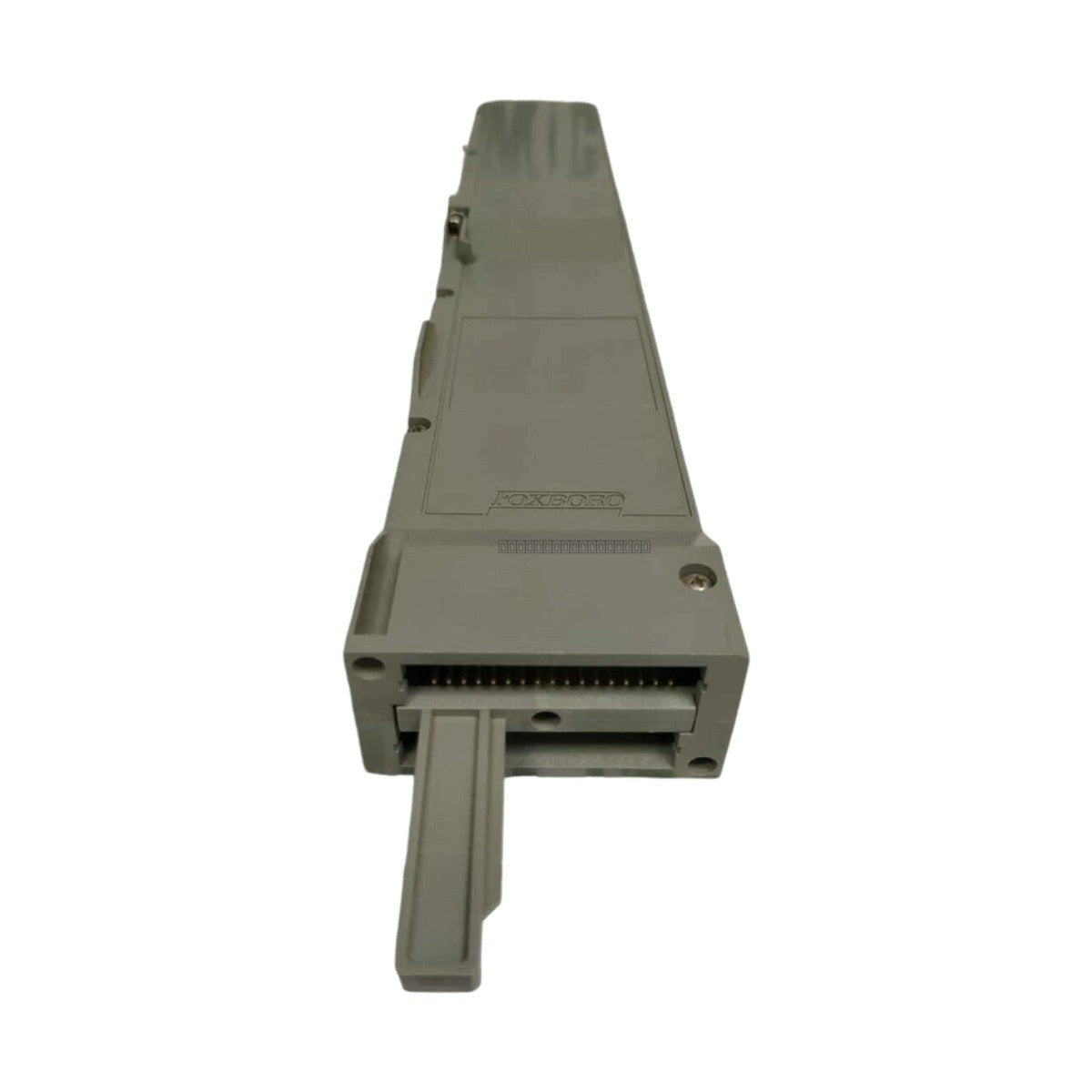

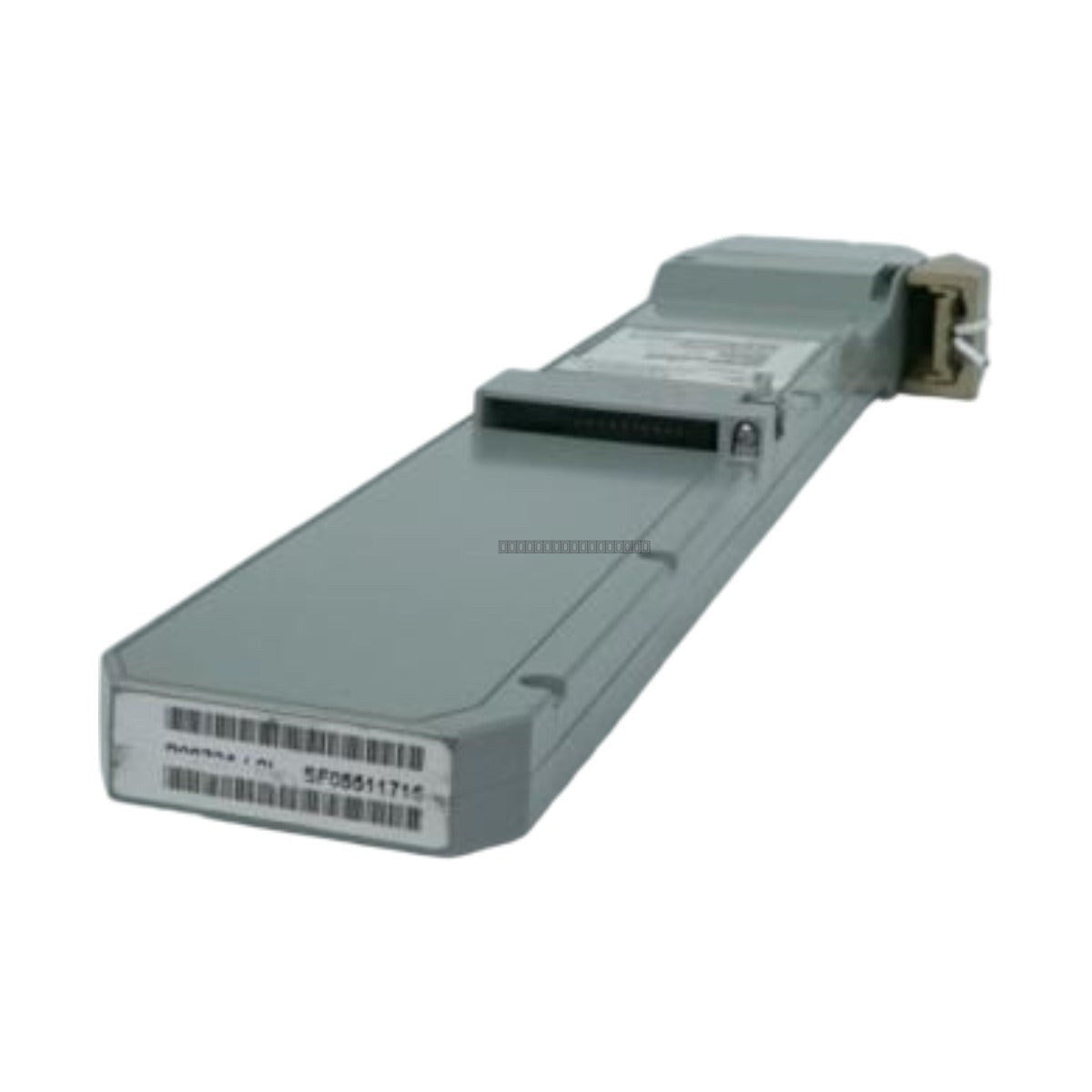

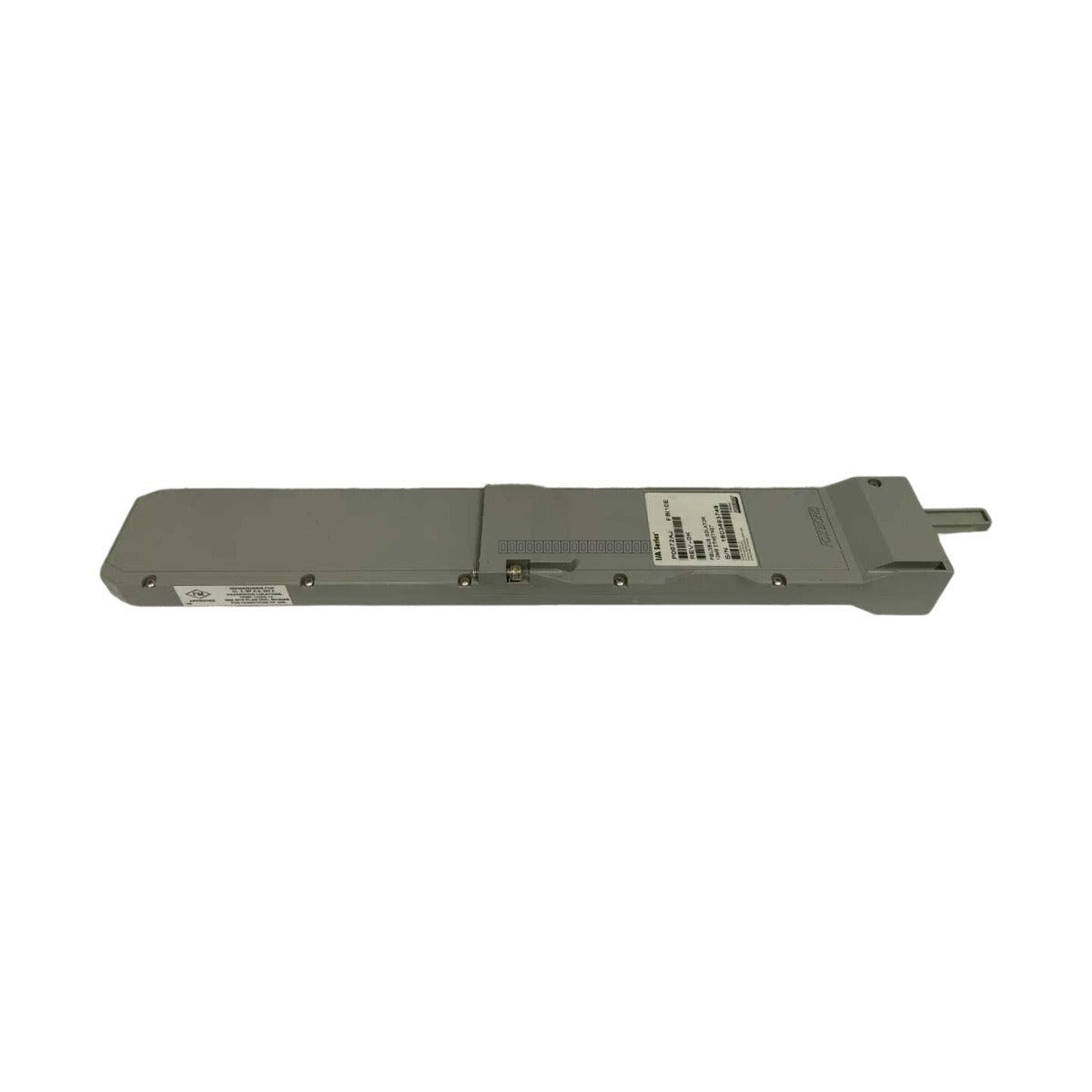

The Foxboro FBI10E (P0972AJ) is a specialized Fieldbus Isolator designed for the I/A Series Distributed Control System (DCS). This module provides high-speed galvanic isolation for the Fieldbus communication link, effectively separating the control processor environment from distributed I/O subsystems. It is vital in heavy industrial applications such as oil and gas extraction, metallurgical smelting, and chemical manufacturing where electrical noise, ground loops, and transient surges are prevalent. By isolating the communication signals, the FBI10E prevents electrical faults in one segment from propagating through the entire network, ensuring the integrity of the real-time data stream and enhancing the overall reliability of the automation architecture.
Features
- Bidirectional repeater functionality maintaining 2 Mbps Fieldbus timing and voltage levels.
- High-integrity galvanic isolation barrier (2500 VDC minimum).
- Supports redundant Fieldbus configurations for seamless failover.
- Advanced noise filtering circuitry for EMI and RFI suppression.
- Front-panel diagnostic indicators for power and communication status monitoring.
Applications
The FBI10E is typically deployed in large-scale I/A Series DCS architectures to protect communication segments in high-interference environments. It is commonly used in oil and gas refineries, chemical processing plants, and power generation facilities where long-distance communication runs or varying ground potentials require robust electrical isolation to prevent data corruption and hardware damage.
Technical Specifications
| Model |
FBI10E (P0972AJ) |
| Module Type |
Fieldbus Isolator / Repeater |
| Data Rate |
2 Mbps |
| Isolation Voltage |
2500 VDC (Minimum) |
| Power Input |
24 VDC (Nominal) |
| Power Consumption |
3.5 Watts (Maximum) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to +70 deg C |
| Humidity |
5 to 95% (non-condensing) |
Installation Guidelines
- Ensure all power is disconnected from the rack or enclosure before inserting or removing the module.
- Mount the module in a standard Foxboro industrial enclosure, ensuring proper airflow for cooling.
- Use shielded communication cables and ensure proper grounding of the cable shields to minimize EMI/RFI susceptibility.
- Verify that the 24 VDC power supply is within the specified nominal range before energizing.
- Handle the module using ESD-safe practices to prevent damage to internal electronic components.
Compliance and Certifications
The FBI10E is designed to meet international industrial standards, including UL, CSA, CE, and FM Class 1 Division 2, making it suitable for use in hazardous industrial environments.
FAQ
What is the primary function of the FBI10E?
The FBI10E acts as a galvanic isolator and repeater for the Foxboro I/A Series Fieldbus, protecting the network from electrical noise, ground loops, and transient surges while maintaining data integrity.
Does this module support redundant systems?
Yes, the FBI10E is designed to support redundant Fieldbus configurations, allowing for high-availability communication and seamless failover.
