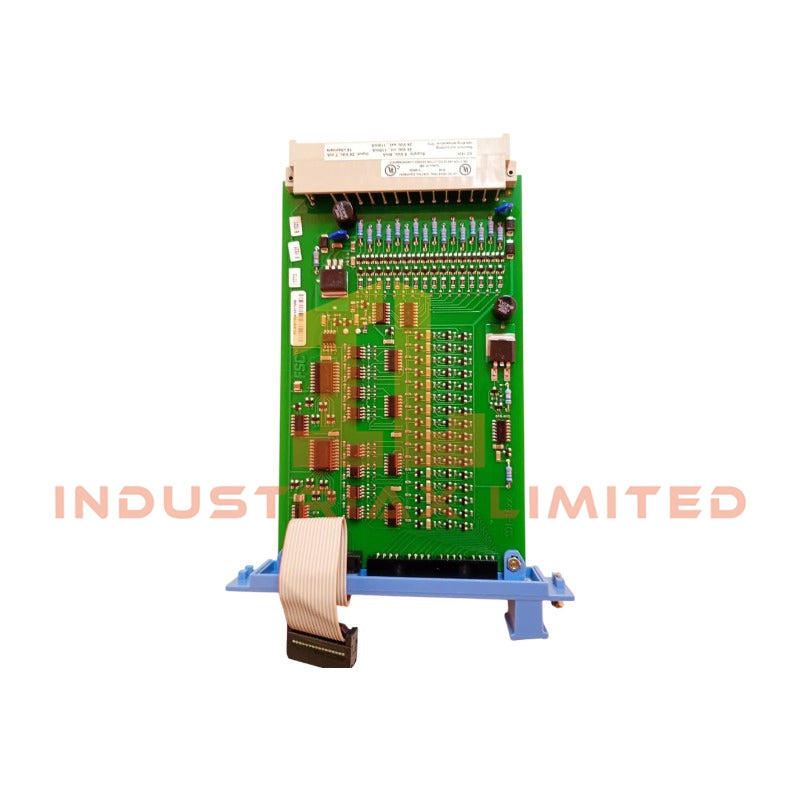

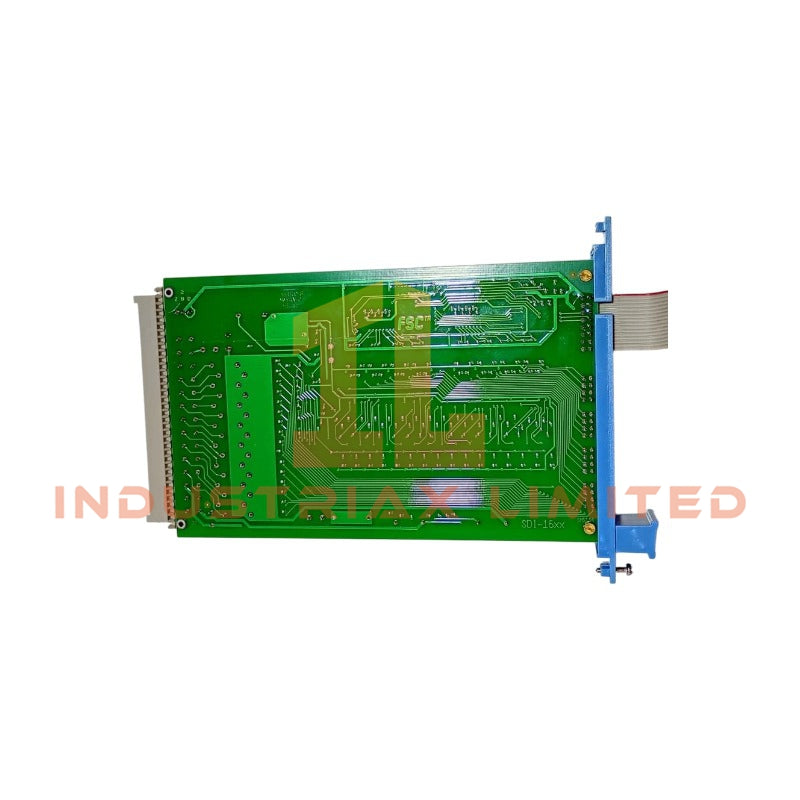

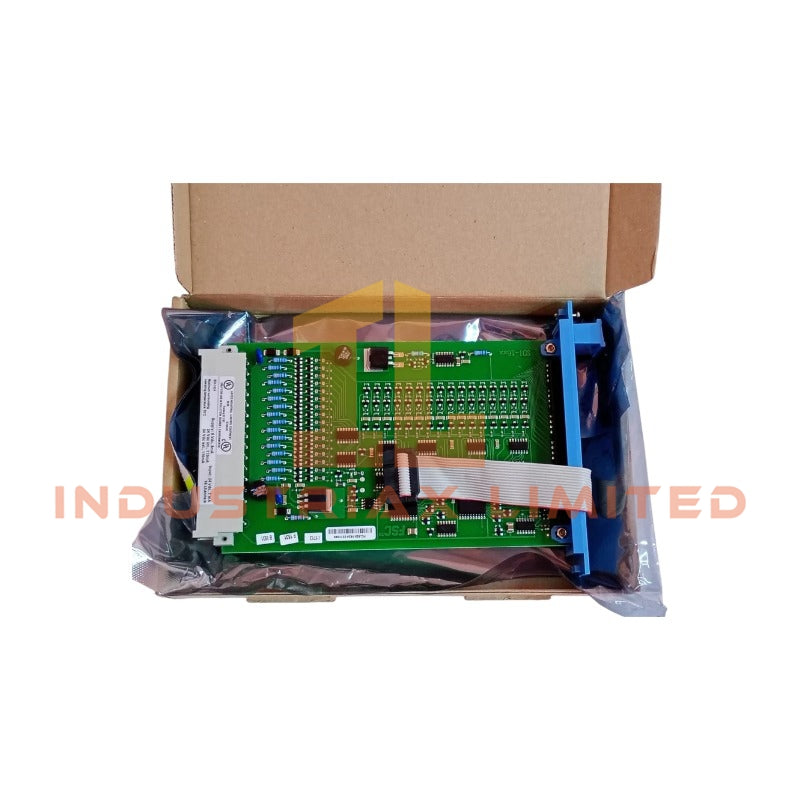

Honeywell FC-TSDO-1624 Fail-Safe Digital Output Module

The Honeywell FC-TSDO-1624, also cataloged as the FC-TSDO-1624 Fail-Safe Digital Output Module, operates as a dedicated hardware component for 24 VDC safety output execution within Honeywell Safety Manager systems.

Hardware Specifications

Parameter	Specification
Model	FC-TSDO-1624
Brand	Honeywell
Product Type	Fail-Safe Digital Output Module
System Compatibility	Honeywell Safety Manager / Safety Manager SC
Origin	USA
Power Consumption	Depends on field load and module configuration
Number of Channels	16 independent digital output channels
Nominal Voltage	24 VDC
Output Type	Sourcing digital output
Safety Integrity Level	Supports SIL 3 applications according to IEC 61508
Channel Monitoring	Open circuit and short circuit detection
Electrical Isolation	Galvanic isolation between field circuits and system electronics
Status Indication	Channel-level LED status and fault indication
Configuration	Supports redundant safety system configurations

Honeywell Safety Manager Digital Output Execution Technology

The FC-TSDO-1624 provides controlled 24 VDC output switching for safety-related field devices connected to Honeywell Safety Manager platforms. Moreover, the module performs continuous diagnostics on output circuits to detect abnormal field conditions, including wiring faults and load-side failures.

The module architecture incorporates galvanic isolation between the internal safety controller interface and external field wiring. Therefore, electrical disturbances from connected actuators, relays, or solenoid loads remain separated from the controller electronics.

In addition, the module supports fail-safe state execution by forcing defined output conditions during detected internal or external faults. The 16-channel design allows individual monitoring and control of multiple safety output circuits within a configured safety application.

Frequently Asked Questions

Q: Does the FC-TSDO-1624 support hot-swapping in a Safety Manager configuration?
A: The module can support replacement procedures in compatible Safety Manager redundant configurations. The exact hot-swap operation depends on the installed system architecture and configuration rules.

Q: What type of field signals can the FC-TSDO-1624 control?
A: The module provides 24 VDC sourcing digital outputs for safety field devices such as actuators, valves, and relay interfaces.

Q: How does the module detect output circuit faults?
A: The FC-TSDO-1624 uses integrated diagnostics to monitor output channel conditions and identify open circuit or short circuit faults.

Field Installation Guidelines

Install the FC-TSDO-1624 according to the Honeywell Safety Manager hardware installation requirements.

• Mount the module in the designated Safety Manager rack position with correct mechanical alignment.
• Verify that field wiring uses appropriate separation between safety circuits and high-energy power conductors.
• Connect cable shields according to the system grounding design to reduce electrical interference.
• Confirm polarity and terminal assignments before applying 24 VDC field power.
• Check output loop continuity and actuator wiring before commissioning.
• Maintain proper ventilation and cabinet environmental control according to the installed control system specifications.
