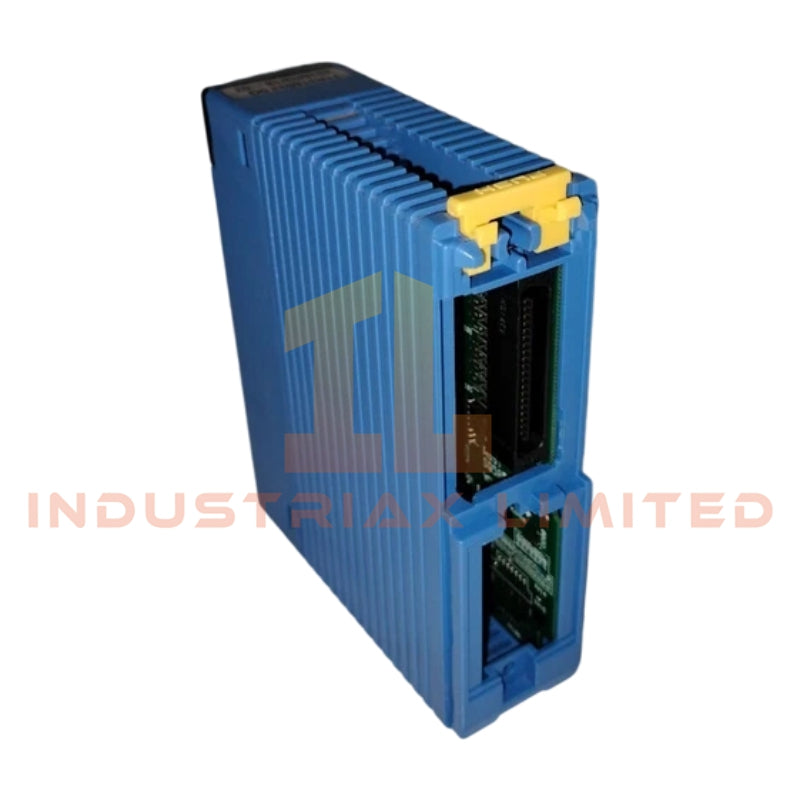

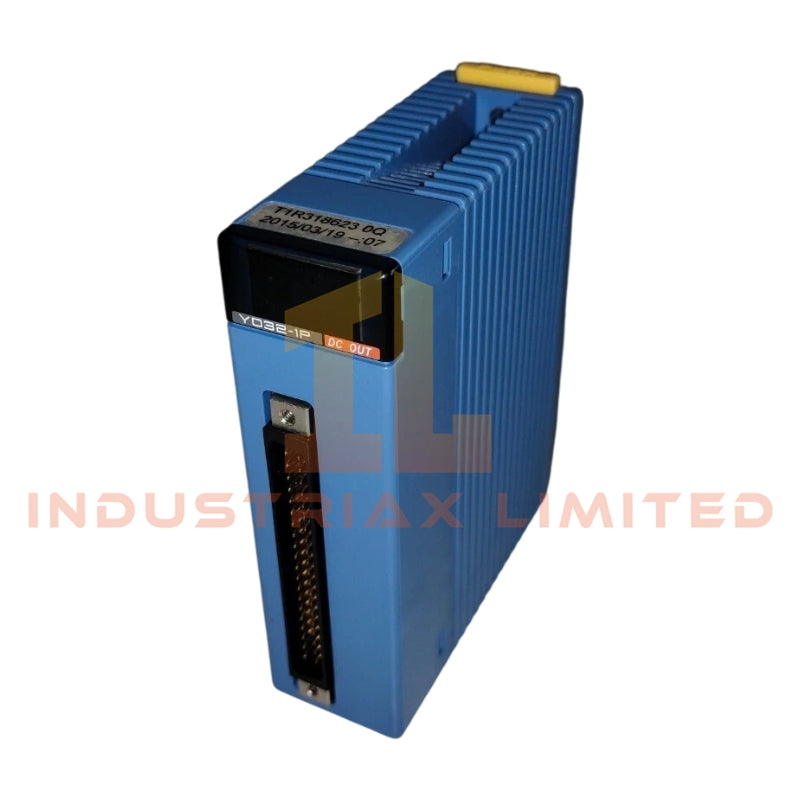

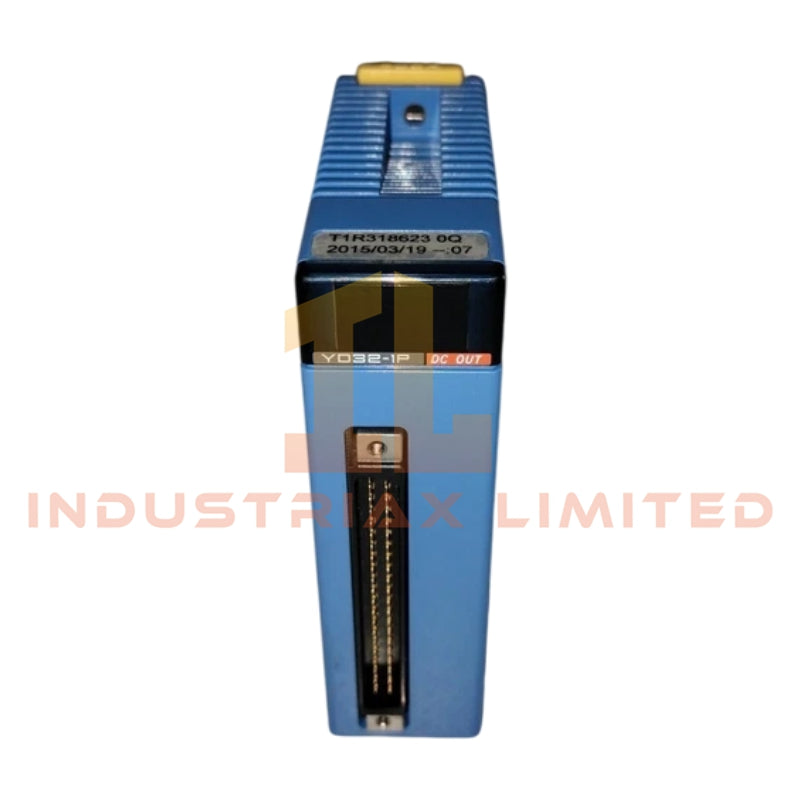

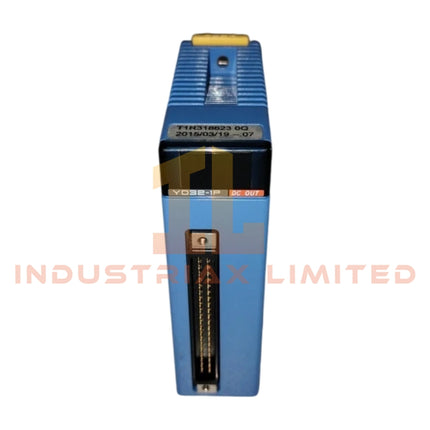

Yokogawa F3YD32-1P Digital Output Module

TheYokogawa F3YD32-1Pserves as the primaryF3YD32-1P Digital Output Moduleutilized to execute discrete sink-type switching operations across FA-M3 controller platforms. Configured for electrical actuation of field loads in 24 VDC digital output architectures, theYokogawa F3YD32-1P(F3YD32-1PDigital Output Module) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

• F3Y: FA-M3 digital output module family designation
• D32: 32-point output channel configuration
• 1P: Protection-enhanced variant (overcurrent and short-circuit protection characteristics as defined by manufacturer documentation)

Hardware Specifications

Parameter	Specification
Model	F3YD32-1P
Brand	Yokogawa
Weight	0.11 kg
Dimensions	2.89 cm x 8.32 cm x 10 cm
OperatingTemp	Not specified
PowerConsumption	5 V DC: 160 mA; External 12 to 24 V DC: 95 mA
Output Type	Transistor output, sink type
Number of Points	32
Common Line	8 points per common
Rated Load Voltage	12 to 24 V DC (10.2 to 26.4 V DC range)
Isolation	Photocoupler isolation
Dielectric Strength	1500 V AC for 1 minute (terminal to internal circuit)

Channel-to-Channel Isolation Architecture (Yokogawa DCS Integration Layer)

Within Yokogawa process I/O architectures, discrete output modules such as the F3YD32-1P implement photocoupler-based isolation between internal logic and field terminals to suppress cross-channel electrical interference under mixed-load switching conditions. This isolation topology limits propagation of external 24 V field noise into the backplane logic domain and maintains signal separation between grouped output commons (8-point segmentation structure). The design aligns with distributed I/O segmentation practices used in FA-M3 systems where channel grouping reduces fault propagation across output banks.

Frequently Asked Questions

Q: Can the module support hot-swap replacement under energized backplane conditions?
A: Hot-swap capability is dependent on FA-M3 base unit configuration. Electrical design does not guarantee field terminal de-energization during module replacement.

Q: What is the limitation of output grouping in this module?
A: Outputs are arranged in 8-point common groups, meaning load return paths are shared within each group and must respect common current constraints.

Q: Does photocoupler isolation separate all channels individually?
A: Isolation is implemented between internal circuitry and output groups, not necessarily per individual channel.

Field Installation Guidelines

• Verify 24 VDC field power polarity before connection to output terminals
• Maintain separation between high-voltage cabling and signal wiring harnesses
• Ensure each 8-point common group does not exceed rated current loading conditions
• Use shielded wiring in high-noise industrial environments and terminate shields at a single grounding point
• Confirm module seating on FA-M3 base unit backplane to avoid intermittent contact resistance
• Do not apply external voltage exceeding 26.4 VDC to output terminals

تحديد

• rtl">


المزايا

• موثوقية عالية في البيئات الصناعية



• يدعم التشغيل المستمر، متوافق مع أنظمة PLC/DCS الرئيسية
