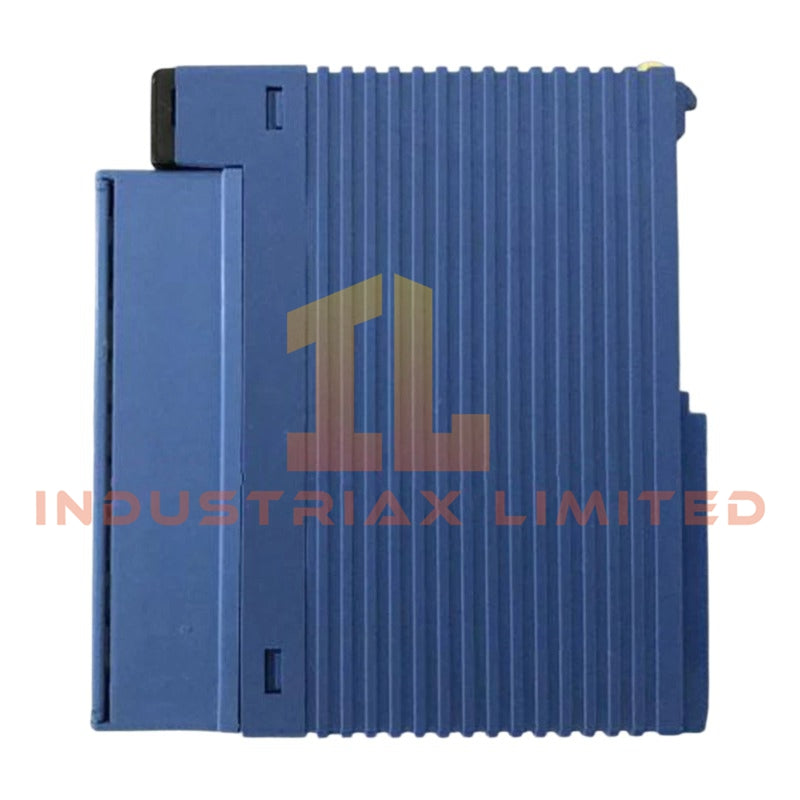

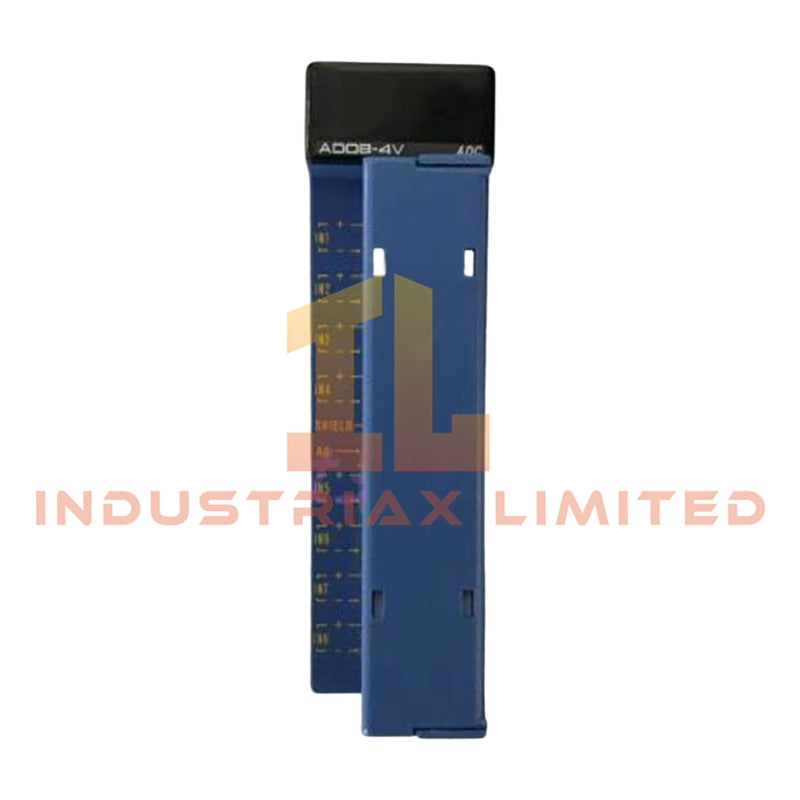

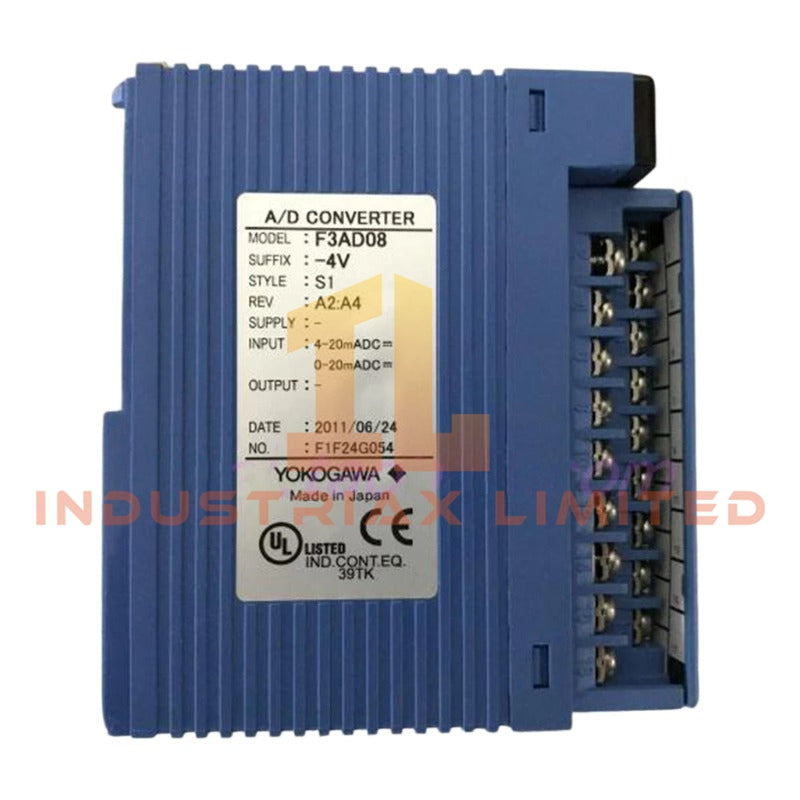

Yokogawa F3AD08-4V Analog Input Module

The Yokogawa F3AD08-4V, also cataloged as the F3AD08-4V Analog Input Module, operates as a dedicated hardware component for converting analog voltage signals into digital data within FA-M3 programmable logic controllers. It directly interfaces with field instruments to provide high-resolution voltage measurements across eight independent channels.

Hardware Specifications

Parameter	Specification
ModelBrand	Yokogawa F3AD08-4V
Origin	Japan
Weight	Approx. 180 g
Dimensions	Standard FA-M3 module size
OperatingTemp	0 degC to 55 degC
StorageTemp	-20 degC to 75 degC
PowerConsumption	5 VDC: 100 mA 24 VDC: 100 mA
InputChannels	8 (voltage, non-isolated between channels)
InputSignalRange	-10 VDC to +10 VDC, 0 VDC to 10 VDC, 1 VDC to 5 VDC
InputImpedance	Approx. 1 MΩ
MaximumAllowableInput	±15 VDC
A/DConversionResolution	16-bit (sign + 15-bit)
Accuracy	±0.1% of full scale
ConversionSpeed	Approx. 100 μs/channel
InsulationResistance	≥ 10 MΩ at 500 VDC
WithstandVoltage	500 VAC, 1 min
ExternalConnection	18-point detachable terminal block (M3 screws)

Process Control Features

• Supports 4-20 mA HART loop protocol via analog input conversion.
• Implements channel-to-channel isolation to reduce signal interference between voltage inputs.
• Includes cold junction compensation (CJC) for sensors that require thermal reference adjustments.

Frequently Asked Questions

Q: Does the F3AD08-4V support hot-swapping?
A: No, the module is not designed for hot-swap operations and must be powered down before insertion or removal.

Q: Can the module handle voltage signals exceeding the specified range?
A: Input voltages beyond ±15 VDC may damage the module. All signals must remain within the rated range for proper operation.

Q: How is the analog input scaling configured?
A: Scaling is performed via the FA-M3 CPU software using standard analog input setup routines; hardware provides linear voltage-to-digital conversion.

Field Installation Guidelines

• Mount the module onto the FA-M3 backplane with proper alignment to avoid connector strain.
• Ensure all field wiring is twisted and shielded where possible; connect shields to protective ground at a single point.
• Avoid running analog signal lines in parallel with high-voltage or high-frequency power cables.
• Confirm that terminal screws are tightened to manufacturer torque specifications to maintain reliable electrical contact.
• Maintain the specified ambient temperature and humidity ranges to ensure accurate A/D conversion and module longevity.
