Description

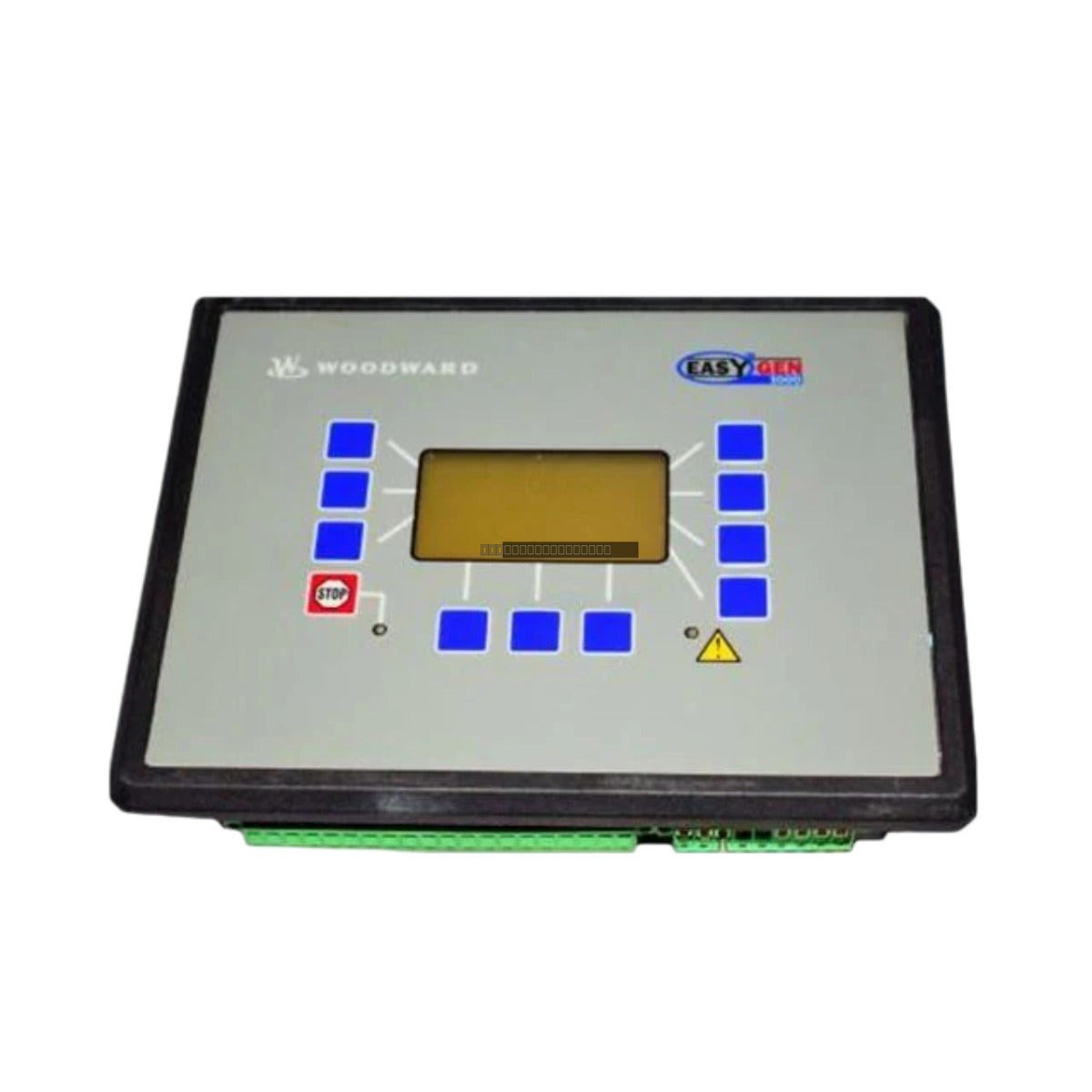

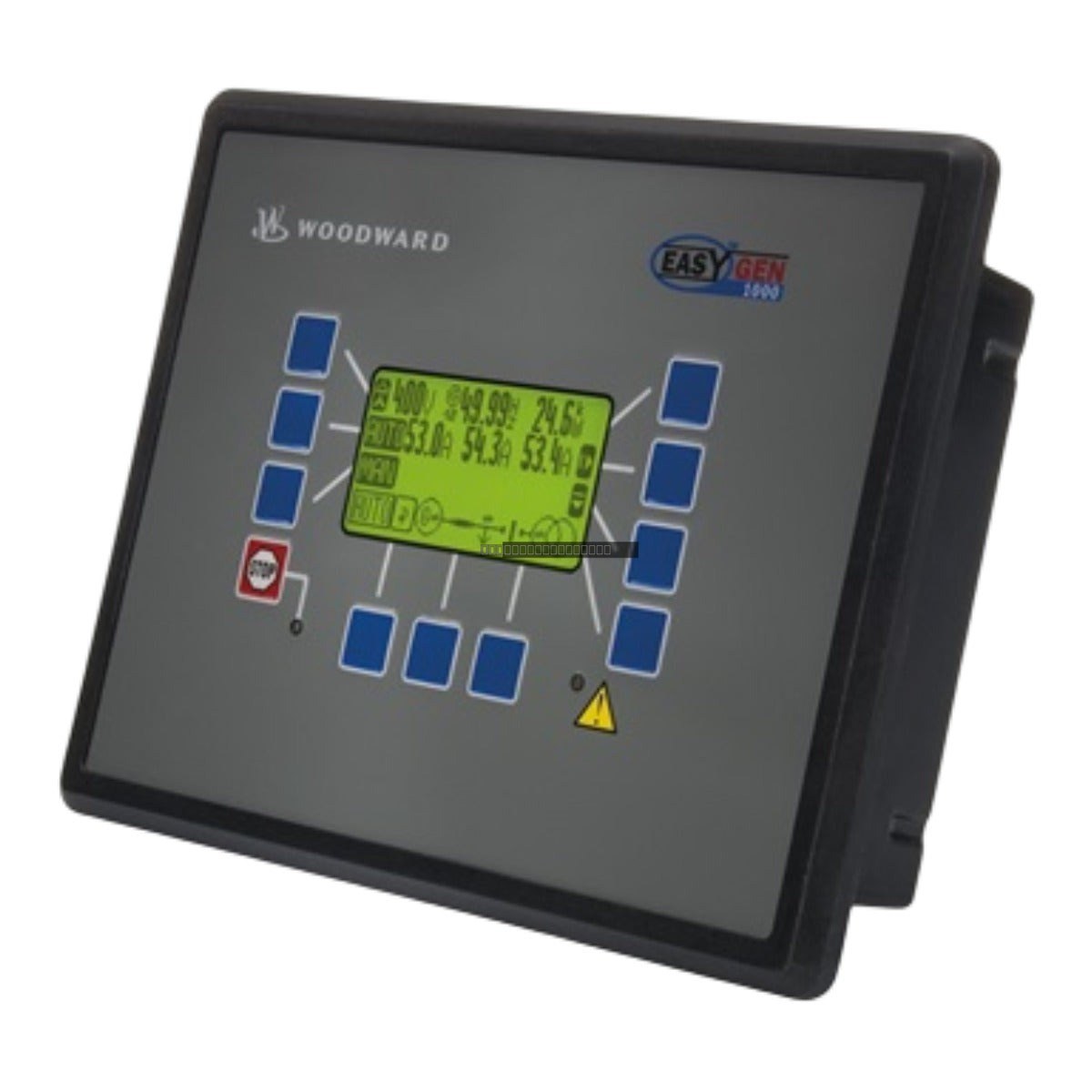

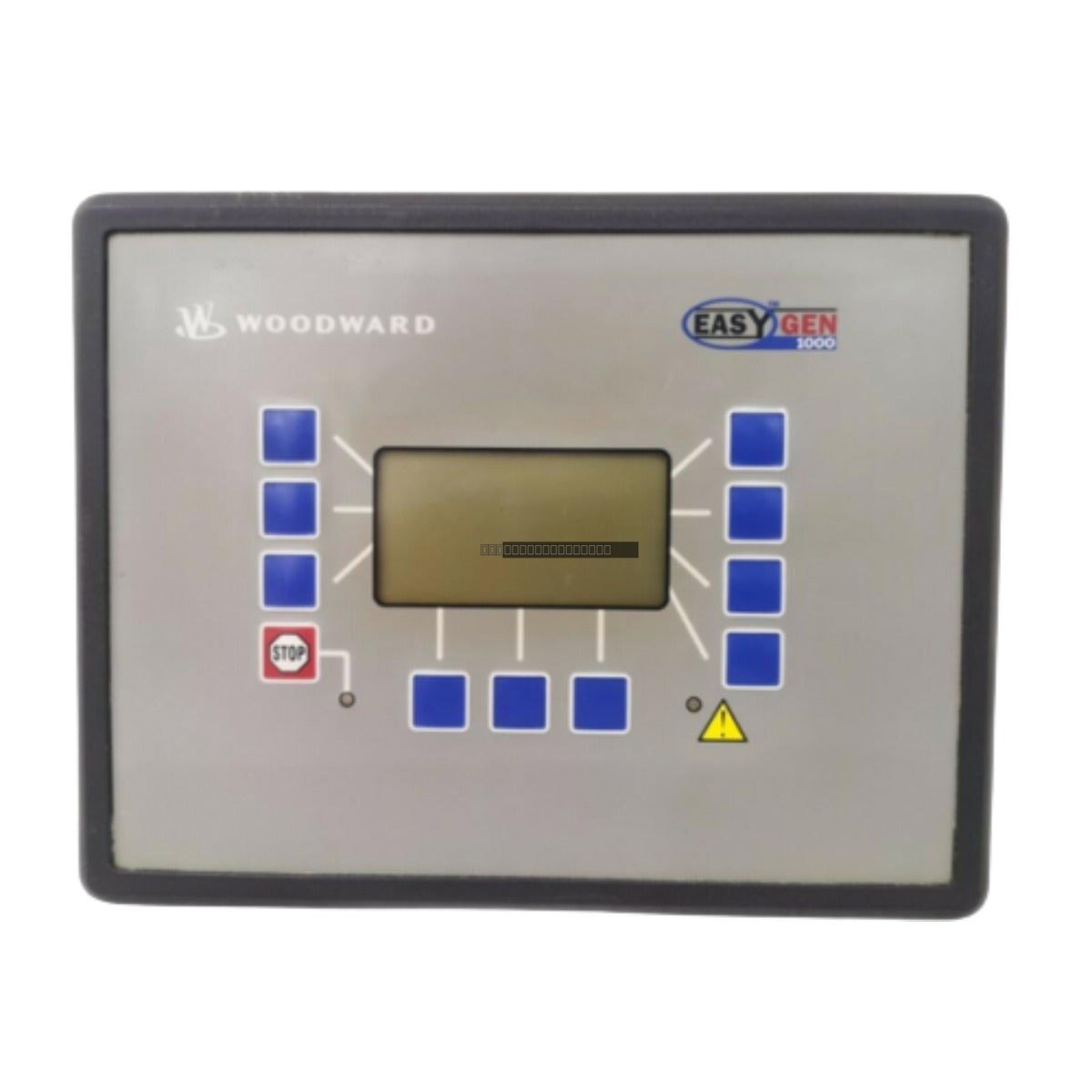

The Woodward ESAYGEN-1000 is a dedicated control interface module designed for the monitoring and management of single-unit generator sets. This controller provides essential engine and generator protection, sequencing, and telemetry processing to maintain power system reliability. It is frequently applied in stationary power generation, including emergency standby systems for critical infrastructure, remote industrial power, and decentralized energy plants. By automating control sequences and providing real-time diagnostic data, this module assists in minimizing system downtime and preserving engine health.
Features
- Integrated engine and generator monitoring with comprehensive protection logic.
- Supports CAN bus (J1939) for direct ECU communication and engine data acquisition.
- RS-485 serial interface for integration with SCADA or remote monitoring systems.
- Configurable I/O ports for flexible sensor integration, including coolant, oil, and fuel monitoring.
- Ruggedized enclosure suitable for high-vibration engine room environments.
- Front-panel interface for local configuration and status visualization.
Applications
This controller is designed for use in various power generation scenarios, specifically for single-unit genset applications. Common deployment environments include hospital backup power, telecommunications sites, remote mining power systems, and light industrial standby generators.
Technical Specifications
| Parameter |
Specification |
| Model |
ESAYGEN-1000 |
| Brand |
Woodward |
| Controller Type |
Genset Control Interface |
| DC Supply Voltage |
12/24 VDC (8 to 40 VDC continuous) |
| Generator Voltage Input |
100 to 480 VAC |
| Current Sensing |
5 A (Secondary) |
| Power Consumption |
15 W (Maximum) |
| Operating Temperature |
-20 to 70 deg C |
Installation Guidelines
- Ensure the controller is mounted in a location protected from direct moisture and excessive heat.
- Use shielded twisted-pair cabling for all communication interfaces (RS-485/CAN) to minimize electromagnetic interference (EMI).
- Verify that the DC supply voltage remains within the 8 to 40 VDC range to prevent logic resets or damage.
- Ensure proper grounding of the module chassis to the system common to mitigate noise.
- Always power down the unit before connecting or disconnecting I/O wiring or communication cables.
- Use appropriate wire gauges for current sensing inputs to ensure accurate measurement and prevent overheating.
FAQ
Does this module support parallel operation?
The ESAYGEN-1000 is specifically engineered for single-unit generator set control and management. For multi-unit synchronization or load sharing, please consult the Woodward product catalog for series designed for paralleling applications.
What communication protocols are supported?
The module features integrated CAN bus (J1939) for engine ECU interfacing and RS-485 serial communication for SCADA connectivity.
