Description

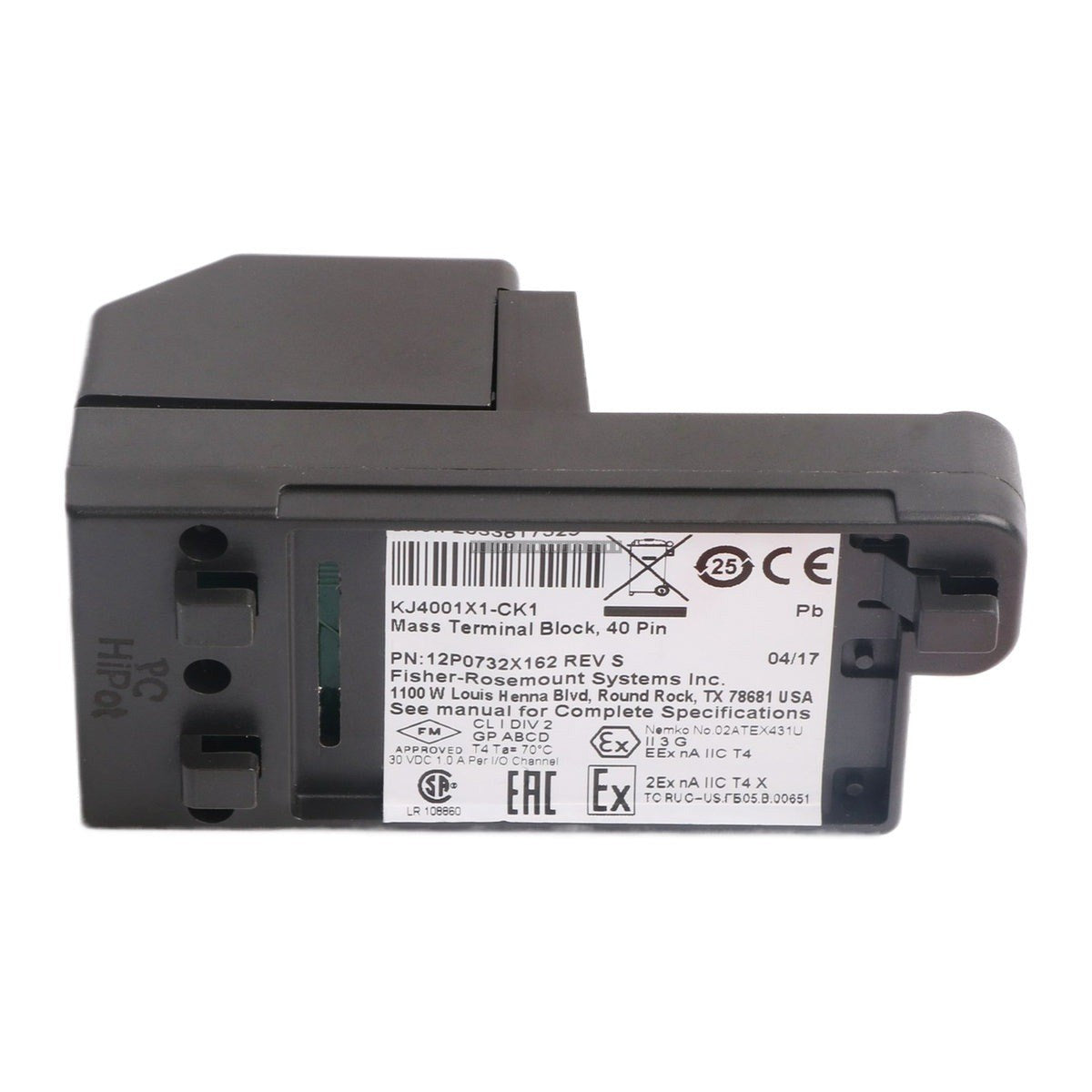

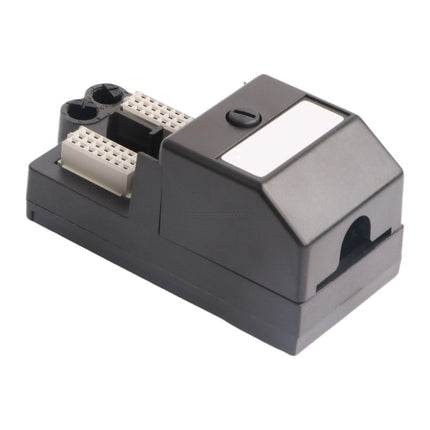

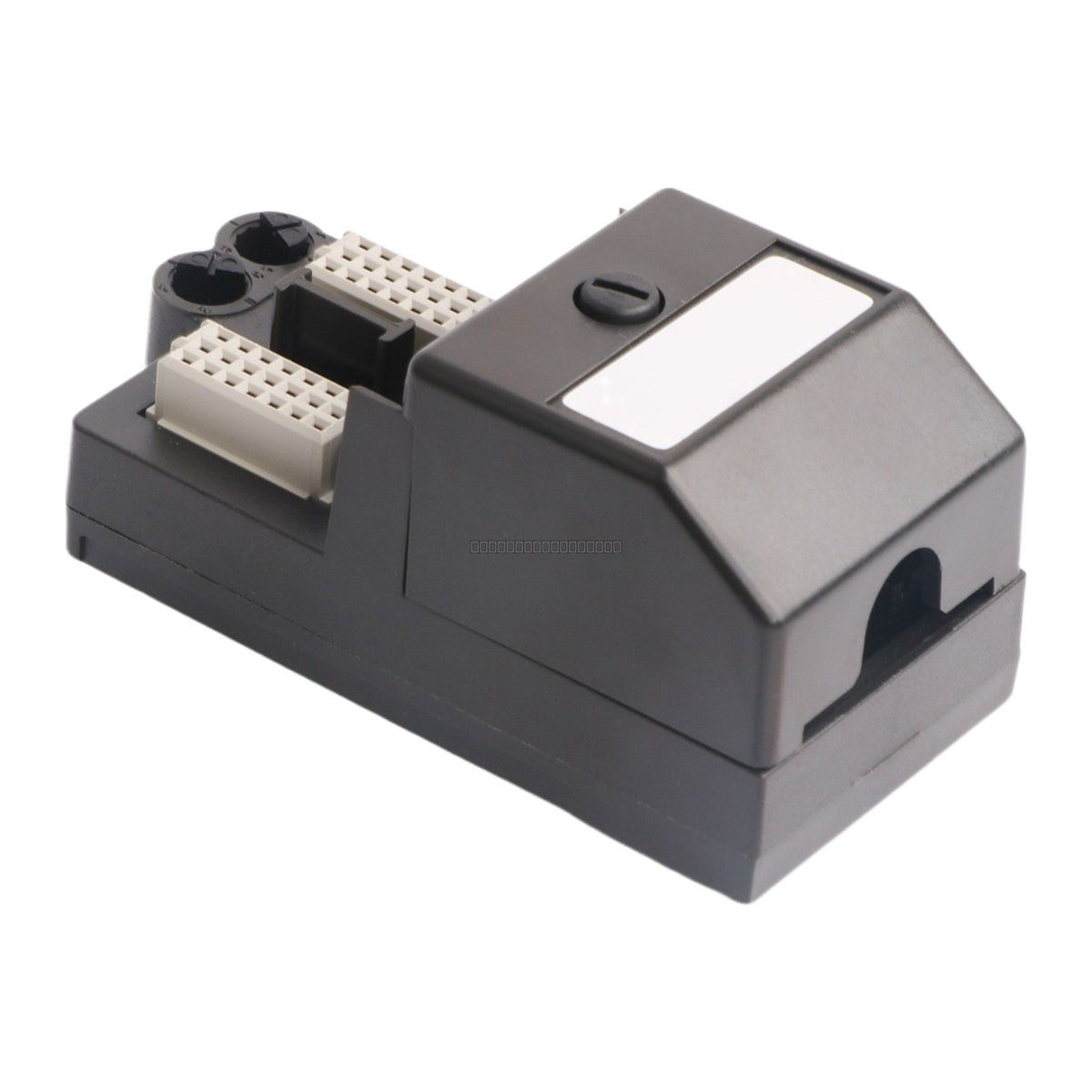

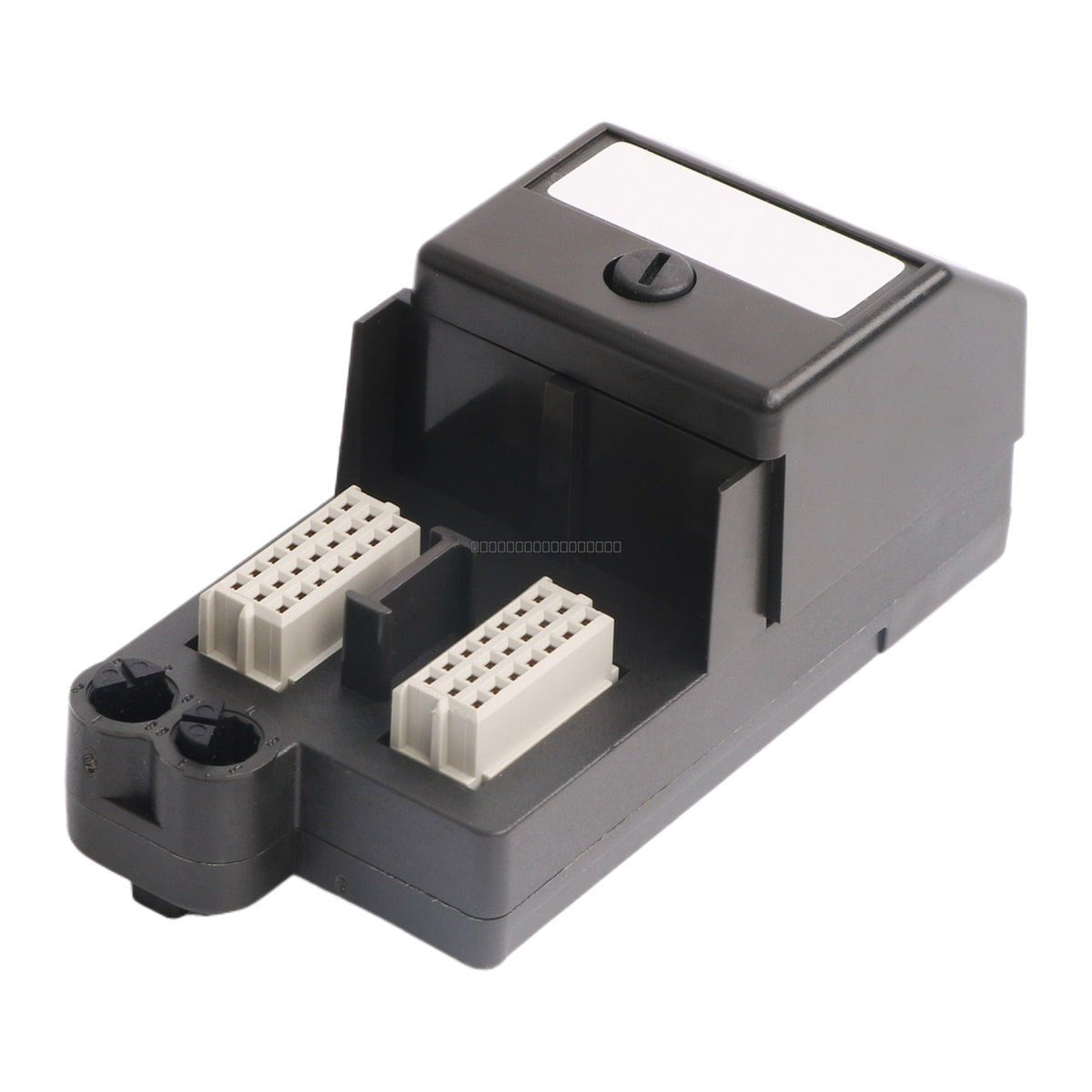

The Emerson KJ4001X1-CK1 is a 40-pin mass termination block designed for use within the DeltaV distributed control system (DCS) architecture. This component facilitates efficient field wiring and signal distribution, serving as a critical interface between field instrumentation and I/O cards. It is engineered to support high-density signal connectivity while maintaining signal integrity in industrial control environments.

Features

• 40-pin configuration for high-density signal termination.
• Compatible with Emerson DeltaV I/O subsystems.
• Robust design for reliable field wiring connections.
• Compact footprint to optimize cabinet space.
• Supports standard field wiring practices for DCS installations.

Technical Specifications

Product Model	KJ4001X1-CK1
Spare Model	12P0732X162
Manufacturer	Emerson
Weight	0.06 kg

Installation Guidelines

• Ensure the control system is powered down before installing or removing the termination block to prevent potential damage to I/O modules or field devices.
• Verify that all field wiring is properly labeled and matches the terminal pinout configuration before connection.
• Use appropriate wire gauges and ferrules to ensure secure, low-resistance connections within the 40-pin interface.
• Maintain proper cable management and routing to minimize EMI/RFI interference from high-voltage power lines.
• Ensure the block is securely seated in its designated mounting position to prevent accidental disconnection due to vibration.

FAQ

What is the primary function of the KJ4001X1-CK1?

This unit serves as a mass termination block for DeltaV I/O systems, allowing for organized and efficient connection of field signals to the control hardware.

Is the KJ4001X1-CK1 compatible with other DeltaV components?

Yes, it is specifically designed for integration with Emerson DeltaV systems. Please refer to your specific I/O module documentation to confirm compatibility with this termination block.
