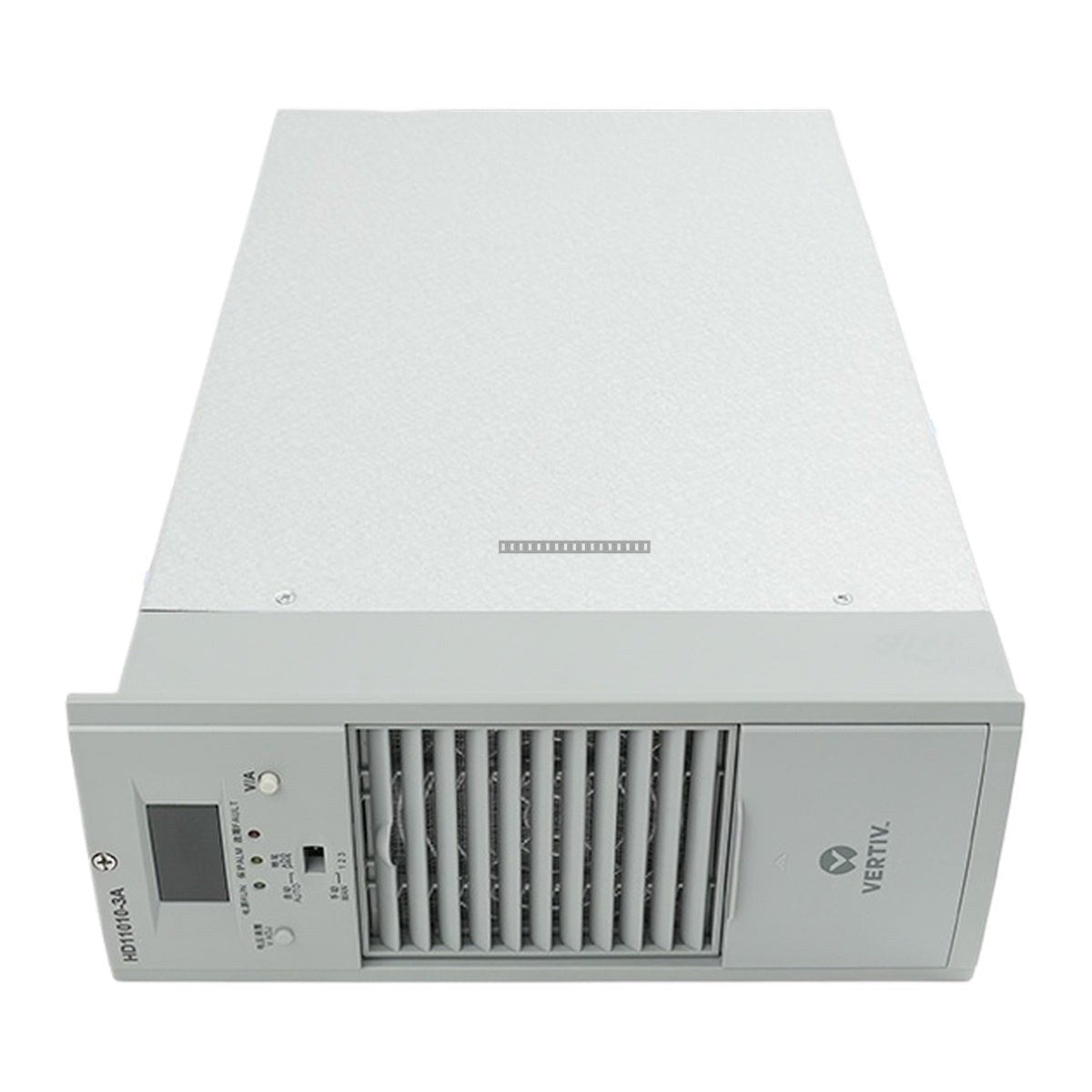

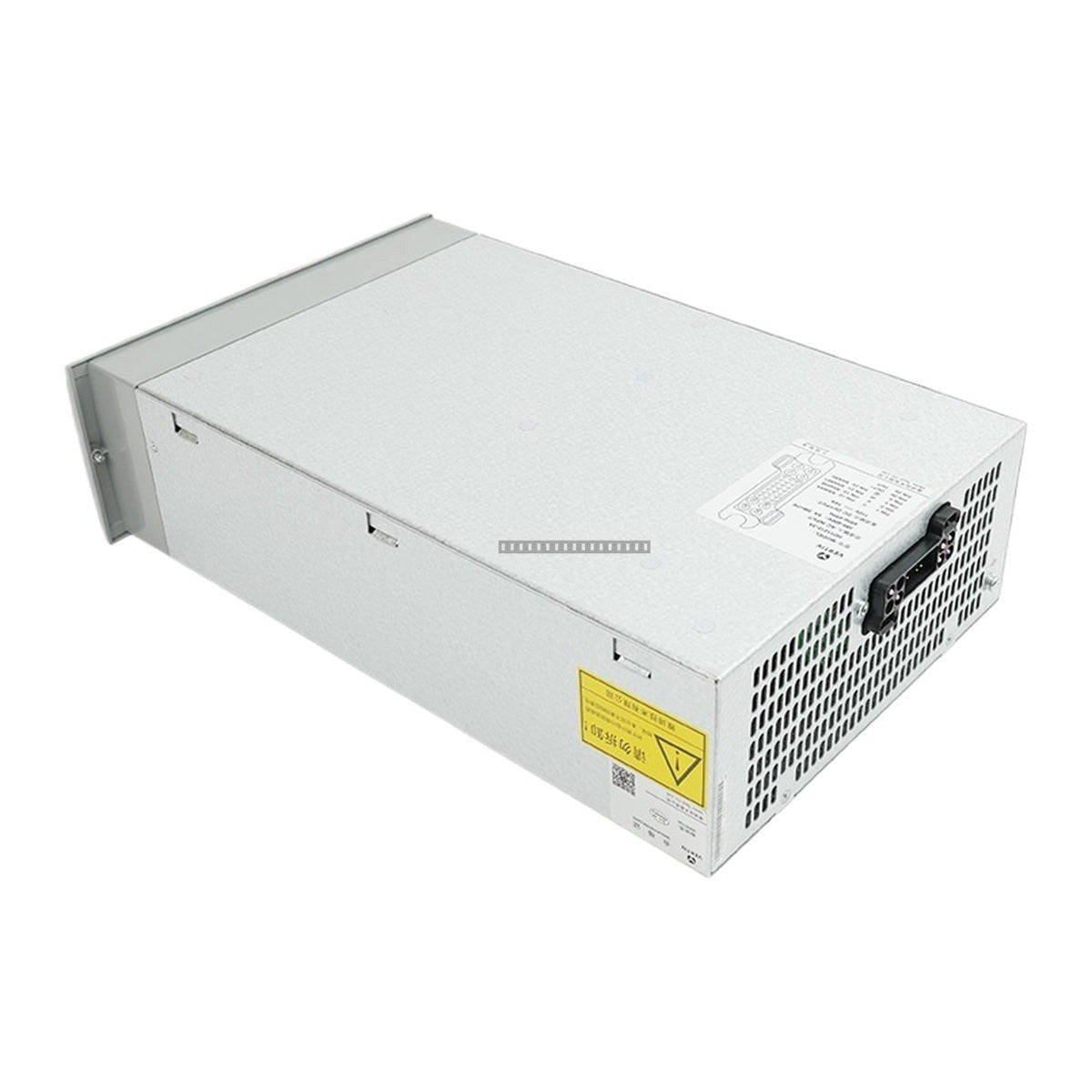

The Emerson HD11010-3A is a high-frequency switching rectifier module engineered for reliable DC power supply in critical industrial infrastructure. Designed for high power density and efficiency, this module is widely utilized in DC power screens, charging systems, and power distribution applications within substations, hydropower plants, and manufacturing facilities.
Features
- High-frequency switching technology for improved efficiency and compatibility.
- Wide AC input voltage range (85-300V AC) providing strong adaptability to varying grid conditions.
- Step-less current limiting for high-precision battery charging.
- Built-in CPU for distributed control and enhanced anti-interference capability.
- Integrated protection and warning mechanisms supporting remote monitoring functions.
- Robust design suitable for harsh industrial environments with high reliability.
Applications
- Power distribution rooms and DC power screens.
- Substation and power plant control systems.
- Industrial automation and robotic assembly lines.
- Chemical and process plant instrumentation power.
- Critical infrastructure requiring continuous, stable DC power.
Technical Specifications
| Model |
HD11010-3A |
| Input Voltage |
85-300V AC |
| Output Voltage |
24V DC (Nominal) |
| Output Current |
10A |
| Output Power |
480-600W |
| Efficiency |
>90% typical |
| Operating Temperature |
-40 degC to +75 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Humidity |
5-95% RH non-condensing |
Installation Guidelines
- Ensure the power cabinet slot is compatible with the module and free of debris.

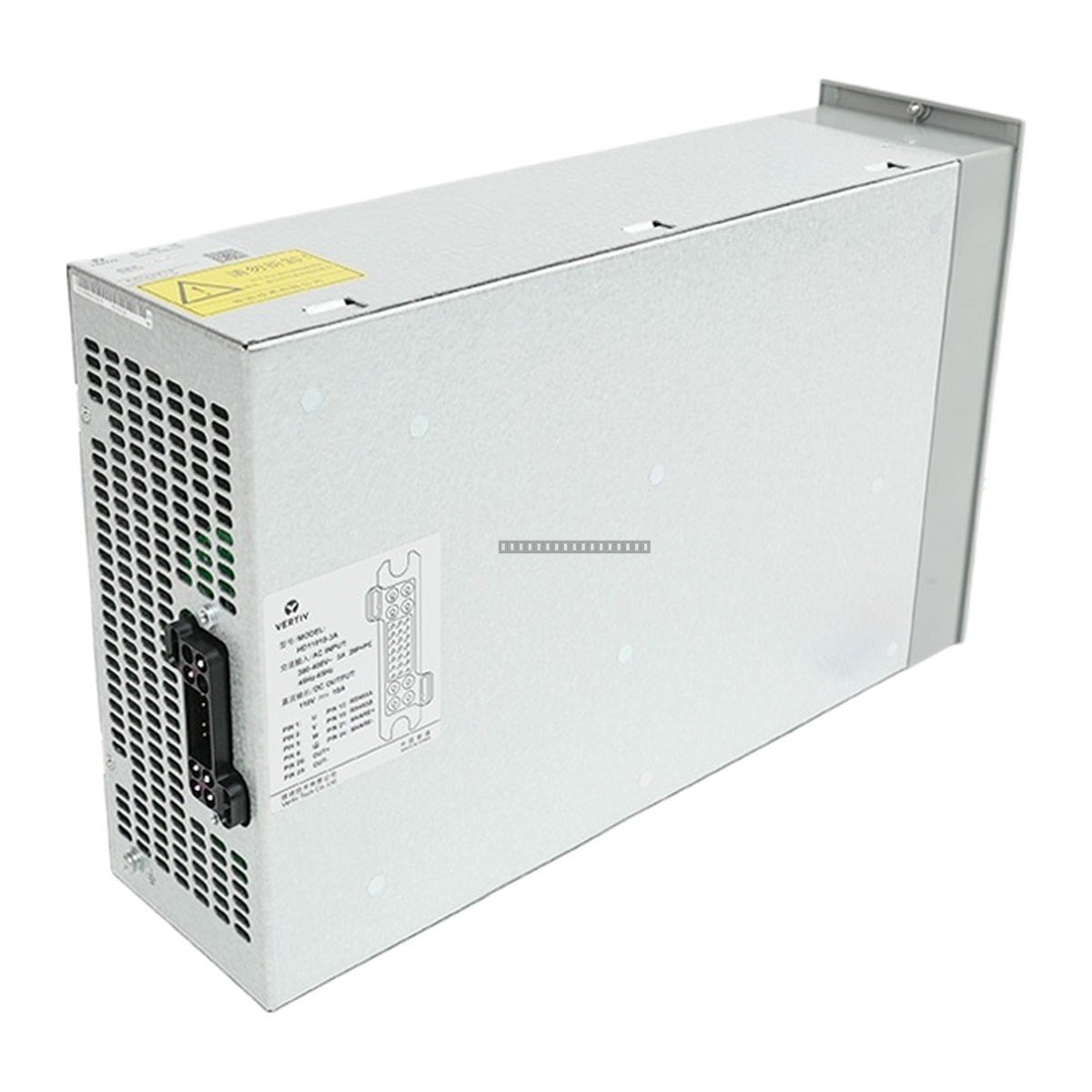

- Inspect the module for physical damage and verify that rear connector pins are straight before insertion.
- Align the module with the shelf guide rails and slide it firmly into the slot until the rear connector is fully seated.
- Tighten all front-panel captive screws to secure the module and ensure proper electrical grounding.
- Always power down the cabinet before inserting or removing the module to prevent electrical arcing.
FAQ
What is the primary use of the HD11010-3A?
The HD11010-3A is a high-frequency switching rectifier module used primarily for charging DC screens in power, utility, and telecommunication systems.
Is this module suitable for extreme temperatures?
Yes, it is designed for industrial use with an operating temperature range of -40 degC to +75 degC, making it suitable for demanding environments.
Does this module support remote monitoring?
Yes, the module features built-in CPU control and provides comprehensive protection and warning measures that support remote monitoring functions.
