Description

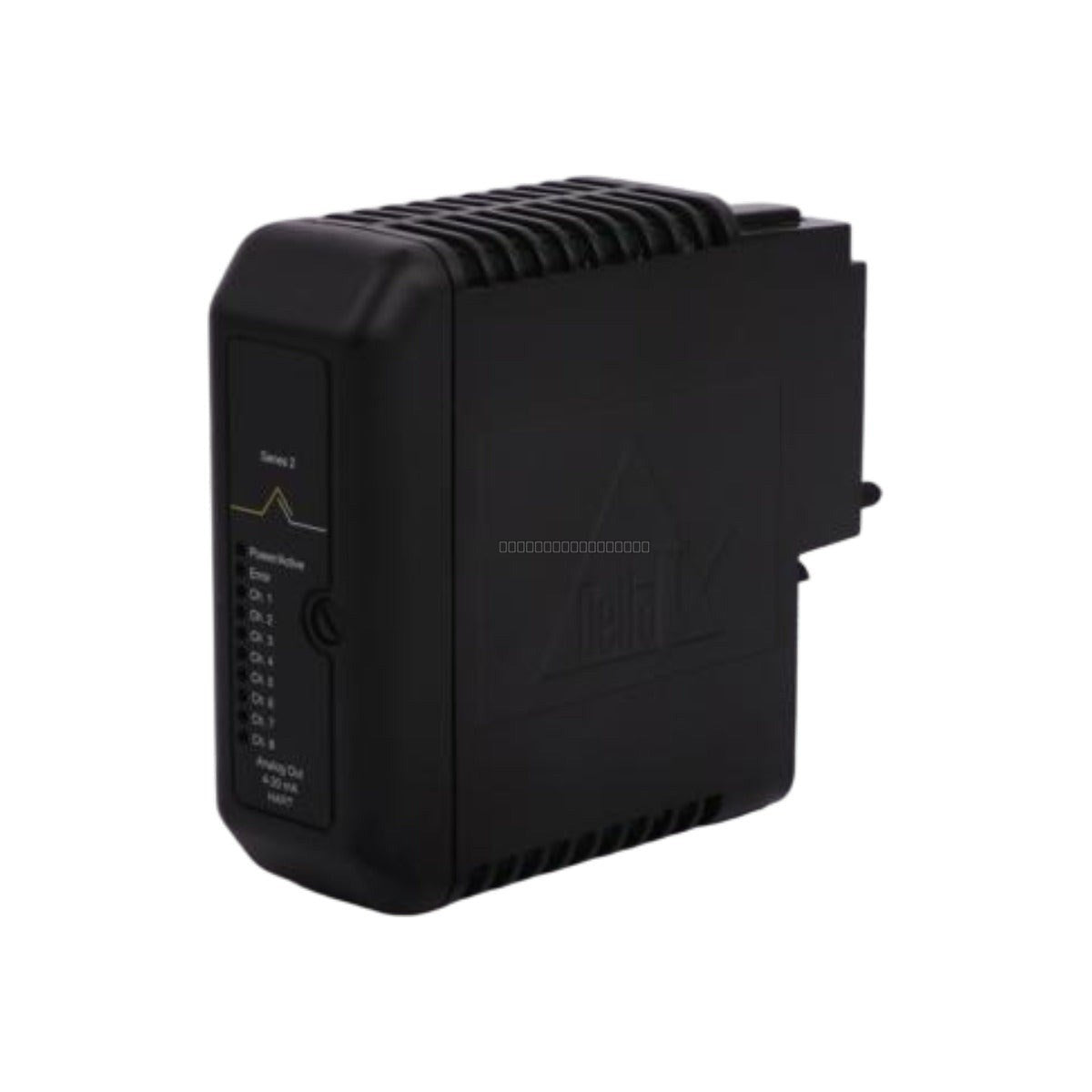

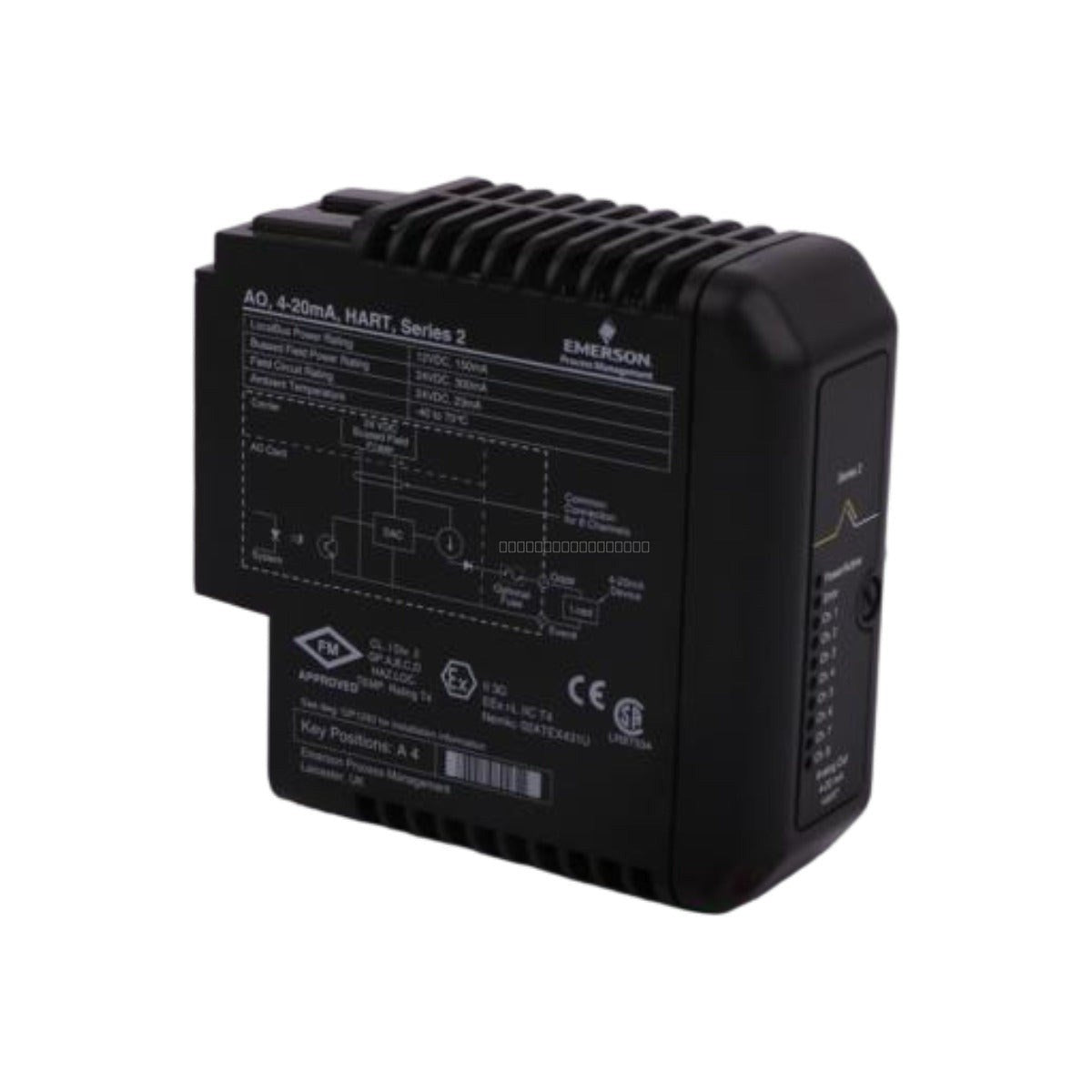

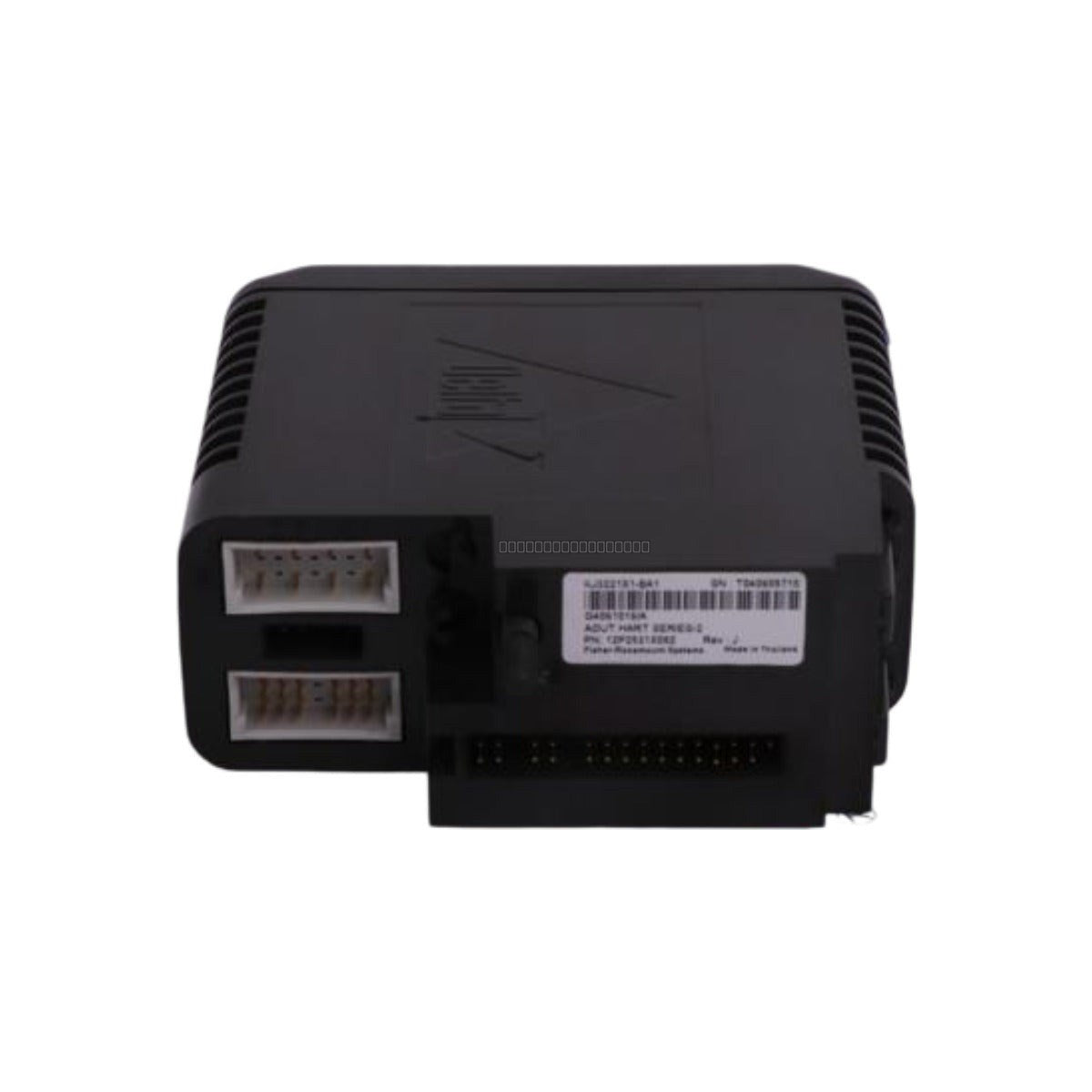

The Emerson DeltaV KJ3221X1-BA1 (also known by part number 12P2531X082 or VE4005S2B1) is a high-integrity 8-channel Analog Output module designed for the DeltaV Series 2 I/O subsystem. This module provides precise 4-20 mA control signals with integrated HART digital communication, making it suitable for critical control loops in industries such as oil and gas, power generation, and chemical processing. It is engineered to interface directly with control valves and variable speed drives, offering redundant capability to ensure process stability and minimize unplanned downtime.
Features
-
8-Channel Output: Provides eight independent, high-resolution 4-20 mA output channels with HART pass-through capabilities.
-
Redundancy Support: Designed for active/standby redundancy when paired with a compatible redundant terminal block.
-
Advanced Diagnostics: Features continuous background diagnostics on output circuitry and HART modulation for enhanced device health monitoring.
-
Protection: Each channel includes independent current-limiting and short-circuit protection.
-
Hot-Swappable: Supports replacement under power without requiring process interruption.
-
Rugged Design: Conformal coating and robust construction for operation in harsh industrial environments, meeting ISA-S71.04-1985 Class G3 standards.
Applications
This module is typically deployed in mission-critical process control loops where signal integrity is paramount. Common applications include the precise positioning of control valves, speed control for variable frequency drives (VFDs), and integration with intelligent field instruments that require HART communication for configuration and diagnostic data.
Technical Specifications
| Model |
KJ3221X1-BA1 |
| Part Numbers |
12P2531X082, VE4005S2B1 |
| Series |
DeltaV Series 2 |
| Channel Count |
8 |
| Signal Type |
4-20 mA with HART |
| Resolution |
16-bit |
| Local Bus Power |
12 VDC at 150 mA |
| Bussed Field Power |
24 VDC at 300 mA |
| Operating Temperature |
-40 to 70 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Relative Humidity |
5 to 95 percent (Non-condensing) |
| Terminal Keying |
Position A1 |
Installation Guidelines
-
Handling: Use proper ESD protection when handling the module to prevent damage to sensitive internal components.
-
Mounting: Ensure the module is fully seated into the DeltaV Series 2 terminal block. Verify the A1 keying matches the terminal block configuration.
-
Power: The module supports hot-swapping; however, ensure the area is safe and free of hazardous gases if performing maintenance in an active environment.
-
Wiring: Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI). Ensure proper grounding of cable shields at the designated terminal points.
-
Environment: Maintain adequate ventilation to keep the module within the specified -40 to 70 deg C operating range.
Compliance and Certifications
This module is rated for use in hazardous locations, specifically ATEX II 3 G, Ex nA IIC T4 Gc. It is designed to meet stringent industrial standards for airborne contaminants (ISA-S71.04-1985 Class G3).
FAQ
Is this module compatible with non-redundant installations? Yes, the KJ3221X1-BA1 can be used in both redundant and non-redundant DeltaV I/O configurations depending on the terminal block used.
Does this module support HART communication? Yes, it supports HART pass-through, allowing the DeltaV controller to communicate with HART-enabled field devices connected to the output channels.
