Description

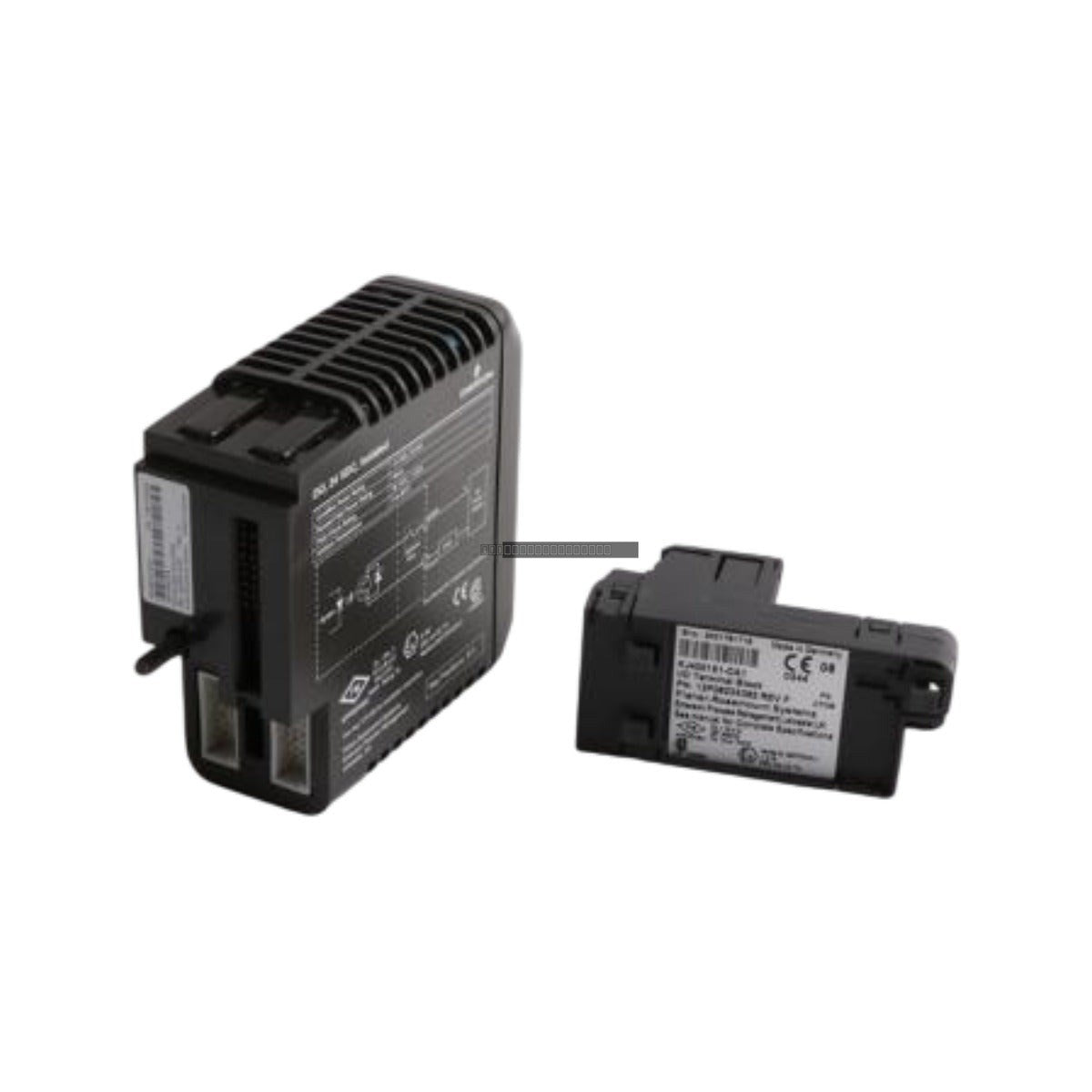

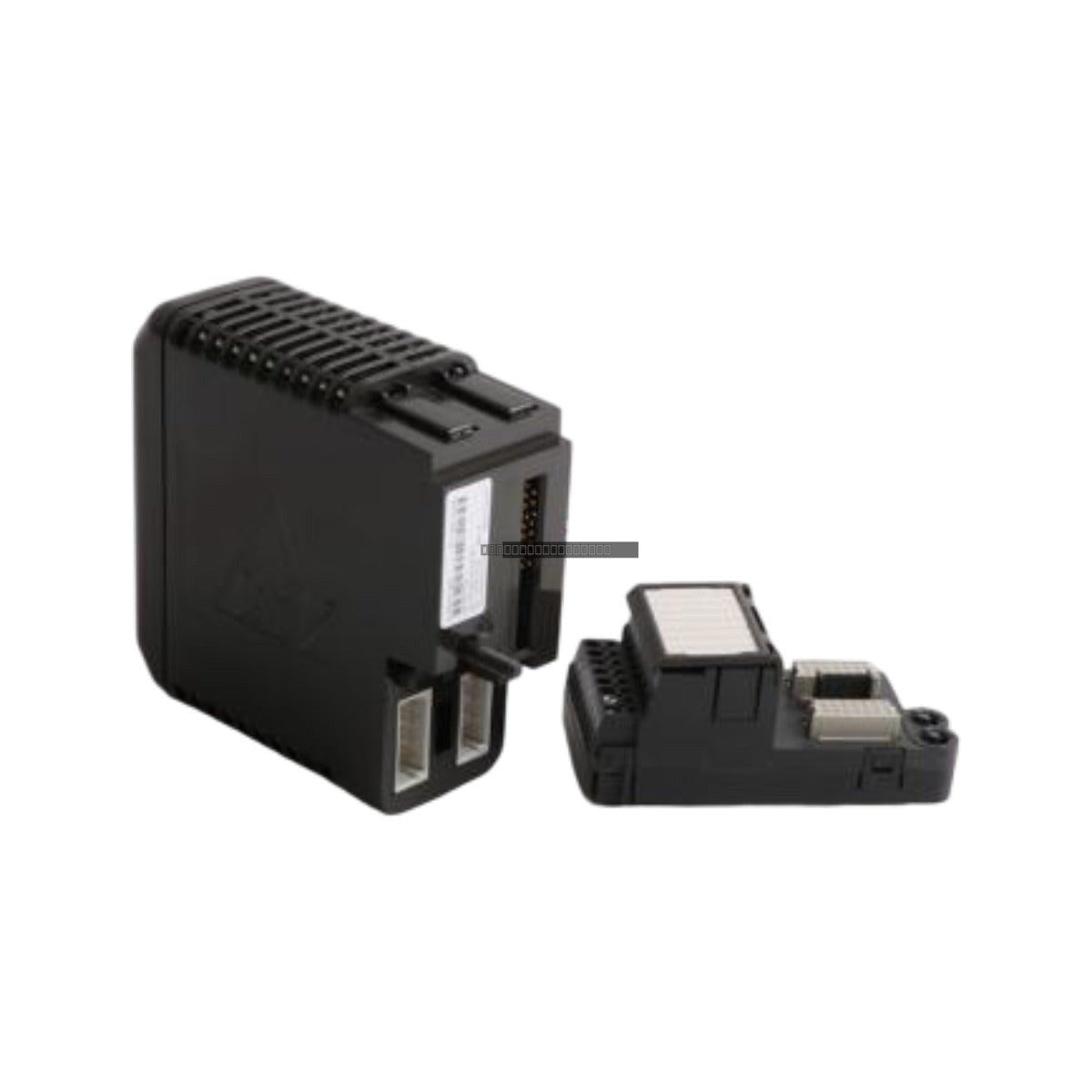

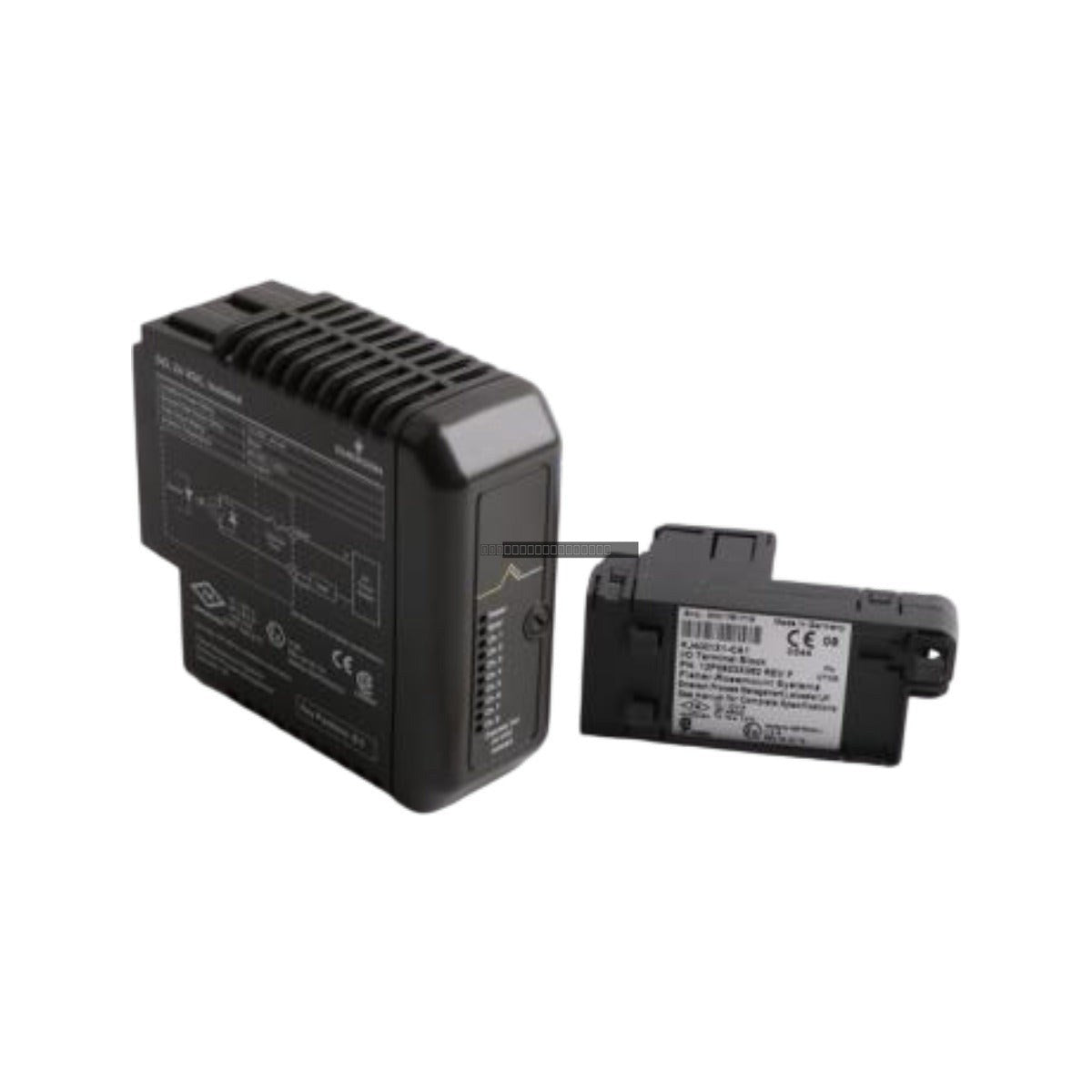

The Emerson DeltaV KJ3001X1-BG1 (12P0557X162) is a high-density digital output terminal block designed for integration within the DeltaV distributed control system. This module provides 32 discrete output channels, engineered to deliver reliable signal control for field-based assets. By incorporating galvanic isolation between channels and the controller, the module effectively mitigates ground loop interference and enhances the electrical robustness of the process loop. It is an essential component for demanding industrial environments, including power generation, chemical manufacturing, and hydrocarbon processing, where consistent signal integrity and high-speed response are required.
Features
-
High-Density Output: Supports 32 independent digital output channels for efficient cabinet space utilization.
-
Galvanic Isolation: Provides electrical separation to protect the logic controller from field-side electrical faults and noise.
-
Hot-Swappable Design: Enables maintenance and replacement of the module while the system is powered, preventing unnecessary downtime.
-
Redundant Power Support: Compatible with redundant power bus configurations to maintain operational continuity.
-
Robust Construction: Built to withstand harsh industrial temperature fluctuations and environmental stresses.
Applications
This module is primarily utilized for driving field-level devices such as solenoid valves, relays, and motor starters. Its isolated design makes it particularly suitable for applications requiring the prevention of cross-channel noise or where field devices are located in electrically noisy environments.
Technical Specifications
| Brand |
Emerson DeltaV |
| Model |
KJ3001X1-BG1 |
| Part Number |
12P0557X162 |
| Module Type |
32-Channel Digital Output (Isolated) |
| Operating Voltage |
24 VDC |
| Isolation Rating |
250 VAC |
| Current Rating |
0.5 A per channel |
| Operating Temperature |
-40 to 70 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Humidity |
5 to 95 percent (non-condensing) |
Installation Guidelines
- Ensure the installation environment is free from excessive vibration and corrosive gases.
- Verify that the backplane is properly grounded before installing the module to prevent electrostatic discharge (ESD) damage.
- The module supports hot-swapping; however, always ensure the surrounding environment is safe before performing maintenance under power.
- Route field wiring away from high-voltage AC cables to minimize electromagnetic interference (EMI).
- Ensure that the 24 VDC power supply is within the specified tolerances to avoid module errors or output instability.
FAQ
Can this module be replaced while the system is running? Yes, the KJ3001X1-BG1 is designed for hot-swapping, allowing for removal and insertion without interrupting the DeltaV backplane communication.
What is the primary purpose of the galvanic isolation? The isolation prevents electrical noise and ground loops from field devices from propagating back to the controller, which protects the system and ensures signal accuracy.
