Description

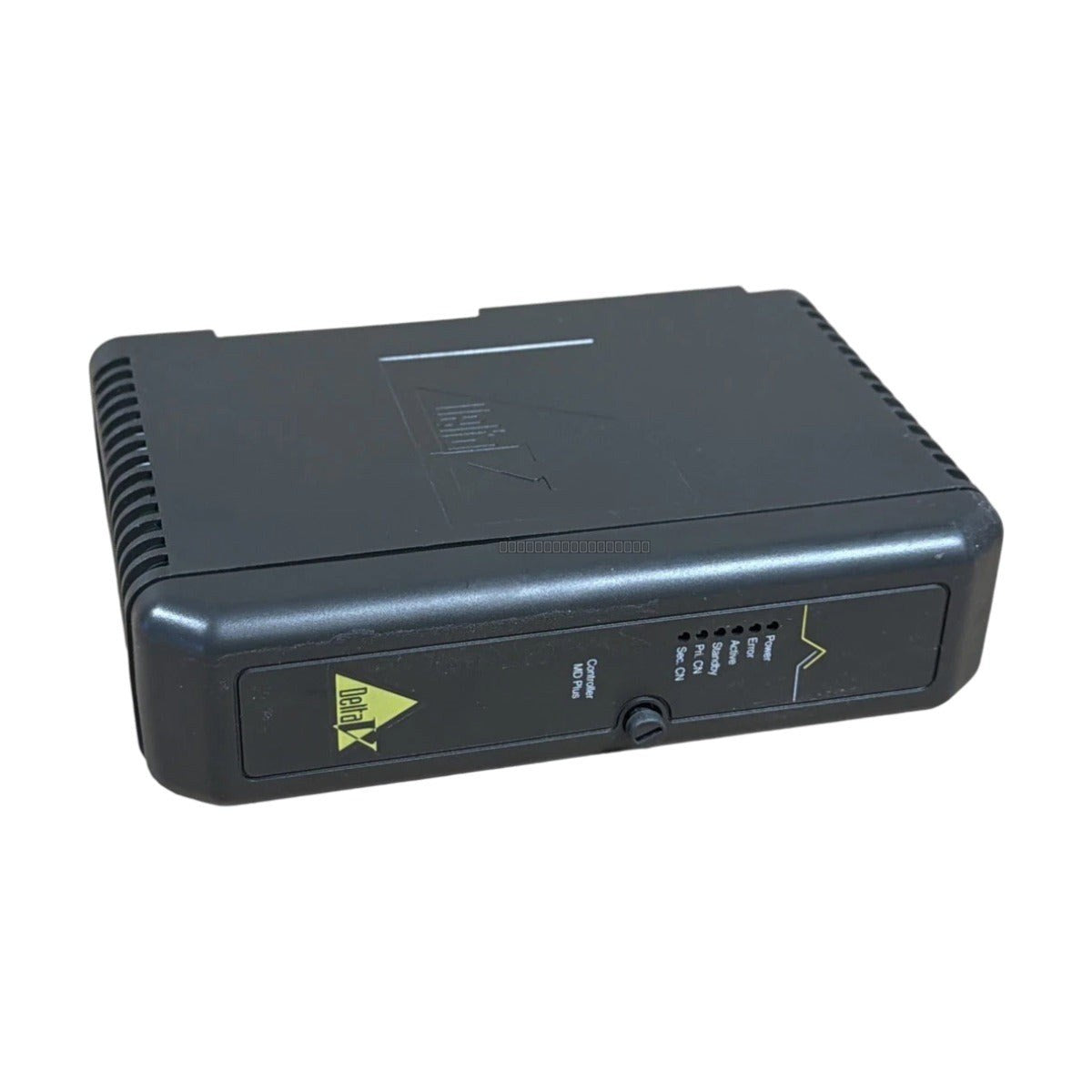

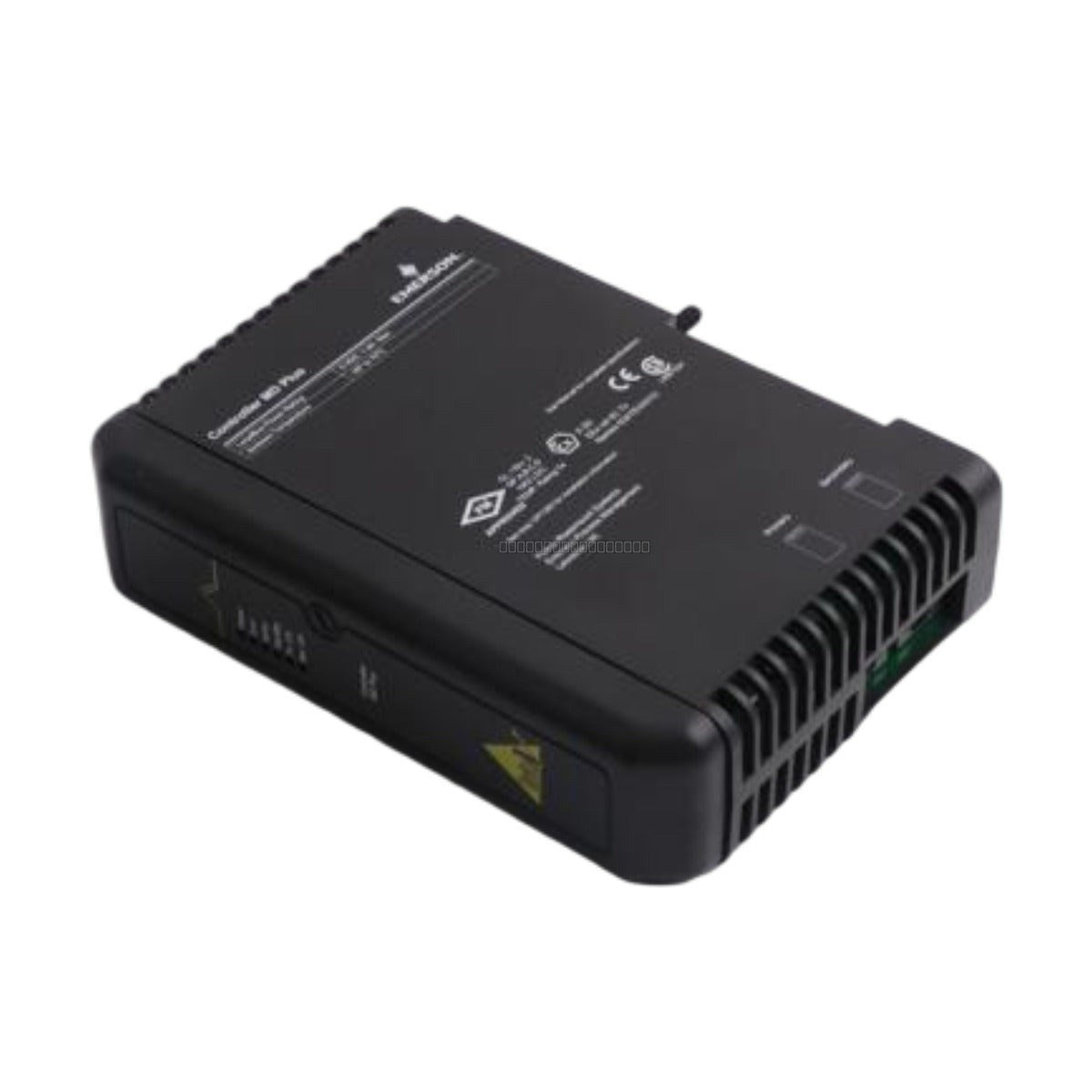

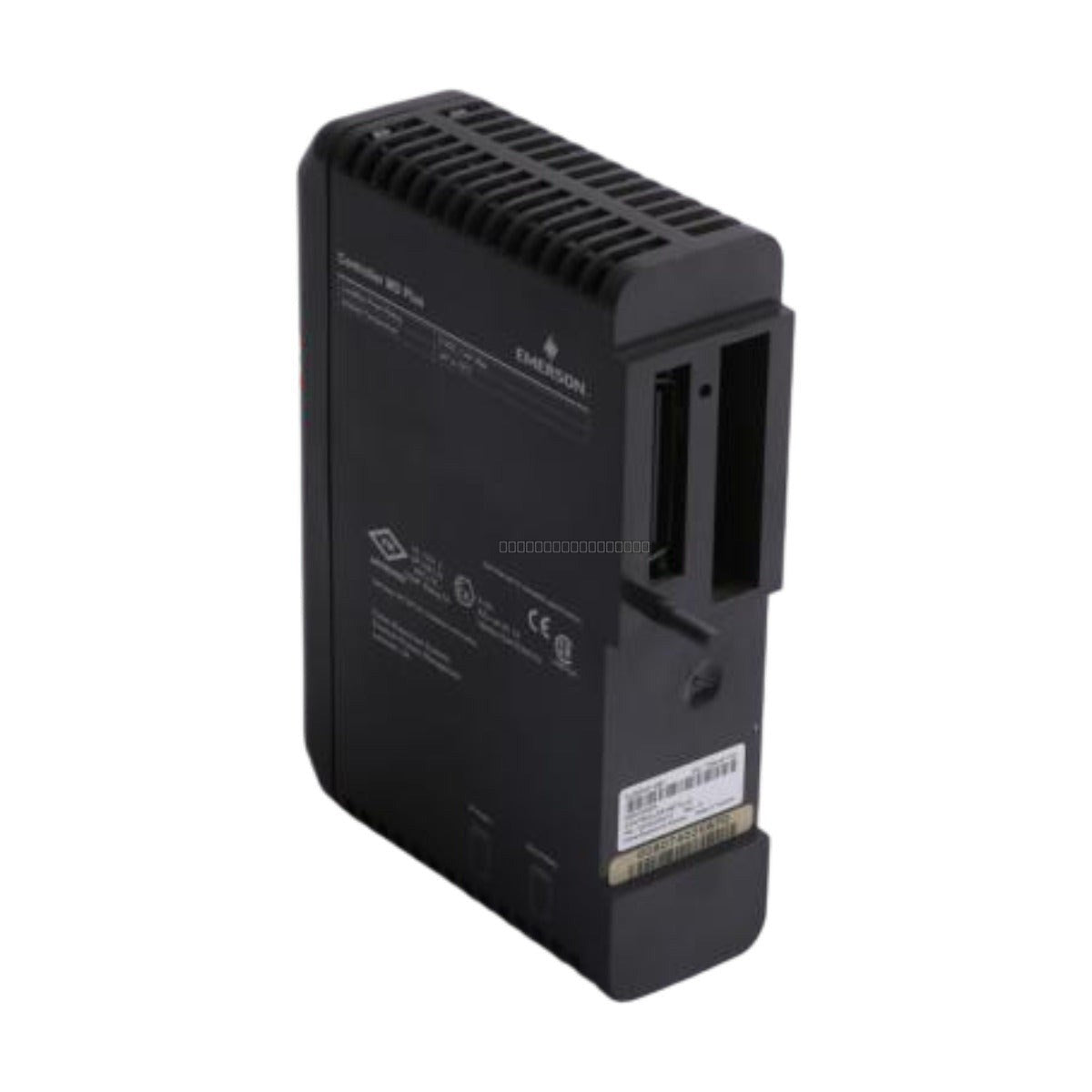

The Emerson DeltaV KJ2003X1-BB1 (12P3439X012) is a high-performance MD Plus Controller module designed for the DeltaV distributed control system (DCS). This controller serves as the central processing unit for managing I/O interface channels, communication functions, and control strategies within industrial automation environments. It provides significant memory capacity, making it suitable for large-scale batch processing and memory-intensive control applications. The module supports seamless integration with legacy DeltaV configurations and enables advanced data pass-through for HART-enabled field devices.
Features
- High-performance processing capability for complex control strategies
- Supports advanced batch operations and memory-intensive applications
- Plug-and-play self-addressing and auto-configuration functionality
- Comprehensive data protection with cold restart capabilities
- Integrated support for HART device data pass-through
- Designed for redundancy and legacy system migration support
- Executes control strategies with execution speeds up to every 100ms
Applications
- Oil & Gas: Production process control, wellhead monitoring, and pipeline management
- Chemical Processing: Reactor control, distillation columns, and mixing operations
- Power Generation: Turbine, boiler, and generator control systems
- Water/Wastewater: Pump, filter, and clarifier operation
- General Industrial Automation: PLC processor tasks and manufacturing process control
Technical Specifications
| Model |
KJ2003X1-BB1 (12P3439X012) |
| Manufacturer |
Emerson |
| Power Rating |
+5 VDC at 1.4 A |
| Operating Temperature |
-40 to 70 degC |
| Weight |
0.35 kg |
| Contaminant Rating |
ISA-S71.04-1985 Class G3 |
| Shock Rating |
0 G 1/2-sinewave for 11 ms |
Installation Guidelines
- Ensure the system is powered down before inserting or removing the controller module from the carrier.
- The module is designed for standard DeltaV M-series carrier mounting; ensure proper seating to maintain local bus connectivity.
- Maintain adequate ventilation in the cabinet to ensure operation within the -40 to 70 degC temperature range.
- Follow standard ESD precautions when handling the module to prevent damage to internal circuitry.
- Ensure all field wiring is properly shielded and routed away from high-EMI sources to maintain signal integrity.
FAQ
What is the primary role of the KJ2003X1-BB1?
The KJ2003X1-BB1 is a DeltaV MD Plus Controller that manages control activities for I/O interface channels, communication functions, alarming, trending, and time-stamping within the DCS.
Does this controller support legacy configurations?
Yes, control strategies and system configurations created on earlier DeltaV systems are compatible with this MD Plus controller.
How does the controller handle configuration data?
The controller automatically saves installation information and stores online configuration changes, ensuring a complete record of the data installed in the controller is always retained.
