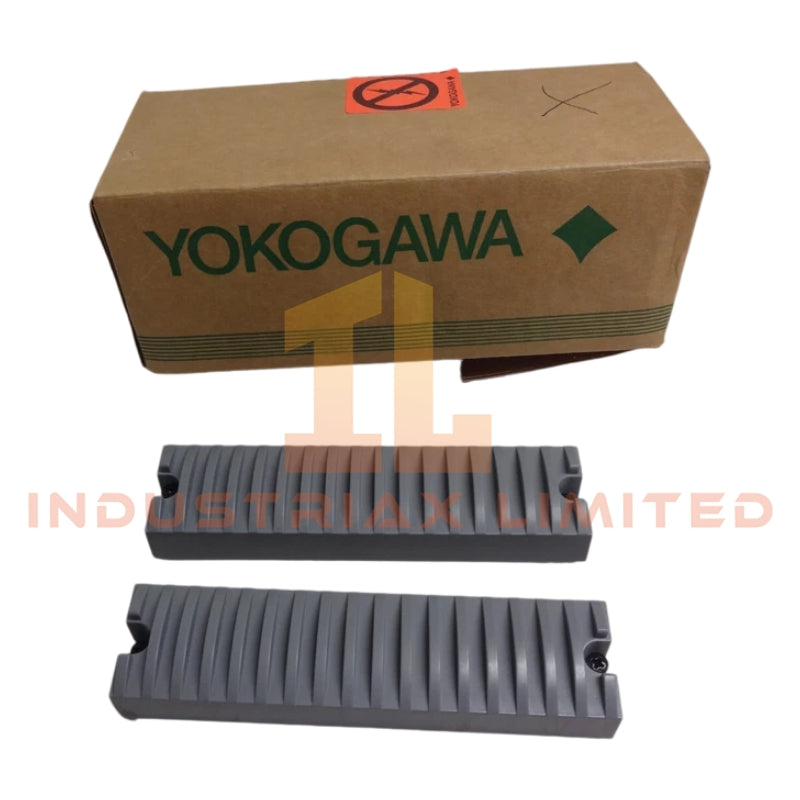

Yokogawa ADCV01 Dummy Cover Module

The Yokogawa ADCV01, also cataloged as the ADCV01 Dummy Cover Module, operates as a dedicated hardware component for physically protecting unused I/O module slots within CENTUM VP and FIO Node Units.

Hardware Specifications

Parameter	Specification
ModelBrand	Yokogawa ADCV01
Origin	Japan
Weight	0.1 kg
Dimensions	20.6 mm × 131 mm × 24.2 mm
OperatingTemp	-10 to 60 degC (typical industrial range)
PowerConsumption	None (non-functional)
Material	Industrial-grade non-conductive plastic
Color	Gray
CompatibleSystems	CENTUM VP, FIO Node Units (e.g., ANB10, ANB11)
Mounting	Snap-fit or screw-mounted

Process ControlI ntegration Features

The ADCV01 ensures channel-to-channel isolation within the control cabinet by physically separating active I/O modules from empty slots. This supports the maintenance of proper airflow for module cooling and reduces potential electrical interference between adjacent modules. The module's form factor complies with standard CENTUM VP slot dimensions, allowing uniform alignment and structural integrity across DCS enclosures.

Frequently Asked Questions

Q: Can the ADCV01 be installed while the system is powered?
A: Yes, installation is fully mechanical with no electrical connection, allowing hot-swap insertion without affecting system operation.

Q: Does the dummy cover affect cabinet cooling performance?
A: Yes, it maintains optimized airflow by blocking open slots, directing forced-air cooling to active modules.

Q: Are there grounding requirements for the module?
A: No electrical grounding is required; the module is non-conductive and serves purely as a mechanical cover.

Field Installation Guidelines

1. Align the ADCV01 with the intended empty slot, ensuring the backplane connector is fully covered.
2. Insert using the snap-fit mechanism or secure with screws as appropriate.
3. Avoid forcing the module; it should slide into the slot with minimal resistance.
4. Maintain clearance around adjacent modules to prevent airflow obstruction.
5. Confirm that all cabinet doors and panels close correctly after installation to maintain environmental sealing.
