Description

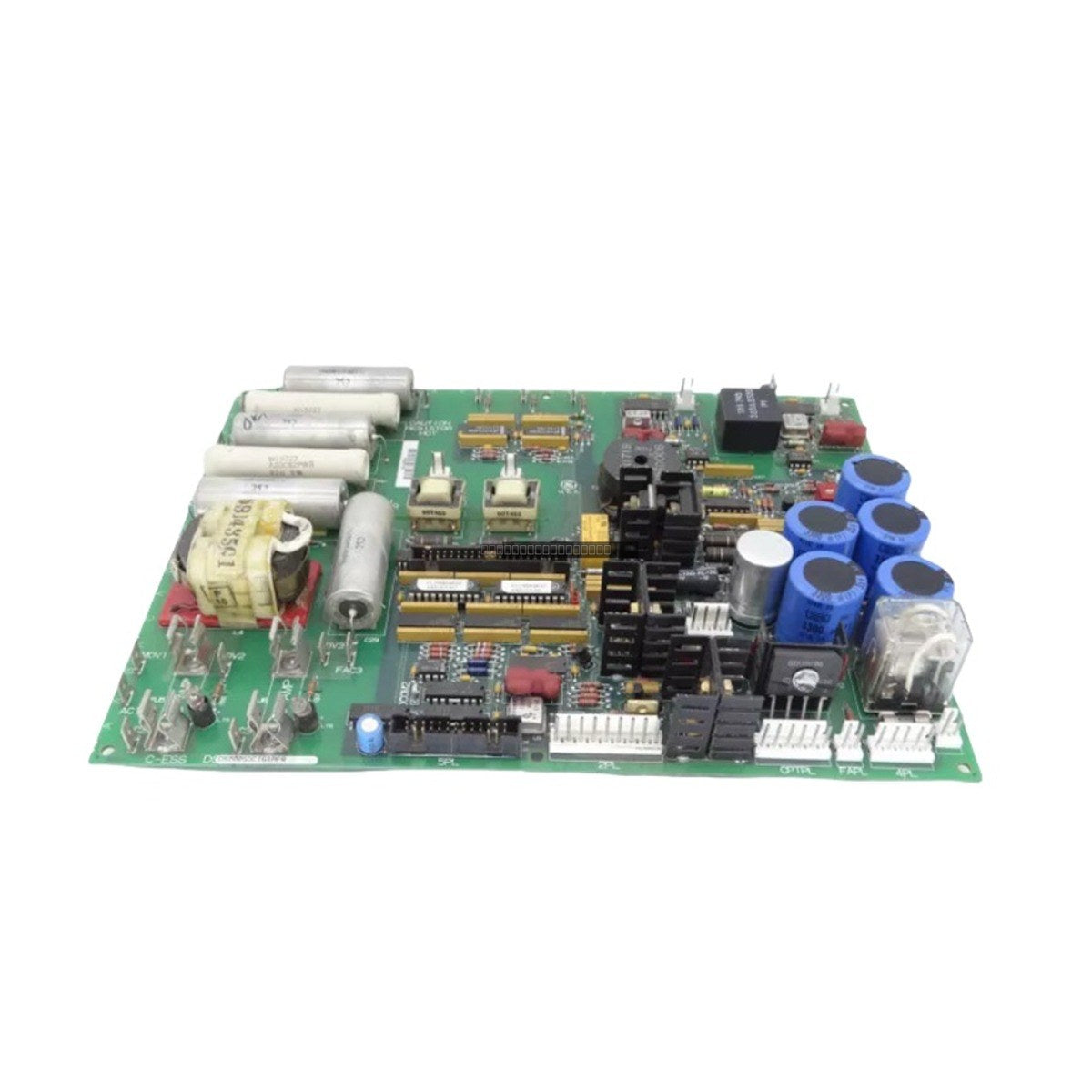

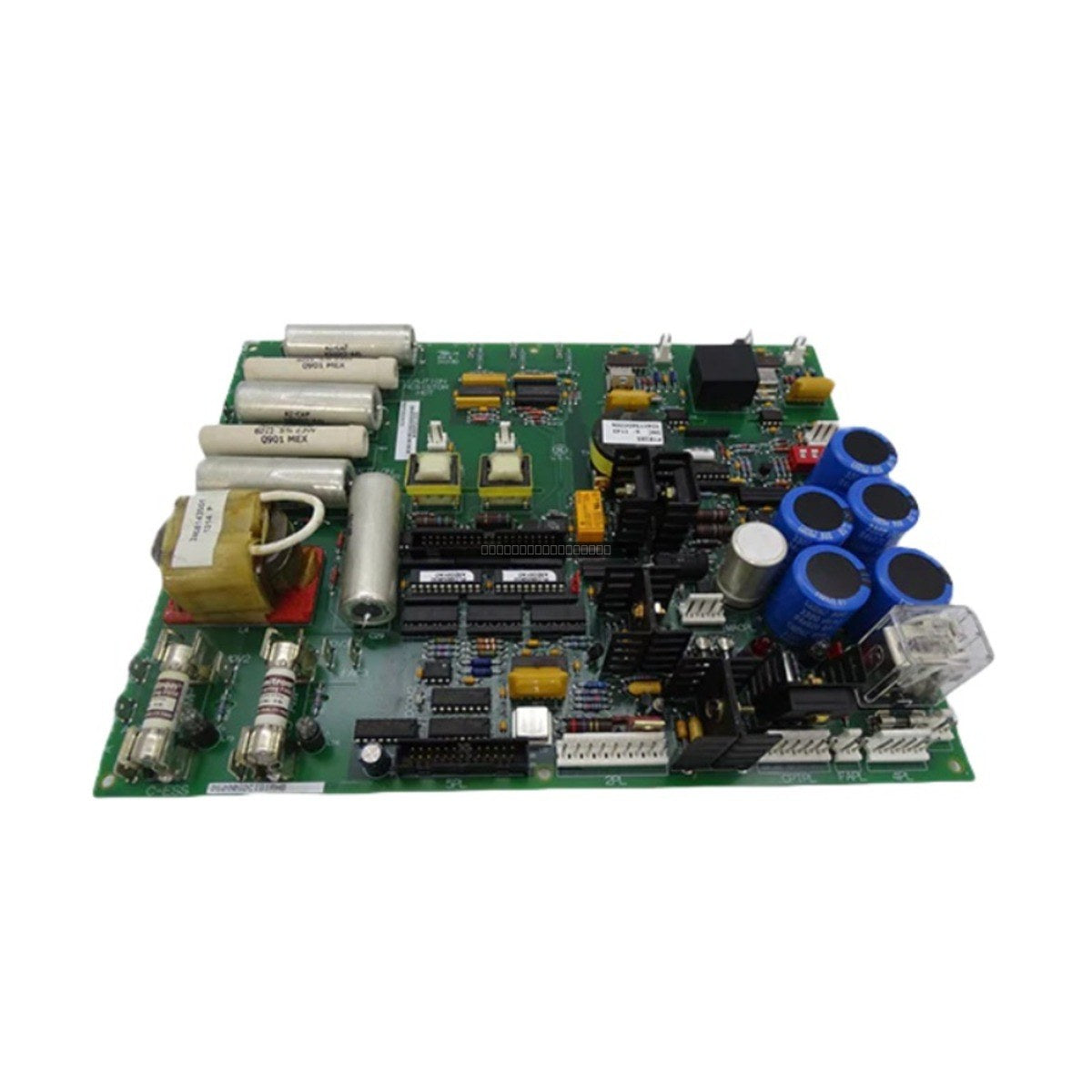

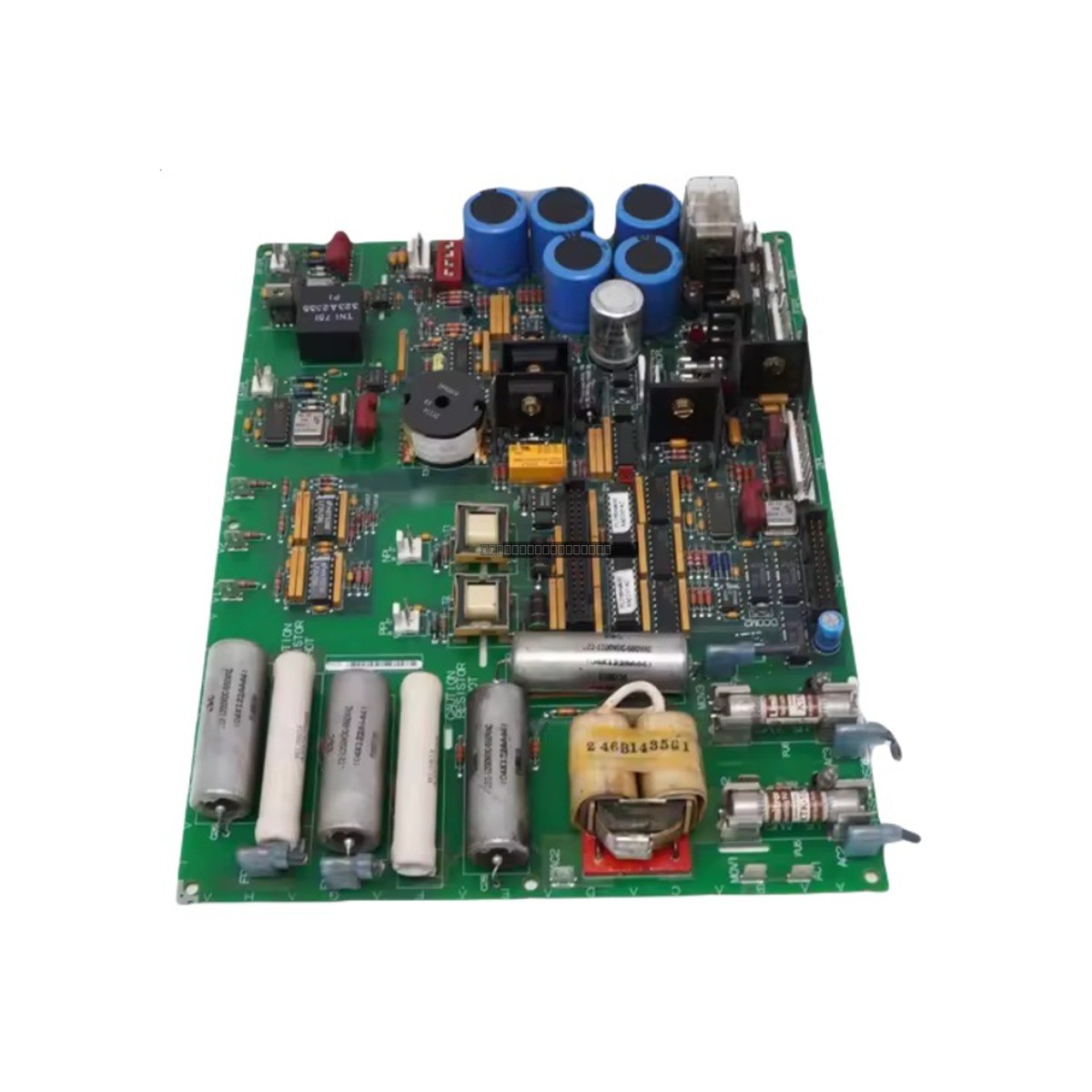

The DS200SDCIG2AFB is a high-voltage DC power supply board engineered by General Electric for the DC2000 Drive Control platform. This component is responsible for converting AC line power into regulated, low-voltage DC logic outputs, which are essential for the operation of supervisory drive microprocessors and communication interfaces. Designed for demanding industrial environments, this board provides stable power distribution to minimize operational downtime in critical infrastructure, such as power generation plants, oil refineries, and mining facilities. It is specifically configured to handle high-potential DC motor signals and interfaces with external motor exciters, supporting input voltages up to 600 VAC.
Features
- Designed for the GE DC2000 drive control series.
- Supports AC input voltages up to 600 VAC.
- Integrated diagnostic test points for system troubleshooting.
- Equipped with protective fuse blocks for circuit safety.
- High-voltage terminal strips and isolated trace pathways to protect sensitive signal lines.
- AFB revision includes updated logic components and improved capacitor thermal ratings.
Applications
This power supply board is utilized within heavy-duty industrial drive systems. It is primarily deployed in applications requiring precise control of DC motor signals, including large-scale manufacturing, electrical power generation, and petrochemical processing units.
Technical Specifications
| Brand |
General Electric (GE) |
| Model |
DS200SDCIG2AFB |
| Series |
DC2000 Drive Control |
| Product Type |
DC Power Supply Board |
| Max AC Input |
600 VAC |
| Operating Temperature |
0 to 60 deg C |
| Revision Suffix |
AFB |
Installation Guidelines
- Ensure the drive system is fully de-energized and locked out before attempting to install or remove the board.
- Handle the PCB by the edges to prevent electrostatic discharge (ESD) damage to sensitive logic components.
- Verify that all high-voltage terminal connections are secure and properly torqued according to the drive system manual.
- Ensure adequate ventilation within the drive enclosure to maintain operating temperatures within the 0 to 60 deg C range.
- Check that the board is correctly seated in the designated slot and that all diagnostic test points are accessible for future maintenance.
FAQ
What is the function of the AFB suffix on this board?
The AFB suffix denotes a specific engineering revision level for the DS200SDCIG2AFB. It indicates the inclusion of updated logic chips and upgraded capacitor heat ratings, ensuring the board maintains backward compatibility with existing DC2000 drive configurations.
Is this board compatible with all DC2000 drives?
The DS200SDCIG2AFB is designed for the DC2000 platform. However, compatibility can depend on the specific drive configuration and existing hardware revision. Always verify your drive's original parts list or consult the system technical manual before replacement.
