Product Overview

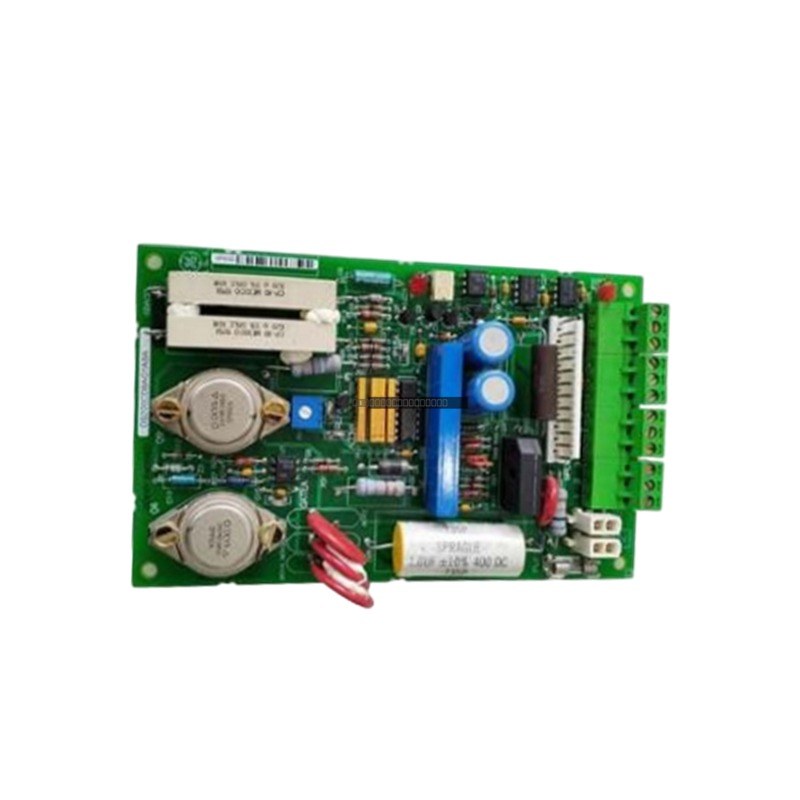

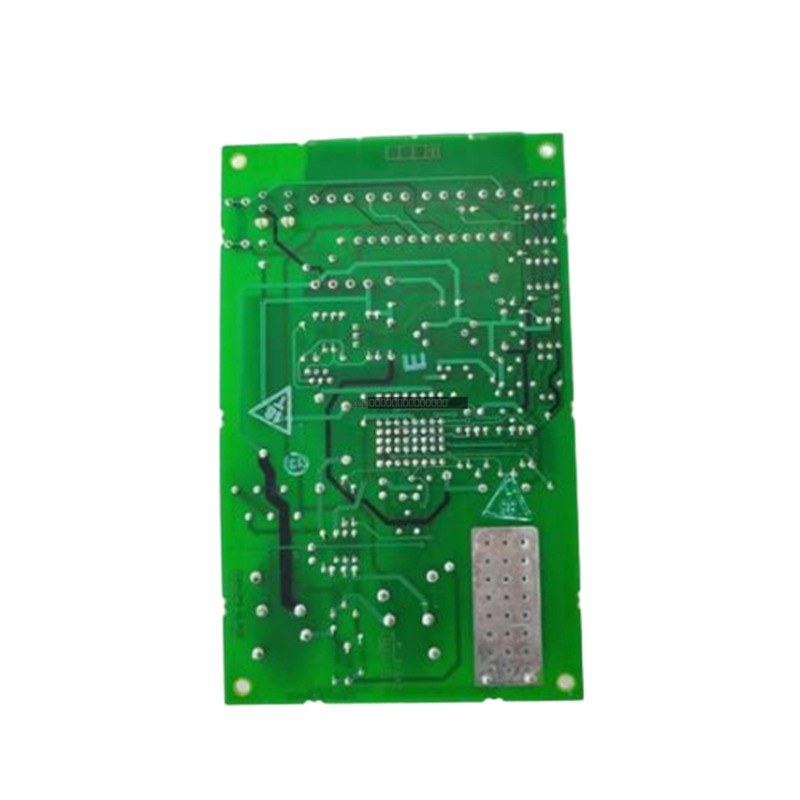

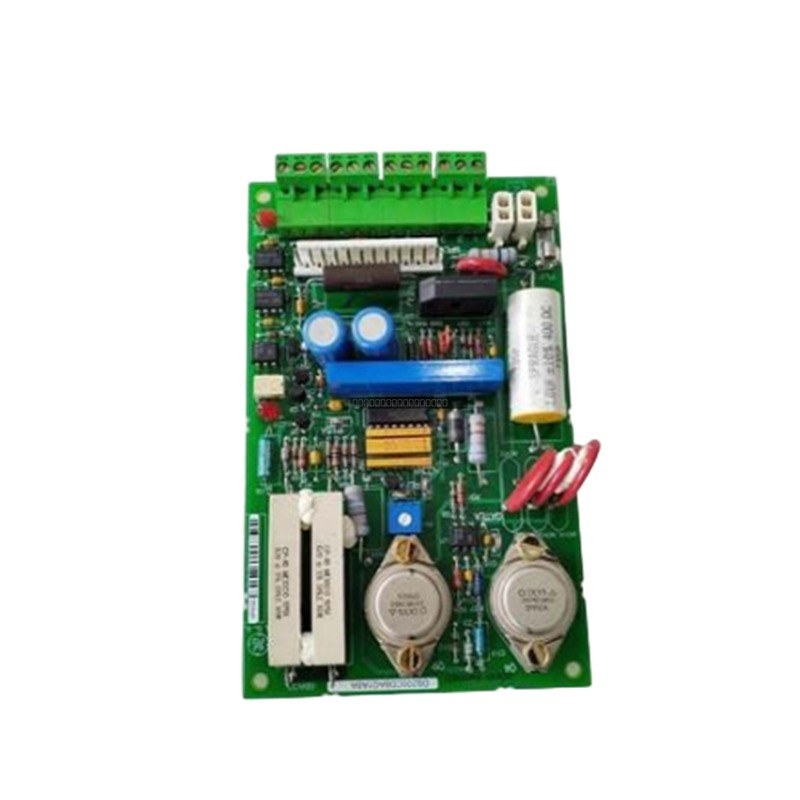

The DS200CDBAG1A is a specialized Contactor Driver Board developed by General Electric for the Driver Control series. This PCB serves a critical function in managing contactor switching operations, commonly utilized within heavy-duty industrial automation, power generation, and manufacturing control systems. The board is designed to accept input power ranging from 75 to 140 V AC/DC and provides regulated output for contactor coils, ensuring consistent performance and system reliability.

Features

• Integrated 4 amp, 125V fuse (FU1) for circuit protection.
• Dedicated LED indicator for real-time monitoring of the local contact close command.
• Three integrated test points referenced to CDBA common (ACOM) for diagnostic troubleshooting.
• Engineered for precise coil voltage regulation between 30 and 40 V DC.

Installation Guidelines

• Calibration: When replacing an existing unit, the RV1 potentiometer must be manually set to the exact position of the original board to ensure compatibility.
• Safety Precautions: Ensure the drive is fully powered down before inserting or removing the board.
• Diagnostic Care: ACOM is isolated from standard drive common. Always use isolated test equipment for measurements to avoid potential short circuits or erroneous data.
• Compatibility: Exercise caution when interfacing with DS304-type contactors; incorrect potentiometer adjustment can lead to coil failure.

Technical Specifications

Model	DS200CDBAG1A
Brand	GE Fanuc
Series	Driver Control
Input Voltage	75 to 140 V AC/DC
Output Coil Voltage	30 to 40 V DC
Fuse Rating	4A, 125V
Test Points	3 (ACOM referenced)

FAQ

Q: What is the primary function of the RV1 potentiometer?
A: The RV1 potentiometer regulates the output voltage for the contactor coil. It is vital to replicate the setting of the previous board to prevent damage to connected hardware.

Q: Can I use standard multimeter probes for testing?
A: You must use isolated test equipment. Because the ACOM test points are not referenced to drive common, non-isolated probes may cause short circuits or provide inaccurate readings.
