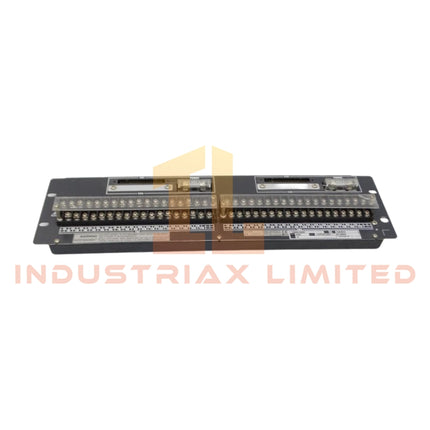

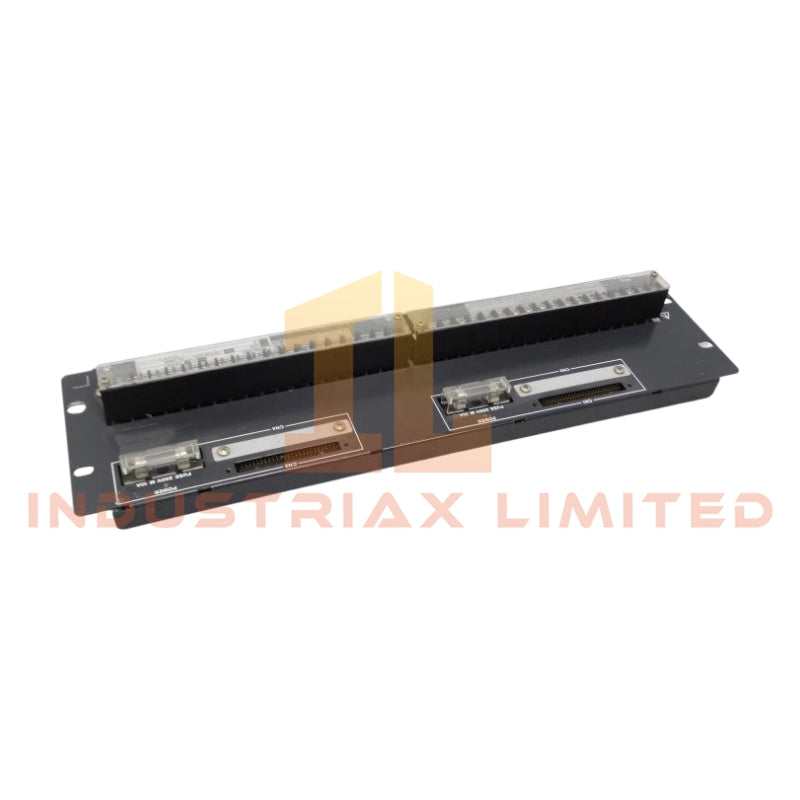

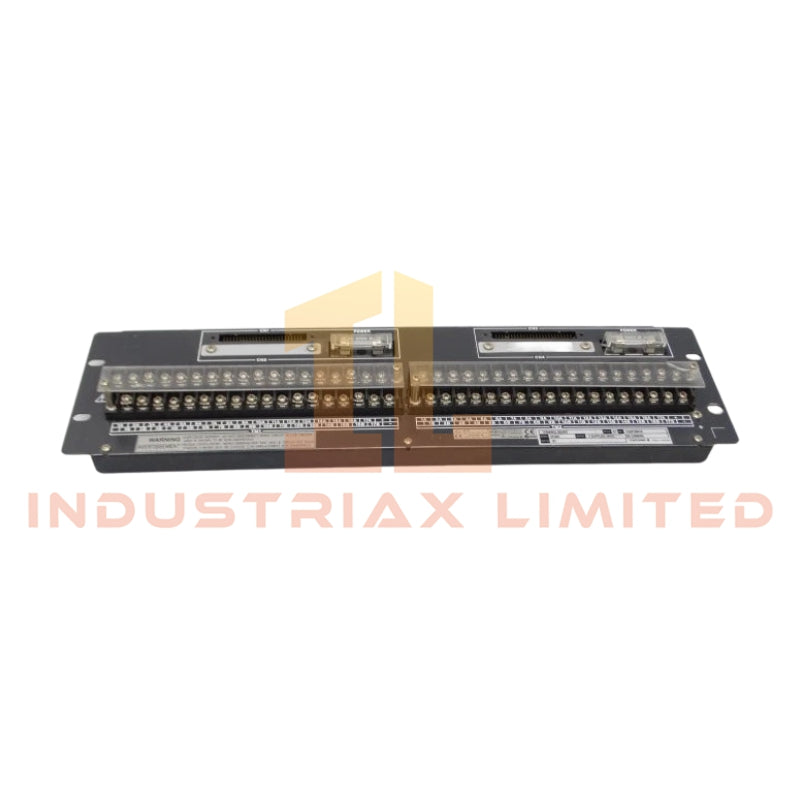

Yokogawa SED4D-01 Digital Terminal Board

Configured for signal termination and digital I/O interfacing in ProSafe-RS Safety Instrumented System, the Yokogawa SED4D-01 (SED4D-01 Digital Terminal Board) provides direct physical/electrical execution between SCU/SNU safety controllers and field-side digital input wiring associated with SDV144 modules.

Suffix Breakdown & Model Matrix

No suffix segmentation or internal model derivation is defined for SED4D-01 in the provided documentation. The device is referenced as a single-order hardware unit within the ProSafe-RS terminal board lineup.

Hardware Specifications

Parameter	Specification
ModelBrand	Yokogawa SED4D-01
Origin	Japan
Weight	Approx. 1.5 kg
OperatingTemp	-20 degC to +70 degC

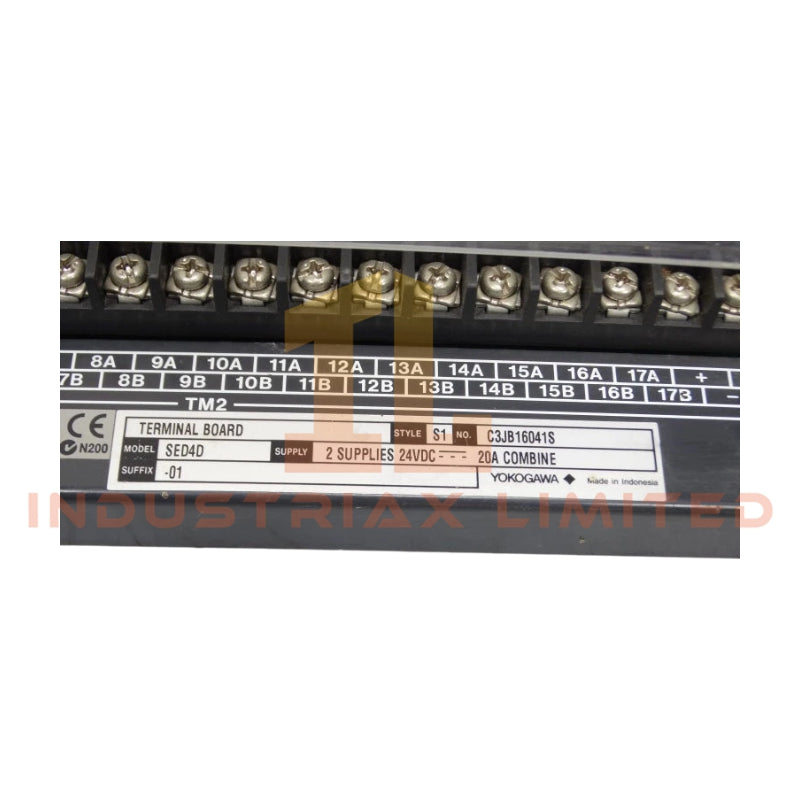

PowerConsumption	Dual 24 VDC input system (20 A combined capacity)
System Compatibility	ProSafe-RS Safety Instrumented System
Channel Configuration	16 channels x 2
Target Module	SDV144 Digital Input Module
Interface Cable	AKB331
Dielectric Strength	500 VAC (1 min, input to case)
Insulation Resistance	>= 10 MOhm at 500 VDC
Terminal Type	M4 screw terminals

Yokogawa ProSafe-RS Signal Termination Characteristics

The SED4D-01 implements channel-to-terminal mapping for SDV144 digital input acquisition, maintaining controlled impedance termination across multi-channel field wiring. The architecture supports redundant 24 VDC feeding paths, with internal power path monitoring indicated via status LED behavior. Integration assumes deterministic digital state acquisition under ProSafe-RS scan cycle timing, with emphasis on stable logic-level discrimination under industrial noise conditions typical of DCS input backplanes. Channel isolation is implemented at terminal distribution level to reduce cross-coupling between adjacent field loops and maintain signal integrity under dense cabinet wiring layouts.

Frequently Asked Questions

Q: Does the SED4D-01 support hot-swap replacement during system operation?
A: The terminal board is mechanically replaceable, but field wiring disconnection and system shutdown procedures are required. It is not designed for live hot-swap under energized field loops.

Q: What is the function of dual 24 VDC inputs?
A: Dual supply paths provide redundant power distribution to the terminal board internal circuitry, allowing continuity of terminal signal conditioning if one supply path is lost.

Q: Is signal isolation implemented per channel?
A: Isolation is implemented at board-level and channel grouping level according to ProSafe-RS architecture, not as fully independent per-channel galvanic isolation.

Field Installation Guidelines

Ensure all field wiring is de-energized prior to installation. Use shielded twisted pair cables for digital input lines where applicable, with shield termination performed at designated cabinet ground points only. Maintain separation between power conductors and signal wiring to reduce induced noise coupling. Tighten M4 terminal screws to manufacturer torque specification defined in ProSafe-RS cabinet installation standards. Verify AKB331 interface cable routing is free from mechanical stress and does not exceed minimum bend radius requirements inside the control cabinet.
