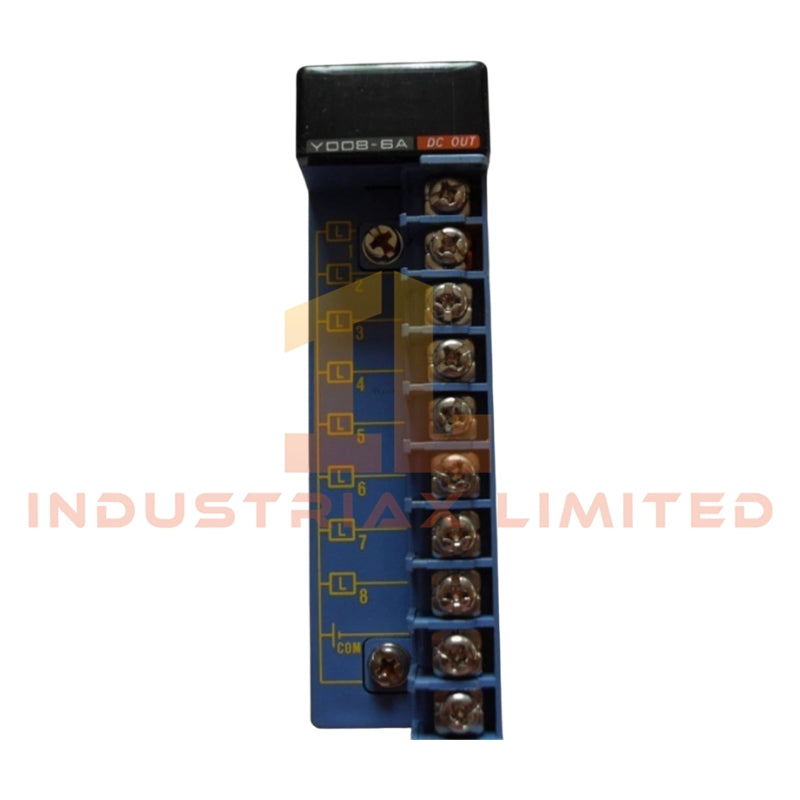

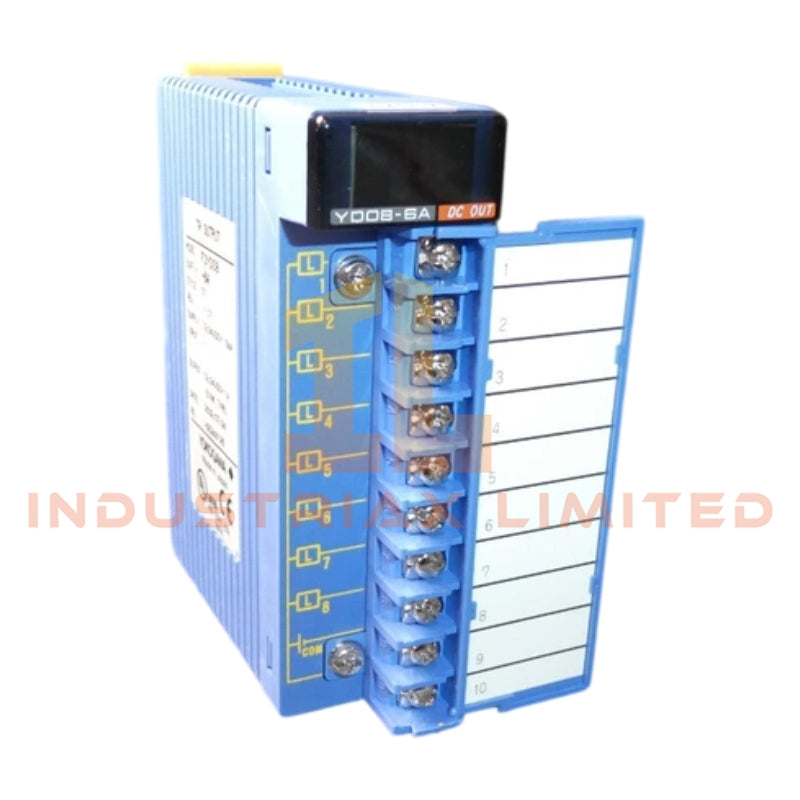

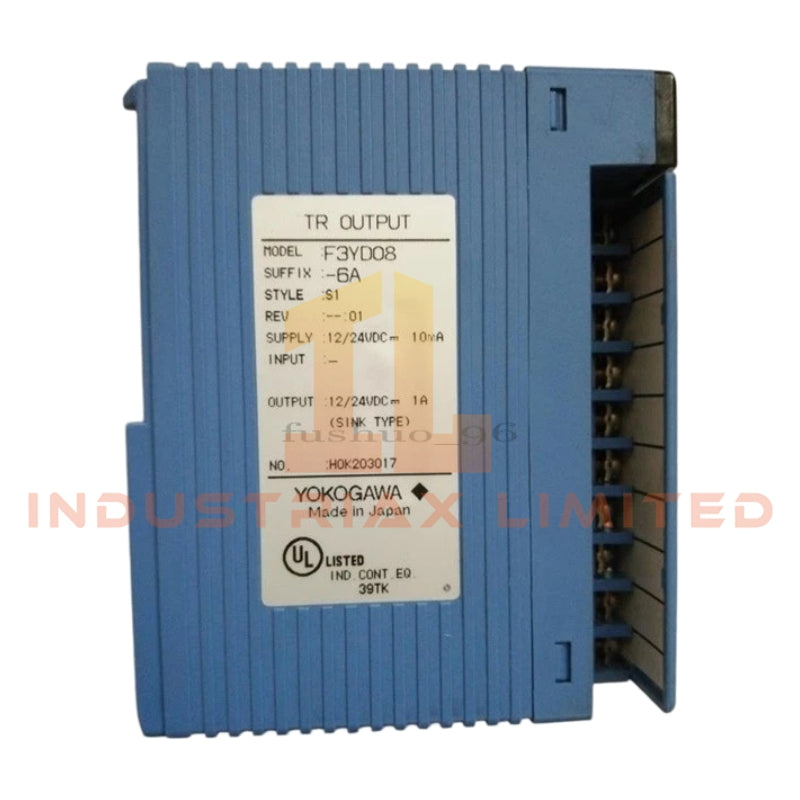

Yokogawa F3YD08-6A Digital Output Module

The Yokogawa F3YD08-6A, also cataloged as the F3YD08 Digital Output Module, operates as a dedicated hardware component for DC load switching within the FA-M3 Range-free Multi-controller platform. The module provides 8 sink-type transistor output channels for direct electrical actuation of field devices, with isolated output circuitry and removable terminal block wiring.

Suffix Breakdown & Model Matrix

The supplied documentation identifies a single catalog model: F3YD08-6A. No official suffix decomposition or variant matrix is specified in the provided technical data.

Hardware Specifications

Parameter	Specification
Model	F3YD08-6A
Brand	Yokogawa
Module Type	Digital Output Module
Output Technology	Transistor Output (Sink Type, Open Collector)
Number of Outputs	8 outputs
Rated Load Voltage	12 VDC to 24 VDC
Maximum Load Current	4 A per point
Maximum Module Current	12 A per module
Response Time (OFF to ON)	1 ms or less
Response Time (ON to OFF)	1 ms or less
Dielectric Strength	1500 VAC between output terminals and internal circuits
External Connection	Removable terminal block (M3 screws)
Power Consumption	110 mA at 5 VDC
Weight	Approx. 140 g

Channel-to-Channel Isolation and DCS Field Interface Characteristics

The F3YD08-6A incorporates electrical isolation between output circuits and internal controller electronics. This arrangement reduces the transfer of field-side electrical disturbances into the FA-M3 control backplane. The transistor sink outputs are intended for DC-powered loads connected between the positive supply rail and the corresponding output terminal.

Within distributed control and process automation environments, isolated digital output modules are commonly deployed alongside analog signal interfaces, including 4-20 mA instrumentation loops and network-connected field devices. The module itself functions as a discrete switching interface and does not provide HART, FOUNDATION Fieldbus, or Profibus PA communication functions.

Frequently Asked Questions

Q: Does the F3YD08-6A support AC output loads?
A: No. The specified output operating range is 12 VDC to 24 VDC using sink-type transistor outputs. Load compatibility should be verified against the DC output characteristics.

Q: Can field wiring be removed without disconnecting individual conductors?
A: Yes. The module uses a removable terminal block design with M3 screw terminals, allowing the terminal assembly to be detached during maintenance procedures.

Q: What current limitation must be considered during output loading?
A: Both per-channel and aggregate module ratings must be observed. The specified limits are 4 A per output point and 12 A total across the module.

Field Installation Guidelines

• Verify field supply voltage remains within the specified 12 VDC to 24 VDC operating range.
• For sink-type transistor outputs, connect the load between the positive DC supply and the designated output terminal.
• Confirm that the combined output current does not exceed the module-level current rating.
• Route output wiring separately from high-energy power conductors where practical to minimize induced electrical noise.
• Tighten M3 terminal connections according to site electrical standards and periodically inspect for loosening caused by vibration.
• Ensure protective grounding and cabinet bonding practices comply with plant electrical installation requirements.
• Remove system power before inserting or removing the module unless explicit hot-swap approval is documented by the controller manufacturer.
