Description

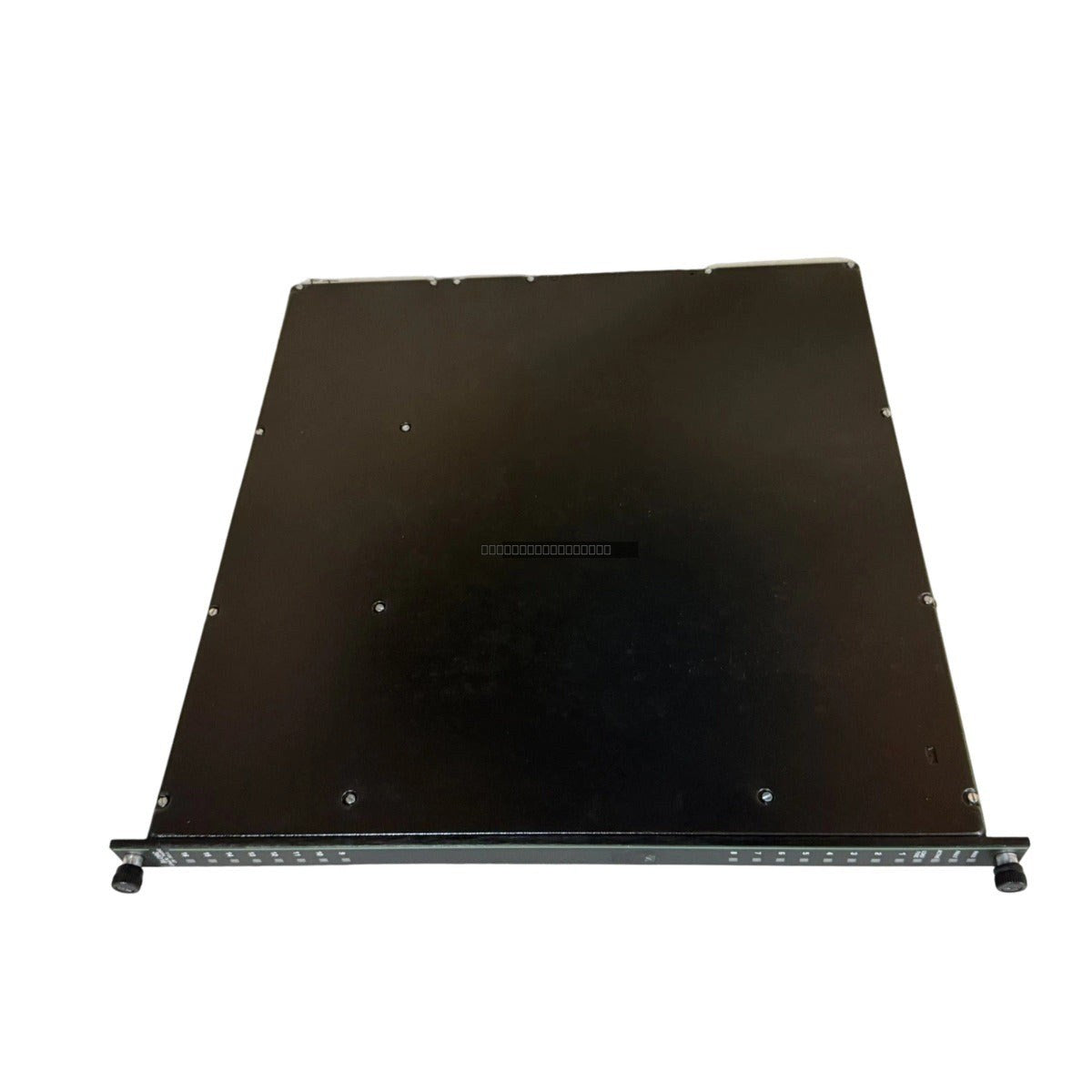

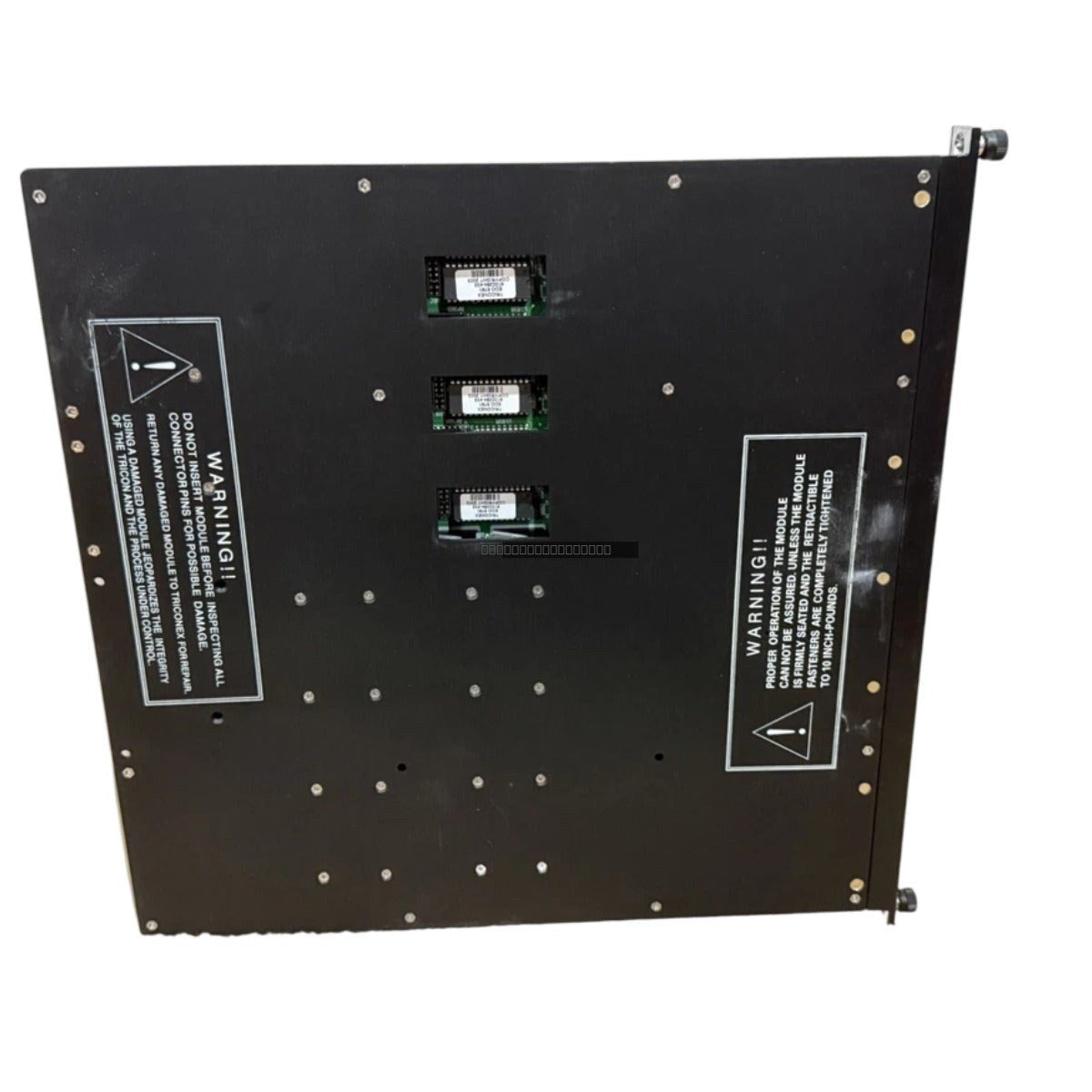

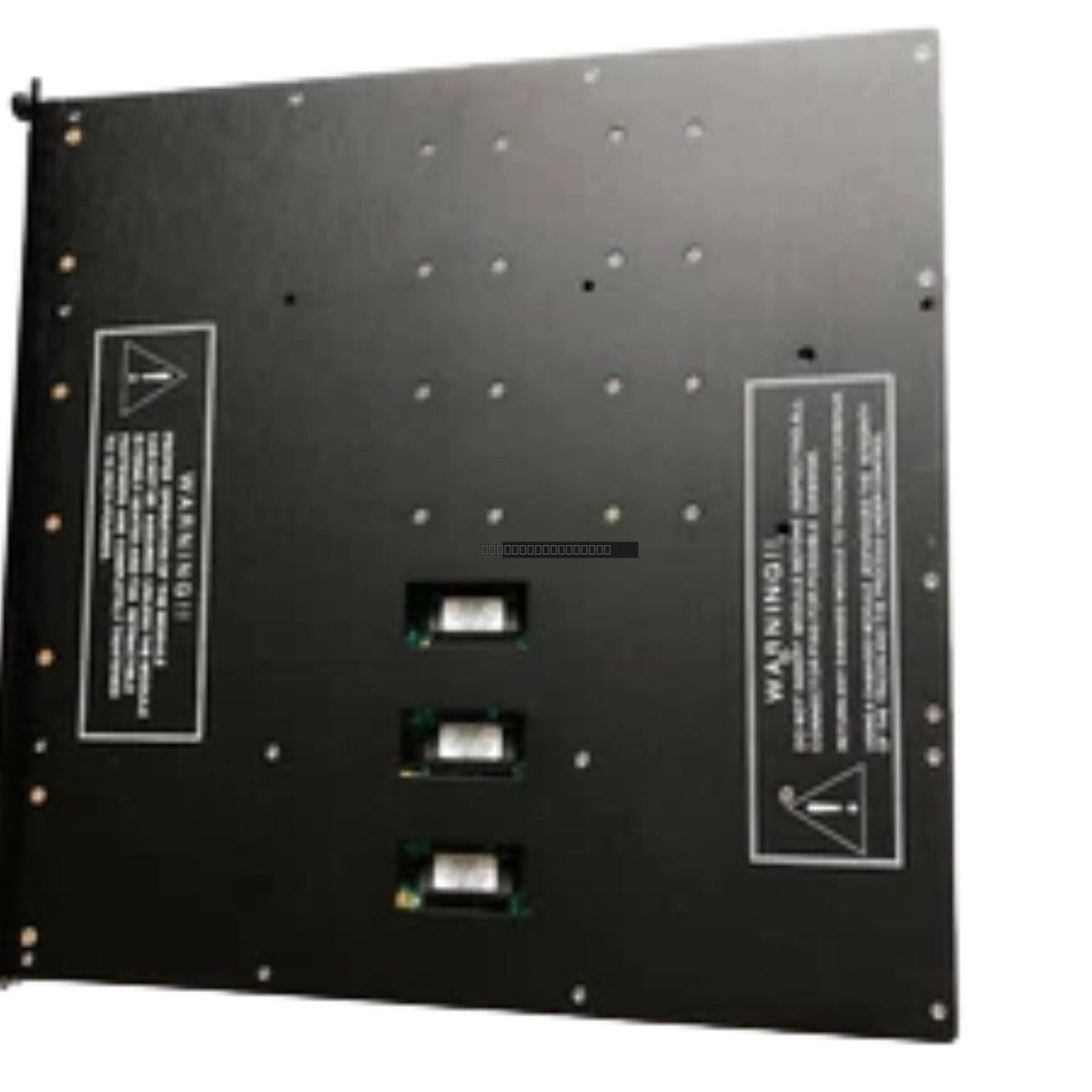

The Triconex 3601 is a high-integrity digital output module designed for use within Triple Modular Redundant (TMR) safety systems. This module is specifically engineered to control 115 VAC field devices such as solenoids, motor starters, and safety interlocks in critical industrial environments. By employing a TMR architecture, the module ensures high availability and fault tolerance, making it a standard choice for safety-instrumented systems (SIS) in the petrochemical, power generation, and oil and gas sectors. The module features robust opto-isolation for each channel to protect the system backplane from field-side transients and electrical noise.
Features
- TMR (Triple Modular Redundant) architecture for high-reliability safety control.
- 16 non-commoned output channels providing independent signal paths.
- Opto-isolation on every channel to prevent cross-channel interference and backplane contamination.
- Designed for 115 VAC field applications with a wide operating voltage range.
- Integrated hardware voting logic to ensure deterministic and fail-safe operation.
- Front-panel status indicators for efficient field diagnostics and maintenance.
Applications
The 3601 module is deployed in safety-critical loops where high availability is required. Typical applications include:
- Emergency Shutdown Systems (ESD).
- Burner Management Systems (BMS).
- Process interlock and alarm management.
- Control of high-voltage field actuators in hazardous or demanding environments.
Technical Specifications
| Brand |
Invensys Triconex |
| Model |
3601 |
| Output Points |
16 (non-commoned) |
| Nominal Voltage |
115 VAC |
| Voltage Range |
80 to 155 VAC |
| Frequency Range |
47 to 63 Hz |
| Isolation |
Opto-isolated channels |
| Power Consumption |
15 W (max) |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the Triconex system is powered down before inserting or removing the 3601 module.
- Use appropriate ESD protection when handling the module to prevent damage to internal circuitry.
- Verify that the field wiring is properly shielded and routed away from high-power AC lines to minimize EMI.
- Ensure the module is fully seated in the rack backplane to guarantee proper connection of the TMR voting circuits.
- Regularly inspect terminal blocks for secure connections and verify field-side voltage levels against the operating range of 80-155 VAC.
FAQ
Is the Triconex 3601 compatible with standard TMR systems? Yes, the 3601 is designed specifically for integration into the Triconex TMR safety controller architecture.
Does this module require common returns? No, the 3601 features non-commoned channels, meaning each output point has an individual return path, which enhances fault isolation.
What is the primary function of the opto-isolation? The opto-isolation decouples the field-side high-voltage signals from the internal logic backplane, preventing damage from surges or electrical faults originating in the field.
