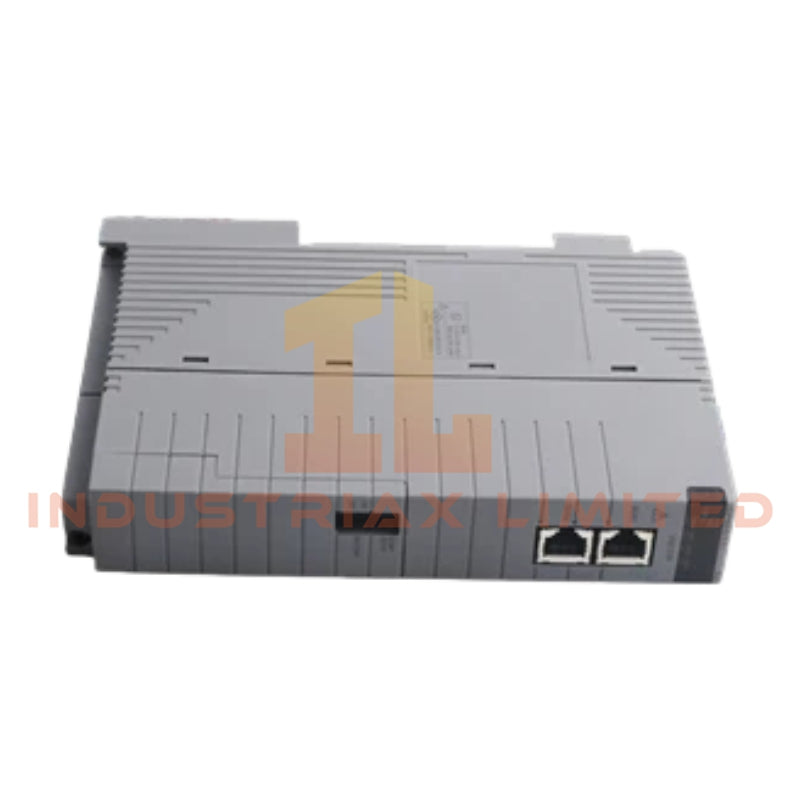

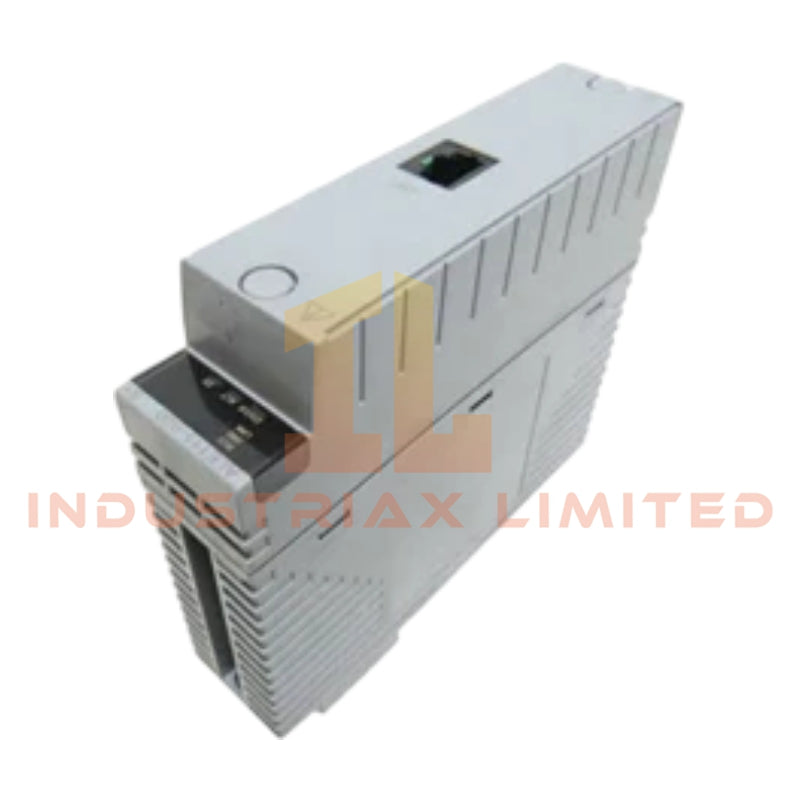

Yokogawa ADV551-P03 Digital Output Module

The Yokogawa ADV551-P03, also cataloged as the ADV551-P03 Digital Output Module, serves as the primary ADV551-P03 Digital Output Module utilized to execute discrete signal switching and pulse-based control output across CENTUM VP / CENTUM CS 3000 platforms. Configured for sink-type transistor driving in field output circuits, the module converts DCS logic states into isolated 24 VDC switching signals for external actuators.

Suffix Breakdown &Model Matrix

• ADV551: Standard Yokogawa FIO digital output module series
• -P: Pulse width output and time-proportional control capability enabled
• 0: Basic configuration without display or explosion-proof variant
• 3: ISA G3 conformal coating, extended environmental tolerance (-20 degC to 70 degC)

Hardware Specifications

Parameter	Specification
ModelBrand	Yokogawa ADV551-P03
Origin	Yokogawa
Weight	Approx. 0.20 kg
Dimensions	Not explicitly defined in provided data
OperatingTemp	-20 degC to 70 degC
PowerConsumption	700 mA @ 5 VDC (system), 60 mA @ 24 VDC (external)
Number of Channels	32 channels
Channel Grouping	16 channels per isolated group
Output Type	Transistor sink output
Rated Load Voltage	24 VDC
External Supply Voltage Range	20.4 to 26.4 VDC
Max Load Current	100 mA per channel
Output ON Voltage Drop	2.0 VDC max
Leakage Current (OFF)	0.1 mA max
Isolation	Channel group isolation (500 VAC), system isolation (2 kVAC)
Response Time	3 ms (status), 10 ms (pulse mode)
Pulse Width Range	8 ms to 7200 s
Pulse Resolution	8 ms
Redundancy Support	Dual-redundant configuration supported
External Connection	Pressure clamp / AKB331 cable / MIL connector

Process Control Channel Architecture

The Yokogawa ADV551-P03 integrates channel-to-group galvanic isolation to separate each 16-channel block, minimizing inter-channel coupling under high-density switching conditions. Within CENTUM VP, output states are mapped to discrete logic objects and pulse generators, enabling time-proportional actuation of field devices without requiring external timing hardware.

FOUNDATION Fieldbus or PROFIBUS PA is not directly implemented at output stage level; however, the module interfaces through internal backplane communication with DCS field control stations where protocol conversion and signal mapping occur prior to output execution.

Frequently Asked Questions

Q: Can the ADV551-P03 be replaced under power in a redundant configuration?
A: No. Module replacement requires system power isolation unless the architecture explicitly supports hot standby redundancy switching at the FCS level.

Q: What determines the 16-channel grouping isolation boundary?
A: Isolation is defined by internal group commons, with each 16-channel block electrically separated at 500 VAC isolation level.

Q: Does pulse output affect channel response time?
A: Yes. Pulse or mixed mode operation increases response time to up to 10 ms due to internal timing and synchronization logic.

Field Installation Guidelines

1. Insert module into designated FIO slot ensuring full engagement with backplane connector.
2. Maintain separation between output wiring and high-noise power conductors to reduce induced coupling.
3. Apply shield grounding at one end only for long field cable runs to prevent ground loop currents.
4. Verify 24 VDC field supply remains within 20.4 to 26.4 VDC range before energizing outputs.
5. Ensure 16-channel group commons are not externally bridged unless design explicitly requires shared reference.
6. Use conformal-coated (-P03) variant in environments with corrosive gas presence or condensation risk.
