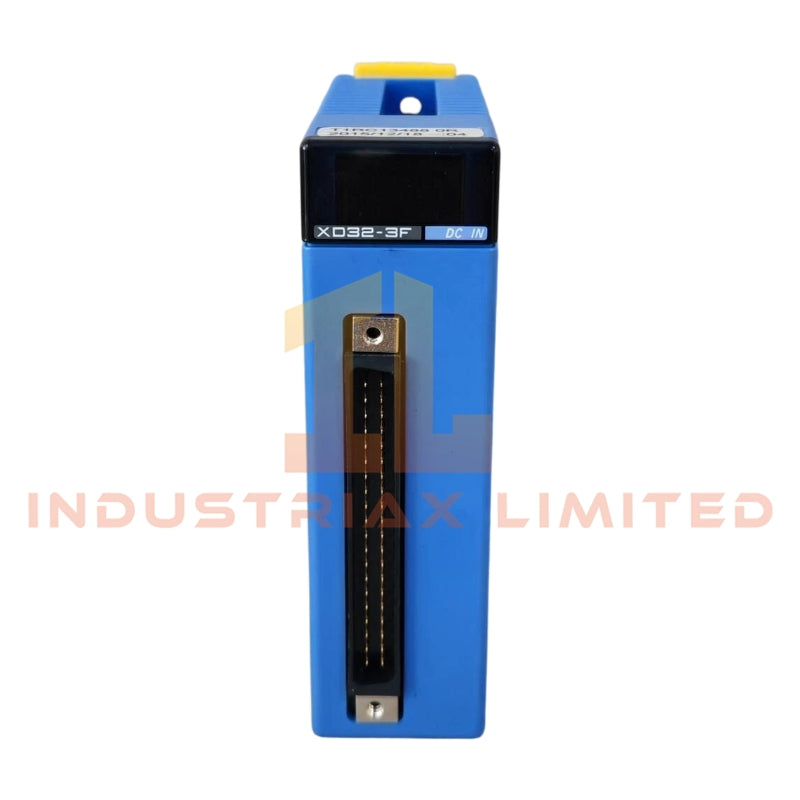

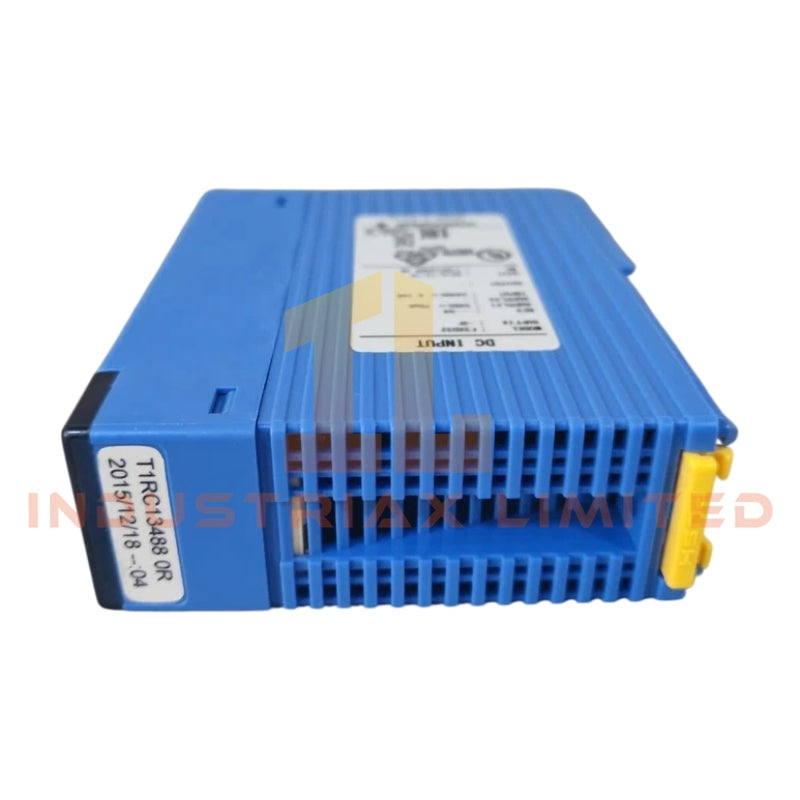

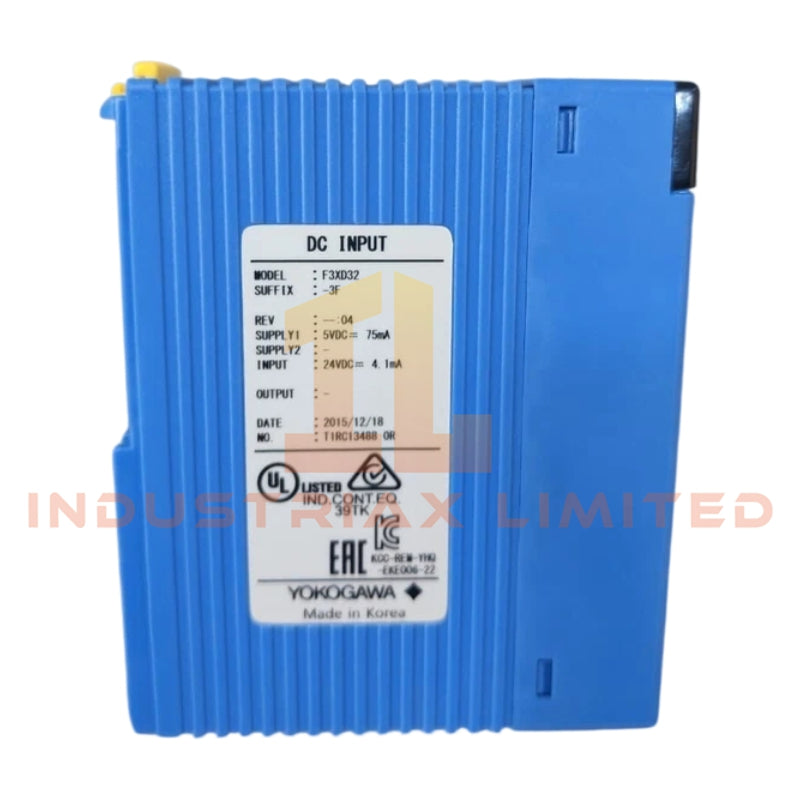

Yokogawa F3XD32-3F Digital Input Module

Configured for high-speed 24 V DC discrete signal acquisition in FA-M3 platform, the Yokogawa F3XD32-3F (F3XD32-3F Digital Input Module) provides direct physical/electrical execution for 32-point digital input sampling within Yokogawa FA-M3 controller backplane architecture.

Suffix Breakdown & Model Matrix

The suffix structure of F3XD32-3F is not explicitly defined in publicly provided electrical breakdown documentation. The model is identified as part of the F3XD32 high-density digital input family, with "-3F" commonly used by the manufacturer to indicate a high-speed variant with enhanced filtering capability. No further official segmentation is assumed.

Hardware Specifications

Parameter	Specification
ModelBrand	Yokogawa F3XD32-3F
Weight	Approx. 140 g
PowerConsumption	5 V DC, approx. 110 mA
Module Type	Digital Input Module
Input Points	32 points
Rated Input Voltage	24 V DC
Input Voltage Range	20.4 to 26.4 V DC
Input Current	Approx. 4.1 mA per channel
Response Time	OFF->ON <= 0.1 ms, ON->OFF <= 0.1 ms
Isolation	Photocoupler isolation
Interface	40-pin high-density connector

Channel Isolation and High-Speed Input Filtering Architecture

The module implements photocoupler-based channel isolation between field input circuits and internal logic backplane. Input channels are arranged in grouped structures to reduce cross-channel interference under high-density switching conditions. Internal digital filtering parameters are software configurable, allowing suppression of contact bounce and high-frequency noise on 24 V DC signal lines. The architecture supports deterministic state detection suitable for high-speed discrete signal acquisition in FA-M3 I/O scanning cycles.

Frequently Asked Questions

Q: Can the module be hot-swapped during FA-M3 system operation?
A: Hot-swap capability depends on the base unit configuration. Electrical removal during backplane energization may result in signal interruption and should follow system power-down procedures unless explicitly supported by the rack configuration.

Q: Does each input channel share a common return path?
A: Input channels are grouped with shared common terminals per isolation group. Channel-to-channel isolation is implemented via photocouplers, not full per-channel galvanic isolation.

Q: What is the effect of input filter adjustment on response time?
A: Increasing the digital filter time introduces additional delay beyond the default <= 0.1 ms response window, reducing sensitivity to short-duration pulses.

Field Installation Guidelines

Backplane insertion must be performed with system power removed unless the FA-M3 base unit explicitly supports live insertion. Ensure correct alignment of the 40-pin connector to prevent pin deformation. Field wiring should be routed through shielded cable assemblies to minimize electromagnetic coupling on 24 V DC input lines. Shield grounding should be terminated at a single-point earth reference to avoid ground loop currents. Maintain separation between input signal cables and high-voltage or switching power lines to reduce induced noise on high-speed channels.
