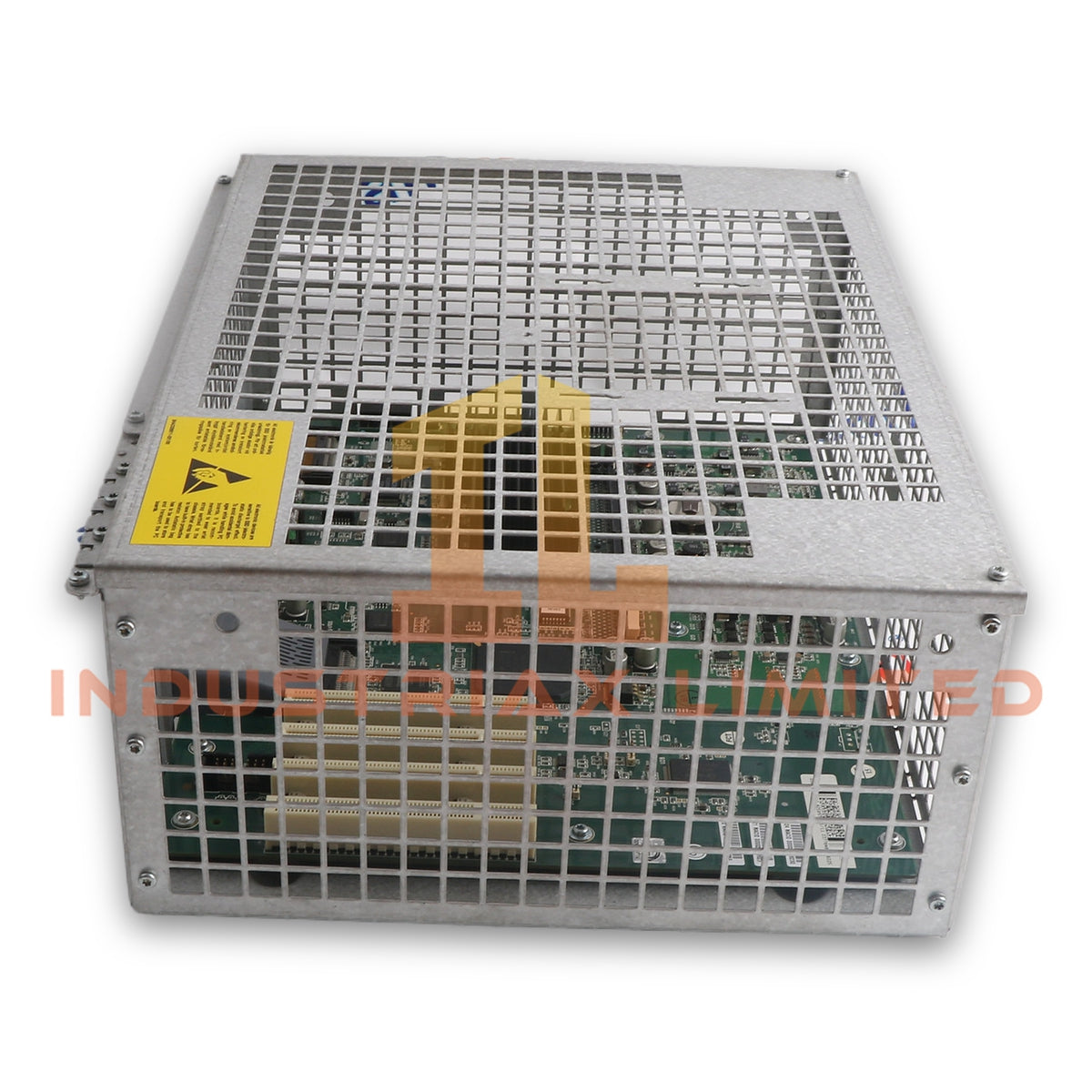

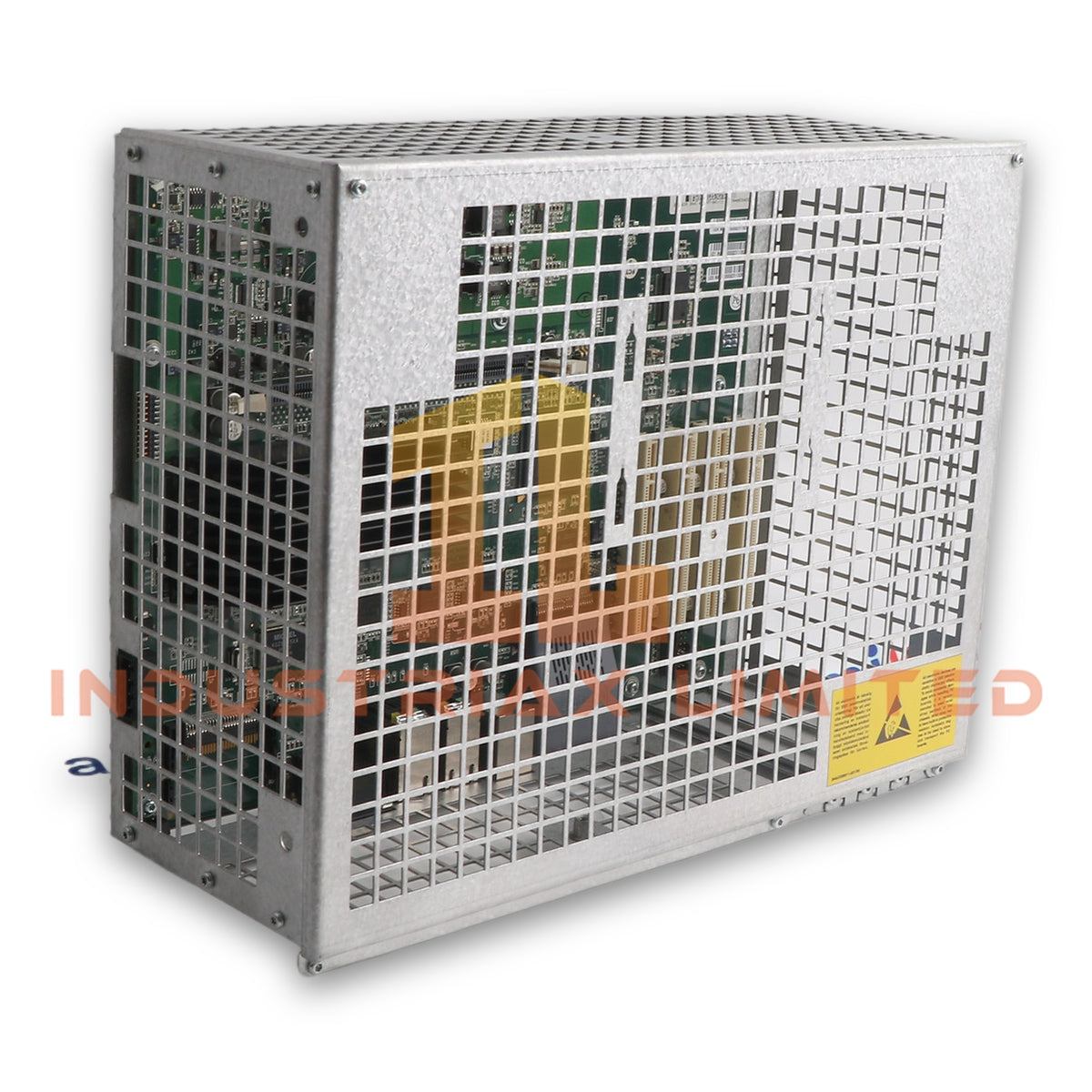

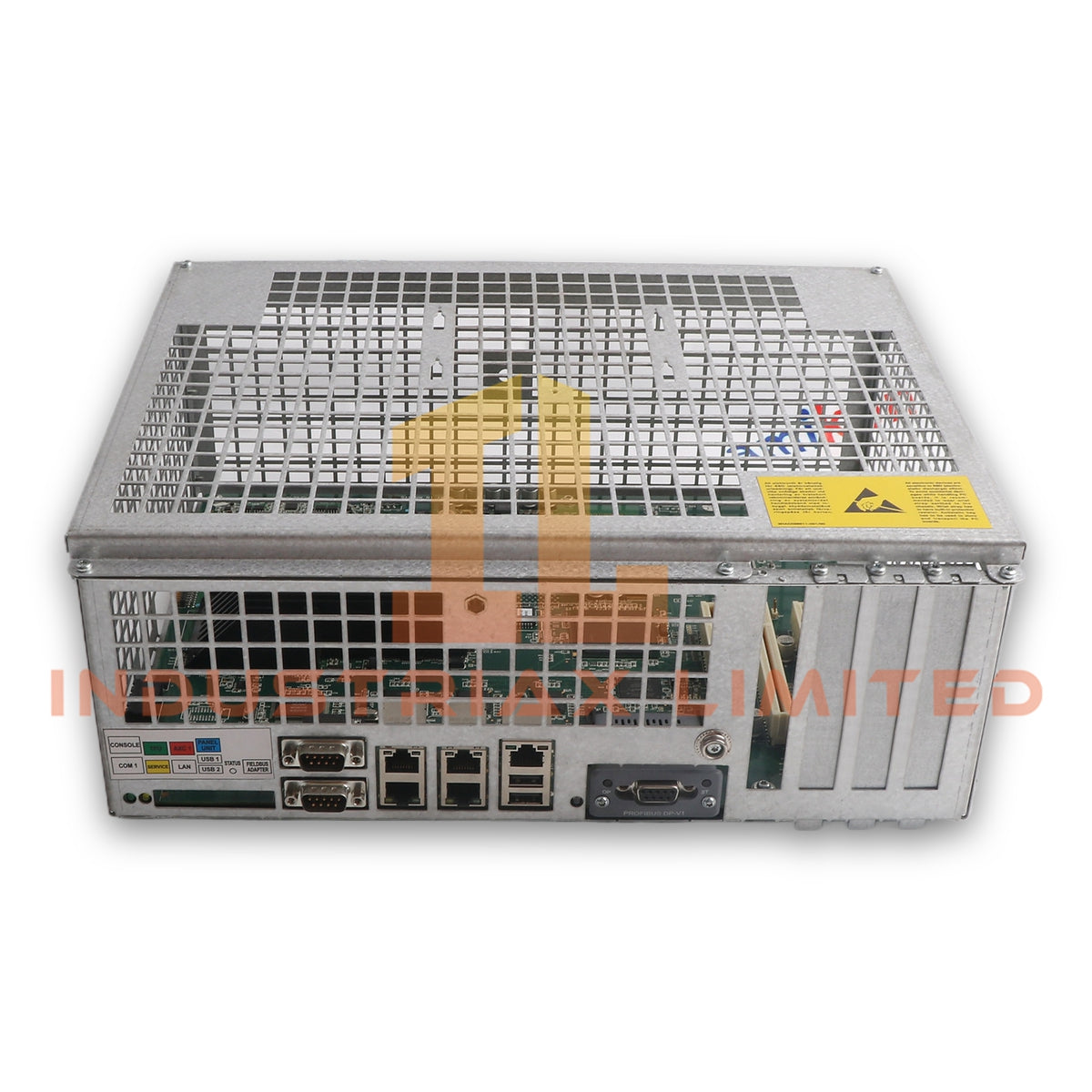

ABB DSQC639 Computer Unit

Configured for central controller processing in ABB IRC5 robot control systems, the ABB DSQC639 (3HNA011342-001) (DSQC639 Computer Unit) executes controller logic, robot program processing, real-time communication, and I/O coordination.

Hardware Specifications

Parameter	Specification
Model	DSQC639
Brand	ABB
Part Number	3HNA011342-001
Product Type	Computer Unit / Robot Control Computer Module
System Compatibility	ABB IRC5 Robot Controllers
Primary Function	Central processing for robot motion control, system logic, communication, and I/O management
Communication Interfaces	Ethernet, CAN bus, serial interfaces
Operating Power	24 VDC system bus power
Dimensions	Approx. 337 mm x 266.5 mm x 127.2 mm
Weight	Approx. 2.68 kg
Origin	Sweden

ABB Controller and Backplane Integration

The DSQC639 operates as a computer unit within the ABB IRC5 controller architecture. It processes controller software and coordinates data exchange between robot control functions, communication interfaces, and connected I/O hardware.

The supplied specifications identify Ethernet, CAN bus, and serial interfaces. However, they do not define interface speeds, connector assignments, backplane current loading, or deterministic network parameters. Therefore, these values should be verified against the applicable IRC5 controller documentation before system integration.

Firmware compatibility should also be checked against the installed IRC5 controller software revision. Hardware replacement does not by itself establish compatibility with every controller revision.

Frequently Asked Questions

Q: What controller platform is the DSQC639 intended for?
A: The supplied data identifies the DSQC639 as a computer unit for ABB IRC5 robot controllers.

Q: What supply voltage does the DSQC639 use?
A: The supplied specification lists 24 VDC system bus power. A specific power consumption value is not provided.

Q: Can the DSQC639 be installed without checking controller software compatibility?
A: No. The applicable IRC5 hardware configuration and installed software revision should be verified before replacement or commissioning.

Field Installation Guidelines

1. Isolate controller power before removing or installing the computer unit.
2. Confirm the DSQC639 part number against the controller hardware configuration before installation.
3. Install the module in the designated controller position and secure all mechanical fixing points.
4. Inspect connectors for contamination, bent contacts, or mechanical damage before mating.
5. Route communication cables separately from high-current motor and power wiring where practical.
6. Maintain proper cable shielding and grounding according to the IRC5 cabinet installation documentation.
7. Verify the 24 VDC system supply before energizing the controller.
8. After installation, check controller diagnostics and hardware identification before returning the robot system to operation.
9. Verify firmware and controller software compatibility before loading or upgrading system software.
