ABB CI854BK01 PROFIBUS DP Communication Interface

Configured for PROFIBUS DP-V1 master communication in System 800xA, the ABB CI854BK01 (CI854B PROFIBUS DP Communication Interface) provides two PROFIBUS ports for line redundancy and supports redundant master configurations. The package includes the CI854B communication interface and TP854 baseplate.

Suffix Breakdown & Model Matrix

Parameter	Specification
Full Model	CI854BK01
Base Model	CI854B
Product Type	PROFIBUS DP Communication Interface
Package Configuration	CI854B + TP854 Baseplate
Communication Protocol	PROFIBUS DP-V1
Operating Mode	Master
PROFIBUS Channels	2
Line Redundancy	Yes
Master Module Redundancy	Yes
Hot Swap	Yes
CEX Bus Capacity	Maximum 12 units
System Compatibility	System 800xA 6.0.3.2 and later
Compact Control Builder	6.0.0-2 and later
Used with HI Controller	Yes

Hardware Specifications

Parameter	Specification
Model	CI854BK01
Brand	ABB
Origin	Not specified in provided data
Communication Interface	CI854B
Baseplate	TP854
Communication Protocol	PROFIBUS DP-V1
Master or Slave	Master
Number of Channels	2
Transmission Speed	9.6 to 12000 kbit/s
Line Redundancy	Yes
Module Redundancy	Yes
Hot Swap	Yes
Connector	9-pin female DB connector
Maximum Units on CEX Bus	12
Typical 24 V Consumption	190 mA
Operating Temperature	0 to +55 deg C
Storage Temperature	-40 to +70 deg C
Pollution Degree	Degree 2 according to IEC/EN 61131-2
Corrosion Protection	G3 compliant to ISA 71.04
Protection Class	IP20 according to EN 60529 and IEC 529
CE Marking	Yes
Marine Certificates	ABS, BV, DNV-GL, LR
RoHS Compliance	EU RoHS, UAE RoHS, CN RoHS
WEEE Compliance	Directive 2012/19/EU
Width	59 mm
Height	185 mm
Depth	127.5 mm
Weight Including Base	700 g

PROFIBUS DP and CEX Bus Architecture

The CI854B connects an AC 800M controller to PROFIBUS DP field devices through two physical PROFIBUS ports. Each port supports transmission rates from 9.6 to 12000 kbit/s.

The interface supports line redundancy by using both PROFIBUS ports. In addition, two CI854B modules can provide PROFIBUS master redundancy. This redundant master configuration can operate together with CPU redundancy and CEX Bus redundancy using BC810.

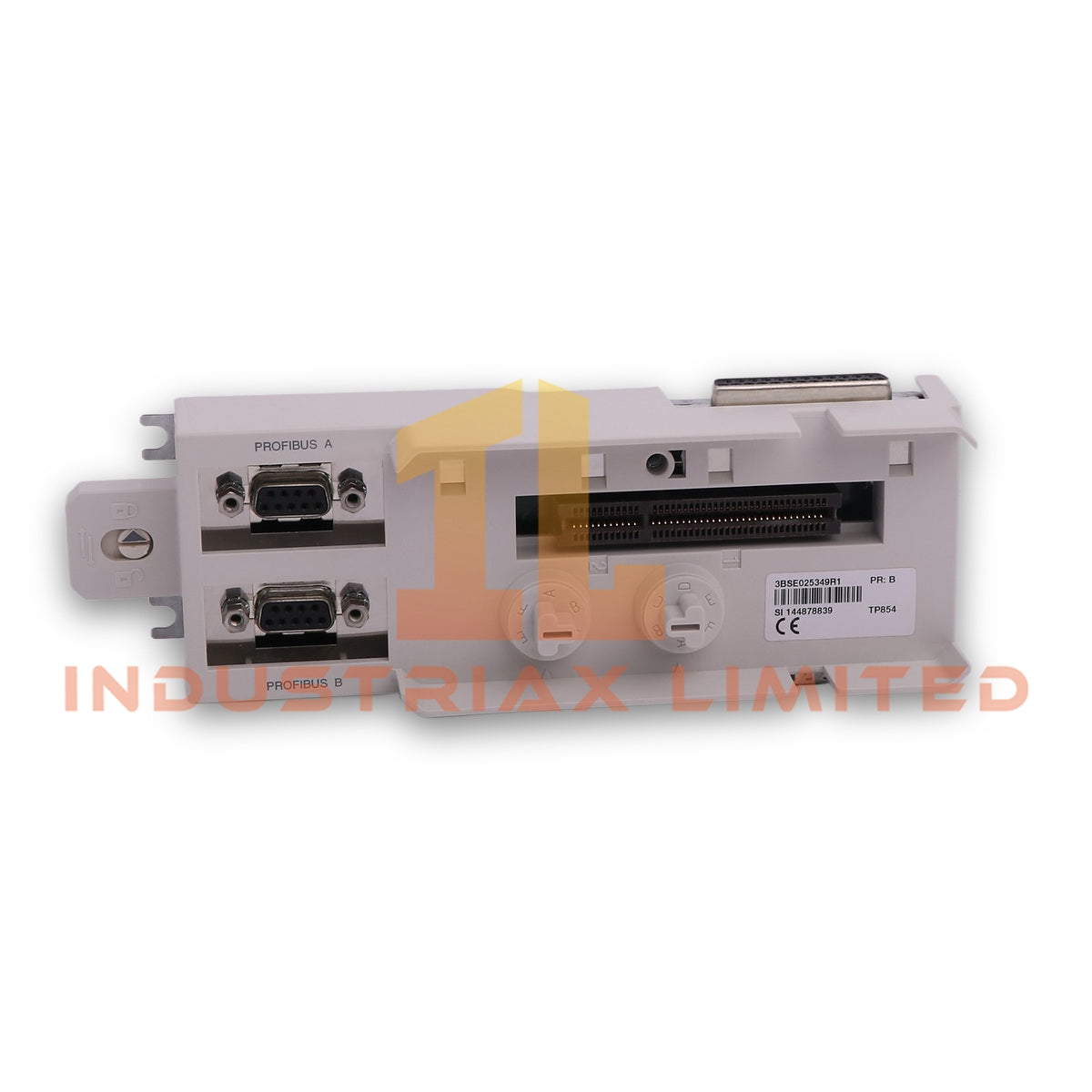

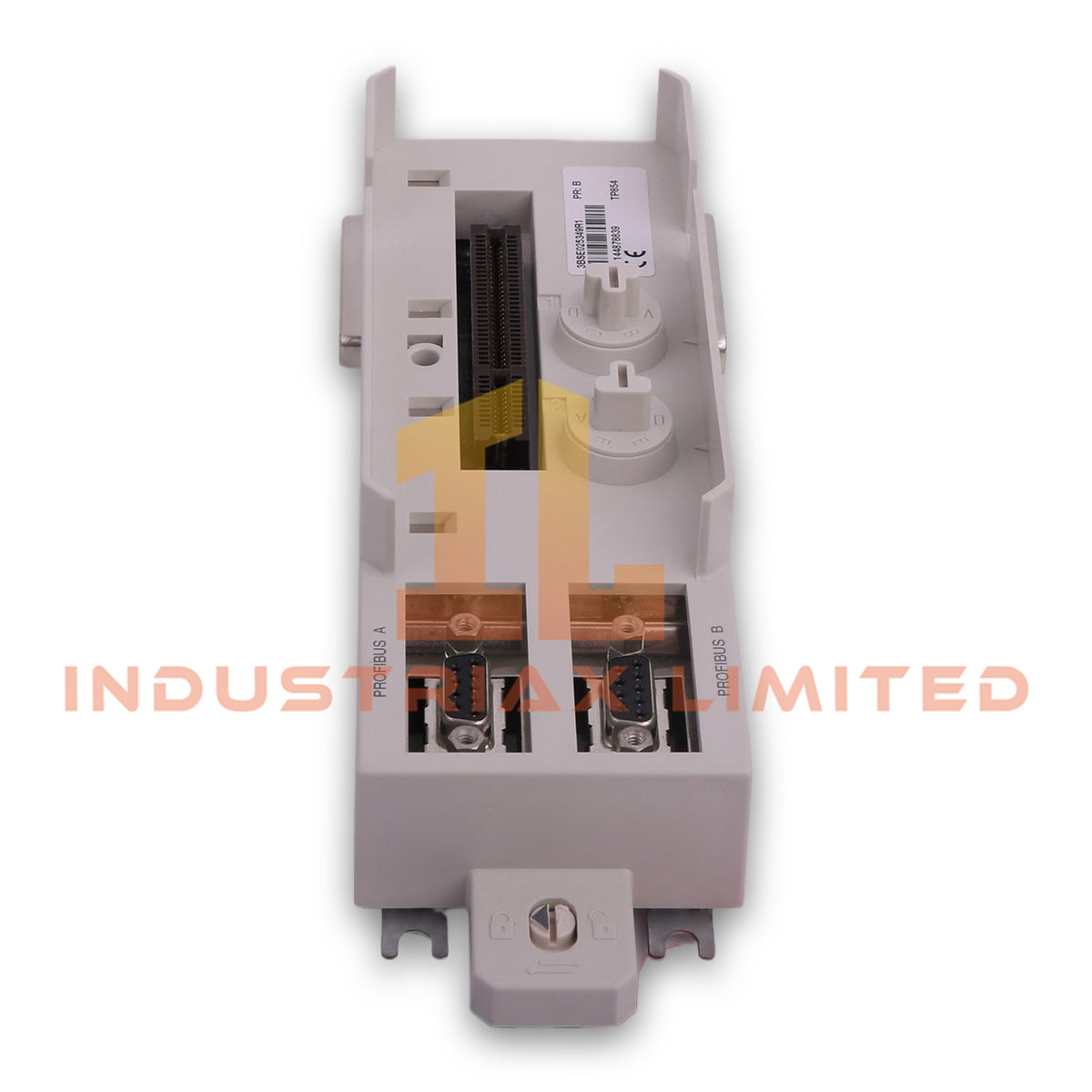

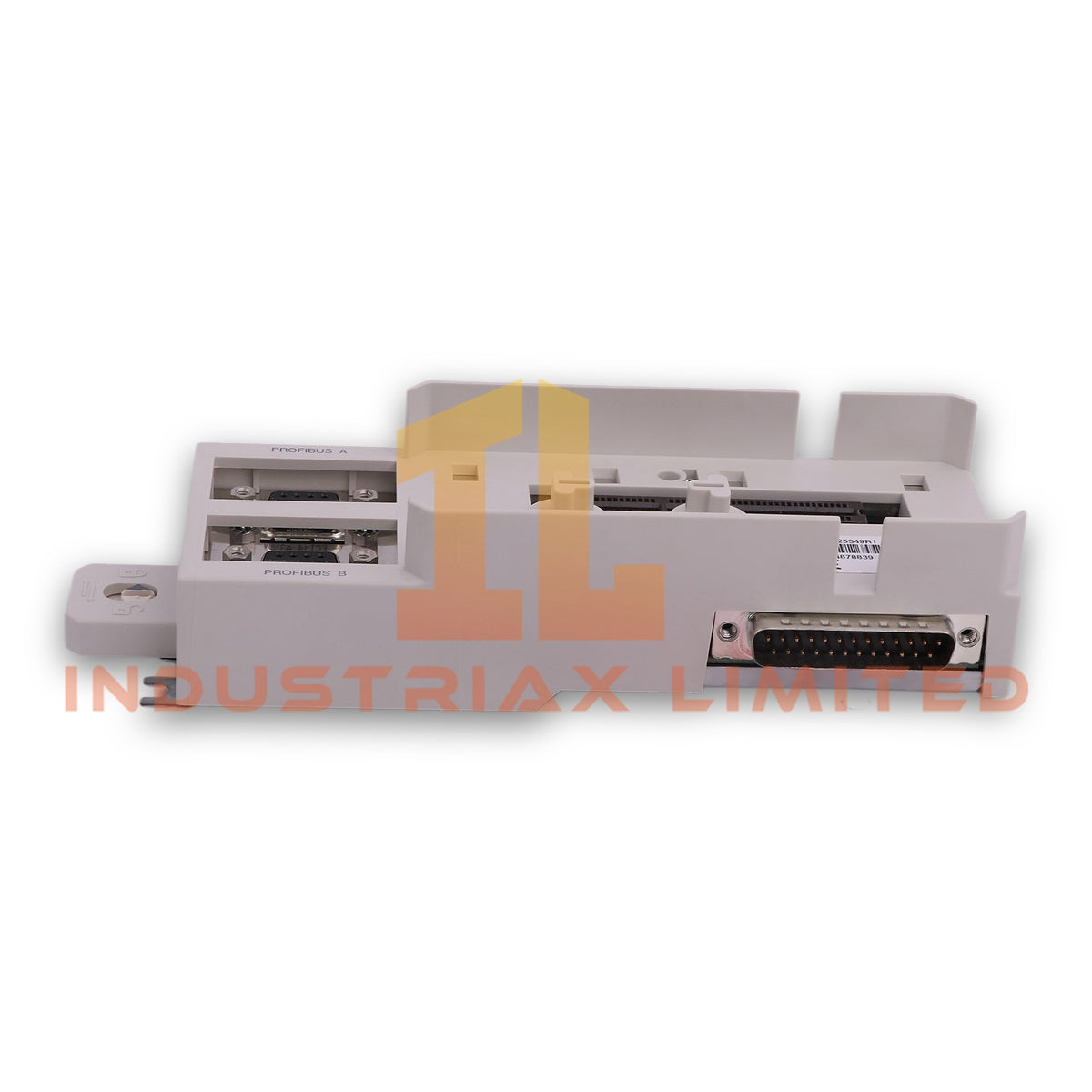

The CI854B mounts on a DIN rail through the TP854 baseplate. It communicates with the AC 800M controller through the CEX Bus and can interface with S800 I/O and other PROFIBUS DP or DP-V1 I/O systems.

The PROFIBUS network requires termination at the two outermost nodes. Connectors with integrated termination can provide this function. The terminating connector must remain connected and powered for correct termination operation.

Frequently Asked Questions (FAQ)

Q: How many PROFIBUS ports does the CI854B provide?
A: The CI854B provides two PROFIBUS ports. The two ports support line redundancy within the PROFIBUS network.

Q: Can two CI854B modules provide master redundancy?
A: Yes. Two CI854B communication interface modules can be configured for PROFIBUS master redundancy. The configuration can also operate with CPU redundancy and CEX Bus redundancy.

Q: What is the typical 24 V consumption of the CI854BK01?
A: The specified typical 24 V consumption is 190 mA.

Field Installation Guidelines

• Mount the CI854BK01 assembly on a suitable DIN rail using the TP854 baseplate.
• Connect the interface to the AC 800M CEX Bus according to the applicable system architecture.
• Connect PROFIBUS cables to the designated 9-pin female DB connectors.
• Maintain PROFIBUS termination at the two outermost network nodes.
• When using connector-integrated termination, keep the terminating connector plugged in and powered.
• Separate PROFIBUS communication wiring from high-current and high-noise power conductors where practical.
• Follow the applicable PROFIBUS cable shielding and grounding requirements for the installation.
• Verify the network topology and redundancy configuration before commissioning.
• Confirm software compatibility with System 800xA 6.0.3.2 or later and Compact Control Builder 6.0.0-2 or later.
• Observe the specified 0 to +55 deg C operating temperature range during installation and operation.
