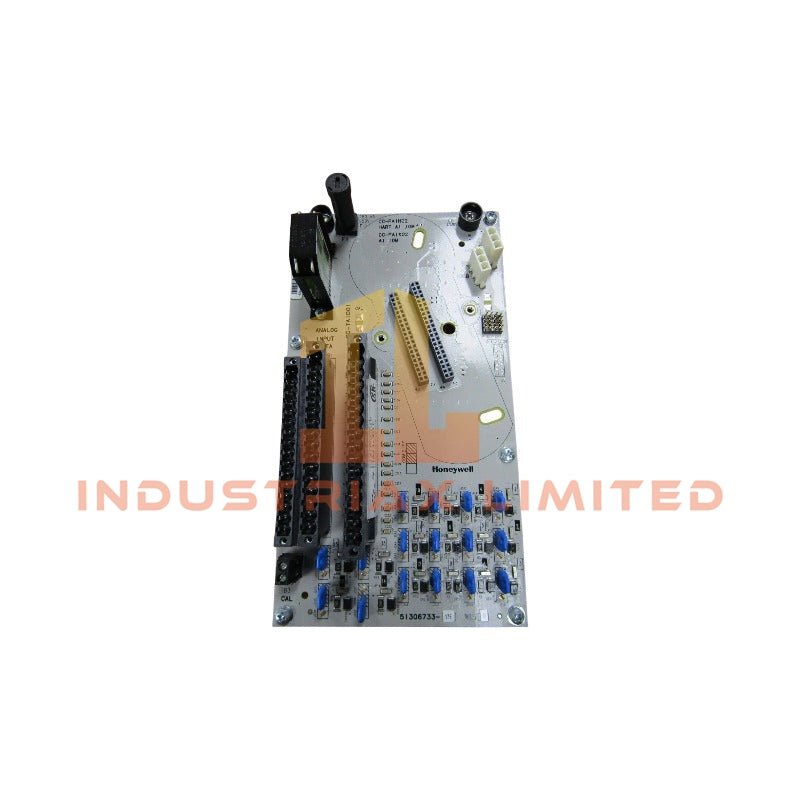

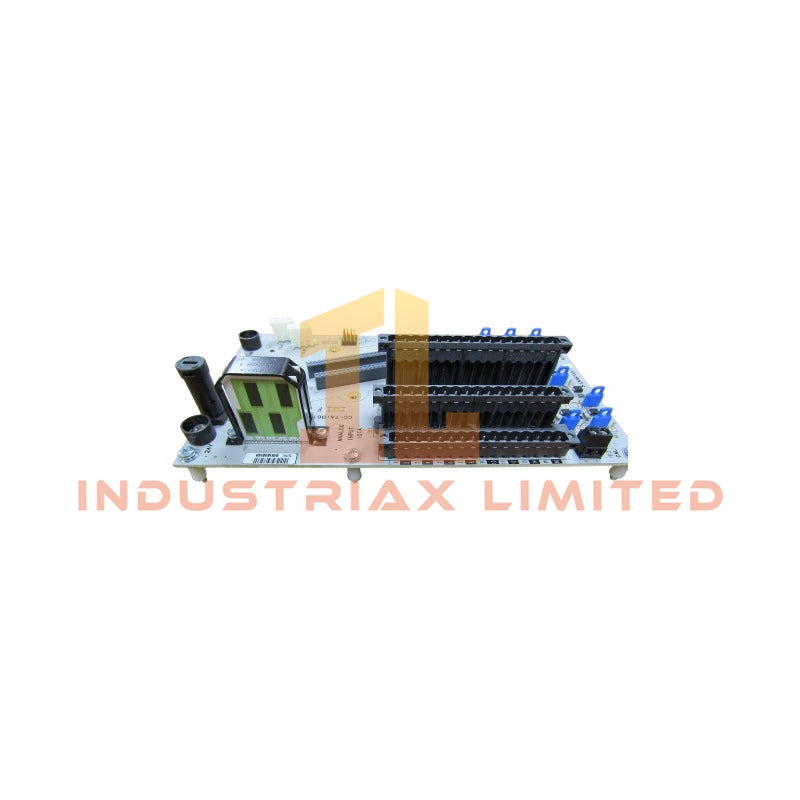

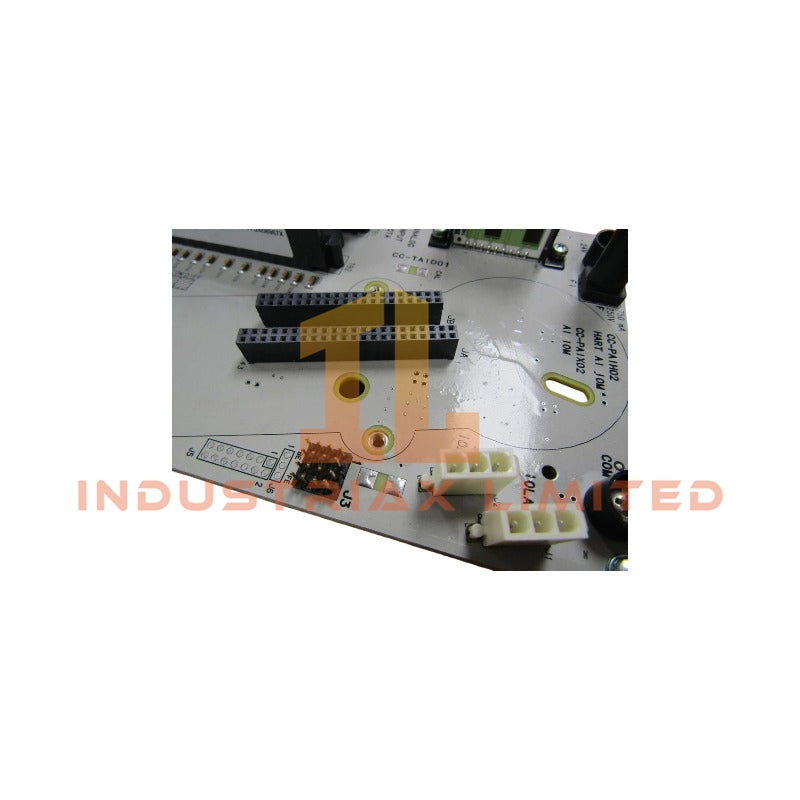

Honeywell CC-TAID01 Analog Input I/O Termination Assembly (IOTA)

Configured for analog field signal termination in Experion PKS C300 I/O architecture, the Honeywell CC-TAID01 (CC-TAID01 Analog Input I/O Termination Assembly) provides direct physical/electrical execution of 4-20 mA and 1-5 VDC signal interfacing between field transmitters and controller-side acquisition modules within the C300 I/O subsystem.

Suffix Breakdown & Model Matrix

CC-TAID01 is defined as a single cataloged hardware identifier within the Honeywell C300 I/O termination assembly family. No officially published suffix segmentation or functional variant encoding is defined for this model.

Hardware Specifications

Parameter	Specification
Model	CC-TAID01
Brand	Honeywell
Origin	USA
Weight	0.3kg
Dimensions	Not specified
Module Type	Analog Input I/O Termination Assembly (IOTA)
Channel Capacity	16 channels
Input Signal Range	4-20 mA / 1-5 VDC
Redundancy Support	Supported
Isolation	Galvanic isolation between field and logic domains
Mounting System	C300 I/O termination base assembly

4-20 mA Loop & Channel Architecture Characteristics

Within Honeywell Experion PKS C300 architecture, CC-TAID01 implements field termination for 4-20 mA HART loop protocol-compatible input circuits, where loop current is routed through termination points prior to conversion at the associated analog input module layer. Channel-to-channel electrical separation is implemented at the termination level to reduce cross-interference between adjacent measurement loops under high-density I/O configurations.

Signal conditioning and acquisition are executed upstream in the paired electronic module, while CC-TAID01 functions strictly as passive termination and routing hardware within the I/O stack assembly structure.

Frequently Asked Questions (FAQ)

Q: Does CC-TAID01 perform analog-to-digital conversion?
A: No. The module is a termination assembly only. Signal conversion is performed by the associated C300 analog input module mounted on the IOTA base.

Q: Is CC-TAID01 hot-swappable in a running system?
A: It supports maintenance-level replacement under system-defined hot-swap procedures, but actual permissibility depends on controller configuration and redundancy state.

Q: Does the termination assembly provide isolation between channels?
A: Channel-level routing is physically separated at termination points, while galvanic isolation is implemented between field-side and logic-side domains through system architecture.

Field Installation Guidelines

CC-TAID01 shall be installed on the designated C300 I/O mounting chassis with verified mechanical seating and locked retention mechanism engagement. Field wiring must follow standard 4-20 mA loop practices with shield termination at a single-point ground to avoid ground loop formation.

Signal conductors should be routed with separation from high-voltage or high-frequency power lines to minimize electromagnetic coupling. Terminal torque values must comply with Honeywell C300 I/O subsystem installation standards. Redundant configurations require matched termination assemblies installed in paired slots as defined by system layout documentation.
