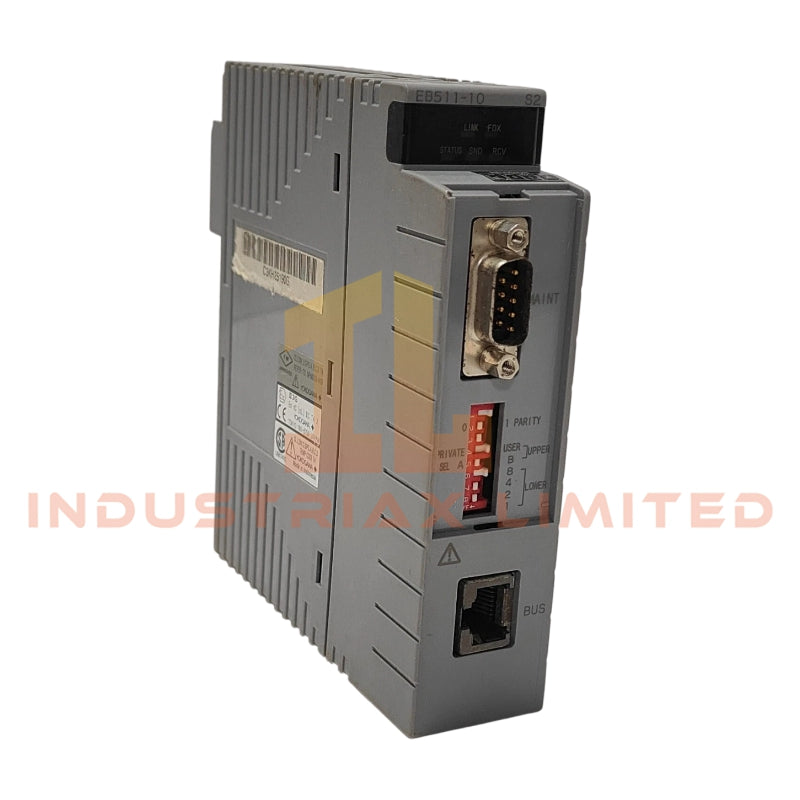

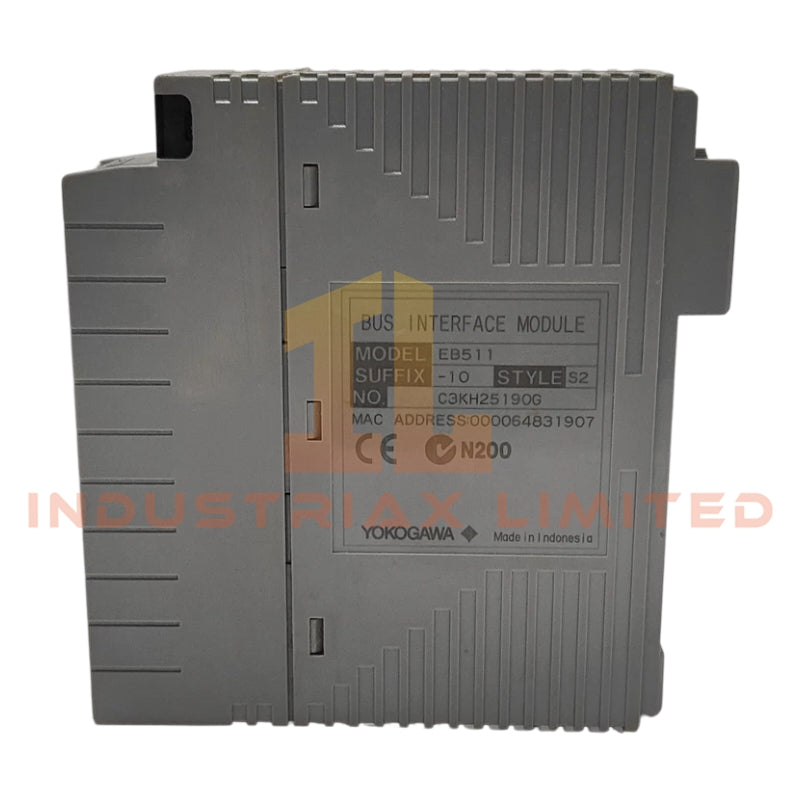

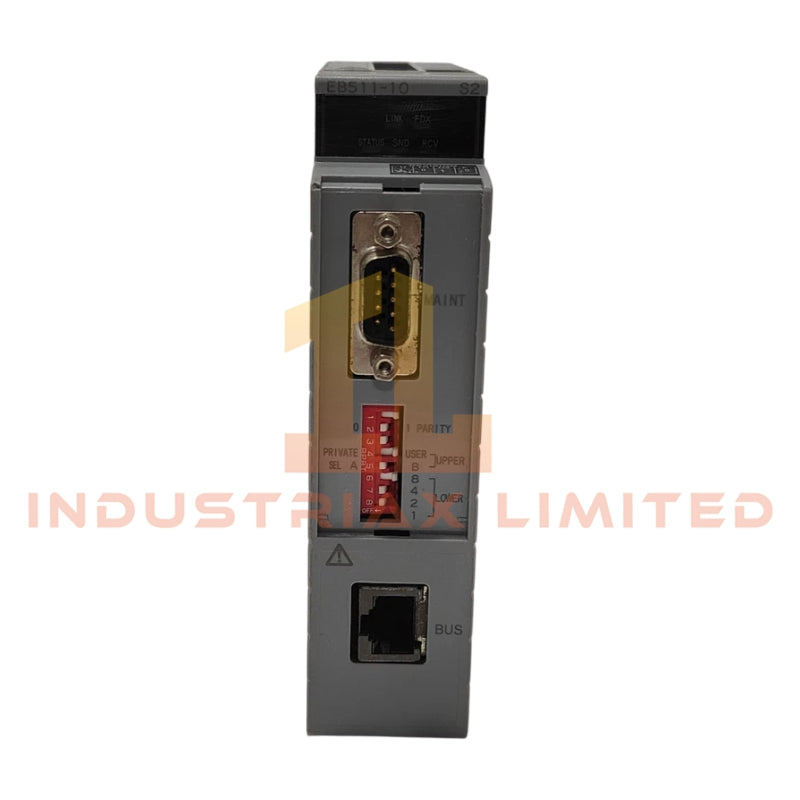

Yokogawa EB511-10 Bus Interface Module

The Yokogawa EB511-10 (also cataloged as the EB511-10 S2) Bus Interface Module serves as the primary EB511-10 Bus Interface Module utilized to execute ER Bus communication across CENTUM CS, CENTUM 3000, and CENTUM VP platforms.

Hardware Specifications

Parameter	Specification
Manufacturer	Yokogawa Electric Corporation
Model Number	EB511-10 (Alternative: EB511-10 S2)
Product Type	Bus Interface Module
Function	ER Bus Interface Communication
System Compatibility	CENTUM CS, CENTUM 3000, CENTUM VP DCS
Physical Layer Interface	IEEE 802.3 10BASE-2 standard
Communication Speed	10 Mbps
Power Supply	System backplane powered
Operating Temperature	0 degC to 50 degC
Storage Temperature	-20 degC to 70 degC
Dimensions	1.0" x 5.0" x 5.0" (2.5 cm x 12.7 cm x 12.7 cm)
Weight	Approx. 0.3 kg (9.0 oz)
Country of Origin	Japan
HS/Tariff Code	8517620050

Process Control Features

• Supports 4-20 mA HART loop protocol integration for channel-level instrumentation feedback.
• Provides channel-to-channel isolation to minimize cross-talk and maintain signal integrity across multiple bus lines.
• Incorporates cold junction compensation (CJc) for accurate temperature-dependent signal conversion and measurement stability.

Frequently Asked Questions

Q: Does the EB511-10 support hot-swapping on the backplane?
A: No, the module requires system power-down before insertion or removal to maintain bus integrity and avoid data errors.

Q: What is the typical backplane current load for this module?
A: Power is drawn directly from the system backplane; typical consumption aligns with standard Yokogawa bus modules at 5 VDC nominal.

Q: Can firmware updates be applied independently?
A: Firmware is generally managed at the DCS controller level; the module does not support standalone firmware flashing.

Field Installation Guidelines

• Mount the module on the designated Yokogawa rack/backplane slot, ensuring full insertion with mechanical retention engaged.
• Verify shielded ER Bus cables are grounded at a single point to reduce electromagnetic interference.
• Maintain minimum bend radius for twisted pair bus wiring and avoid proximity to high-voltage AC lines.
• Ensure ambient temperature is within 0 degC to 50 degC during installation and operation.
