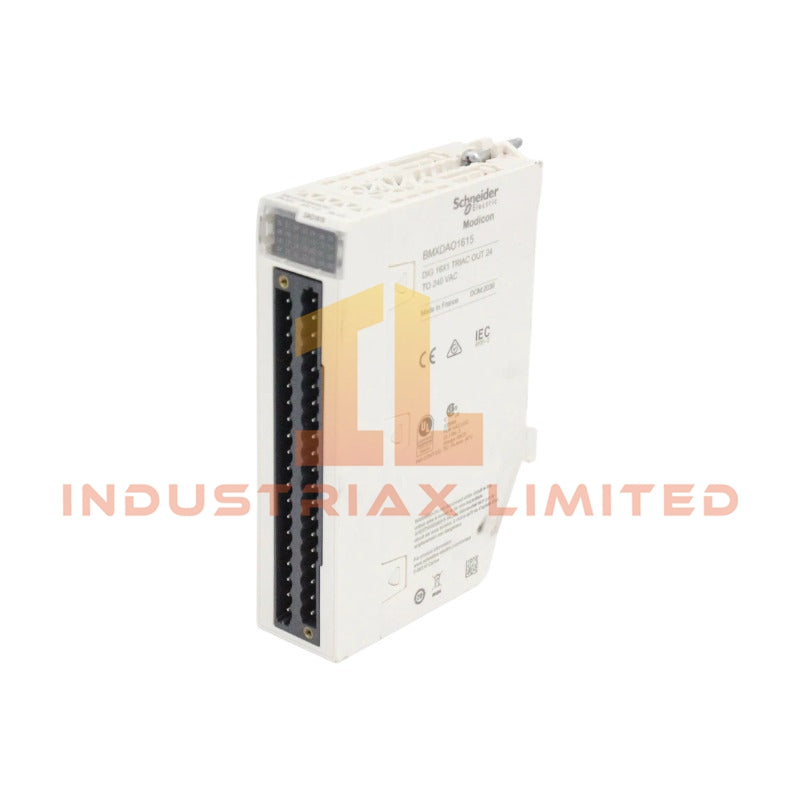

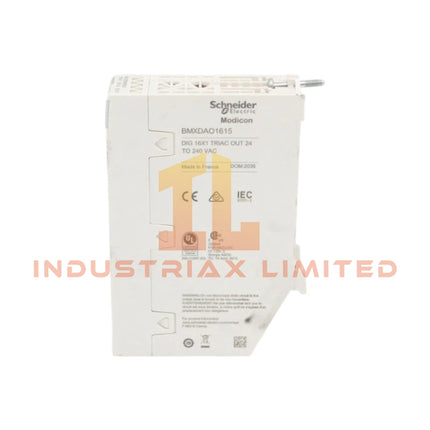

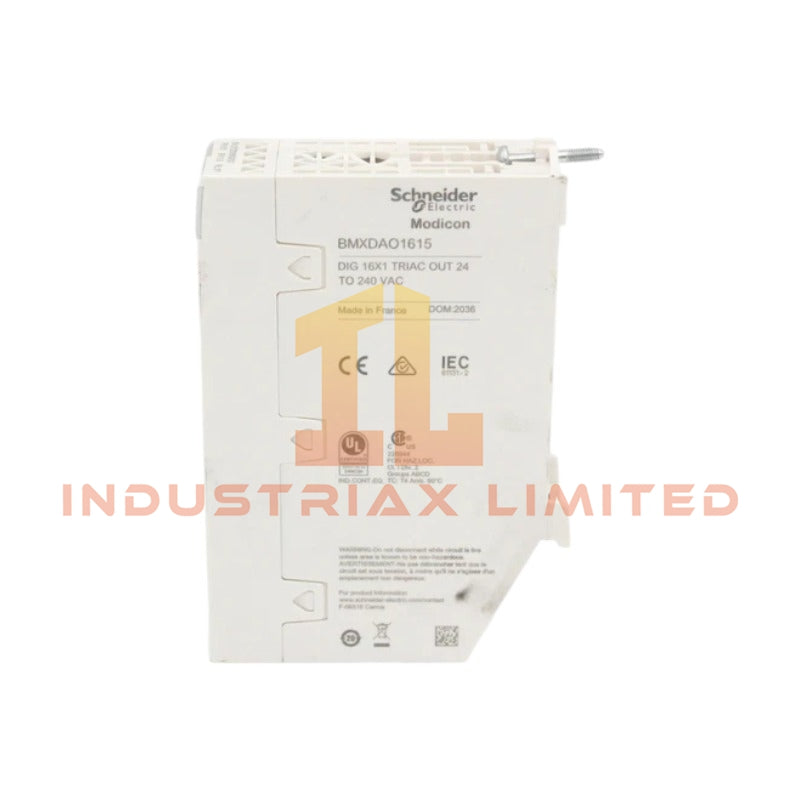

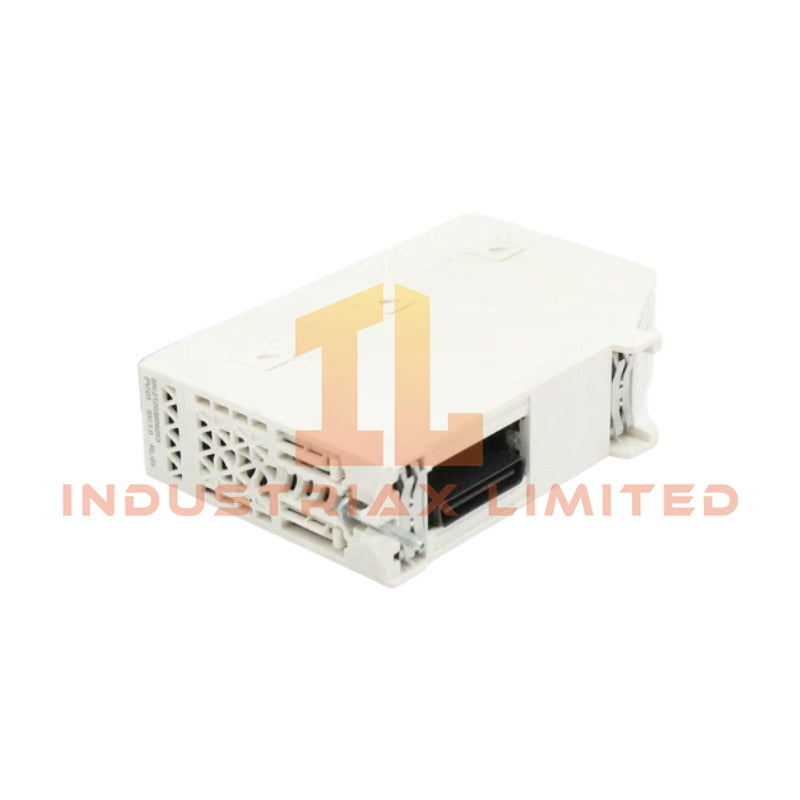

Schneider Electric BMXDAO1615 Modicon X80 Discrete Output Module

Configured for discrete electrical switching in Modicon X80 backplane systems, the Schneider Electric BMXDAO1615 (BMXDAO1615 Discrete Output Module) provides direct physical execution of 16 channel triac-based AC output control across distributed PLC I/O architectures. The module interfaces industrial field loads via isolated solid-state outputs designed for 24 to 240 V AC switching with backplane-controlled command updates and channel-level diagnostics.

Suffix Breakdown & Model Matrix

No formal suffix segmentation is defined for BMXDAO1615 within the provided documentation. The model is treated as a single fixed-order identifier within the Modicon X80 discrete output module family.

Hardware Specifications

Parameter	Specification
Model Brand	Schneider Electric
Origin	France
Weight	0.264 kg
Dimensions	Not specified
Operating Temp	Not specified
Power Consumption	1.45 W
Product Series	Modicon X80
Output Type	Triac
Output Channels	16
Output Voltage	24 to 240 V AC (20 to 264 V AC range)
Output Current	3 A per channel (derated with temperature)
Max Module Current	10 A at 40 degC, 4 A at 60 degC
Response Time	<= 10 ms resistive on/off
Isolation	> 10 MOhm at 500 V DC

Backplane Bus and Deterministic Output Synchronization

The Modicon X80 architecture integrates backplane bus communication with cyclic deterministic update cycles for discrete output modules. BMXDAO1615 channel states are mapped into PLC scan-driven memory exchanges, ensuring synchronized output refresh across distributed racks. Electrical isolation between field triac stages and logic-level backplane domains reduces channel cross-interference during high-density switching. Firmware-level I/O image consistency is maintained through cyclic bus refresh aligned with Schneider Electric PLC execution tasks, supporting stable output state retention during transient scan transitions.

Frequently Asked Questions

Q: Does the BMXDAO1615 support hot-swap replacement under load conditions?
A: The module is designed for rack-based insertion; replacement under energized field load requires adherence to system shutdown or validated hot-swap procedures defined by the Modicon X80 backplane architecture.

Q: What is the effect of channel leakage current on off-state loads?
A: Each triac output exhibits off-state leakage up to the specified milliampere range depending on applied voltage level, which may require external bleed resistors for sensitive loads.

Q: Can outputs be paralleled for higher current capacity?
A: Paralleling outputs is not supported as each channel is individually current-limited and thermally derated within the module design.

Field Installation Guidelines

Ensure rack power is isolated before inserting or removing the module unless the system design explicitly supports controlled hot-swap. Maintain separation between AC field wiring and backplane communication wiring to avoid capacitive coupling. Use fast-blow external fusing per channel common ratings. Keep output wiring within specified voltage class insulation standards up to 240 V AC. Ground DIN rail and cabinet according to PLC system grounding topology to reduce triac switching noise coupling.
