Description

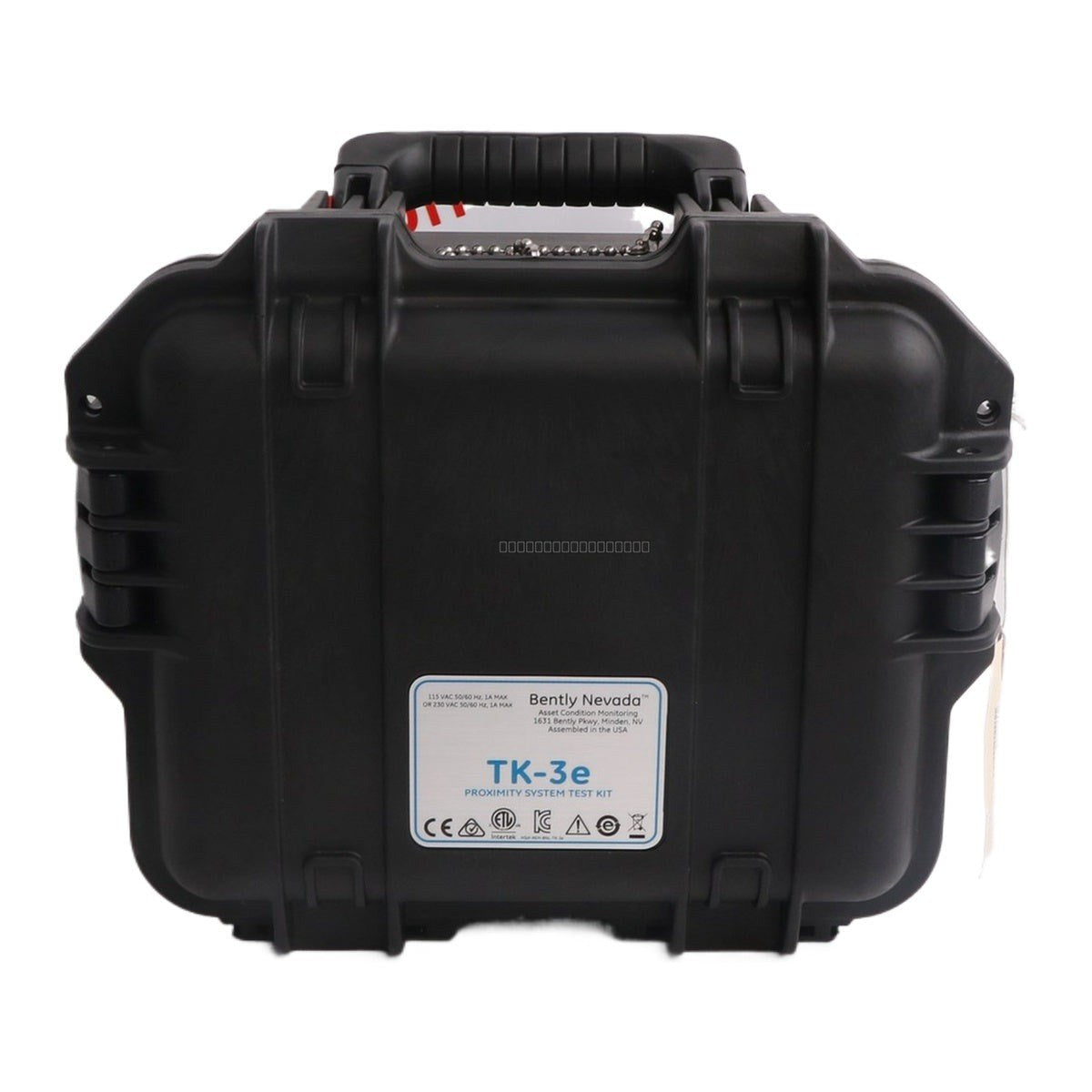

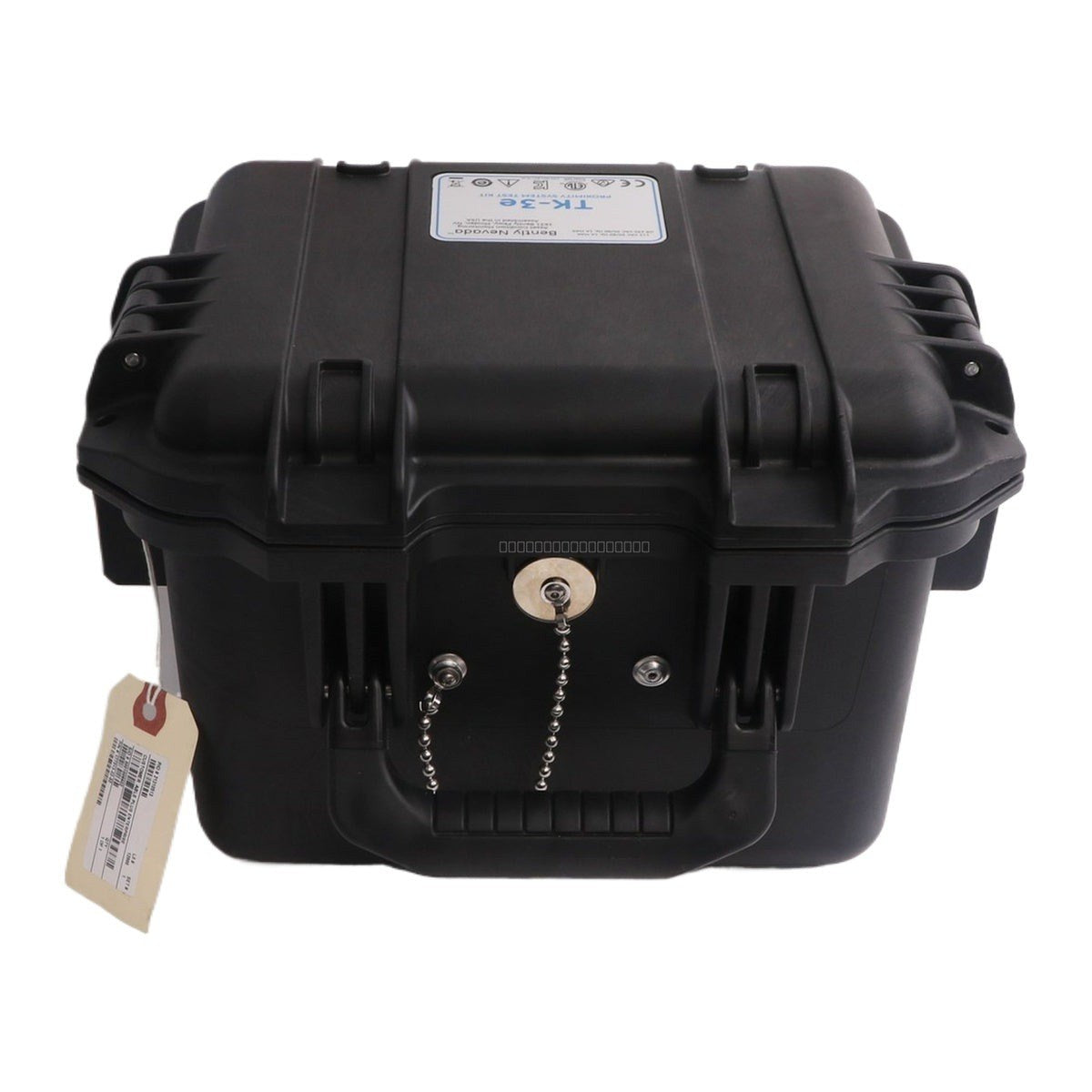

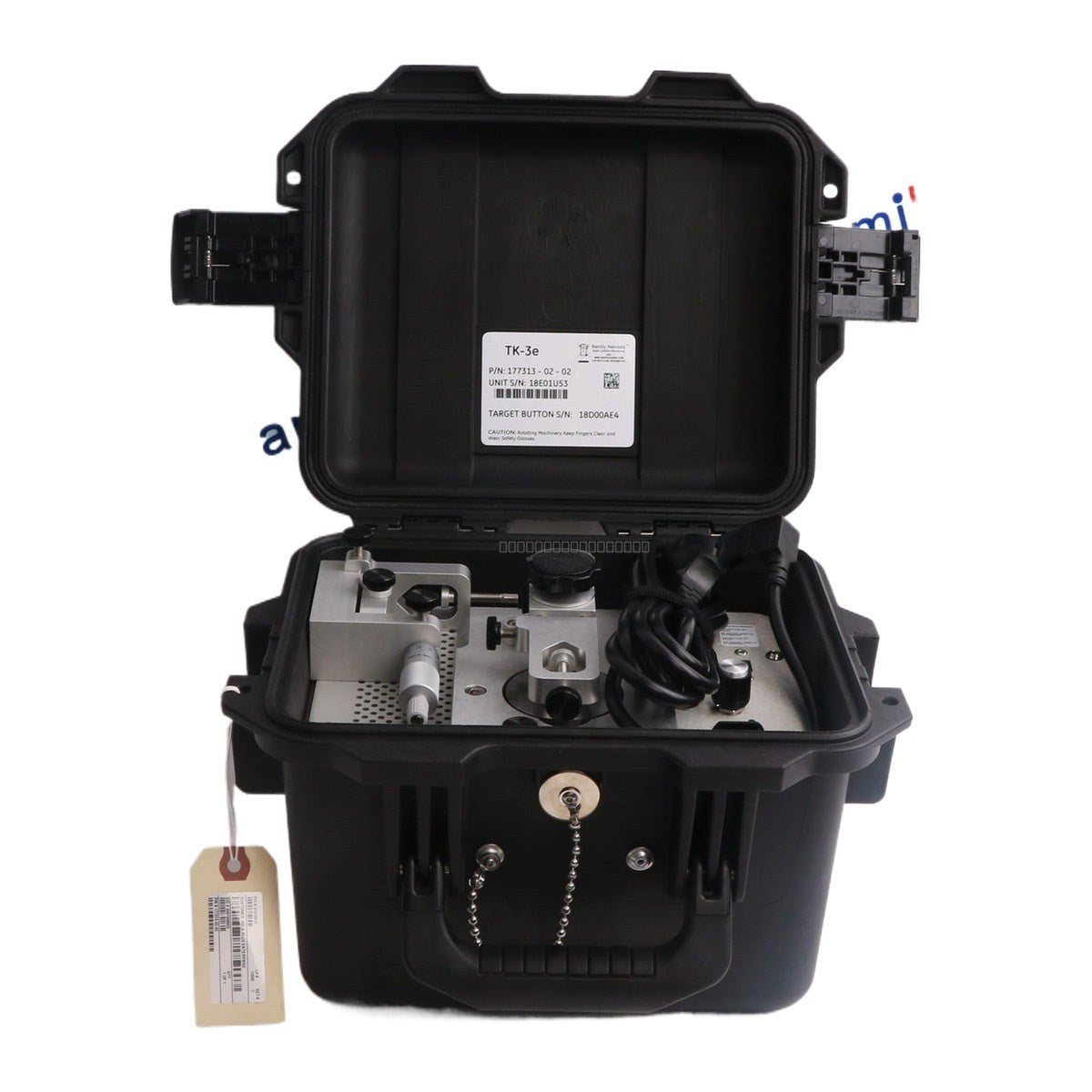

The Bently Nevada TK-3e Proximity System Test Kit (177313-02-02) is a portable, ruggedized calibration and verification tool designed for testing the performance of proximity transducer systems. It allows technicians to verify the operation of proximity probes, extension cables, and Proximitor sensors by simulating mechanical motion under controlled conditions.
Features
- Simulates shaft motion for proximity transducer system verification.
- Supports testing of various probe tip diameters and thread configurations.
- Rugged, portable design suitable for field maintenance and workshop environments.
- Integrated power supply compatible with global AC voltage ranges.
- Precision micrometer adjustment for accurate gap and motion simulation.
Applications
The TK-3e is essential for preventative maintenance and troubleshooting of vibration monitoring systems in rotating machinery. It is commonly used in power generation, oil and gas, and petrochemical facilities to ensure that proximity probes are correctly calibrated and that the signal chain from the probe to the monitoring system is functioning within specified tolerances.
Technical Specifications
| Product Model |
TK-3e 177313-02-02 |
| Manufacturer |
Bently Nevada |
| Input Voltage |
95-250 VAC |
| Frequency |
50/60 Hz |
| Current Rating |
1 Amp |
| Pneumatic Rating |
90 PSI (6.2 BAR) |
Installation Guidelines
- Ensure the test kit is placed on a stable, level surface before operation.
- Verify that the power source matches the 95-250 VAC input requirement.
- When connecting proximity probes, ensure the probe tip is properly secured in the micrometer assembly to prevent damage.
- Always perform a zero-gap calibration before initiating motion tests.
- Keep the test kit clean and free of debris to maintain the accuracy of the micrometer and probe mounting fixtures.
- Store in a dry, temperature-controlled environment when not in use to protect sensitive internal electronics.
FAQ
What is the primary purpose of the TK-3e test kit?
The TK-3e is used to verify the electrical output of Bently Nevada proximity transducer systems by simulating a known mechanical gap and vibration amplitude, ensuring the system accurately reports machinery displacement.
Is this kit compatible with all Bently Nevada probes?
The TK-3e is designed to accommodate standard Bently Nevada proximity probe configurations. Please refer to your specific probe datasheet to ensure the correct mounting adapters are used during the testing process.
