Description

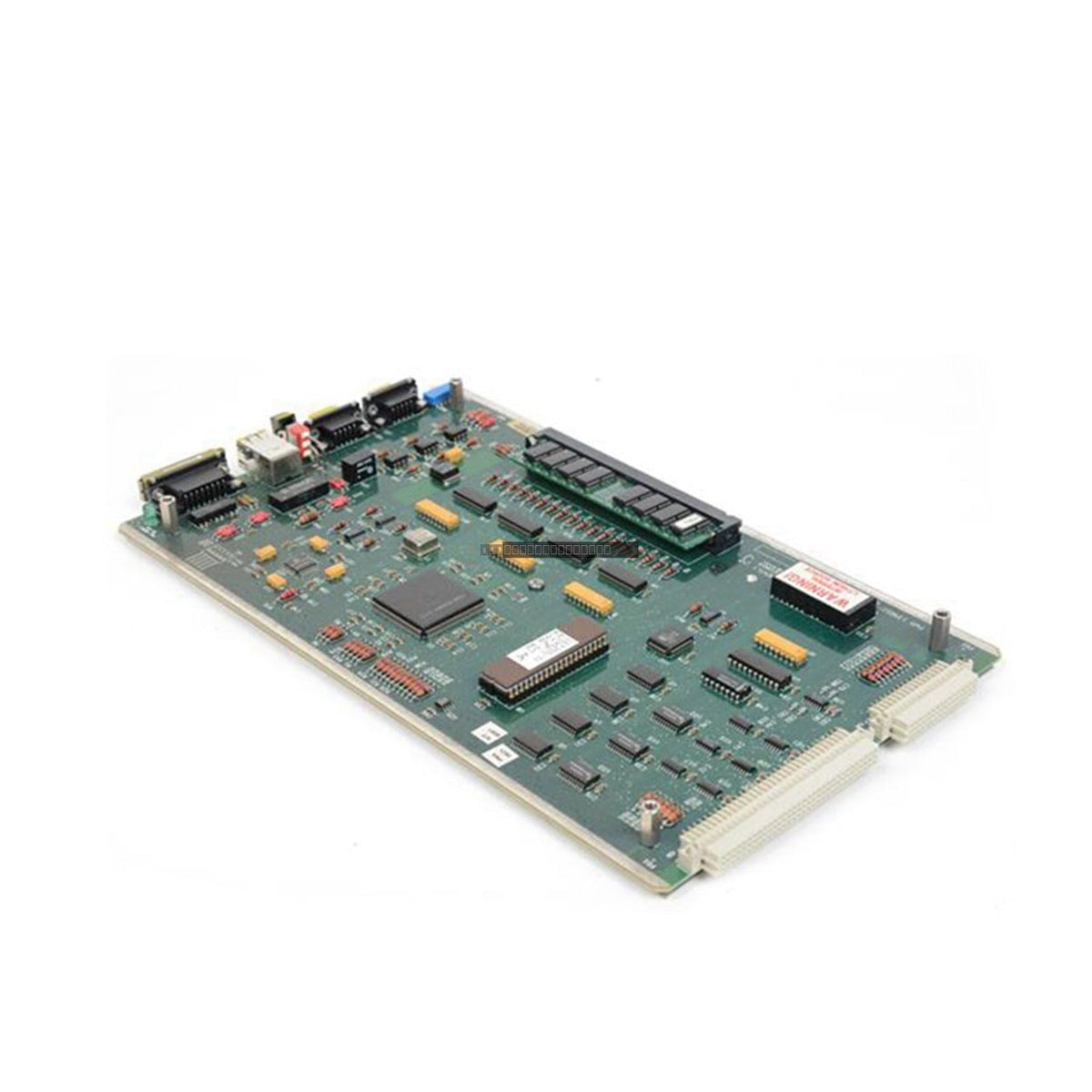

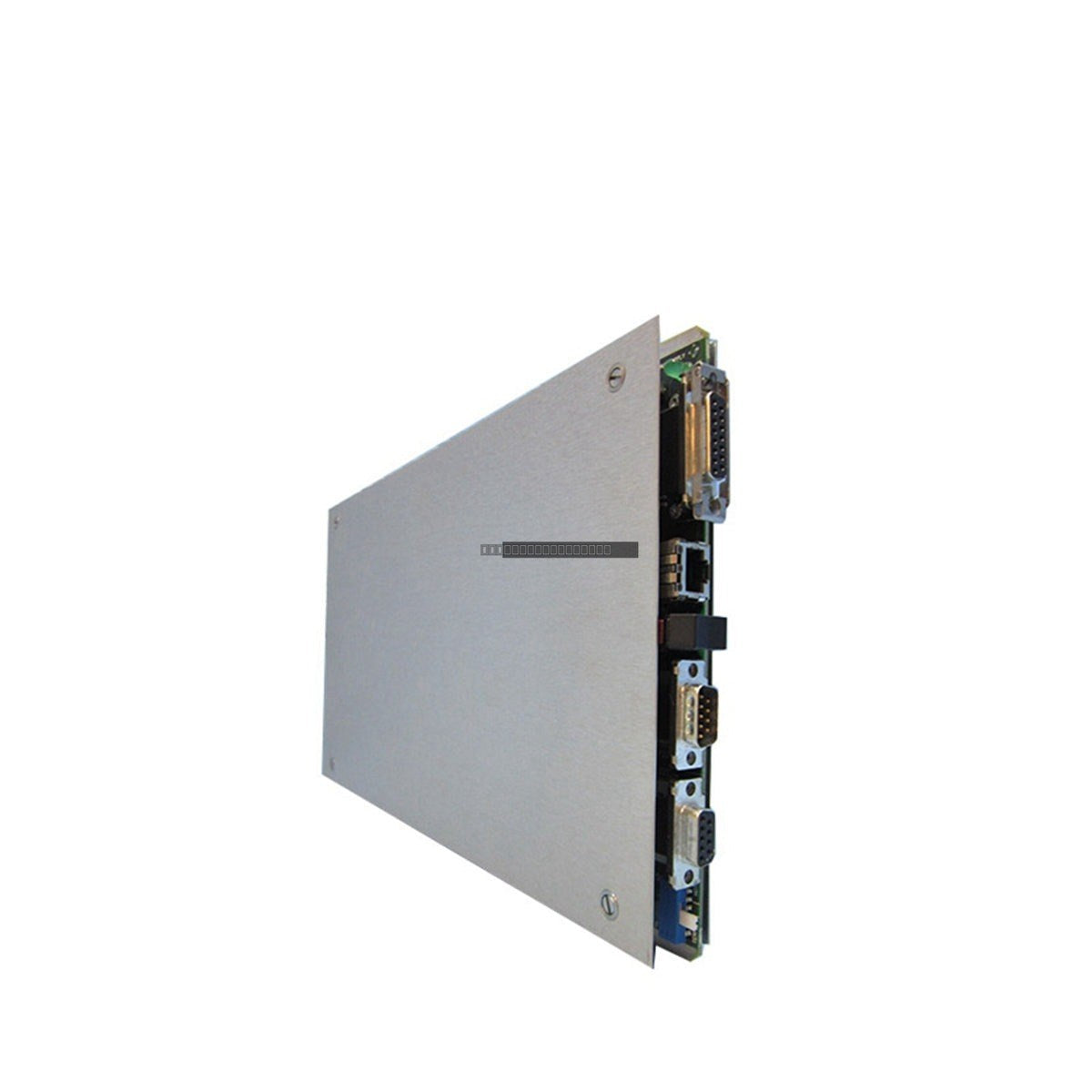

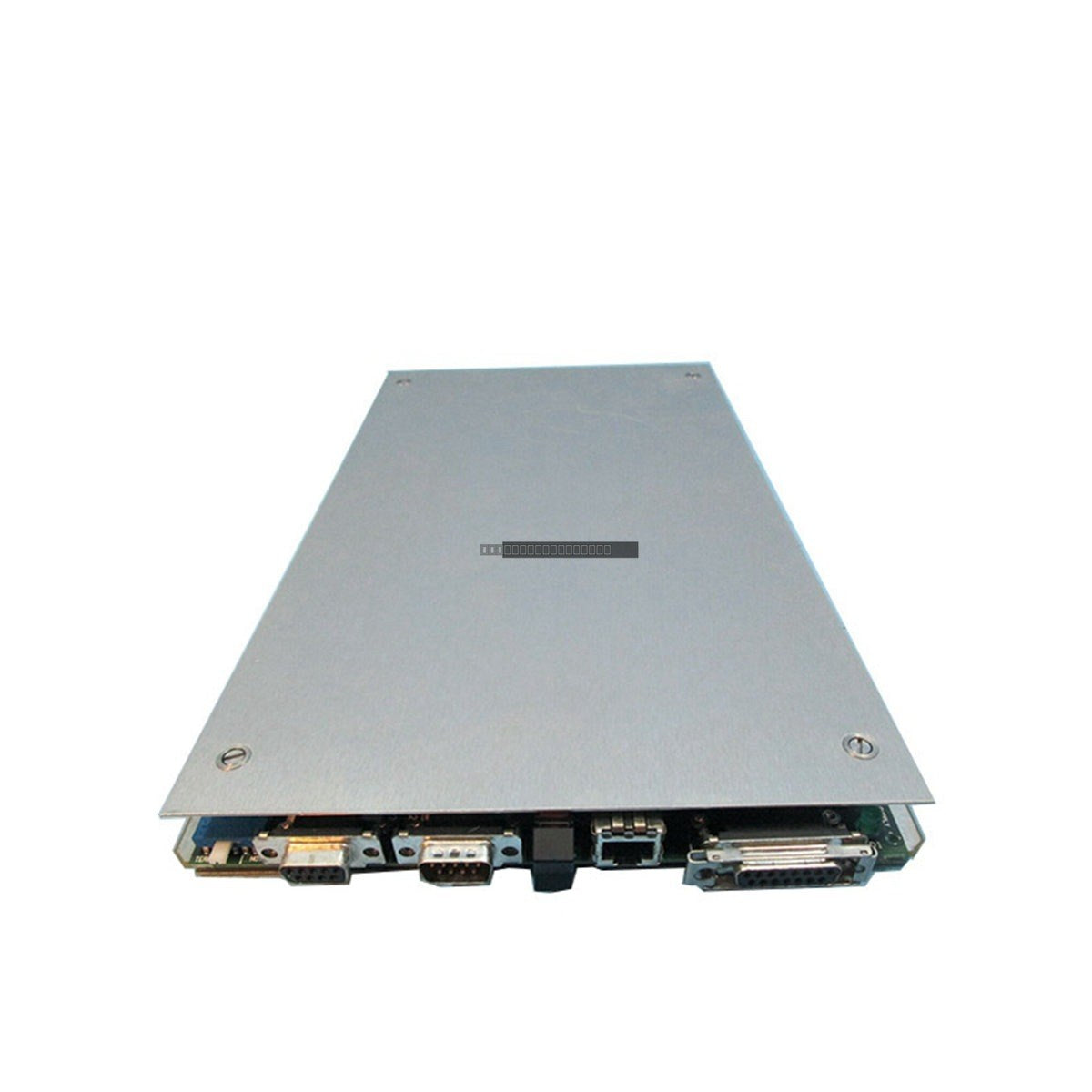

The Bently Nevada 134652-01 Transient Data Interface (TDI) module serves as the primary communications gateway for the 3500 Machinery Protection System. By integrating the functionality of a traditional Rack Interface Module (RIM) with high-speed transient data acquisition, this unit facilitates the seamless transmission of both steady-state and dynamic machinery data to external diagnostic software, such as System 1.

Features

• Advanced Data Acquisition: Captures high-resolution transient waveform data during machine startup, shutdown, and steady-state operation.
• Seamless Integration: Designed for direct compatibility with Bently Nevada 3500 configuration software and asset management platforms.
• High-Speed Communication: Features an integrated Ethernet interface to ensure rapid data transfer and reduced latency in complex monitoring environments.
• Robust Diagnostics: Supports real-time monitoring and diagnostic analysis of rotating machinery, including M-Series monitor compatibility (e.g., 3500/40M, 3500/42M).
• Operational Continuity: Equipped with dual-buffer memory to preserve critical startup/shutdown event data during power fluctuations.

Technical Specifications

Manufacturer	Bently Nevada
Part Number	134652-01
Module Type	Transient Data Interface (TDI)
Communication Interface	Ethernet
System Compatibility	3500 Series Monitoring Systems
Operating Frequency	Up to 30 kHz

Installation Guidelines

• ESD Protection: Always utilize an anti-static wrist strap when handling the module to prevent damage to sensitive internal circuitry.
• Rack Placement: The 134652-01 is designed for installation in designated slots within the 3500 rack; ensure the backplane connector is properly aligned before seating.
• Power Management: Ensure the 3500 rack power supplies are de-energized or the system is in a safe maintenance state before inserting or removing the interface module.
• Grounding: Verify that the rack is properly grounded to the cabinet chassis to minimize electromagnetic interference (EMI) and ensure signal integrity.
• Cable Routing: Use shielded Ethernet cabling for network connections and maintain separation from high-voltage power lines to prevent signal noise.

FAQ

What is the primary function of the 134652-01 TDI module?

The TDI module acts as the communication processor for the 3500 rack, managing data flow between the rack monitors and external diagnostic software, while also providing high-speed capture of transient events for detailed machinery analysis.

Is this module compatible with all 3500 series racks?

The 134652-01 is designed for the standard 3500 system architecture. It is commonly used with M-Series monitors, but users should verify their specific rack configuration and firmware requirements in the Bently Nevada 3500 system manual.
