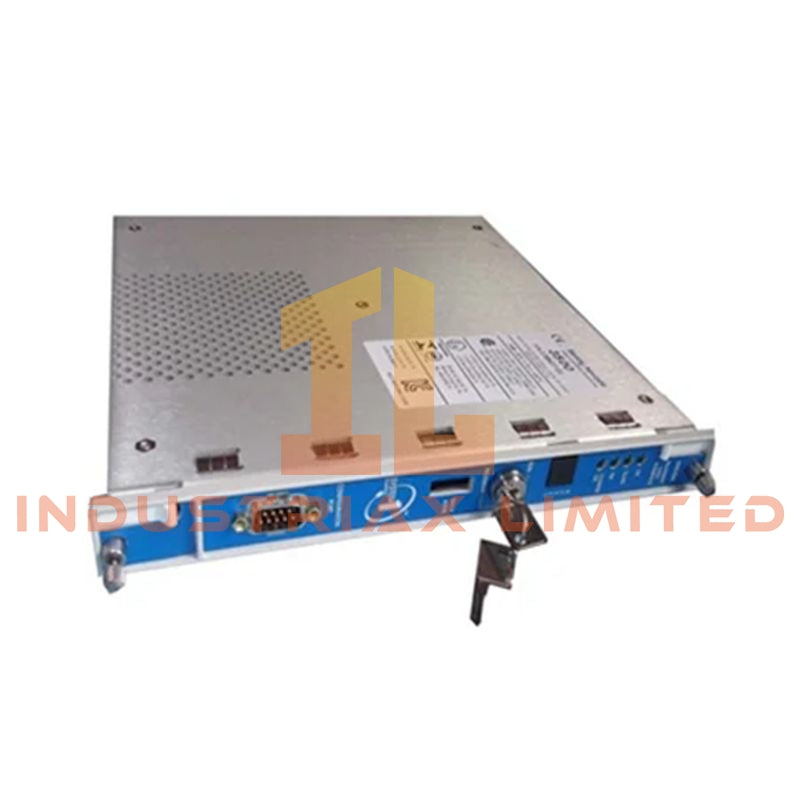

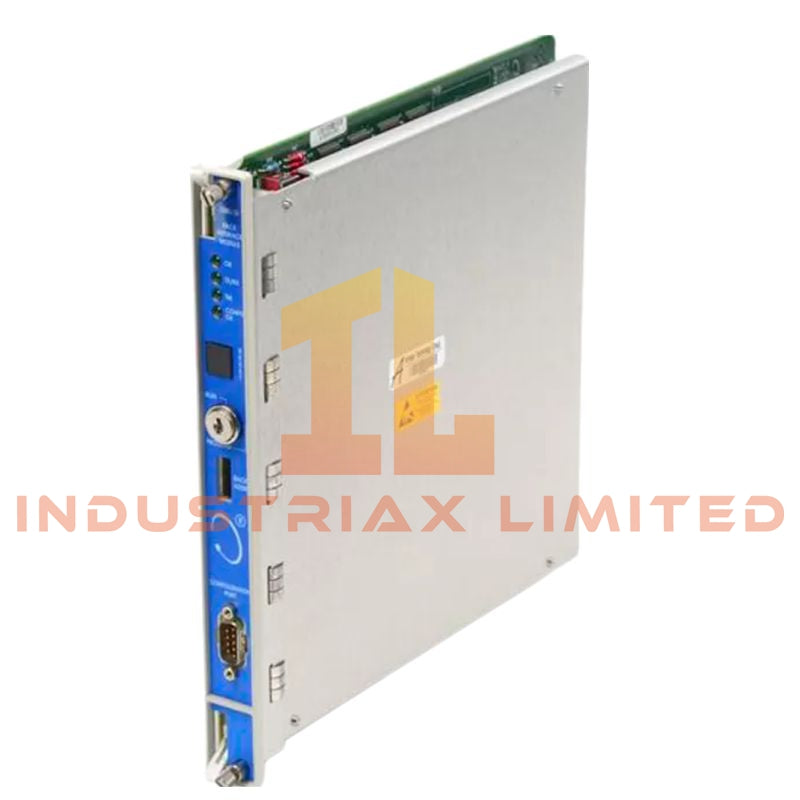

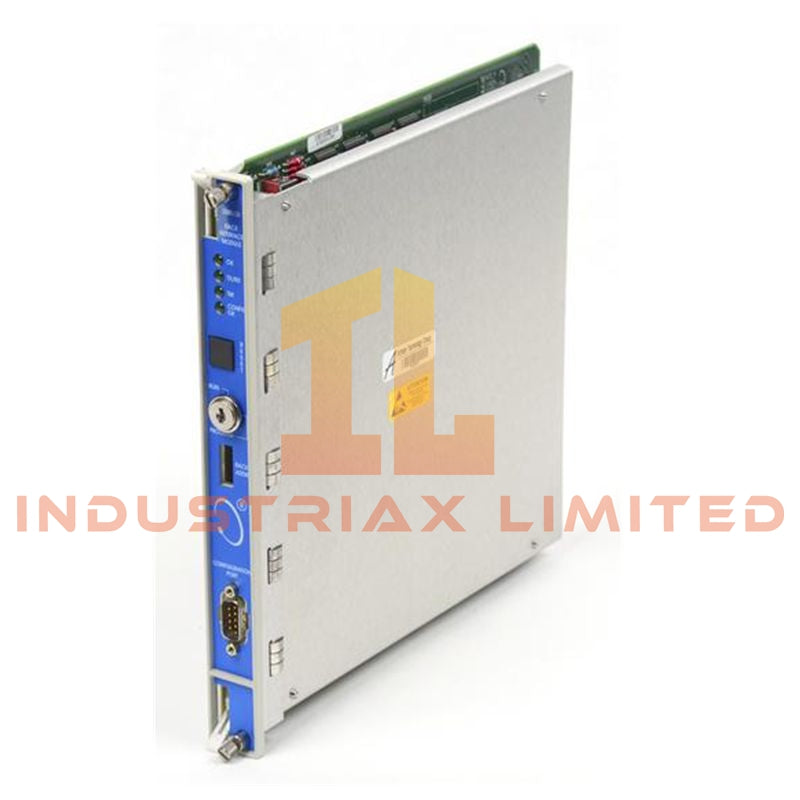

Bently Nevada 3500/22M-01-01-01 Transient Data Interface Module
Configured for rack-level data aggregation and Ethernet communication in 3500 machinery protection systems, the Bently Nevada 3500/22M-01-01-01 (3500/22M Transient Data Interface module) provides direct physical/electrical execution of monitoring data acquisition and software interface routing across 3500 rack platforms. The module resides in Slot 1 adjacent to power supplies and processes rack bus signals from M-series monitors without participating in the protection trip path.
Suffix Breakdown & Model Matrix
-
Base Model: 3500/22M
-
Suffix: 01-01-01
-
Configuration Meaning: Factory-defined I/O, communication, and hardware revision encoding
-
Rack Position Requirement: Slot 1 only (adjacent to power supply modules)
-
Note: No further structured decoding provided in source data; suffix treated as fixed configuration identifier
Hardware Specifications
| Parameter |
Specification |
| Model |
3500/22M-01-01-01 |
| Brand |
Bently Nevada |
| Origin |
USA |
| Weight |
0.91 kg |
| Dimensions |
241.3 mm x 24.4 mm x 241.8 mm |
| Operating Temp |
-30 deg C to +65 deg C |
| Power Consumption |
10.5 W |
| Rack Position |
Slot 1 (adjacent to power supplies) |
| Communication Interfaces |
10Base-T / 100Base-TX Ethernet, 100Base-FX fiber option |
| Front Service Port |
USB-B |
| Inputs |
3500 rack bus data from monitors |
| Outputs |
Relay contacts (OK / Not OK), status LEDs |
| Relay Rating |
5 A @ 24 VDC / 120 VAC |
| Configuration Control |
Address switch (127 addresses), keylock |
| Indicators |
OK, TX/RX, Trip Multiply, CONFIG OK LEDs |
| Storage Temp |
-40 deg C to +85 deg C |
| Certifications |
CE, UL/cUL, ATEX Zone 2, IECEx |
Rack Communication and Transient Data Processing
The module implements rack-wide data aggregation by acquiring steady-state and transient waveform data from M-series monitors such as 3500/40M and 3500/42M. Ethernet forwarding to System 1 and configuration software is handled via deterministic rack-to-network bridging logic. The transient capture path operates independently of the protection loop, ensuring that waveform acquisition, static data polling, and event buffering do not influence trip logic execution.
Frequency Domain and Backplane Data Behavior
Within the 3500 rack architecture, the module functions as a communication processor equivalent to a RIM and TDXnet-class interface. Rack bus synchronization ensures time-aligned acquisition of vibration and process variables across multiple monitor modules. During transient events such as start-up or trip multiply states, buffered waveform segments are serialized and transmitted through Ethernet channels without interrupting backplane protection data flow.
Frequently Asked Questions (FAQ)
Q: Does the module participate in the protection trip decision path?
A: No. The 3500/22M operates outside the critical protection path and does not influence automatic trip logic.
Q: Can the module be replaced without powering down the rack?
A: Yes. The module supports hot-swappable replacement, provided rack configuration integrity is maintained and slot alignment is preserved.
Q: What happens if Ethernet communication is lost?
A: Rack protection functions continue via backplane operation. Only external monitoring and data acquisition to System 1 are affected.
Field Installation Guidelines
-
Install module only in Slot 1 adjacent to rack power supply modules
-
Ensure rack is mechanically secured before insertion or removal operations
-
Verify Ethernet shielding continuity and proper grounding of cable shields
-
Maintain separation between communication cabling and high-energy field wiring
-
Confirm keylock position and address switch configuration before energizing rack
-
Avoid backplane connector contamination or mechanical misalignment during insertion
-
Use fiber optic interface where EMI susceptibility is high in installation environment
