Description

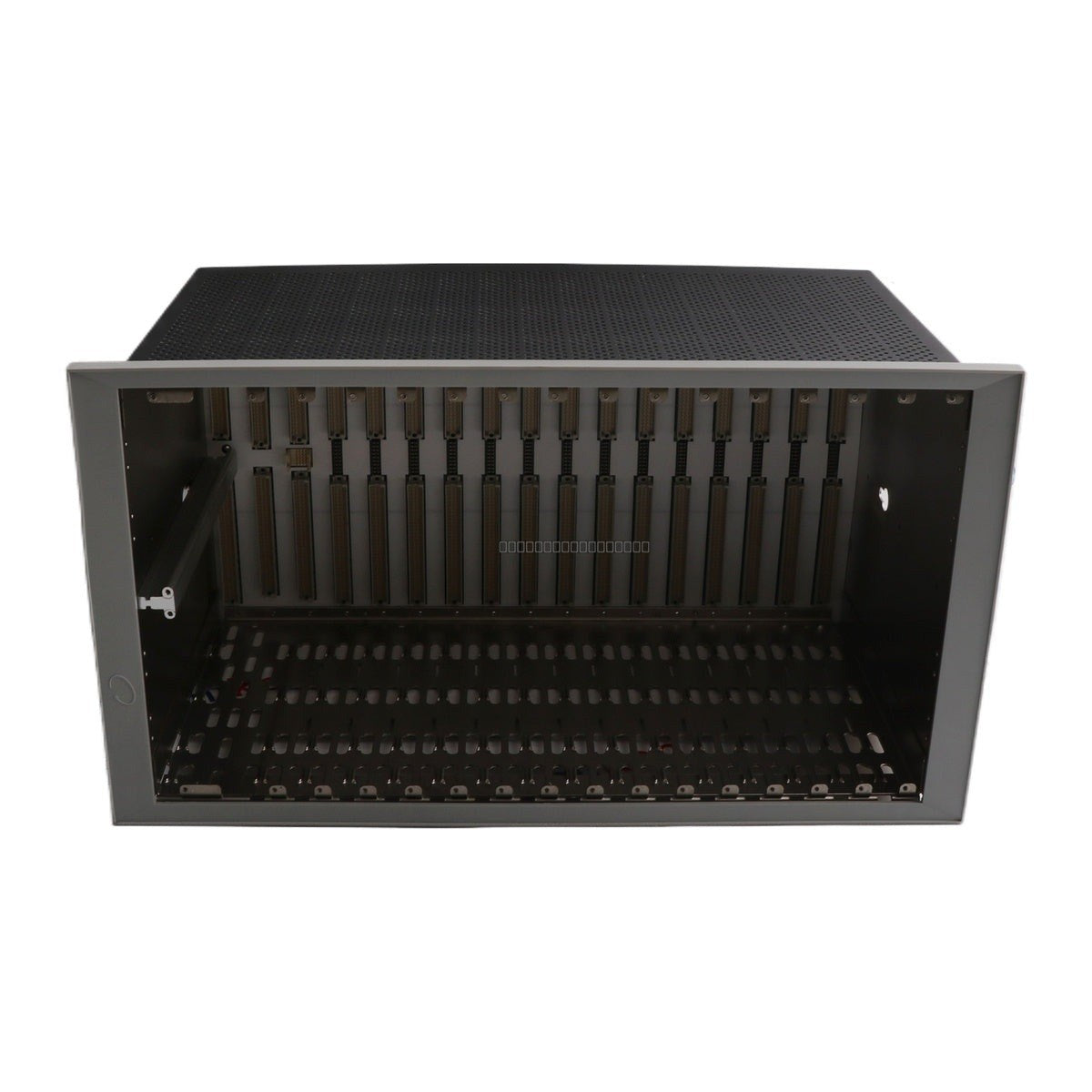

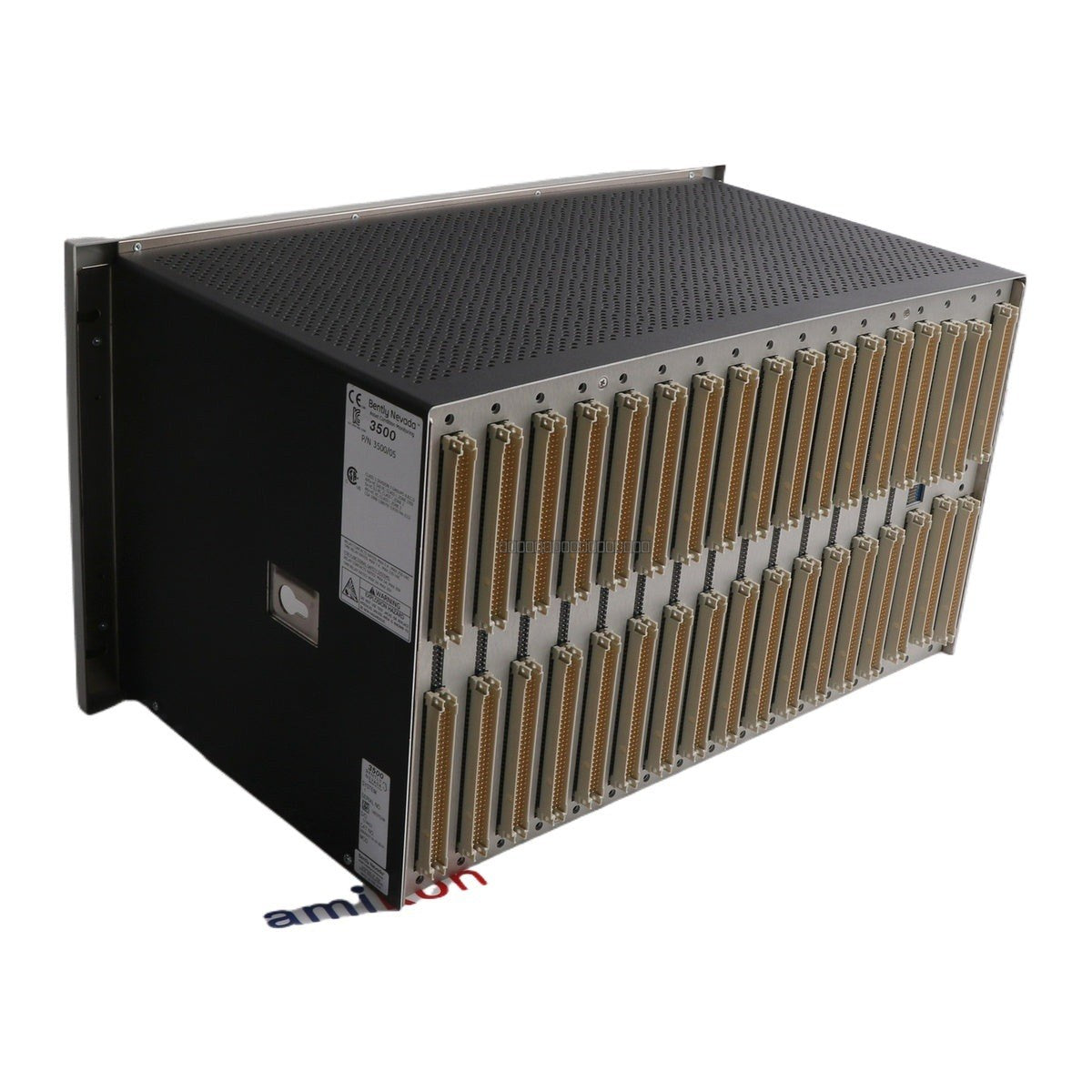

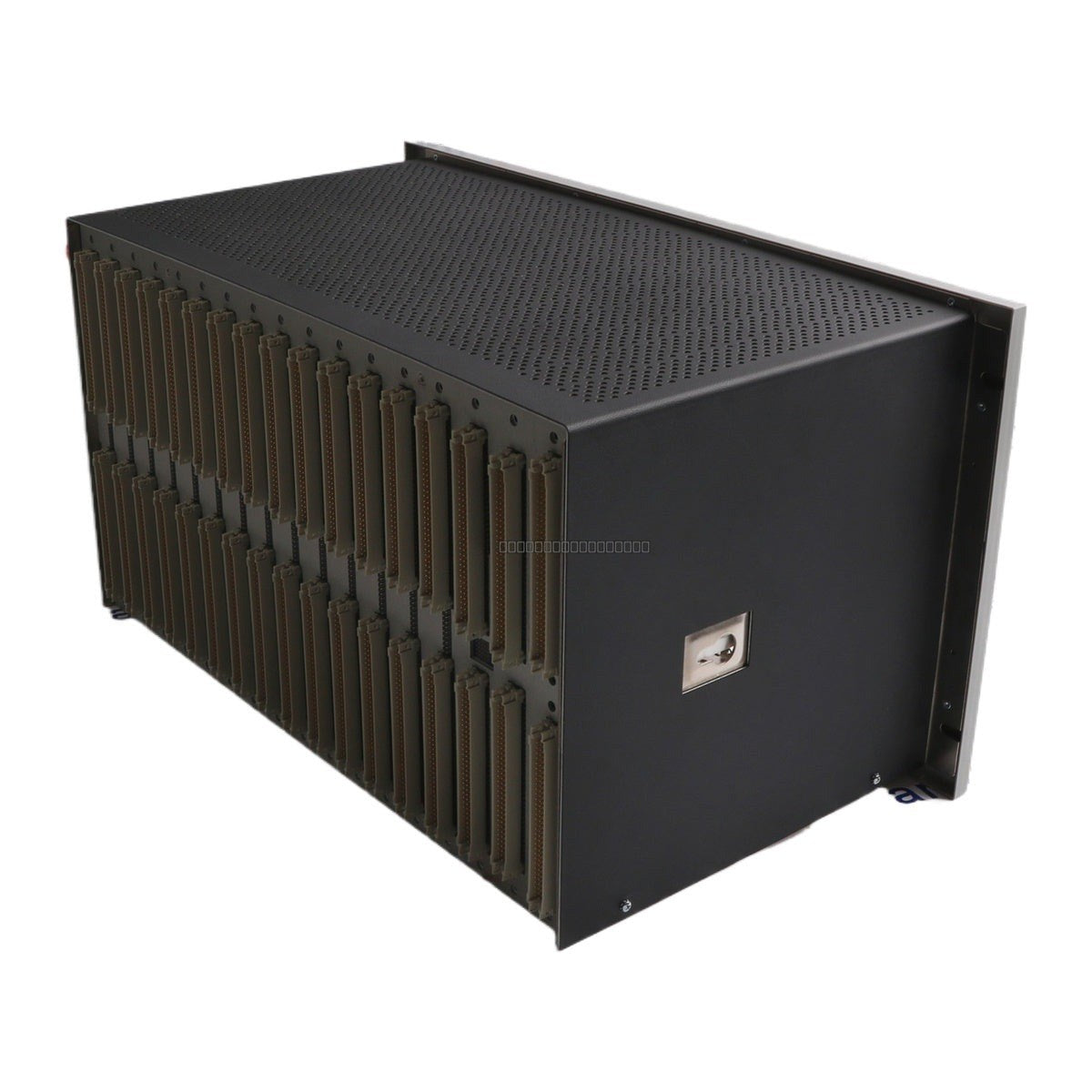

The Bently Nevada 3500/05-01-01-01-00-01 is a 19-inch full-size rack designed to house the 3500 series machinery protection system modules. This rack provides the necessary physical infrastructure, power distribution, and communication backplane for up to 14 modules, ensuring reliable operation in critical industrial monitoring applications.
Features
- 19-inch rack configuration with 14 available module slots.
- Panel mount design for standard industrial cabinet integration.
- Integrated backplane for power and data communication between modules.
- Certified for use in hazardous environments (CSA/NRTL/C Class 1, Division 2).
- CE compliant for European market standards.
Technical Specifications
| Model Number |
3500/05-01-01-01-00-01 |
| Rack Size |
19-inch |
| Module Capacity |
14 slots |
| Mounting Type |
Panel Mount |
| Agency Approvals |
CSA/NRTL/C (Class 1, Division 2) |
| Compliance |
CE |
| Tariff Code |
8537101190 |
Installation Guidelines
- Ensure the rack is mounted in a clean, dry environment with adequate ventilation to maintain operating temperature limits.
- Verify that the panel mounting surface is rigid and capable of supporting the weight of the fully populated rack.
- Use appropriate grounding techniques to connect the rack chassis to the plant earth system to minimize EMI/RFI interference.
- Always power down the system before inserting or removing any modules from the rack slots to prevent electrical damage.
- Ensure all cable routing for signal and power lines adheres to standard industrial separation practices to prevent cross-talk.
FAQ
What is the primary function of the 3500/05 rack?
The 3500/05 rack serves as the main chassis for the Bently Nevada 3500 monitoring system. It provides the mechanical housing, power supply distribution, and the internal communication bus required for all installed I/O and monitoring modules to function as a cohesive system.
Can this rack be used in hazardous locations?
Yes, this specific model (3500/05-01-01-01-00-01) includes the CSA/NRTL/C approval for Class 1, Division 2 hazardous locations, provided it is installed in accordance with the relevant hazardous area documentation and local electrical codes.
