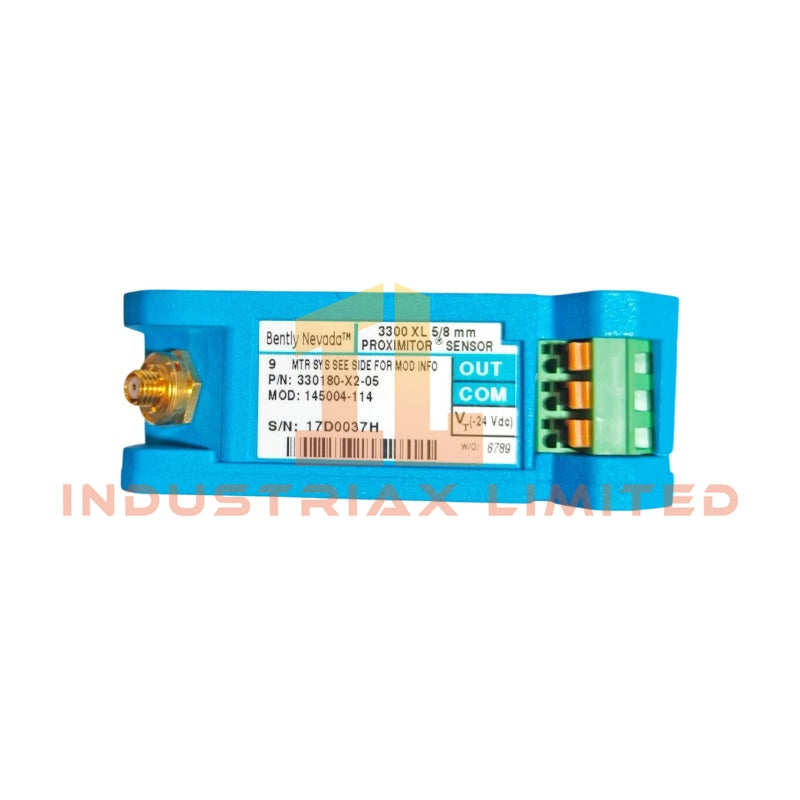

Bently Nevada 330180-X2-05 Proximitor Sensor

Configured for eddy-current based proximity signal conversion in the 3300 XL Proximitor system, the Bently Nevada 330180-X2-05 (330180-X2-05 Proximitor Sensor) provides direct physical-to-electrical translation of probe gap variation into buffered voltage output for rotational machinery monitoring channels.

Suffix Breakdown & Model Matrix

• 330180: Proximitor Sensor base series designation
• X2: System configuration variant identifier (mechanical/electrical option set)
• 05: Agency approval package (CSA, ATEX, IECEx certified configuration)

Hardware Specifications

Parameter	Specification
ModelBrand	Bently Nevada 330180-X2-05
Origin	USA
Weight	0.25 kg
Dimensions	7.8 x 3 x 6.2 cm (shipping size)
OperatingTemp	Not specified in provided data
PowerConsumption	Not specified (system powered via monitoring rack supply)
ProductType	Proximitor Sensor
System Compatibility	3300 XL Proximity Measurement System
Output Function	Buffered gap voltage signal conditioning

Eddy-Current Proximitor Signal Conditioning Behavior

The 330180-X2-05 implements eddy-current probe signal linearization through controlled demodulation of high-frequency carrier excitation. The conversion stage maps probe-to-target gap variation into proportional DC voltage used by vibration and position channels.

Cross-talk suppression is implemented through internal shielding layout and differential signal routing, reducing coupling between adjacent probe channels in multi-slot rack configurations. The device maintains stable scaling alignment with calibrated gap voltage validation targets in the negative DC reference region typically associated with proximity transducer systems.

Frequently Asked Questions

Q: Can the 330180-X2-05 be hot-swapped during system operation?
A: Hot-swap is not supported at the sensor signal conditioning level. Removal requires channel isolation and system rack power safety procedures.

Q: Does the module require external calibration after replacement?
A: Calibration verification is required at system level using matched proximity probe and extension cable sets. The sensor itself does not store calibration constants.

Q: Is signal output affected by adjacent channel installation density?
A: Channel-to-channel interference is mitigated by internal shielding design, but installation spacing and cable routing still influence noise performance.

Field Installation Guidelines

Mount the sensor in a controlled rack environment with stable grounding to the system chassis reference plane. Ensure proximity probe extension cables are routed with separation from high-energy conductors to minimize induced noise coupling.

Shield termination must be bonded at a single-point ground reference to prevent ground loop formation. Avoid sharp bends in probe wiring that may alter impedance characteristics. Maintain connector torque within standard industrial fastener engagement practices for signal integrity retention.
