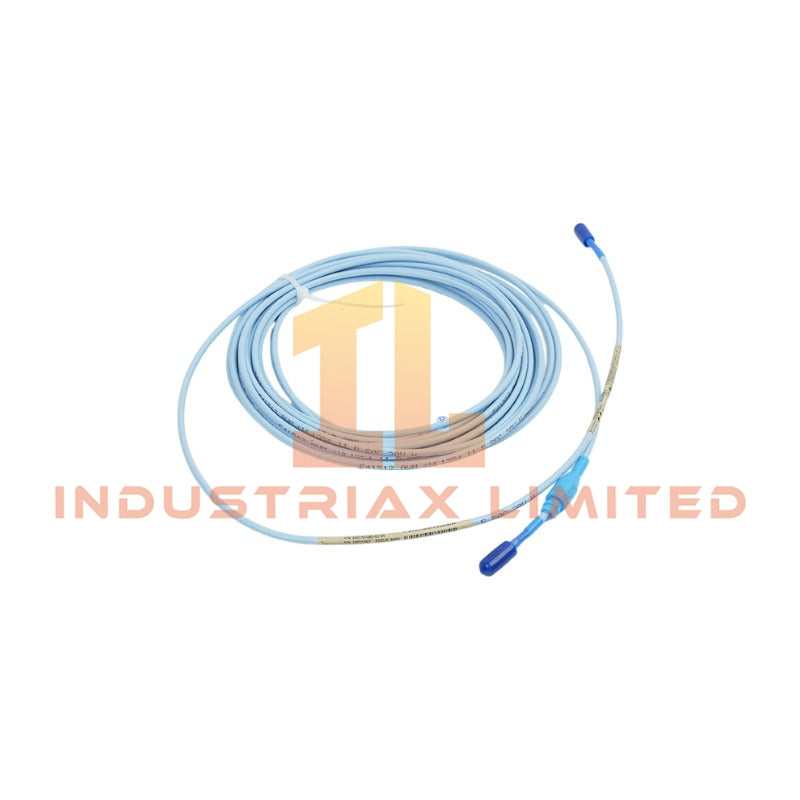

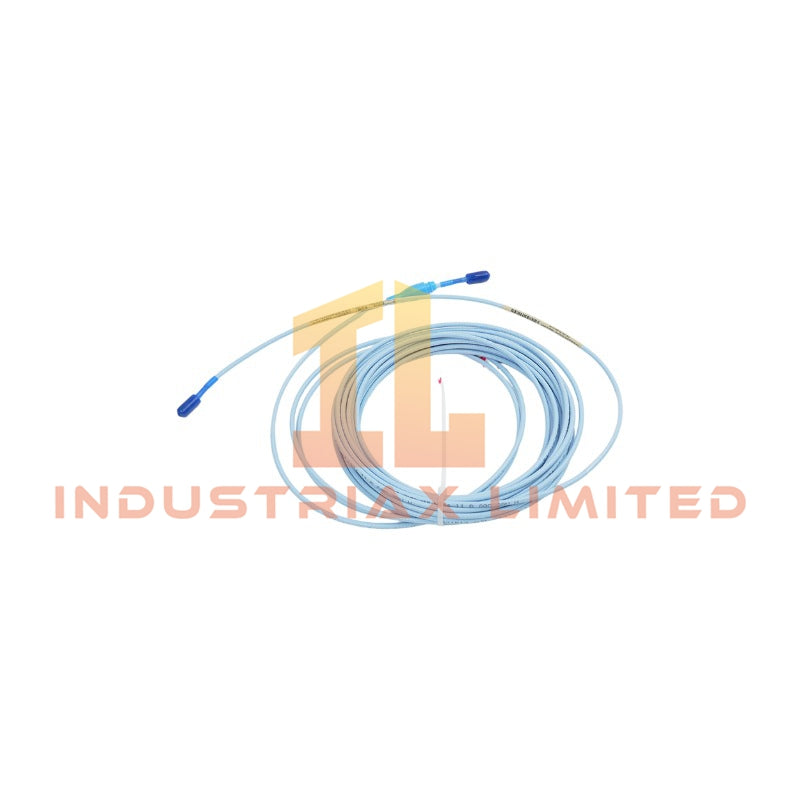

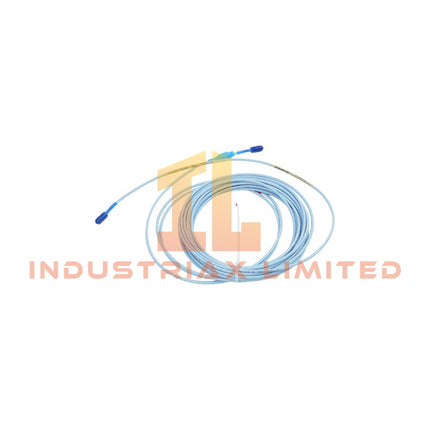

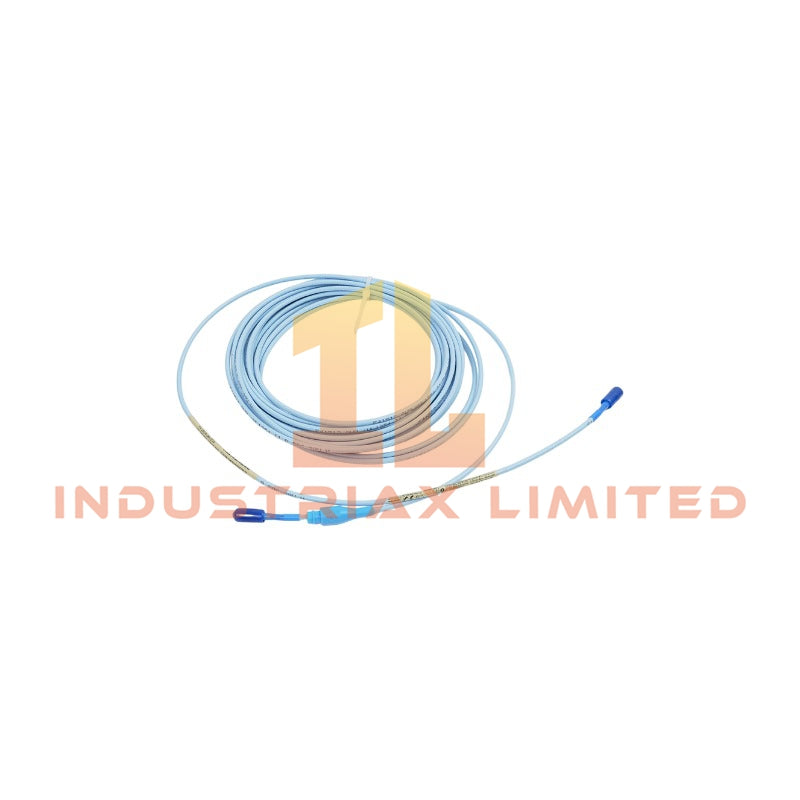

The Bently Nevada 330130-085-02-05, also cataloged as the 330130 3300 XL 8mm Extension Cable, operates as a dedicated hardware component for proximity signal transmission and probe-to-sensor connection within the Bently Nevada 3300 XL 8mm Proximity Transducer System.
Hardware Specifications
Parameter
Specification
Model
330130-085-02-05
Brand
Bently Nevada
Product Type
3300 XL 8mm Extension Cable
Origin
USA
Weight
0.3 kg
Dimensions
Estimated shipping size: 20 x 20 x 3 cm
Operating Temp
Extended temperature range applications
Power Consumption
Passive cable assembly, no external power consumption
Eddy-Current Signal Scaling and Rotor Dynamics Monitoring
The Bently Nevada 3300 XL 8mm Extension Cable maintains the electrical characteristics required for eddy-current probe scaling within the complete proximity transducer circuit. Therefore, it supports accurate conversion between probe gap distance and output voltage from the connected Proximitor Sensor.
The cable assembly preserves signal integrity for rotor dynamics applications by maintaining stable impedance and controlled transmission characteristics. In addition, the 50 ohm output resistance supports proper matching between the 3300 XL probe, extension cable, and Proximitor Sensor.
The 3300 XL system uses gap voltage validation with -10 VDC target conditions to verify correct probe operating position. Furthermore, the extension cable design supports vibration, axial position, Keyphasor reference, and speed measurement circuits.
Frequently Asked Questions
Q: What components connect with the 330130-085-02-05 extension cable? A: The 330130-085-02-05 connects a 3300 XL 8mm proximity probe to a 3300 XL Proximitor Sensor as part of the complete transducer system.
Q: Does the 330130-085-02-05 require external power? A: No. The extension cable is a passive signal transmission component and does not require independent power input.
Q: Can the cable be mixed with other 3300 XL 8mm system components? A: Yes. The 3300 XL 8mm system supports interchangeability between compatible probes, extension cables, and Proximitor Sensors without individual bench calibration.
Field Installation Guidelines
Install the 330130-085-02-05 cable according to the mechanical requirements of the 3300 XL 8mm proximity transducer system.
Route the extension cable away from high-current power cables and strong electromagnetic interference sources.
Maintain the specified minimum bend radius of 50.8 mm (2 in) during installation.
Verify connector engagement and mechanical protection before system commissioning.
Ensure proper cable shielding and grounding practices according to site electrical standards.
Confirm probe, extension cable, and Proximitor Sensor compatibility before operation.
Avoid excessive mechanical stress, sharp bends, and vibration-induced cable movement.
