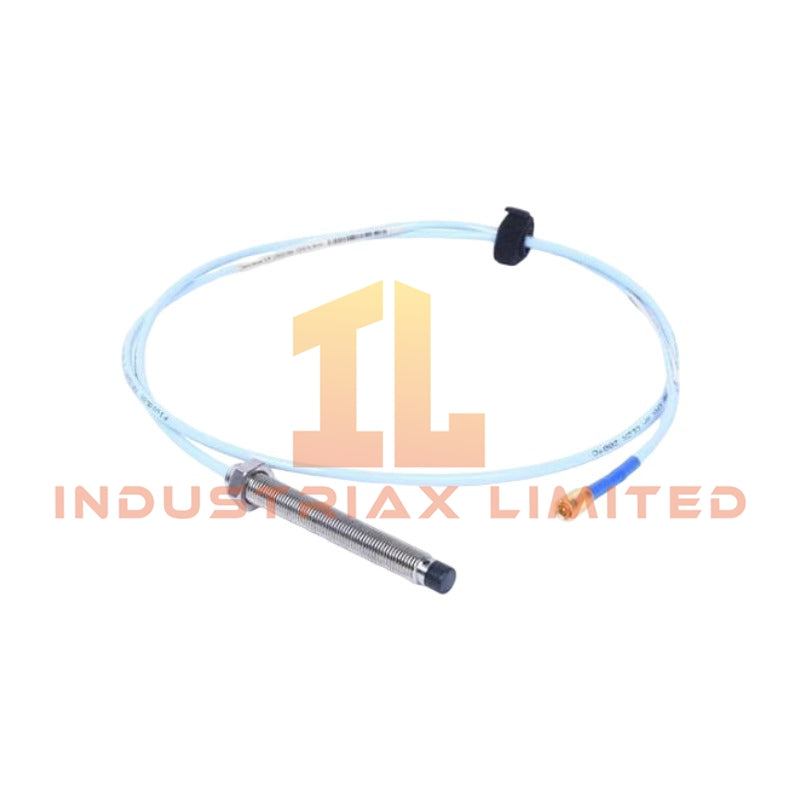

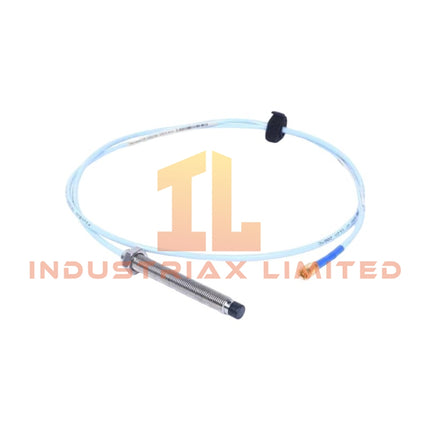

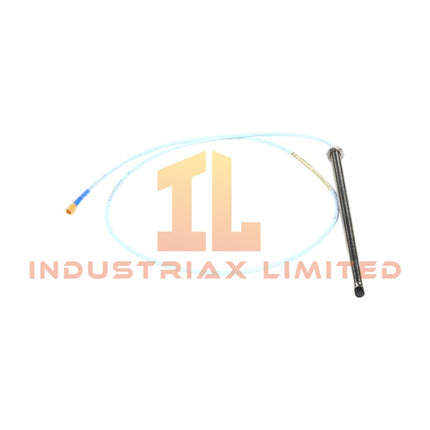

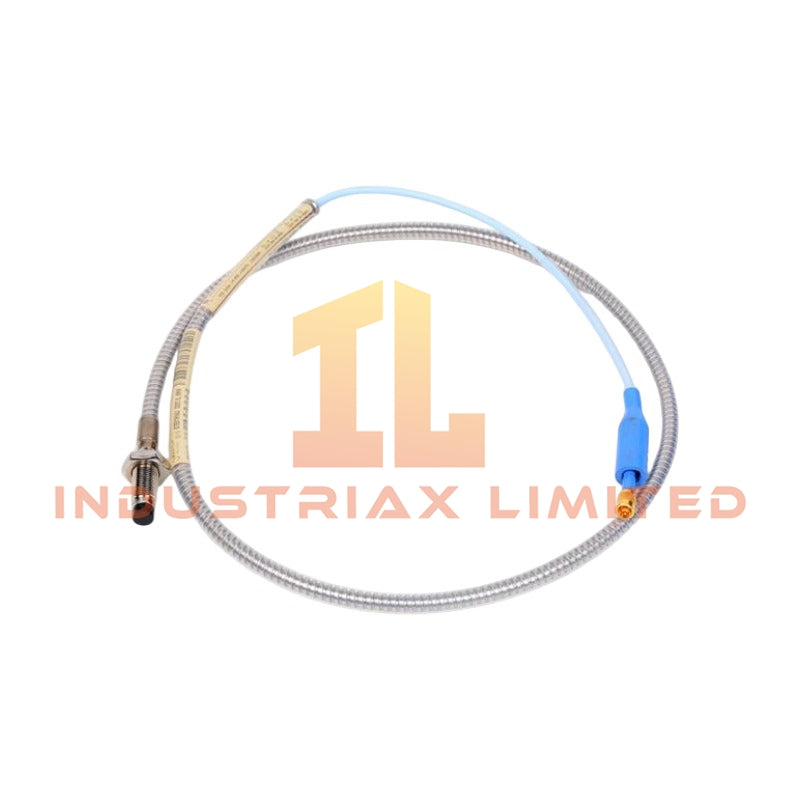

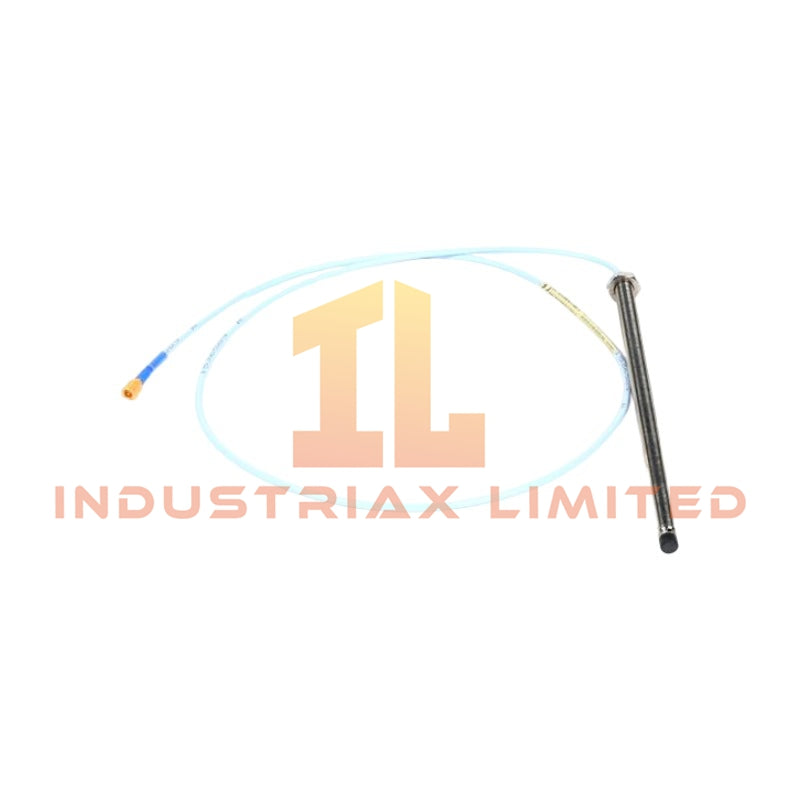

Bently Nevada 330104-00-22-10-01-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330104-00-22-10-01-05, also cataloged as the 330104 3300 XL 8 mm Proximity Probe, operates as a dedicated eddy-current measurement component for shaft displacement and vibration monitoring within Bently Nevada TSI monitoring systems.

Hardware Specifications

Parameter	Specification
Model	330104-00-22-10-01-05
Brand	Bently Nevada
Product Series	3300 XL 8 mm Proximity Probe
Origin	USA
Dimensions	Probe tip diameter: 8 mm; case length: 220 mm; total length: 1.0 meter
Operating Temp	Probe and cable: -51 deg C to +177 deg C
Power Consumption	Powered by Proximitor sensor system; input voltage: -17.5 VDC to -26 VDC
Measurement Principle	Eddy-current non-contact displacement measurement
Thread Type	M10 x 1 metric thread
Unthreaded Length	0 mm
Cable Protection	Flexible AISI 302 stainless steel armored cable
Connector Type	Miniature coaxial ClickLoc connector with connector protector
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 304 stainless steel
Linear Range	2.0 mm (80 mils)
Scale Factor	7.87 V/mm (200 mV/mil), +/-5% typical
Field Wiring Distance	Up to 305 meters between Proximitor sensor and monitoring system using recommended triad shielded cable
Hazardous Area Approval	CSA, ATEX, IECEx

Eddy-Current Probe Scaling and Rotor Dynamics Monitoring

The 330104-00-22-10-01-05 uses eddy-current sensing technology to convert shaft displacement into proportional electrical signals. The probe provides a scale factor of 7.87 V/mm for dynamic vibration and static position measurements.

Furthermore, the system requires gap voltage validation during commissioning to confirm the probe operating point. Bently Nevada proximity systems typically use approximately -10 VDC gap voltage targets to verify correct probe-to-shaft positioning.

The probe supports rotor dynamics analysis by measuring radial vibration, axial shaft position, speed references, and Keyphasor related signals. Therefore, engineers can evaluate shaft movement behavior through compatible TSI monitoring modules.

The armored cable construction reduces mechanical damage risks in industrial installations. Additionally, the miniature coaxial ClickLoc connector maintains signal continuity between the probe and the associated Proximitor sensor.

Frequently Asked Questions

Q: What measurement principle does the 330104-00-22-10-01-05 use?
A: The probe uses eddy-current technology to measure shaft displacement without physical contact between the probe tip and rotating shaft surface.

Q: What is the required operating voltage range for this proximity probe system?
A: The connected Proximitor sensor system operates with an input voltage range of -17.5 VDC to -26 VDC.

Q: What installation factors affect measurement accuracy?
A: Proper probe gap adjustment, shielded cable routing, correct grounding practice, and avoidance of electromagnetic interference affect signal accuracy.

Field Installation Guidelines

• Install the probe with the specified M10 x 1 metric thread engagement and verify mechanical alignment before operation.
• Maintain correct probe gap adjustment according to the monitoring system commissioning procedure.
• Connect the cable shield according to the TSI system grounding requirements to reduce electrical interference.
• Avoid routing proximity probe cables parallel to high-current power conductors.
• Inspect the armored cable and ClickLoc connector before installation to confirm mechanical integrity.
• Verify the gap voltage output after installation to confirm proper probe positioning and signal operation.
