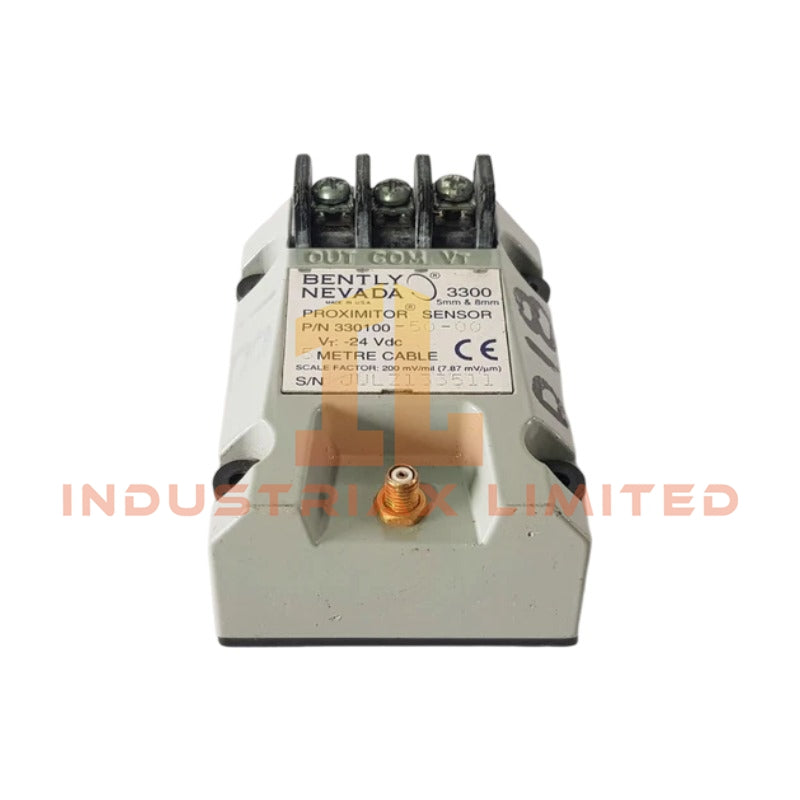

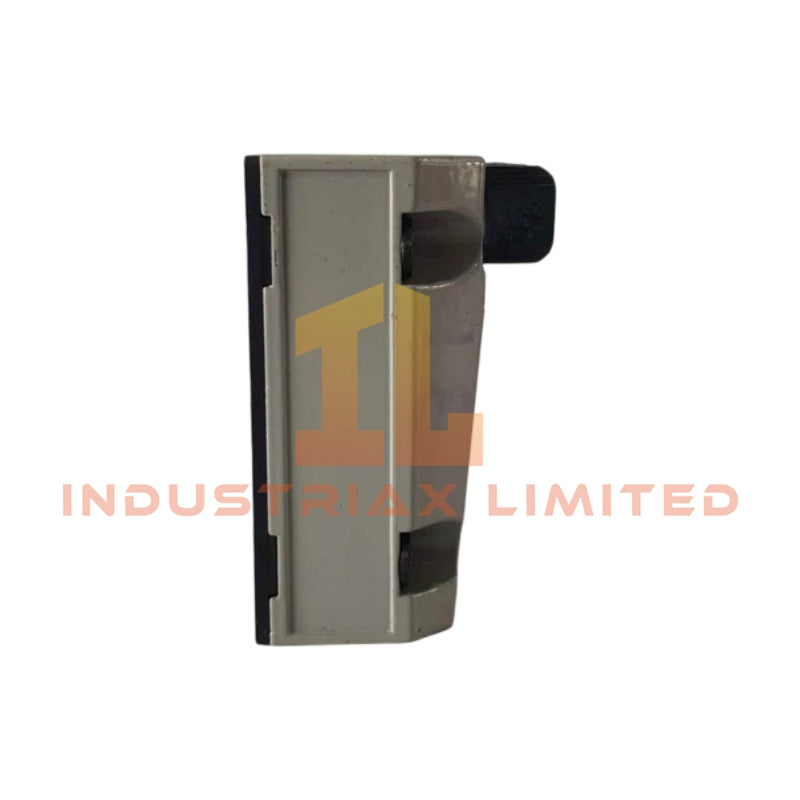

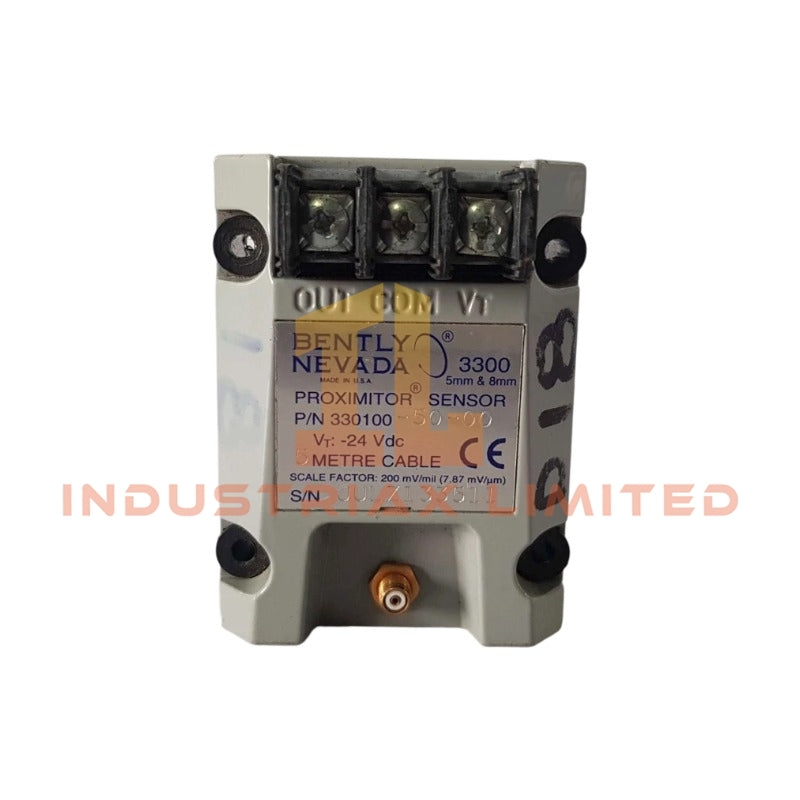

Bently Nevada 330100-50-00 3300 Proximitor Sensor

Configured for proximity probe signal conditioning in 3300 Machinery Monitoring System,the Bently Nevada 330100-50-00 (330100-50-00 3300 Proximitor Sensor) provides direct physical/electrical execution of eddy-current probe gap voltage conversion and linearized displacement output.

The module functions as a signal conditioning interface for Bently Nevada 3300 series proximity transducers, converting high-frequency probe oscillation into a stable DC output proportional to shaft radial vibration and position. It is designed for fixed-installation machinery monitoring where continuous gap voltage validation and linear range tracking are required. The unit supports extended probe cable termination up to 5 m total length configuration (50 option), with factory-defined calibration for standard 3300 system probe scaling.

Hardware Specifications

Parameter	Specification
ModelBrand	Bently Nevada 330100-50-00
Origin	USA
PowerConsumption	Powered via 3300 rack system backplane (exact load not specified)
ProductType	Proximitor Sensor
Total Cable Length	5 m (16.4 ft)
System Compatibility	Bently Nevada 3300 Monitoring System
Signal Type	Eddy-current probe conditioned voltage output

Bently Nevada Eddy-Current Signal Conditioning Characteristics

The 330100-50-00 operates within Bently Nevada 3300 proximity measurement architecture and is matched to eddy-current probe scaling characteristics. The internal conditioning stage maintains probe gap voltage linearization typically referenced against negative DC bias scaling (commonly centered around -10 VDC operating range within system calibration envelopes). This ensures stable displacement conversion under varying shaft material conductivity and environmental electromagnetic influence.

Cross-talk suppression is implemented at the conditioning interface level to reduce interference between adjacent probe channels in multi-channel rack configurations. The signal path is optimized for rotor dynamics monitoring, where phase-stable waveform integrity is required for orbit analysis and shaft centerline tracking.

Suffix Breakdown & Model Matrix

• 330100: 3300 Proximitor Sensor base module
• 50: Total cable length option (5 m)
• 00: Agency approval not required configuration

Frequently Asked Questions

Q: Can the 330100-50-00 be hot-swapped in a live 3300 rack system?
A: It is not designed for energized insertion or removal. System backplane interaction should be de-energized to avoid transient probe bias disruption and channel calibration drift.

Q: Does the module require individual channel calibration after replacement?
A: Calibration consistency is maintained through system-defined probe scaling; however, verification of gap voltage alignment is required after installation to confirm stable DC output baseline.

Q: What is the impact of extended probe cable length on signal stability?
A: Cable length affects capacitive loading on the eddy-current probe circuit. The 5 m configuration is factory-compensated, but improper routing can introduce attenuation and phase noise.

Field Installation Guidelines

• Maintain separation between probe wiring and high-voltage conductors to reduce electromagnetic coupling effects.
• Use shielded cable with single-point grounding at the monitoring rack end only.
• Avoid sharp bends in probe extension cables to preserve impedance consistency.
• Ensure secure seating in 3300 system rack to maintain backplane contact integrity.
• Verify probe gap voltage stability after power-up before enabling alarm thresholds.
