Description

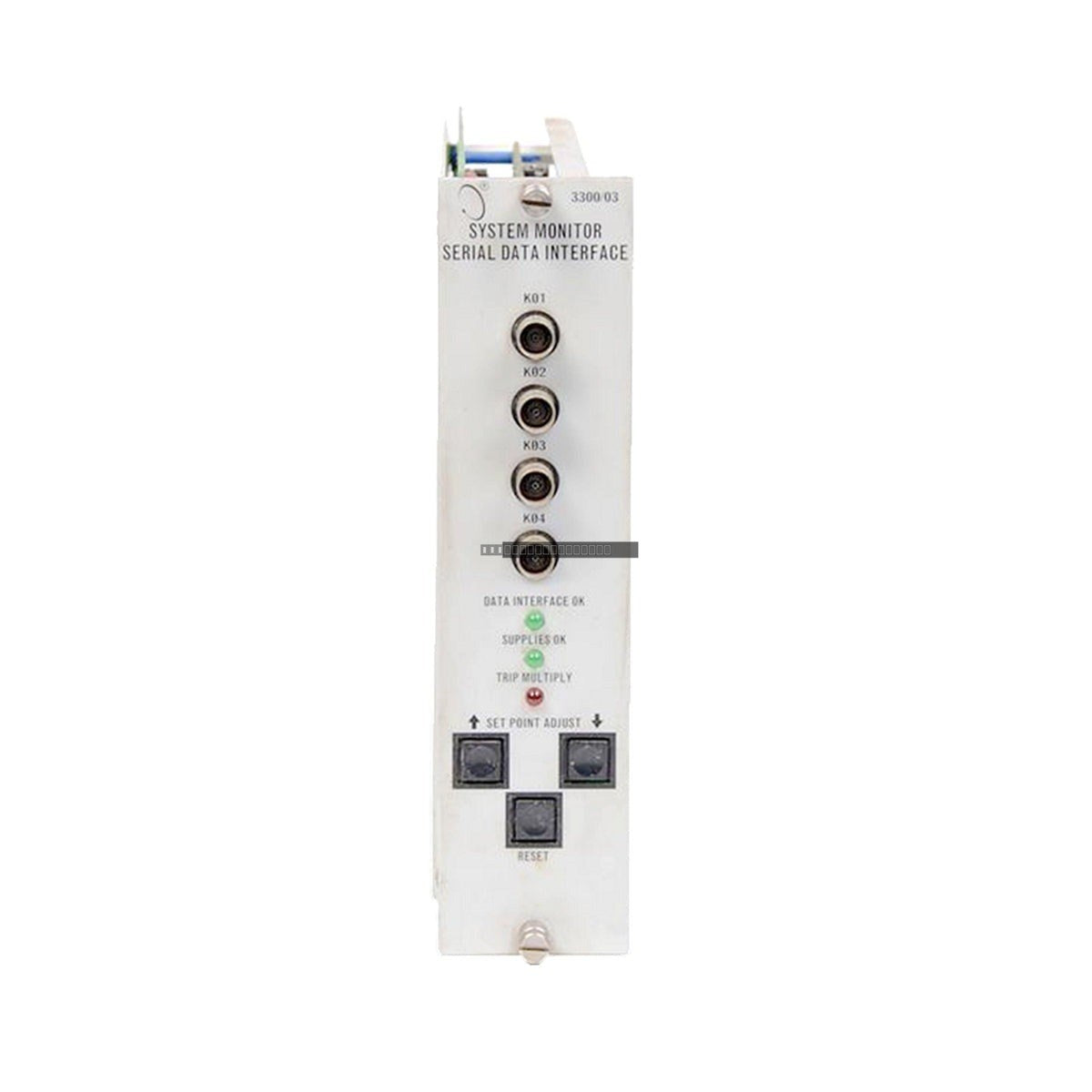

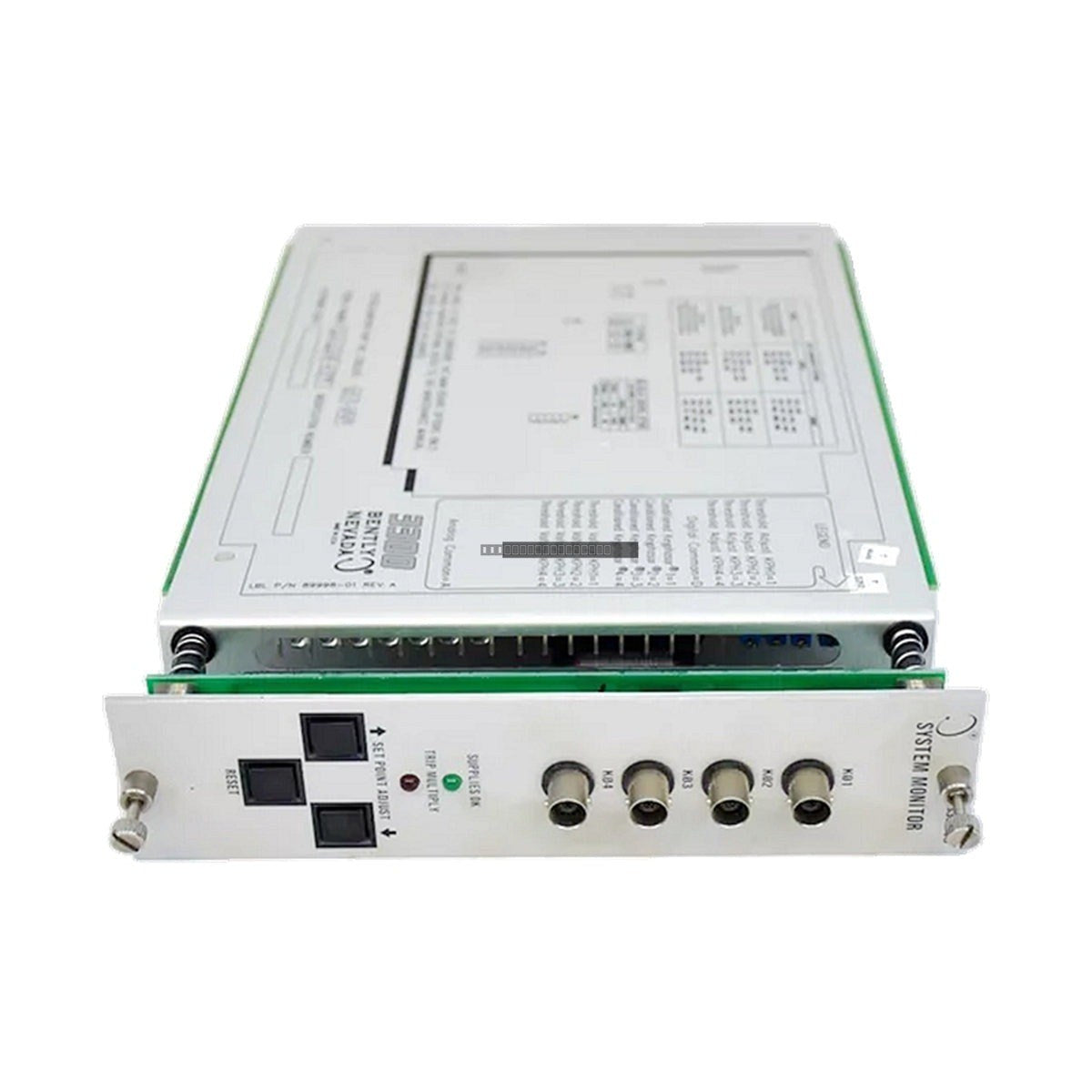

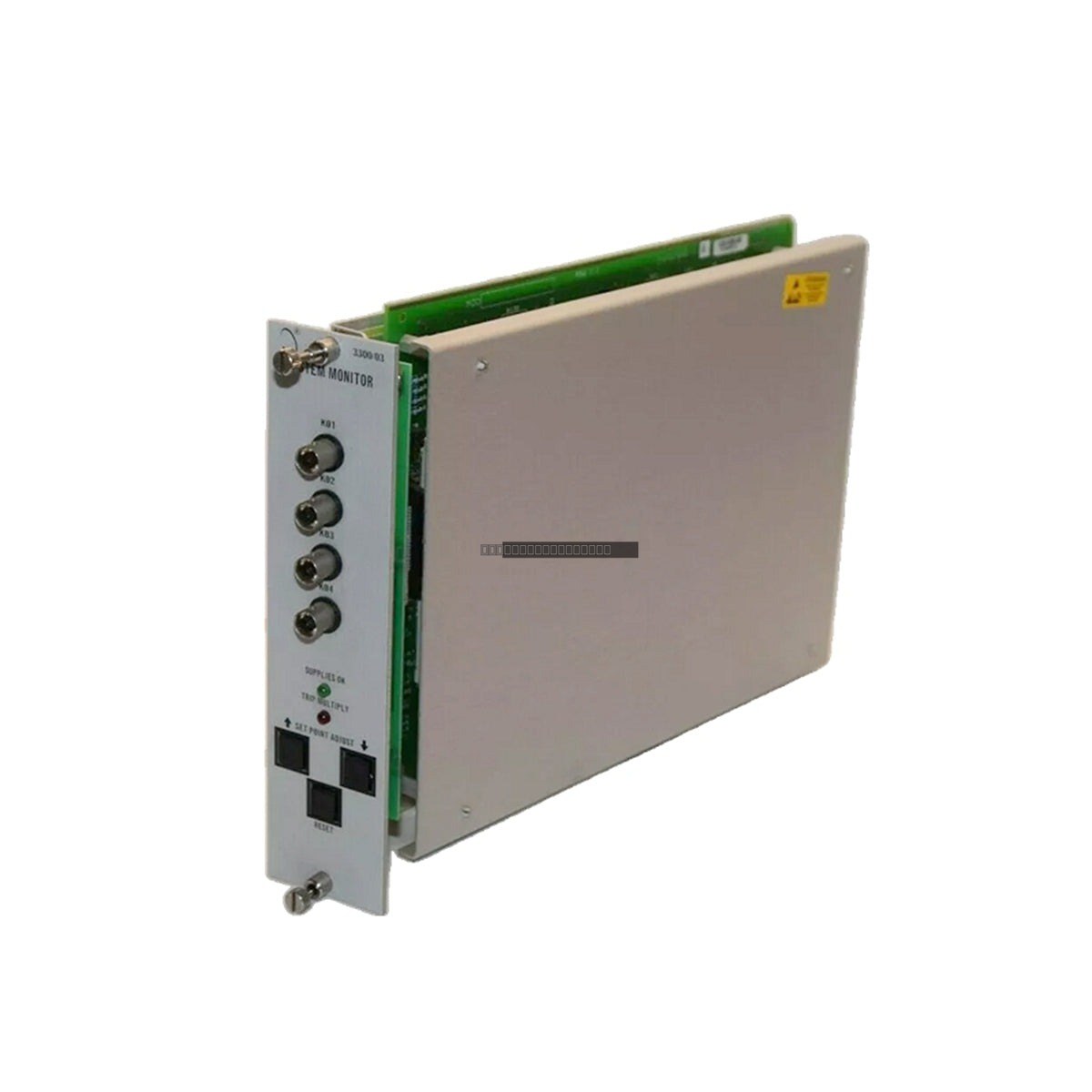

The Bently Nevada 3300/03-01-00 is a System Monitor Module designed for integration within the 3300 series machinery protection and monitoring architecture. This unit facilitates centralized monitoring and alarm management, providing essential diagnostic capabilities for industrial rotating machinery. As a legacy component, it is specifically engineered to handle system-level functions, including Keyphasor power distribution and alarm setpoint configuration.
Features
- Integrated RS232 communication port for system connectivity.
- Dedicated support for Keyphasor signal power requirements.
- Configurable alarm setpoint adjustment for precise threshold monitoring.
- Robust 18-24 VDC operating voltage range.
- Standard configuration without additional specialized approval options.
Technical Specifications
| Manufacturer |
Bently Nevada |
| Model Code |
3300/03-01-00 |
| System Type |
System Monitor Module |
| Power Requirements |
18-24 VDC |
| Power Consumption |
2 W |
| Communication Interface |
RS232 |
| Weight |
0.65 kg |
| Country of Origin |
United States |
Installation Guidelines
- Ensure the system is fully powered down before inserting or removing the module from the 3300 rack to prevent electrical damage or bus communication errors.
- Verify that the backplane connectors are clear of debris and oxidation before installation.
- Maintain proper module seating to ensure reliable electrical contact with the rack backplane.
- Route communication cables away from high-voltage lines or significant EMI sources to preserve signal integrity on the RS232 interface.
- Adhere to standard ESD protective measures when handling the module to prevent damage to sensitive internal components.
FAQ
What is the primary function of the 3300/03-01-00?
This module acts as a system monitor within the Bently Nevada 3300 series, managing alarm setpoints and providing necessary power to Keyphasor sensors within the monitoring rack.
Is this module still in production?
No, this specific model is marked as discontinued by the manufacturer. We provide these units as spare parts for existing legacy systems.
What voltage does this module require?
The unit operates on a standard 18-24 VDC power supply.
